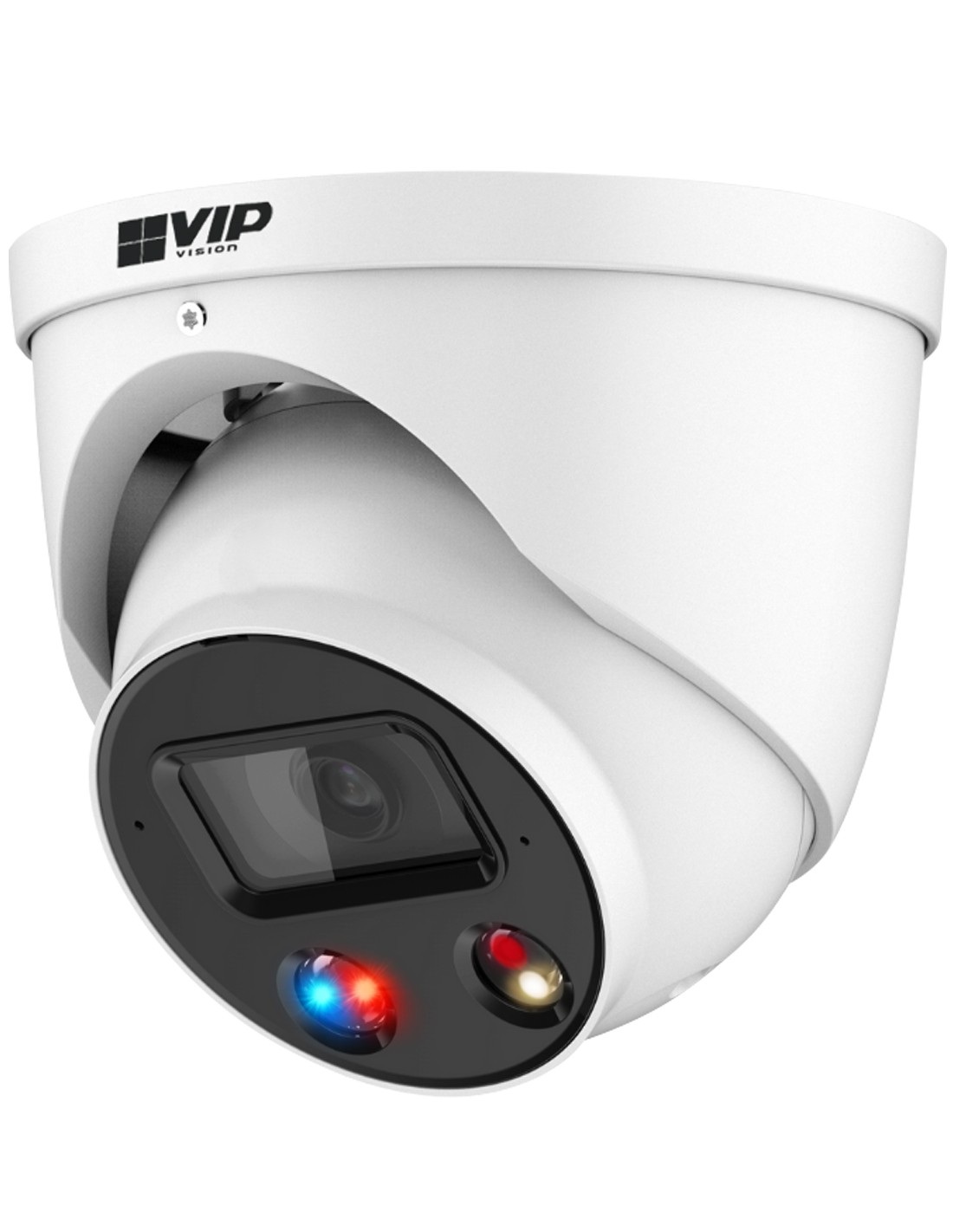

VIP Vision Professional AI Series 6.0MP Fixed Deterrence Turret - VSIPP-6DG-ID4
- Streams 6.0MP (3072 x 2048) at 25fps.
- 2.8mm lens with 97° viewing angle.
- Activates spotlight, siren, and colour mode on alarms.
- 24/7 colour in low light (0.005lx).
- 30m IR, BLC/HLC, true WDR (120dB).
- 3D noise reduction, auto white balance.
- H.265 for efficient storage/streaming.
- AI people/vehicle detection, alerts, and search.
- SMD 4.0 and perimeter protection to prevent false alarms.
- AI SSA for clear exposure adjustment.
- Built-in mic and speaker for 2-way audio.
- 1 audio in/output (RCA).
- MicroSD slot supports up to 256GB.
- IP67 weatherproof for outdoor use.
VIP Vision Professional AI Series 6.0MP Fixed Deterrence Turret
VSIPP-6DG-ID4
Featuring smart motion detection, the Professional AI Series can distinguish between people, vehicles & other motions to filter out false alarms. The VSIPP-6DG-ID3 includes a loud siren & flashing strobe lights that activate in response to alarm events (such as motion detection), deterring intruders and preventing crime before it happens.
The VSIPP-6DG-ID4 features 24/7 Colour at night to capture colour detail in the dark and Tripwire/Intrusion detection to detect people & vehicles in specific areas.
Camera Features:
• Stream up to 6.0MP (3200 x 1800) at 25fps
• 2.8mm fixed lens with 97° viewing angle
• Activates spotlight, flashing light & siren, and switches from IR to colour in response to alarm events
• 24/7 Colour low light performance at 0.004lx
• Up to 30m infrared, BLC/HLC & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• H.265 encoding for efficient storage & streaming
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• Next-Gen Smart Motion Detection (SMD 4.0) & Perimeter Protection to prevent false alarms, using VIP Vision NVRs
• AI SSA detects/adjusts exposure to ensure clear video.
• MicroSD slot for recording at the edge up to 256GB
• IP67 weather rated housing for outdoor use
- Dimensions
- Ø122mm x 111mm
- Ethernet
- RJ-45 (10/100Base-T)
- Housing
- Metal
- Net Weight
- 0.75kg
- Operating Conditions
- -40°C ~ +60°C / ≤95% RH
- Power Supply
- 12VDC / PoE
- Ingress Protection
- IP67
- Vandal Resistance
- N/A
- Bit Rate
- H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps
- Frame Rate (Main)
- 6.0MP (1 ~ 25fps)
- Frame Rate (Sub)
- 704 x 576 (1 ~ 25fps)
- Frame Rate (Third)
- 1080p (1 ~ 25fps)
- Max. User Access
- 20 Users (Total bandwidth: 64MB)
- Power Consumption
- < 8.6 W (12 VDC); < 10.1 W (PoE)
- Video Compression
- H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPEG
- Resolution
- 6.0MP (3072 x 2048) to CIF (352 x 288 288/352 × 240)
- Series
- Professional AI Series
- Focus
- Auto Focus / 1.5m Min. Focus Distance
- Interoperability
- ONVIF (Profile S, Profile G, Profile T) / P2P / CGI / Milestone
- Effective Pixels
- 3072 (H) x 2048 (V)
- Image Sensor
- 1/2.7” 8.0MP Progressive Scan CMOS
- RS485
- N/A
- Alarm Interface
- 1 channel in: 5mA 3-5VDC / 1 channel out: 300mA 12VDC
- Camera Type
- Turret
- Max. Resolution
- 6.0 Megapixel
- Field of View
- Horizontal: 97°, Vertical: 70°, Diagonal: 128°
- Lighting Compensation
- BLC / HLC / WDR (120dB)
- Day/Night
- Auto (ICR) / Color / B&W
- Detect (25px/m)
- 66m
- Gain Control
- Auto
- Identify (250px/m)
- 7m
- Lens Type
- Fixed
- Noise Reduction
- 3D DNR
- Observe (63px/m)
- 26m
- Recognise (125px/m)
- 13m
- White Balance
- Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
- Audio Interface
- Built-in Mic & Built-in Speaker, 1 Audio In/Output (RCA) / Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723
- Bit Rate Control
- Constant bit rate (CBR) / Variable bit rate (VBR) / Average Bit Rate (ABR)
- Edge Storage
- MicroSD Card (up to 256GB) / NAS / FTP / SFTP
- ePoE
- No
- Infrared System
- 1 x Infrared LED, 30m range, Auto/manual on/off control
- Intelligent Functions
- Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog, Object Abandoned / Missing
- Lens / Iris
- 2.8mm F1.0 Fixed Focal Lens with Fixed Iris
- Min Illumination
- 0.005 Lux/F1.4 (Color , 30 IRE), 0.0005 lux/F1.4 (B/W, 30 IRE), 0 lux (IR)
- Pan/Tilt/Rotation
- Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
- Picture Control
- Mirror / Flip (0°, 90°, 180°, 270°)
- Protocol
- IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
- RAM / ROM
- 2G / 256MB
- S/N Ratio
- > 56dB
- Smart Scene Adaptive (SSA)
- Yes
- Streaming Method
- Unicast / Multicast
- Video Interface
- N/A
- Event Trigger
- Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
- Face Attributes
- N/A
- Face Detection
- N/A
- Heat Map
- N/A
- Intelligent Search
- Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle, Search by attributes such as clothing/vehicle colour and vehicle type
- People Counting
- N/A
- Perimeter Protection
- Tripwire, Intrusion, fast moving, parking detection (Add recognition of humans & vehicles)
- Active Deterrence
- 1 x Red & Blue Strobe, 1 x Loudspeaker Siren
- White Light LED
- 1 x Spotlight (Warm White), Auto/manual on/off control
