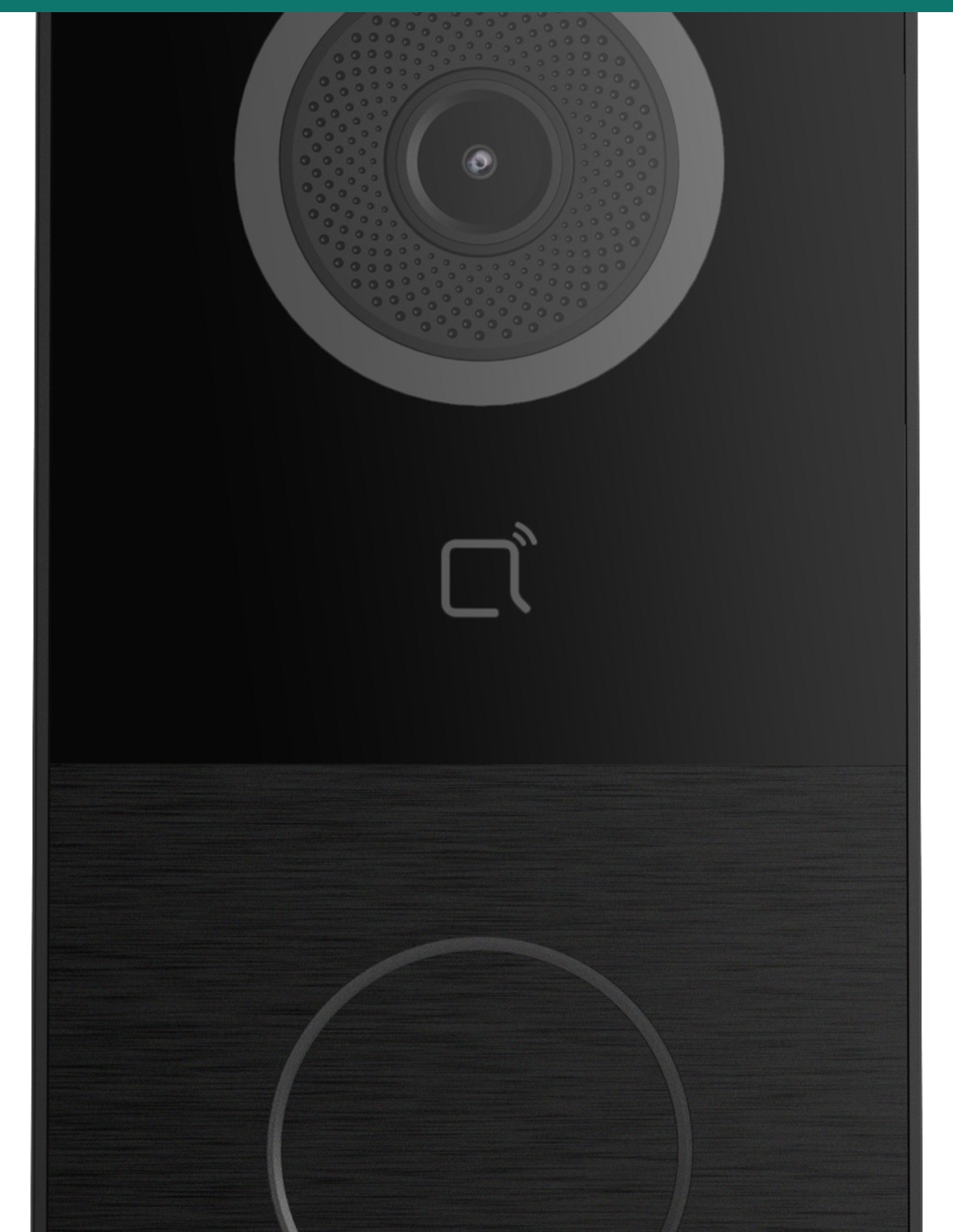

Akuvox E12S black — SIP video doorbell front view

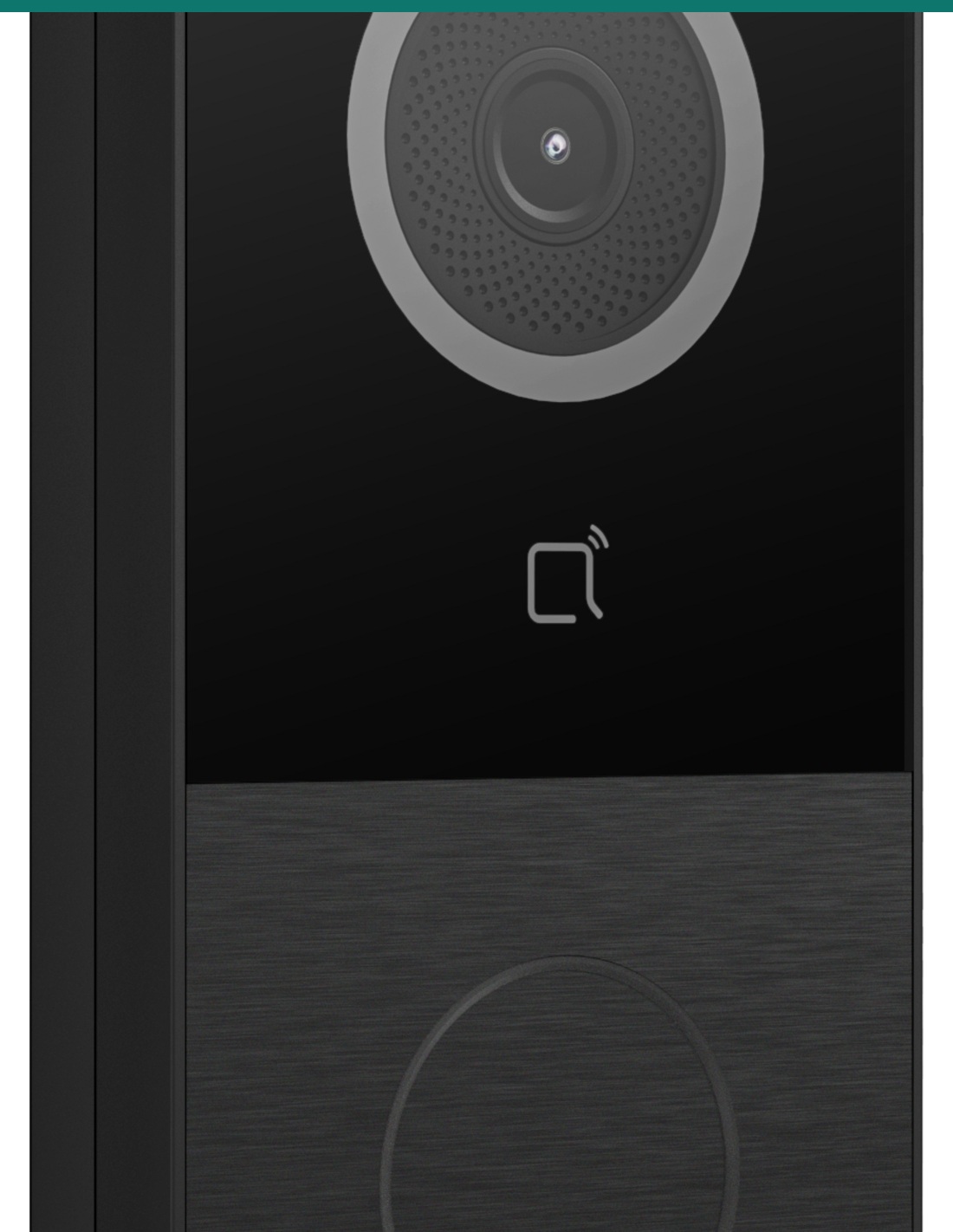

Akuvox E12S black — side / detail product shot

Akuvox E12S Black SIP Video Doorbell (Ethernet) — AK-E12S-BLACK

Name: Akuvox E12S Black SIP Video Doorbell (Ethernet) — AK-E12S-BLACK
Brand: Akuvox
SKU: AK-E12S-BLACK
Price: 218.94 AUD
Availability: InStock

Reference: AK-E12S-BLACK

In Stock - Ready to Ship

$ 218.94

inc-GST

Akuvox E12S black SIP video doorbell — the Ethernet-focused E12 door station with 2 MP wide-angle camera, IP65 sealing and PoE or 12 V power (no Wi-Fi on this SKU).

✓2 MP camera, 123° (H) / 69° (V)
✓RJ45 10/100 — no Wi-Fi line on E12S datasheet
✓PoE 802.3af or 12 V DC; IP65 plastic body
✓1 call button, 1 relay, 2 inputs, Wiegand, BLE 5.0
✓146×70×23 mm; −40 °C to +60 °C

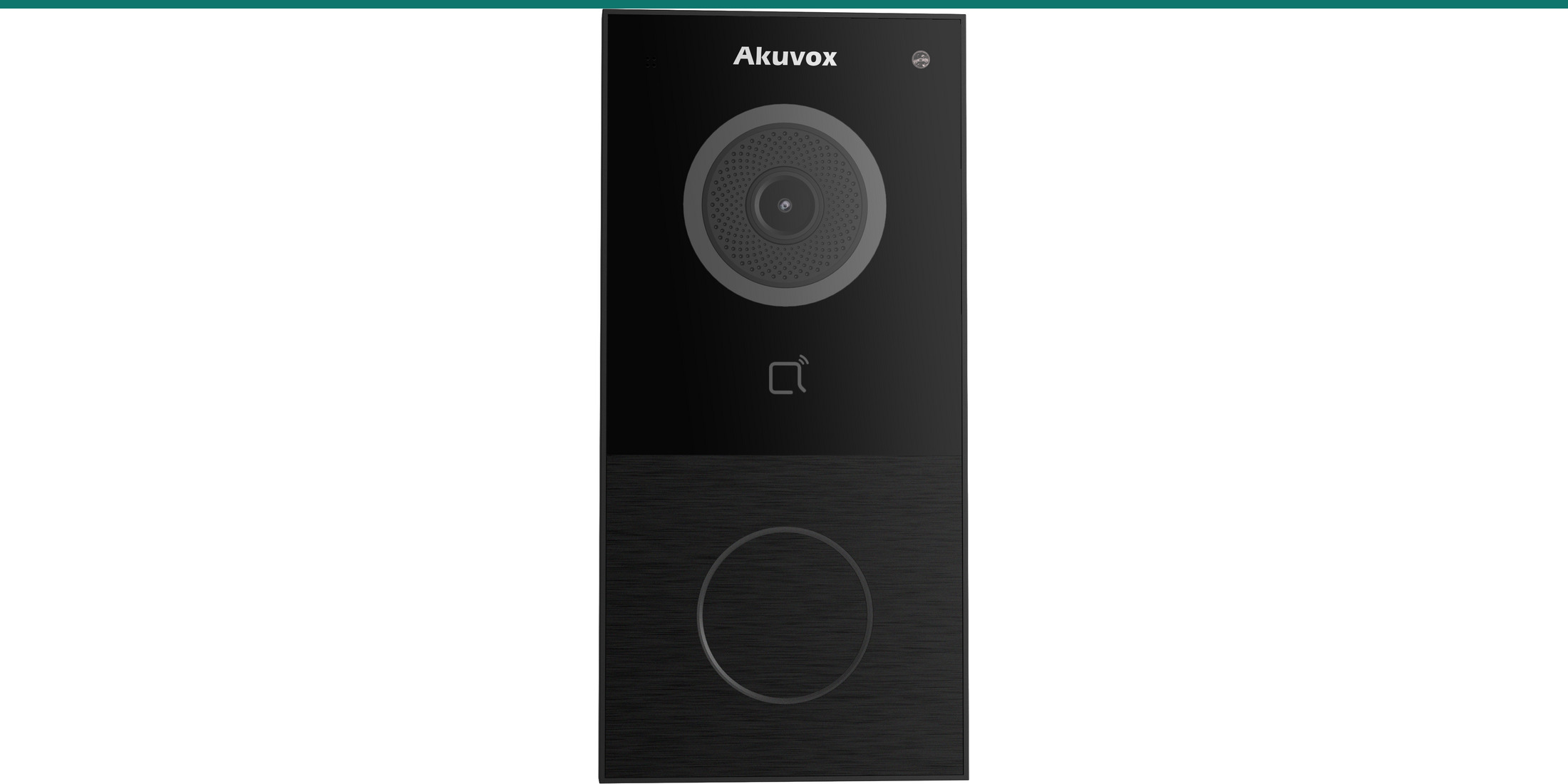

Akuvox E12S black SIP video doorbell — editorial hero

Akuvox · E12S · Black · Ethernet SIP Doorphone

SIP video doorbell.
Black E12S — wired, not Wi-Fi.

The Akuvox AK-E12S-BLACK matches the E12 outdoor form factor in black plastic with Linux SIP/ONVIF door video, but the E12S datasheet has no Wi-Fi line — plan on RJ45 with PoE 802.3af or 12 V DC. BLE 5.0 remains listed.

DOOR STATION ADD-ON — NEEDS INDOOR MONITOR / APP / PoE (OR 12 V)

Outdoor door station only. Pair with an indoor monitor, app or SIP client, and provide Ethernet power (PoE) or 12 V plus lock wiring on the relay path.

In the box

Akuvox E12S door station (black)
Mounting hardware
Quick-start documentation

What you also need (sold separately)

Indoor monitor and/or SIP app endpoint
802.3af PoE or 12 V DC PSU
Cat 5e/6 to the door
Electric lock path as required

Unsure what’s compatible? See Pair it with below or contact us before ordering.

Same black plate language, Ethernet-first.

Choose E12S when the entry already has structured cabling and you want to avoid wireless variables at the door leaf. Need dual-band Wi-Fi? Step to E12W black.

Akuvox E12S black front — 2MP SIP doorbell

CAMERA · 01

2 MP wide-angle door video.

2 MP camera, 123° (H) / 69° (V), H.264 up to 1080p, white-light LED and light sensor support for night calls.

Single outdoor call button keeps visitor UX simple for villas and townhouses.

NETWORK · 02

RJ45 first — no Wi-Fi SKU claim.

RJ45 10/100 adaptive Ethernet is the uplink. Unlike E12W, the E12S datasheet does not list Wi-Fi — do not sell it as a wireless door phone.

BLE BT5.0 is still listed for short-range features where enabled in firmware.

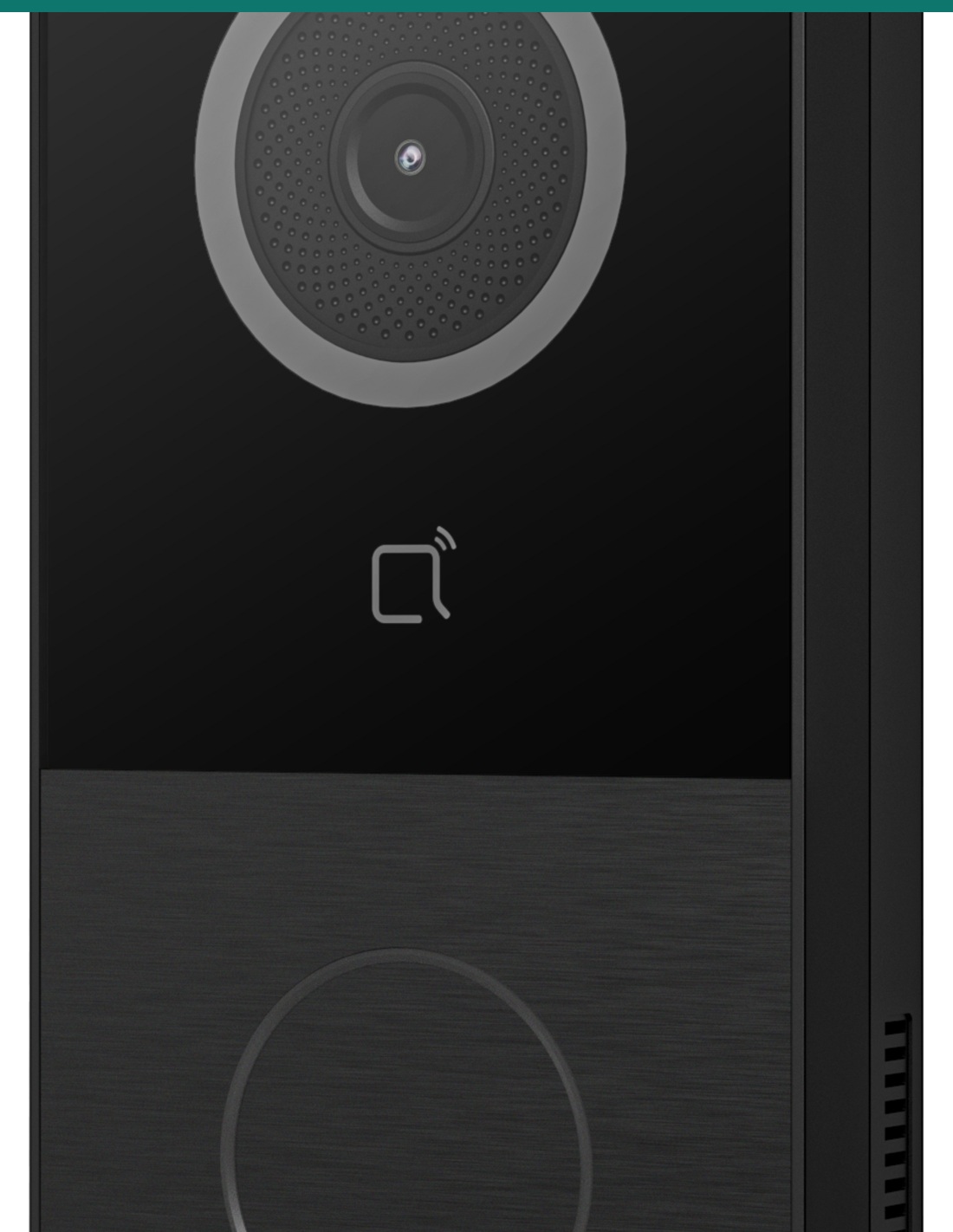

Akuvox E12S black angle — Ethernet SIP door station

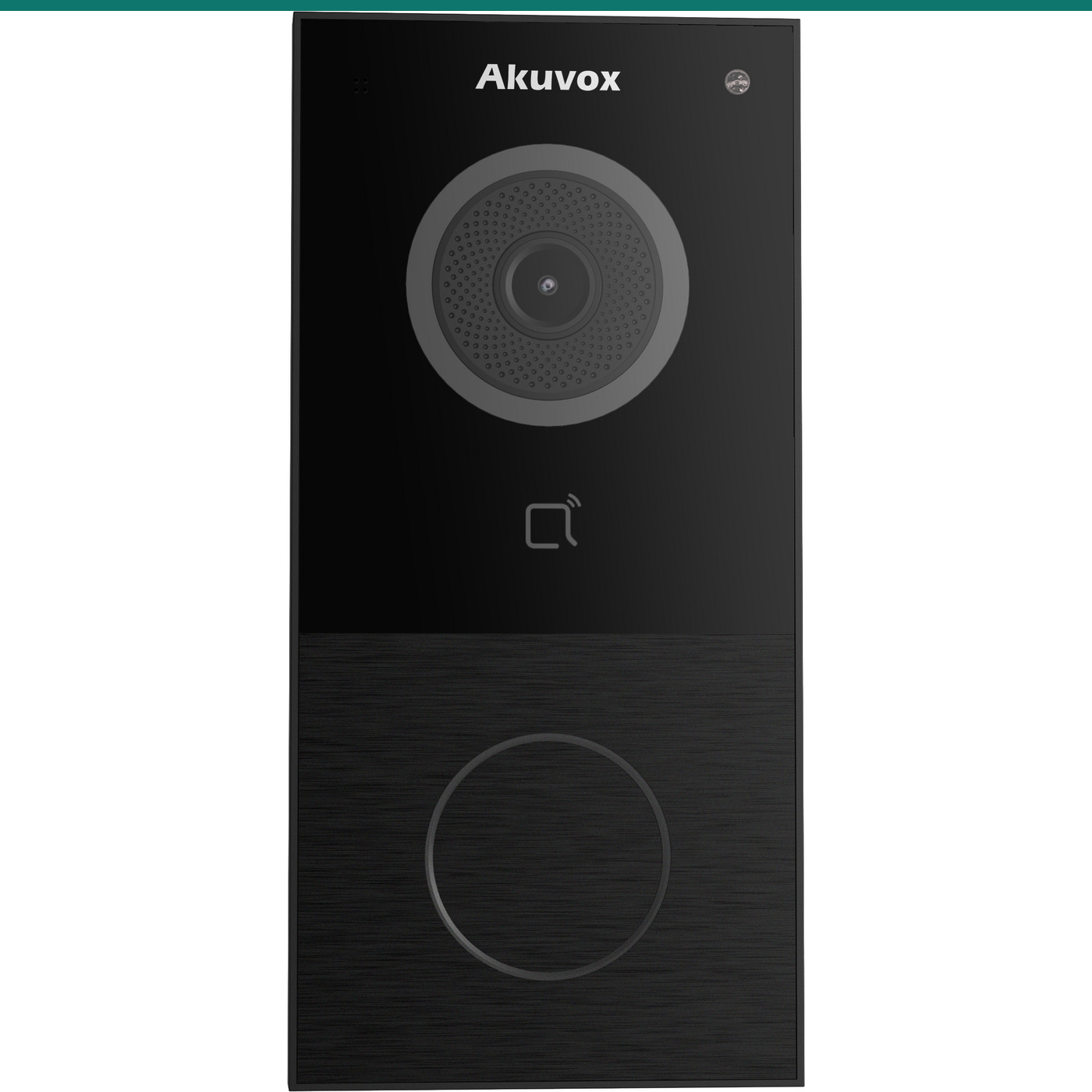

Akuvox E12S black — IP65 plastic door phone

I/O & BODY · 03

Relay, Wiegand, IP65.

1 relay, 2 inputs, Wiegand, TF slot, tamper, RF reader notes for 13.56 MHz & NFC (Android note).

IP65 plastic, 146×70×23 mm, −40 °C to +60 °C operating range.

How it works

Cable, register, unlock.

Mount

Surface-mount and weather the cable entry for IP65 duty.

PoE or 12 V

Land RJ45 PoE 802.3af or local 12 V DC.

SIP pair

Verify

Test call audio/video and lock release end-to-end.

At a glance

Key specs — AK-E12S-BLACK

Model: E12S (black) — AK-E12S-BLACK
Body: Plastic · IP65 · wall-mounted
Camera: 2 MP, 123° (H) / 69° (V)
Wi-Fi: Not on this SKU — see E12W
Ethernet: RJ45 10/100 Mbps
Bluetooth: BLE BT5.0
Power: PoE 802.3af or 12 V DC
I/O: 1 relay, 2 inputs, Wiegand, TF slot
Dimensions: 146 × 70 × 23 mm
Operating temperature: −40 °C to +60 °C
Warranty: Australian warranty via Infront Technologies

Pair it with

Typical building blocks

Indoor

S562 Linux monitors

Wired indoor answering panels for Ethernet-centric sites.

Wi-Fi sibling

AK-E12W-BLACK

Same black E12 look with dual-band Wi-Fi when cable is awkward.

Power

802.3af PoE

Preferred single-cable power/data to the door.

Credential

MIFARE fob / card

13.56 MHz credentials when the RF reader path is enabled.

Answers

Common questions

Does E12S have Wi-Fi?

No Wi-Fi line on the E12S datasheet. Order AK-E12W-BLACK if you need wireless at the door.

Power options?

PoE 802.3af or 12 V DC.

IP rating?

IP65, outdoor-oriented, −40 °C to +60 °C.

Complete kit?

No — door station add-on only; pair with an answering endpoint and power.

Black E12S for wired Australian entries.

Stocked and supported by Infront Technologies — E12S black datasheet attached, matching indoor monitors available.

Installation & safety notice

Low-voltage product (SELV). The AK-E12S-BLACK is a SELV door station powered by IEEE 802.3af PoE or a plug-in 12 VDC supply — no mains work is required on the device itself, and there is no 240 V wiring inside the unit.

When a licensed tradesperson is required. Concealed structured data / intercom cabling is customer cabling under AS/CA S009 and must be performed by an ACMA-registered cabler. Any electric lock, maglock or dedicated lock PSU is a separate electrical/security install and may require a licensed electrician or security installer.

Specifications in good faith. Firmware features and packing details can change at Akuvox’s discretion — verify the attached datasheet (where provided) for your hardware revision before ordering. Stocked and supported by Infront Technologies.
