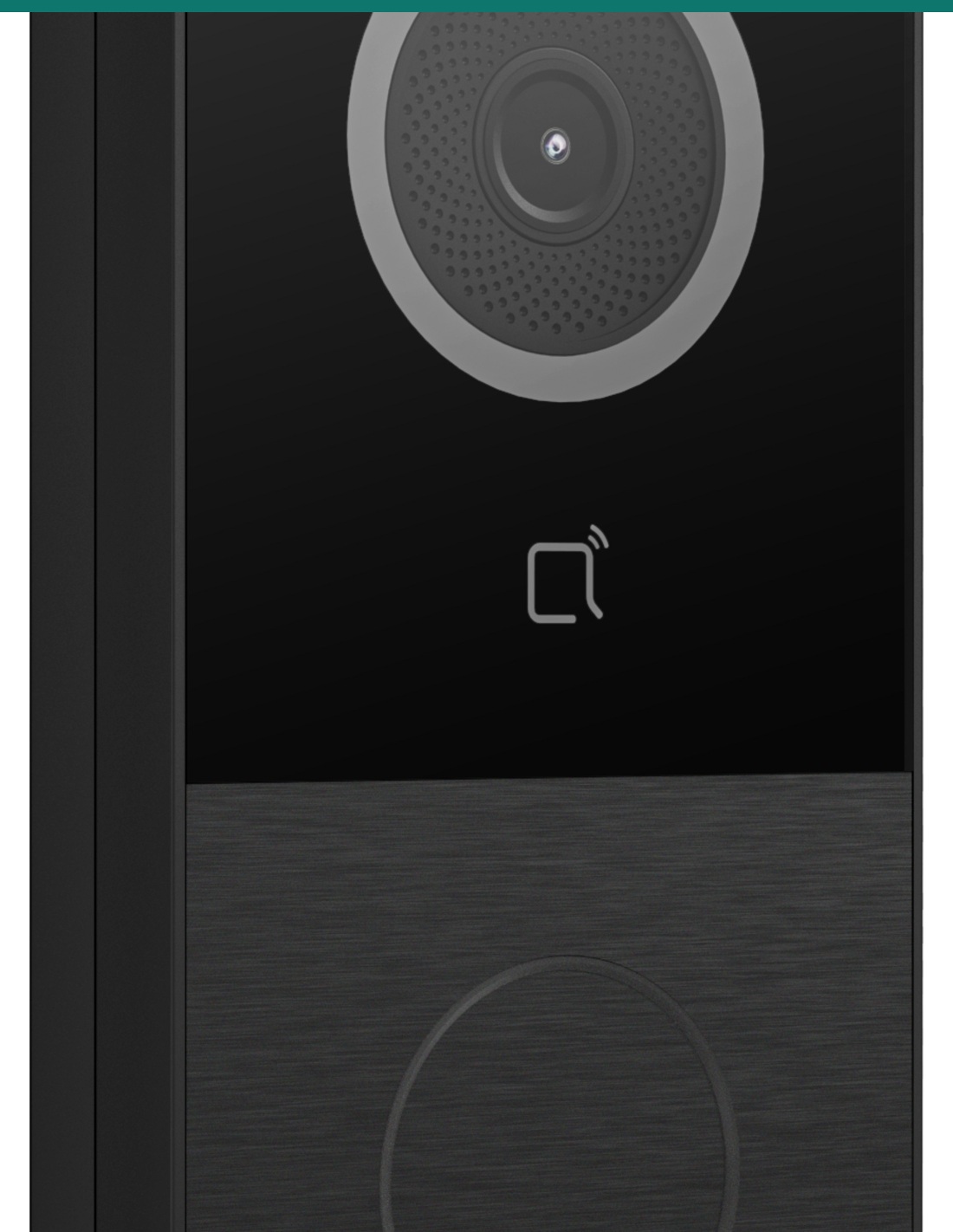

Akuvox E12W black — SIP video doorbell front view

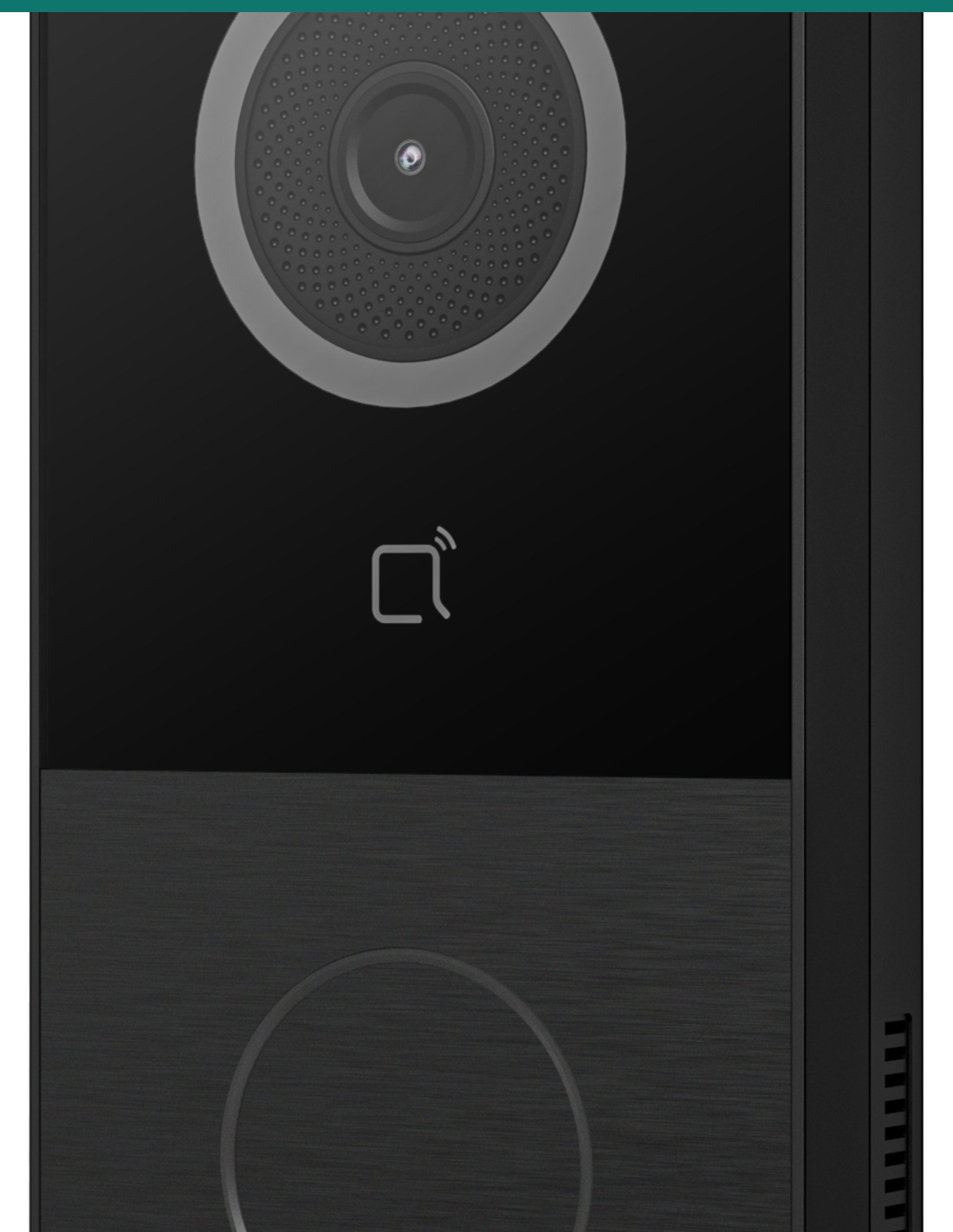

Akuvox E12W black — side / detail product shot

Akuvox E12W Black SIP Video Doorbell with Wi-Fi — AK-E12W-BLACK

Name: Akuvox E12W Black SIP Video Doorbell with Wi-Fi — AK-E12W-BLACK
Brand: Akuvox
SKU: AK-E12W-BLACK
Price: 239.58 AUD
Availability: InStock

Reference: AK-E12W-BLACK

In Stock - Ready to Ship

$ 239.58

inc-GST

Akuvox E12W black SIP video doorbell — a compact IP65 outdoor door station with 2 MP wide-angle camera, Wi-Fi (2.4/5 GHz) and PoE or 12 V power for villas and street entries.

✓2 MP camera, 123° (H) / 69° (V) viewing angle
✓Wi-Fi IEEE802.11a/b/g/n/ac/ax @2.4&5 GHz + BLE 5.0
✓PoE 802.3af or 12 V DC; IP65 plastic body
✓1 call button, 1 relay, 2 inputs, Wiegand
✓146×70×23 mm; −40 °C to +60 °C

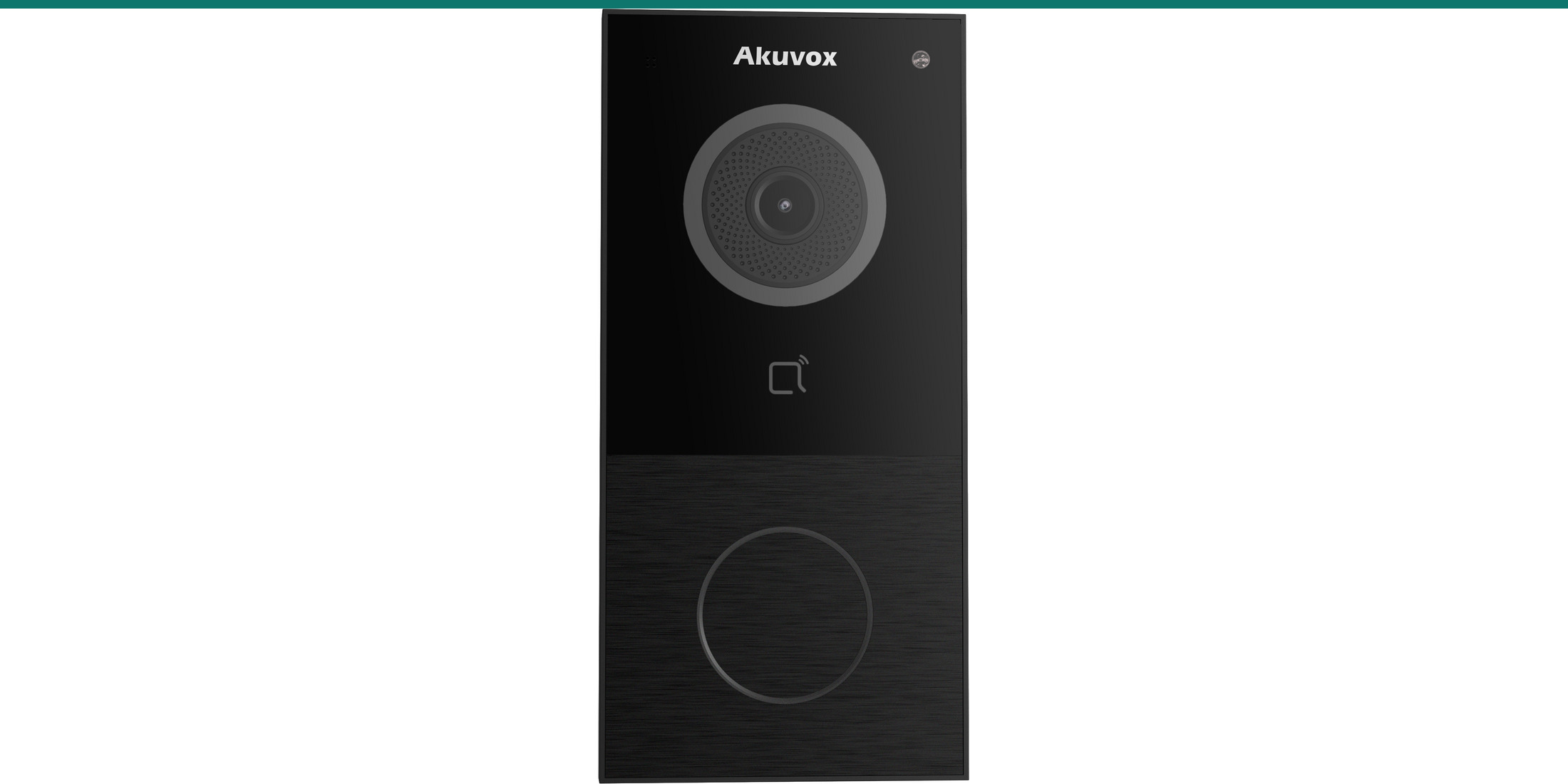

Akuvox E12W black SIP video doorbell — editorial hero

Akuvox · E12W · Black · Wi-Fi SIP Doorphone

SIP video doorbell.
Black, IP65, Wi-Fi and PoE.

The Akuvox AK-E12W-BLACK is the black E12W villa door phone: Linux SIP/ONVIF door entry with a 2 MP wide-angle camera, single call button, and wireless options via Wi-Fi (2.4&5 GHz) plus BLE 5.0 — or run it on RJ45 with PoE 802.3af / 12 V DC.

DOOR STATION ADD-ON — NEEDS INDOOR MONITOR / APP / PoE (OR 12 V)

This is the outdoor door station only. Residents answer on an Akuvox indoor monitor, softphone/app, or SIP endpoint. Provide PoE 802.3af or a local 12 V DC supply, plus lock wiring on the relay path as designed.

In the box

Akuvox E12W door station (black)
Mounting hardware
Quick-start documentation

What you also need (sold separately)

Indoor monitor and/or SIP app endpoint
802.3af PoE switch/injector or 12 V DC PSU
Electric lock / maglock path as required
Optional rain hood / angle bracket accessories

Unsure what’s compatible? See Pair it with below or contact us before ordering.

See who is at the gate before you unlock.

Wide 123° horizontal coverage and IP65 sealing suit Australian street entries, townhouse gates and villa porches where a slim black plate reads as intentional hardware, not a consumer gadget.

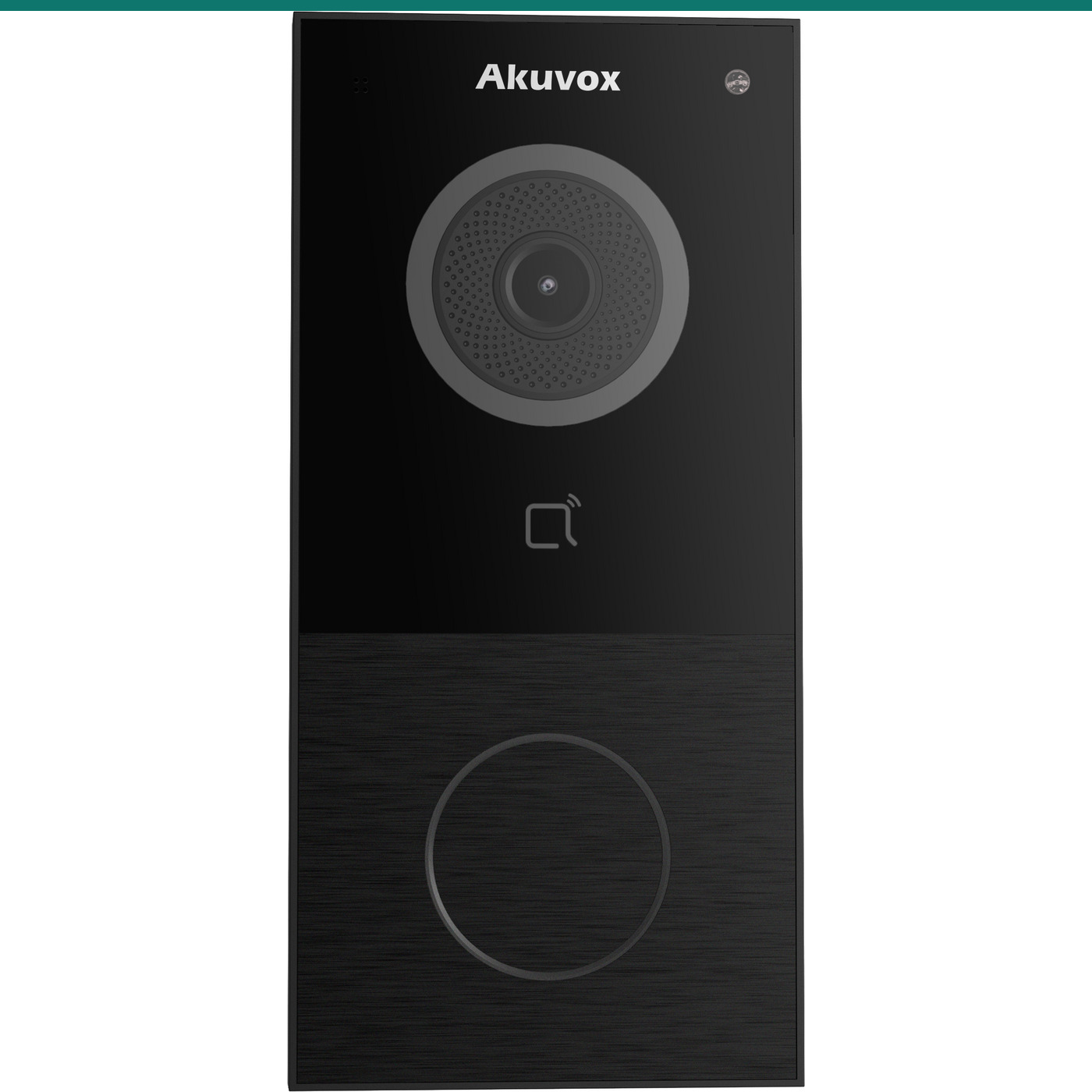

Akuvox E12W black front — 2MP wide-angle SIP doorbell

CAMERA · 01

2 MP at 123° horizontal.

2 MP camera with automatic lighting, 123° (H) / 69° (V) viewing angle, H.264 up to 1080p, and white-light LED / light sensor support for night approaches.

Minimum illumination 0.1 lux with auto-night mode per the E12W datasheet.

WIRELESS · 02

Wi-Fi dual-band plus BLE 5.0.

IEEE802.11a/b/g/n/ac/ax on 2.4 GHz & 5 GHz, with BLE BT5.0 — useful when pulling Cat cable to the door leaf is painful.

Still includes RJ45 10/100 for classic PoE installs. (Need Ethernet-only? See E12S black.)

Akuvox E12W black angle — Wi-Fi and BLE door station

Akuvox E12W black — IP65 plastic SIP door phone detail

I/O & BODY · 03

Relay, Wiegand, IP65 plastic.

1 relay, 2 inputs, selectable Wiegand, TF slot, tamper alarm, and RF reader notes for 13.56 MHz & NFC (Android note on datasheet).

Plastic body, wall mount, IP65, 146×70×23 mm, operating −40 °C to +60 °C.

How it works

From wall plate to first visitor call.

Mount & seal

Surface-mount the black E12W, keep cable entries weather-aware for IP65 duty.

Power & network

Feed PoE 802.3af or 12 V DC; join Wi-Fi or Ethernet to the LAN/SIP path.

SIP & unlock

Test night & day

Confirm video angle, LED night mode, and indoor/app answer paths.

At a glance

Key specs — AK-E12W-BLACK

Model: E12W (black) — AK-E12W-BLACK
Body: Plastic · IP65 · wall-mounted
Camera: 2 MP, 123° (H) / 69° (V)
Button: 1 call button
Wi-Fi: IEEE802.11a/b/g/n/ac/ax, 2.4&5 GHz
Bluetooth: BLE BT5.0
Ethernet: RJ45 10/100 Mbps
Power: PoE 802.3af or 12 V DC
I/O: 1 relay, 2 inputs, Wiegand, TF slot
Dimensions: 146 × 70 × 23 mm
Operating temperature: −40 °C to +60 °C
Warranty: Australian warranty via Infront Technologies

Pair it with

Typical building blocks

Indoor

S562 / S562W monitors

Answer door video on a wall-mounted Linux indoor station.

Power

802.3af PoE switch

One cable for power and data when Wi-Fi is not preferred.

Credential

FOB-F08 / CARD-EV3

13.56 MHz credentials for reader-equipped deployments.

Sibling

AK-E12S-BLACK

Same black E12 look without Wi-Fi — Ethernet/PoE focused.

Answers

Common questions

Does E12W include Wi-Fi?

Yes — dual-band IEEE802.11a/b/g/n/ac/ax at 2.4&5 GHz, plus BLE 5.0. E12S is the Ethernet-oriented sibling without a Wi-Fi line on the datasheet.

How is it powered?

IEEE 802.3af PoE or a local 12 V DC connector if not using PoE.

Is it outdoor rated?

Yes — IP65 with operating temperature down to −40 °C / up to +60 °C per datasheet.

Do I still need an indoor monitor?

You need some answering endpoint — Akuvox indoor monitor, smartphone app, or other SIP client. This SKU is the door station only.

Black or silver?

This listing is the black E12W housing.

Black E12W for Australian entries.

Stocked and supported by Infront Technologies — E12W black datasheet attached, trade pricing available, matching indoor monitors on the same catalogue.

Installation & safety notice

Low-voltage product (SELV). The AK-E12W-BLACK is a SELV door station powered by IEEE 802.3af PoE or a plug-in 12 VDC supply — no mains work is required on the device itself, and there is no 240 V wiring inside the unit.

When a licensed tradesperson is required. Concealed structured data / intercom cabling is customer cabling under AS/CA S009 and must be performed by an ACMA-registered cabler. Any electric lock, maglock or dedicated lock PSU is a separate electrical/security install and may require a licensed electrician or security installer.

Specifications in good faith. Firmware features and packing details can change at Akuvox’s discretion — verify the attached datasheet (where provided) for your hardware revision before ordering. Stocked and supported by Infront Technologies.
