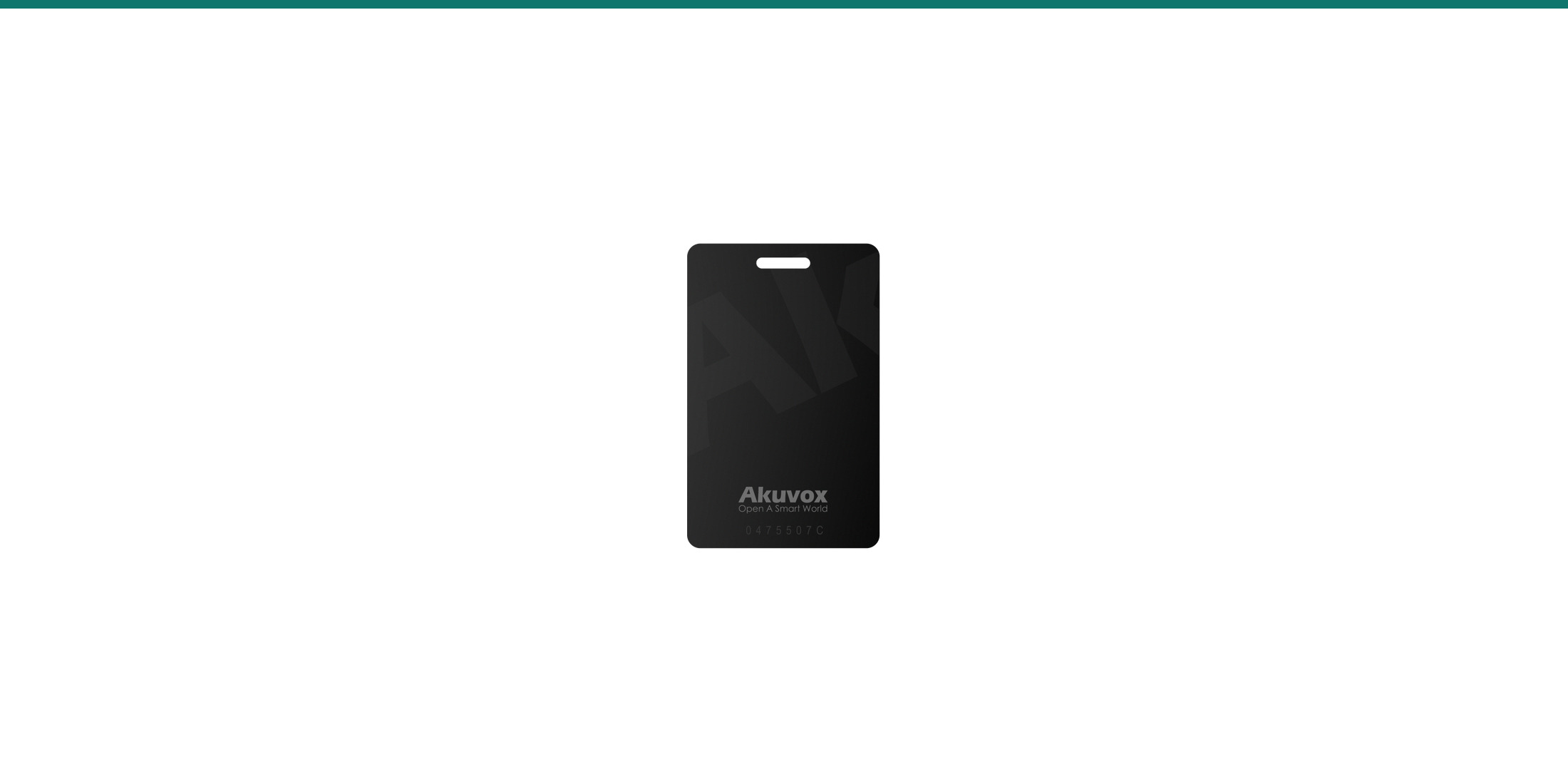

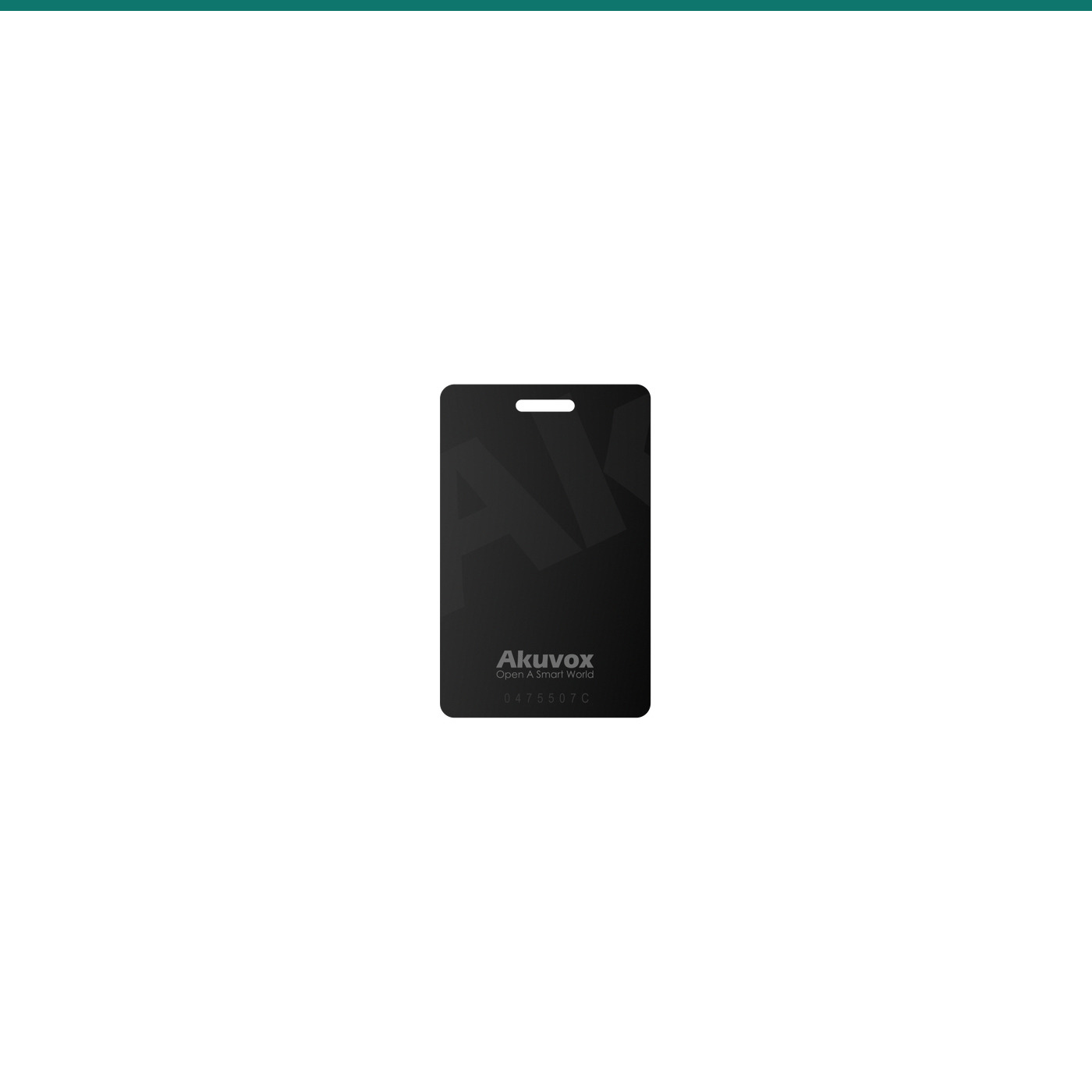

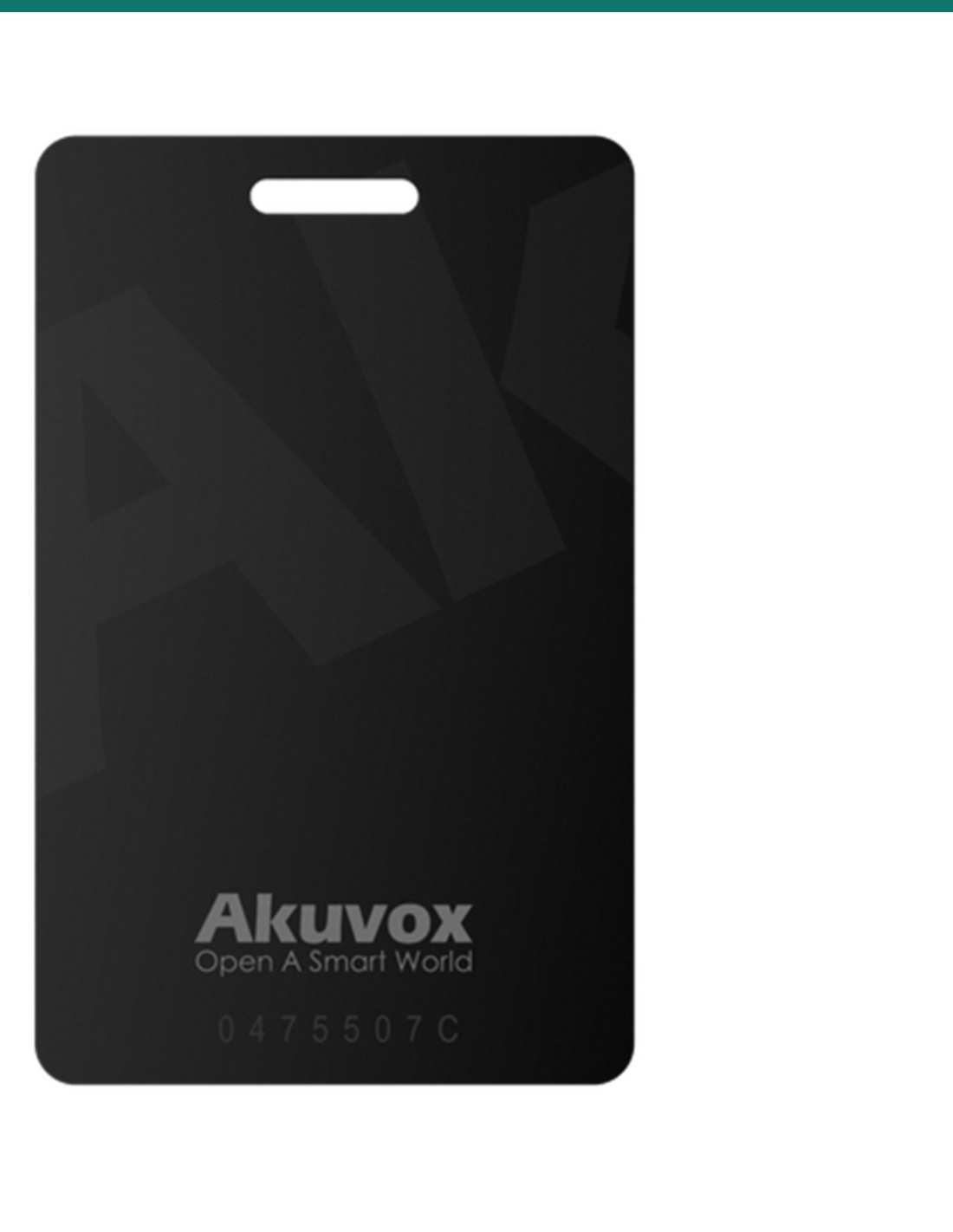

Akuvox RFID Card 125 kHz HID Prox — AK-CARD-HIDPROX
AK-CARD-HIDPROX
In Stock - Ready to Ship $ 20.63
inc-GST
Akuvox CARD-HIDPROX RFID card — a 125 kHz HID Prox credential for sites whose readers are still on classic Prox technology.
- ✓125 kHz HID Prox card media
- ✓For compatible HID Prox readers only
- ✓Card form for wallets and badge clips
- ✓Credential add-on — reader not included
Akuvox · Credential · HID Prox
125 kHz HID Prox card.
Classic Prox media for matching readers.
The AK-CARD-HIDPROX is an Akuvox 125 kHz HID Prox RFID card for access plants that still specify Prox — not 13.56 MHz MIFARE/DESFire.
ACCESSORY CREDENTIAL — NEEDS A COMPATIBLE 125 KHZ HID PROX READER
Card only. Confirm every reader on the door list is HID Prox 125 kHz before ordering. Do not issue these onto 13.56 MHz-only door stations.
In the box
- Akuvox CARD-HIDPROX RFID card
What you also need (sold separately)
- Compatible 125 kHz HID Prox reader
- Controller enrolment process
Unsure what’s compatible? See Pair it with below or contact us before ordering.
Match the reader technology first.
Prox cards only help when the installed readers speak Prox. Mixed HF/LF sites need separate credential SKUs.
OVERVIEW · 01
125 kHz HID Prox.
Low-frequency 125 kHzHID Prox card media per the feed specification.
Distinct from iCLASS and from 13.56 MHz DESFire/MIFARE cards.
DETAIL · 02
Badge-friendly card.
Standard card body for clips and wallets on legacy Prox sites.
Order spares for churn without waiting on imports.
ON SITE · 03
Enrol per controller rules.
Load facility/card numbers according to the existing Prox encoding scheme.
Test on each reader family present on site.
How it works
Verify LF readers, then issue.
01
Audit readers
Confirm 125 kHz HID Prox support on every door.
02
Encode
Program cards to the site format.
03
Enrol
Add users in the access controller.
04
Test
Swipe/present on live doors before handover.
At a glance
Key specs — AK-CARD-HIDPROX
- Model
- CARD-HIDPROX — AK-CARD-HIDPROX
- Type
- RFID card
- Frequency
- 125 kHz
- Technology
- HID Prox
- Warranty
- Australian warranty via Infront Technologies
Pair it with
Typical building blocks
Sibling
AK-CARD-ICLASS
125 kHz HID iCLASS card when the reader plant is iCLASS.
HF path
CARD-EV3 / FOB-F08
13.56 MHz credentials for HF readers.
Door
Reader-equipped door station
Only where Prox LF reading is supported.
Indoor
Akuvox indoor monitor
Answer video after credential or call-button entry.
Answers
Common questions
Frequency?
125 kHz HID Prox.
Same as iCLASS?
No — see AK-CARD-ICLASS for iCLASS media.
Works on MIFARE readers?
Not as a 13.56 MHz credential — technology must match the reader.
Reader included?
No.
Prox cards when the plant is Prox.
Stocked by Infront Technologies for Australian access projects.
Installation & safety notice
Low-voltage product (SELV). The AK-CARD-HIDPROX is a passive RFID credential (SELV accessory) with no mains connection — it is presented to a separately powered reader.
When a licensed tradesperson is required. Concealed structured data / intercom cabling is customer cabling under AS/CA S009 and must be performed by an ACMA-registered cabler. Any electric lock, maglock or dedicated lock PSU is a separate electrical/security install and may require a licensed electrician or security installer.
Specifications in good faith. Firmware features and packing details can change at Akuvox’s discretion — verify the attached datasheet (where provided) for your hardware revision before ordering. Stocked and supported by Infront Technologies.
- Frequency
- 125 kHz
- Form Factor
- RFID card
- Brand
- Akuvox
- Warranty
- Australian Warranty via Infront Technologies
- Product Family
- RFID credentials
- Model
- CARD-HIDPROX
- Manufacturer Part Number
- AK-CARD-HIDPROX
- Card Technology
- HID Prox
