    Power Splitter 6-Way Swann CCTV AC/DC General Power 2.1mm

    SKU SR-DCSP-1F6M In Stock - Ready to Ship
    $10.50 inc GST

    SR-DCSP-1F6M: a 6-way DC power splitter that runs up to six 12V CCTV cameras from one supply, including Swann cameras with a 2.1 mm DC connector. The cameras together must not exceed the supply's rating.

    • ✓1 × 2.1 mm socket to 6 × 2.1 mm plugs
    • ✓2.1 mm inside, 5.5 mm outside
    • ✓Passive: same voltage and polarity as your supply
    • ✓Short leads, about 25 to 38 cm
    • ✓Suits Swann and other 12V CCTV; not made by Swann

    QuantityUnit priceYou Save
    2$ 9.98$ 1.05
    5$ 9.45$ 5.25
    10$ 9.45$ 10.50
    50$ 8.93$ 78.75
    100$ 8.40$ 210.00


    Description

    SR-DCSP-1F6M 6-way DC power splitter: one 2.1 mm female socket and six 2.1 mm male plugs on short leads
    Suits Swann & 12V CCTV · 1 to 6 · 2.1 mm

    One supply, six cameras.
    1 socket to 6 plugs. 2.1 mm.

    The SR-DCSP-1F6M is a 6-way DC power splitter: your supply's 2.1 mm plug goes into its socket, and six 2.1 mm plugs feed up to six 12V CCTV cameras, including Swann cameras with a 2.1 mm DC connector.

    In one sentence: the SR-DCSP-1F6M is a passive 6-way DC power splitter cable with one 2.1 mm female socket and six 2.1 mm male plugs, for running up to six 12V CCTV cameras from one power supply.

    Splitter only. Power supply sold separately.

    The splitter makes no power of its own: all six cameras share the current of the supply you plug into it. Add up the current on each camera's label; together they must not exceed the supply's rating. No current rating is published for the splitter cable itself, so ask us before running more than 2A through it. It is a generic part, not made by Swann.

    In the box
    • SR-DCSP-1F6M 6-way DC splitter cable (1 socket, 6 plugs)
    You also need
    • A 12V DC supply with a 2.1 mm plug, big enough for all the cameras together
    • Cameras with a 2.1 mm DC power connector

    One power point instead of six.

    Six plug-packs crowd a power board and fail one by one. One supply and this splitter in the recorder cabinet keeps the cameras on one tidy power source. Six cameras at 300 mA each draw 1.8A in total, which a 12V 2A supply covers.

    Close-up of the SR-DCSP-1F6M 2.1 mm female input socket between two of its 2.1 mm male plugs

    Supply end

    A 2.1 mm socket for your supply.

    The single female socket takes the 2.1 mm plug from your 12V supply. Moulded connectors, nothing to solder or screw down.

    Close-up of the SR-DCSP-1F6M 2.1 mm male DC plugs, 5.5 mm outside, on their leads

    Camera end

    Six 2.1 mm plugs, 5.5 mm outside.

    Each plug pushes into a camera's 12V power socket or a 2.1 mm extension lead. Every plug carries the same voltage and polarity as the supply.

    How it goes in

    Set up in a few minutes.

    01

    Add up the cameras

    Read the current on each camera's label and add them up. Choose a 12V supply rated for at least that total.

    02

    Supply into the socket

    With the supply switched off at the wall, push its 2.1 mm plug fully into the splitter's socket.

    03

    Plugs to the cameras

    Push one splitter plug into each camera's 12V power socket or its extension lead. Spare plugs can stay unused.

    04

    Power on and check

    Switch on at the wall and check every camera has a picture, day and night (infrared adds to the draw at night).

    Pair it with

    What goes with it

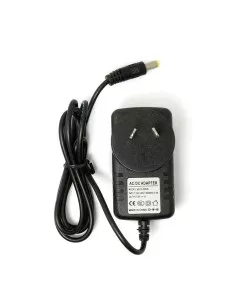

    Power supply

    12V 2A plug-pack

    Centre positive 2.1 mm plug. Covers six cameras drawing up to about 330 mA each (2A in total).

    Supply and splitter

    12V 2A supply with 4-way splitter

    For four cameras: the supply and a 4-way splitter in one listing.

    Fewer cameras

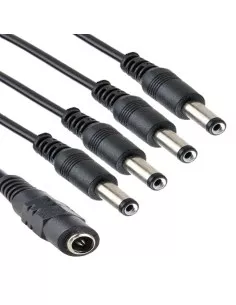

    4-way DC splitter

    The same 2.1 mm plugs and socket, for up to four cameras.

    Custom leads

    DC plug and socket with screw terminals

    Make up your own power runs to cameras further away, without soldering.

    Where it is used

    Where it is used

    Six-camera analogue systems

    Every camera powered from one supply in the recorder cabinet.

    Swann camera kits

    Swann cameras that run on 12V DC with a 2.1 mm connector, sharing one supply instead of a plug-pack each.

    Tidy power boards

    One power point and one supply instead of a row of plug-packs.

    Shops and offices

    Small business camera systems where the cameras' power is run back to one spot.

    Adding a camera

    A spare plug ready for the next camera, as long as the supply has current to spare.

    Other 12V gear

    IR illuminators and other 12V devices with a 2.1 mm plug, within the supply's rating.

    6-way or 4-way splitter

    SR-DCSP-1F6M (this splitter)SR-DCSP-1F4M
    Plugs6 × 2.1 mm male4 × 2.1 mm male
    Socket1 × 2.1 mm female1 × 2.1 mm female
    LengthAbout 25 to 38 cmAbout 22 to 25 cm
    Example load6 cameras at 300 mA = 1.8A4 cameras at 300 mA = 1.2A
    Best forUp to 6 cameras on one supplyUp to 4 cameras on one supply

    Same 2.1 mm plugs and socket. Pick by the number of cameras, then size the supply for all of them together.

    Common questions

    Will it work with my Swann cameras?

    Yes, when the camera runs on 12V DC and its power lead ends in a 2.1 mm DC connector. Check the camera's label, or send us the model and we will confirm.

    Is it made by Swann?

    No. It is a generic 2.1 mm splitter that suits Swann and other 12V CCTV cameras with the same connector.

    How many cameras can one supply run through it?

    Up to six, as long as the supply can feed them all. Add up the current on each camera's label: the total must be no more than the supply's rating. Six cameras at 300 mA each need 1.8A, so a 12V 2A supply covers them.

    Does the splitter change the voltage?

    No. It is a passive cable. Each camera gets the same voltage and polarity as the supply.

    What size are the plugs?

    2.1 mm inside and 5.5 mm outside, the common CCTV size. The socket takes a 2.1 mm plug from the supply.

    How long is it?

    Short leads, about 25 to 38 cm from the socket to the plugs. If the exact length matters for your cabinet, ask us before you order.

    How much current can the cable carry?

    No current rating is published for the cable itself. It is made for CCTV camera loads. For more than 2A in total, ask us first.

    Does it come with a power supply?

    No. It is the splitter only. Use a 12V DC supply with a 2.1 mm plug rated for all your cameras together.

    Do I have to use all six plugs?

    No. Unused plugs can stay unconnected. Keep them away from metal so the bare tips cannot touch anything.

    My cameras restart at night. Is the splitter at fault?

    Usually it is the supply. Infrared lights switch on at night and raise each camera's draw. If the total goes over the supply's rating, cameras drop out. Use a bigger supply or split the cameras across two supplies.

    Can I make the lead to a camera longer?

    Yes, with a 2.1 mm DC extension lead between a splitter plug and the camera. Long, thin leads lose voltage, so keep the runs short or use heavier cable.

    Can I use it with PoE cameras?

    No. PoE network cameras take their power through the network cable from the recorder or a PoE switch, not from a 2.1 mm plug.

    Supported by InFront Technologies.

    Not sure your supply can run all six cameras? Call 1300 736 970 or email your camera models to [email protected] and we will check the power budget before you buy.

    Installation and safety

    Low voltage only. For 12V DC camera power. Never connect it to mains power.

    Do not overload the supply. Everything on the splitter shares one supply. The cameras together must not exceed its rating; leave headroom for infrared at night.

    Current through the cable. No current rating is published for the splitter. Ask us before running more than 2A through it.

    Match the plug and polarity. Every plug carries the supply's polarity. Only use it with cameras that take 12V DC on a 2.1 mm connector with the same polarity as the supply. It does not fit a 2.5 mm socket.

    Indoors or sealed. Keep the splitter in the cabinet or another dry place. Seal any plug joint that has to sit outdoors.

    Figures. From our product details for this splitter. No manufacturer datasheet is published for it.
