Jaycar Concord NVR Replacement Power Supply 48V 1.5A 4Pin

Jaycar / CONCORD 48V 1.5A 4-Pin NVR Power Supply

Part code: JC-PSU-NVR48-1.5 • Same spec as the Swann 8-channel PSU

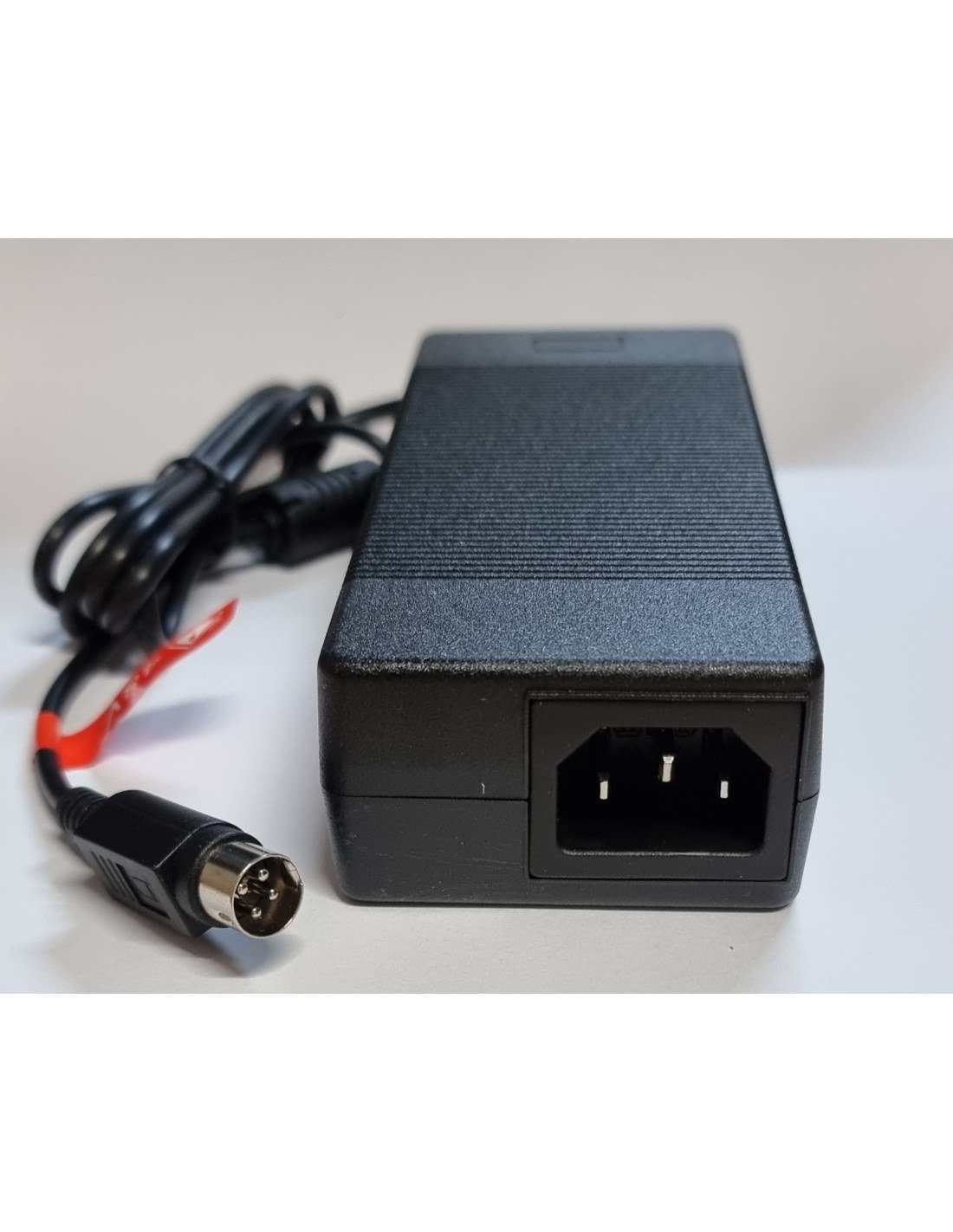

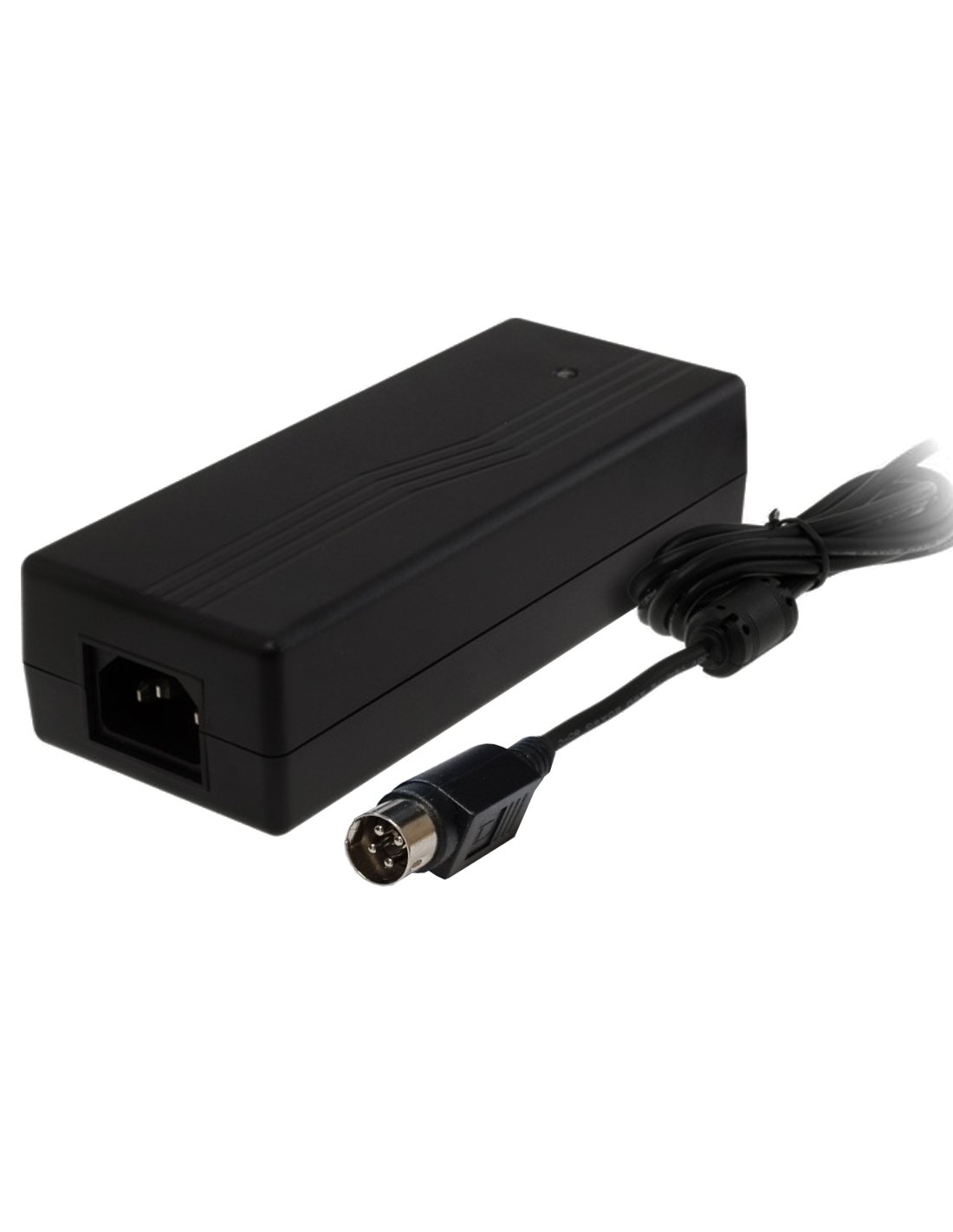

Purpose-built 48V 1.5A adaptor with a round 4-pin connector for CONCORD (Jaycar / Electus) NVRs that specify a 48V 4-pin input. It matches the voltage, current and pinout used by popular 8-channel recorders, making it a straight, like-for-like swap. This is the same supply specification as the Swann recorder’s original adaptor.

Why choose this adaptor

Compatible recorder models (check your sticker)

Labels vary by region/packaging — for certainty, match by plug (round 4-pin) and rating (48V 1.5A).

Typical signs it’s due for replacement

• No power: no LEDs, no fan/HDD activity
• Hangs at splash screen under load
• Intermittent HDD detection / random resets

Swap-over in minutes

1. Shut down the recorder and unplug from mains
2. Disconnect the 4-pin plug and the IEC lead
3. Connect the new 48V 1.5A 4-pin adaptor and included IEC cable
4. Power up and confirm normal boot and HDD detection

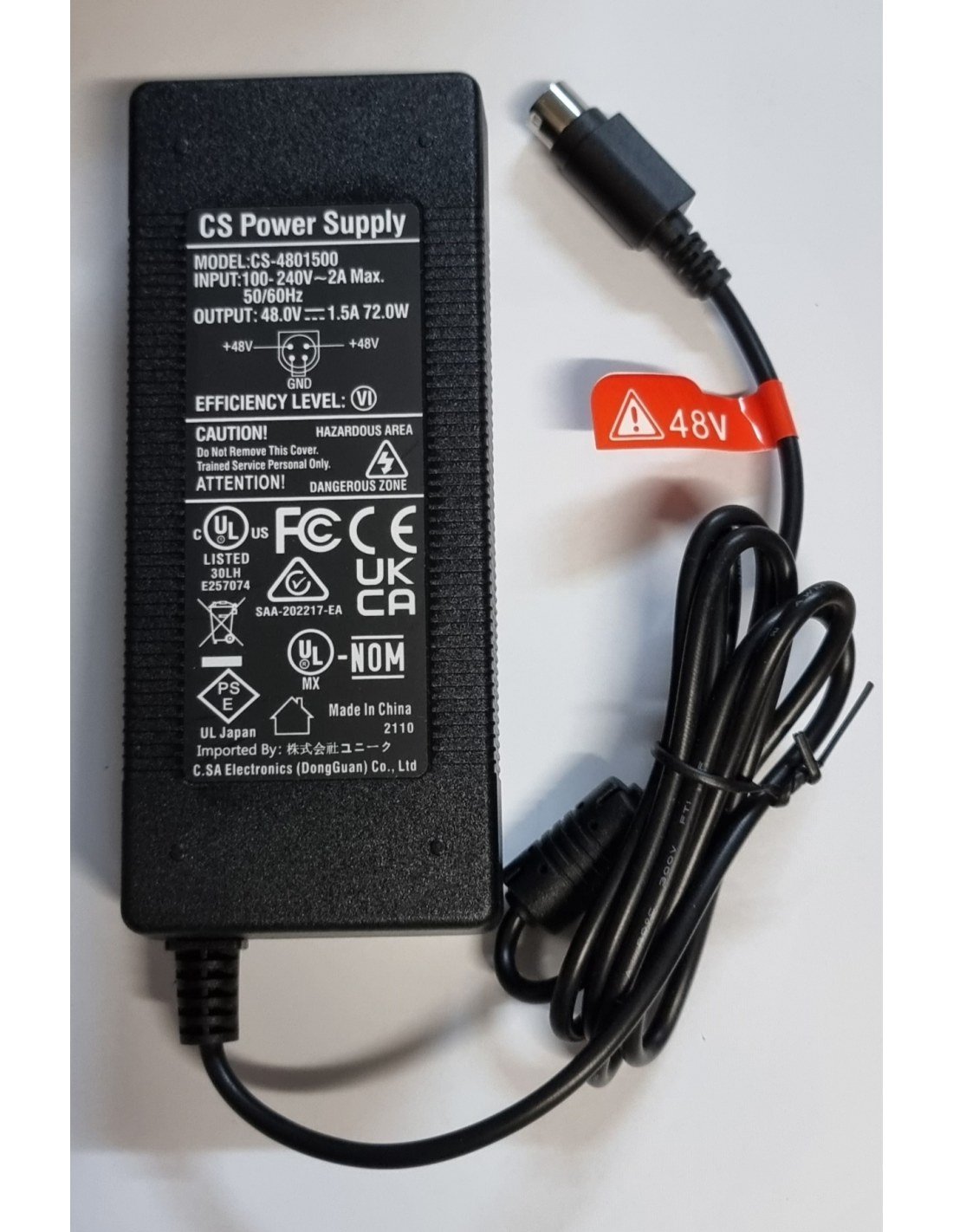

Also searched as: Jaycar CONCORD NVR power supply 48V 1.5A, 4-pin 48V NVR PSU, JC-PSU-NVR48-1.5 adaptor, FJ-SW20254801500, CS-4801500.

Unsure it fits? Send a photo of your recorder’s underside label and the old adaptor sticker — we’ll confirm before you buy.
