CCTV Male DC Plug with Screw Terminals

SKU IFT-DCM-P In Stock - Ready to Ship
$2.85 inc GST

Male 2.1 mm DC plug with screw terminals: turn bare power wire into a CCTV power plug without soldering. Suits Swann and other 12V CCTV cameras with a 2.1 mm power socket.

  • ✓2.1 mm male DC plug
  • ✓2 screw terminals, marked + and -
  • ✓Up to about 5 A at 12V
  • ✓No soldering needed
  • ✓Pairs with the IFT-DCF-S socket



Description

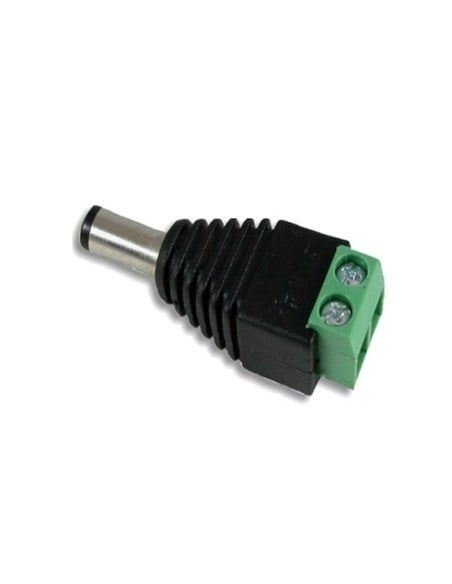

IFT-DCM-P male 2.1 mm DC plug with a green two-way screw terminal block on the back
CCTV power · 2.1 mm male · Screw terminals

Bare wire to a DC plug.
No soldering. Two screws.

The IFT-DCM-P turns two bare power wires into a 2.1 mm male DC plug. Strip the wires, screw them into the marked terminals, and plug it into a camera or other device. It suits Swann and other 12V CCTV cameras with a 2.1 mm power socket.

In one sentence: the IFT-DCM-P is a 2.1 mm male DC plug with a two-way screw terminal block marked positive and negative, rated up to about 5 A at 12V, for fitting a plug to bare CCTV power wire without soldering.

One plug. Check the polarity before you power a camera.

This listing is one male DC plug with screw terminals. The terminals are marked + and -. Most 12V CCTV cameras are centre positive, so check the wiring with a multimeter before you plug in a camera: reversed polarity can damage it.

In the box
  • 1 x 2.1 mm male DC plug with screw terminals
You also need
  • Two-core power cable (red and black, or figure-8)
  • A small screwdriver and wire strippers
  • A multimeter to check polarity

Fix a cut lead in minutes.

A camera lead cut short, a run of figure-8 cable that needs a plug on the end, or a video balun with bare power wires: the IFT-DCM-P puts a proper 2.1 mm plug on it with two screws. Strip back the wire, push it into the green terminals and screw them down.

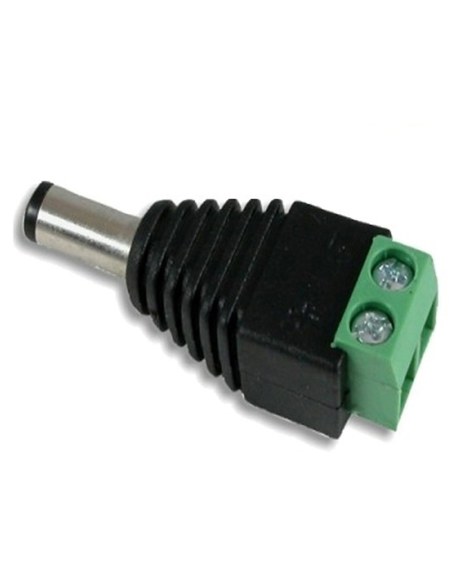

IFT-DCM-P close-up of the green two-way screw terminal block on the back of the plug

Terminals

Two screws, marked + and -.

The wires go into the green terminal block and are held by the screws. The body is marked positive and negative so each wire goes in the right side.

IFT-DCM-P close-up of the 2.1 mm metal DC barrel and the ribbed body

The plug

2.1 mm, the common CCTV size.

The 2.1 mm barrel fits a camera's 2.1 mm DC power socket, and the socket on our 2.1 mm splitters. Pair it with the IFT-DCF-S socket to join two bare-wire runs.

How it goes in

Wired in a few minutes.

01

Switch off the power

Turn the supply off at the wall so the wires are dead while you work.

02

Strip the wires

Strip a short length of insulation from each core and twist the strands so none are loose.

03

Screw them in

Positive (red or marked) wire into the + terminal, negative into the - terminal. Tighten firmly and give each wire a gentle tug.

04

Check, then connect

Power up and check with a multimeter: red probe inside the barrel, black on the outside should read about +12V. Then plug in the camera.

Pair it with

The rest of the power run

Other end

Female socket to match

The IFT-DCF-S socket with screw terminals takes a supply's 2.1 mm plug onto bare wire, so you can run cable from the supply to this plug.

Power supply

12V 2A plug-pack

Our SR-PSU-12v2A 12V 2A supply has a 2.1 mm centre-positive plug for one or more cameras.

More cameras

Split one supply

The SR-DCSP-1F2M and SR-DCSP-1F4M splitters run two or four cameras from one 2.1 mm supply.

Where it is used

Where a screw-terminal plug saves the day.

Cut camera leads

Put a new plug on a camera power lead that was cut or crushed, without soldering.

Video baluns

Baluns and power-and-video cable often end in bare power wires. This plug gives them a 2.1 mm end.

Custom-length runs

Run two-core cable to the exact length needed, then fit the plug on site.

Power boxes

Take power from a terminal strip or distribution box to a camera's 2.1 mm socket.

Other low-voltage devices

Small 12V devices with a 2.1 mm DC socket, within the plug's rating.

Installer's kit

A handful in the van for quick repairs on site.

Male plug or female socket

IFT-DCM-P (this plug)IFT-DCF-S
Connector2.1 mm male plug2.1 mm female socket
Goes intoThe camera's 2.1 mm power socketTakes the supply's 2.1 mm plug
Terminals2 screw terminals, + and -2 screw terminals, + and -
CurrentUp to about 5 A at 12VUp to about 5 A at 12V
Typical endCamera end of the runSupply end of the run

Use both to make a custom-length cable: the socket at the supply end, this plug at the camera end.

Common questions

What does this plug do?

It turns two bare power wires into a 2.1 mm male DC plug, using screw terminals instead of solder.

Will it fit my Swann camera?

Yes, if the camera has a 2.1 mm DC power socket and runs on 12V DC. This is a generic part, not made by Swann. Send us the camera model if you are not sure.

Which wire goes where?

The positive wire (usually red, or the striped or marked core) goes into the + terminal, the negative wire into the - terminal.

How much current can it carry?

Up to about 5 A at 12V, far more than a typical CCTV camera draws.

What voltage can I use it on?

Extra-low voltage only, up to 50V AC or DC. Never use it on mains.

How do I check the polarity?

With the power on, set a multimeter to DC volts, put the red probe inside the barrel and the black probe on the outside. It should read about +12V. A minus reading means the wires are swapped.

Do I need to solder anything?

No. Strip the wires, push them into the green terminals and tighten the screws.

Can I use it with a video balun?

Yes. Baluns and combined power-and-video cable often leave bare power wires at the camera end. This plug gives them a 2.1 mm end for the camera.

What is the difference from the IFT-DCF-S?

The IFT-DCF-S is the female socket: it takes a supply's plug. This IFT-DCM-P is the male plug that goes into a camera.

Can it go outdoors?

No weatherproof rating is given. Keep the connection inside a junction box or another dry place.

Does it work with PoE cameras?

No. PoE cameras take their power through the network cable, not a 2.1 mm plug.

How fast can I get it?

Choose Express Post at checkout for priority handling. Orders are tracked and dispatched the same business day when placed before the cutoff.

Supported by InFront Technologies.

Not sure which end you need? Call 1300 736 970 or email a photo of your cable and camera to [email protected] and we will help.

Installation and safety

Extra-low voltage only. Up to 50V AC or DC. Never connect it to mains.

Polarity. Reversed polarity can damage a camera. Check with a multimeter before you plug it in.

Tight, clean terminals. Tighten the screws firmly on bare copper, with no stray strands touching the other terminal. A loose terminal runs hot and drops the camera out.

Keep it dry. No weatherproof rating is given. Keep the connection inside a junction box or another dry place.

Cabling. Cable run inside walls or ceilings alongside data cabling should follow AS/CA S009. A new power point needs a licensed electrician.

What it does not do. It does not make power or change the voltage, and it does not suit PoE network cameras.

Figures. From our listing for this part. It is a generic part with no manufacturer datasheet.
