Swann NVR Replacement PSU 48V Supports 1.5A-2A NVR8-7300 7400 7285 AU Approved

SKU SR-PSU-48V-1.8A-CP In Stock - Ready to Ship
$75.40 inc GST

SR-PSU-48V-1.8A-CP: a 48V 2A compatible replacement power supply for Swann NVR-7300, NVR-7400 and NVR-7285 recorders that used the GQ90-480187-E1 adaptor.

  • ✓48V DC, 2A (original was 1.87A)
  • ✓Centre positive barrel plug with centre pin
  • ✓Suits NVR4/NVR8-7300, 7400 and 7285
  • ✓240V IEC mains lead included
  • ✓Compatible replacement, not the original Swann part



Description

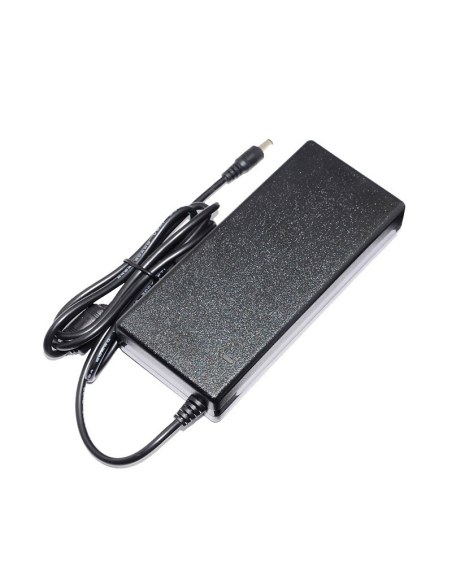

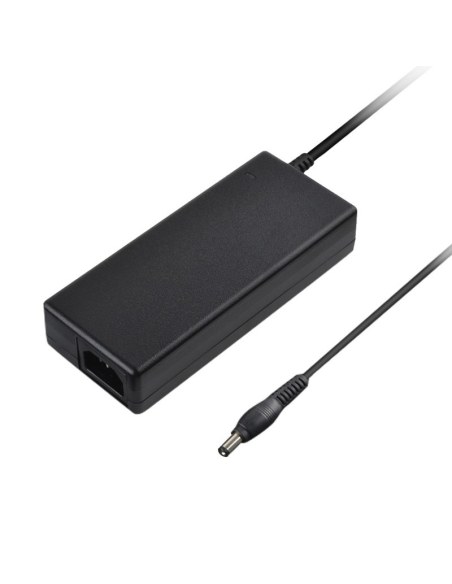

SR-PSU-48V-1.8A-CP 48V 2A replacement power supply with the IEC mains inlet and the DC lead with its round barrel plug
Suits Swann NVR-7300 / 7400 / 7285 · 48V 2A

48V replacement supply for Swann 7300 and 7400 NVRs.
48V. 2A. Centre positive.

The SR-PSU-48V-1.8A-CP replaces the 48V 1.87A adaptor (GQ90-480187-E1) that came with Swann NVR-7300, NVR-7400 and NVR-7285 recorders. It gives 48V at 2A, a little more current than the original, through a centre-pin barrel plug.

In one sentence: the SR-PSU-48V-1.8A-CP is a 48V DC, 2A compatible replacement power supply with a centre positive barrel plug and a 240V IEC mains lead, for 4- and 8-channel Swann NVR-7300, NVR-7400 and NVR-7285 recorders that used the GQ90-480187-E1 adaptor.

A compatible replacement, not the original Swann adaptor.

Your old adaptor should read 48V 1.87A (model GQ90-480187-E1) and end in a round barrel plug. This supply gives the same 48V with 2A available, so the recorder takes only what it needs. If your recorder has a round 4-pin socket (Swann NVR8-8580 and NVR16-8580 families), this plug will not fit. Compare your old plug with the close-up below before you order.

In the box
  • 48V 2A power supply with DC lead
  • 240V IEC mains lead
You also need
  • Nothing else for a straight swap
  • A mains power point near the recorder

When a 7300 or 7400 recorder will not stay on.

A Swann NVR-7300 or NVR-7400 runs its mainboard, hard drive and PoE cameras from this one adaptor. When the supply tires, the recorder will not start, restarts by itself, loses its hard drive or drops cameras at night. A fresh 48V supply is the cheapest thing to rule out first.

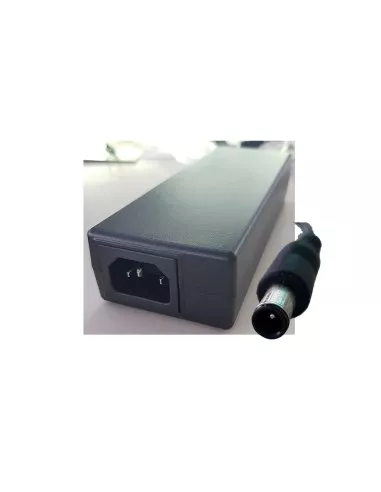

SR-PSU-48V-1.8A-CP mains end with the IEC inlet, and the round barrel DC plug on its lead

Mains end

IEC inlet on one end, barrel plug on the other.

The included 240V IEC lead plugs into the inlet. The DC lead ends in the round barrel plug that goes into the 48V socket on the back of the recorder.

Close-up of the SR-PSU-48V-1.8A-CP barrel plug showing the metal centre pin inside the outer sleeve

The plug

Barrel plug with a centre pin.

The centre pin is +48V and the outer sleeve is ground, the same centre positive layout as the original Swann adaptor. Hold your old plug beside this photo to check they match.

How it goes in

Swapped in a few minutes.

01

Check the old label

The old adaptor should read 48V, 1.87A or 2A, centre positive, with a round barrel plug (model GQ90-480187-E1).

02

Power down and unplug

Shut the recorder down from its menu, switch off at the wall, then remove the old plug from the recorder.

03

Connect the new supply

Push the barrel plug fully into the recorder's 48V socket and fit the IEC lead into the supply.

04

Power up and check

Switch on at the wall. Confirm the recorder boots, finds its hard drive and the cameras reconnect.

Where it is used

Where it is used

Home CCTV

Swann NVR-7300 and NVR-7400 kits in homes, where a failed adaptor leaves the whole system dark.

Small business

Shops and offices running a Swann 4- or 8-channel PoE recorder that must stay up 24/7.

Installer van stock

The spare that gets a customer's Swann 7300 or 7400 recorder going on the first visit.

Rental properties

A quick, like-for-like swap for property managers when a tenant reports the cameras are off.

Farm and rural sites

Recorders in sheds and outbuildings where the original adaptor has failed with age.

Other 48V gear

Equipment that takes 48V DC through the same centre positive plug and draws 2A or less. Check the plug and polarity first.

Pair it with

Other recorders, other supplies

4-pin

Got an NVR8-8580 or NVR16-8580?

Those recorders use a round 4-pin plug. They need our genuine Swann 48V 4-pin supplies: 1.5A for 8-channel, 3.75A for 16-channel.

12V DVR

Swann DVR with coax cameras?

Swann DVRs run on 12V, not 48V. 48V would damage them. See our 12V 2A Swann DVR supply instead.

Part check

Not sure which one?

Email a photo of your recorder's underside label and the old adaptor label to [email protected] and we will match it before you buy.

SR-PSU-48V-1.8A-CP or the original GQ90-480187-E1

SR-PSU-48V-1.8A-CP (this supply)Original Swann GQ90-480187-E1
Output48V DC, 2A48V DC, 1.87A
PolarityCentre positiveCentre positive
PlugRound barrel, centre pinRound barrel, centre pin
Runs a 4 or 8-channel NVR-7300 / 7400YesYes
Mains lead240V IEC lead includedCame with the recorder

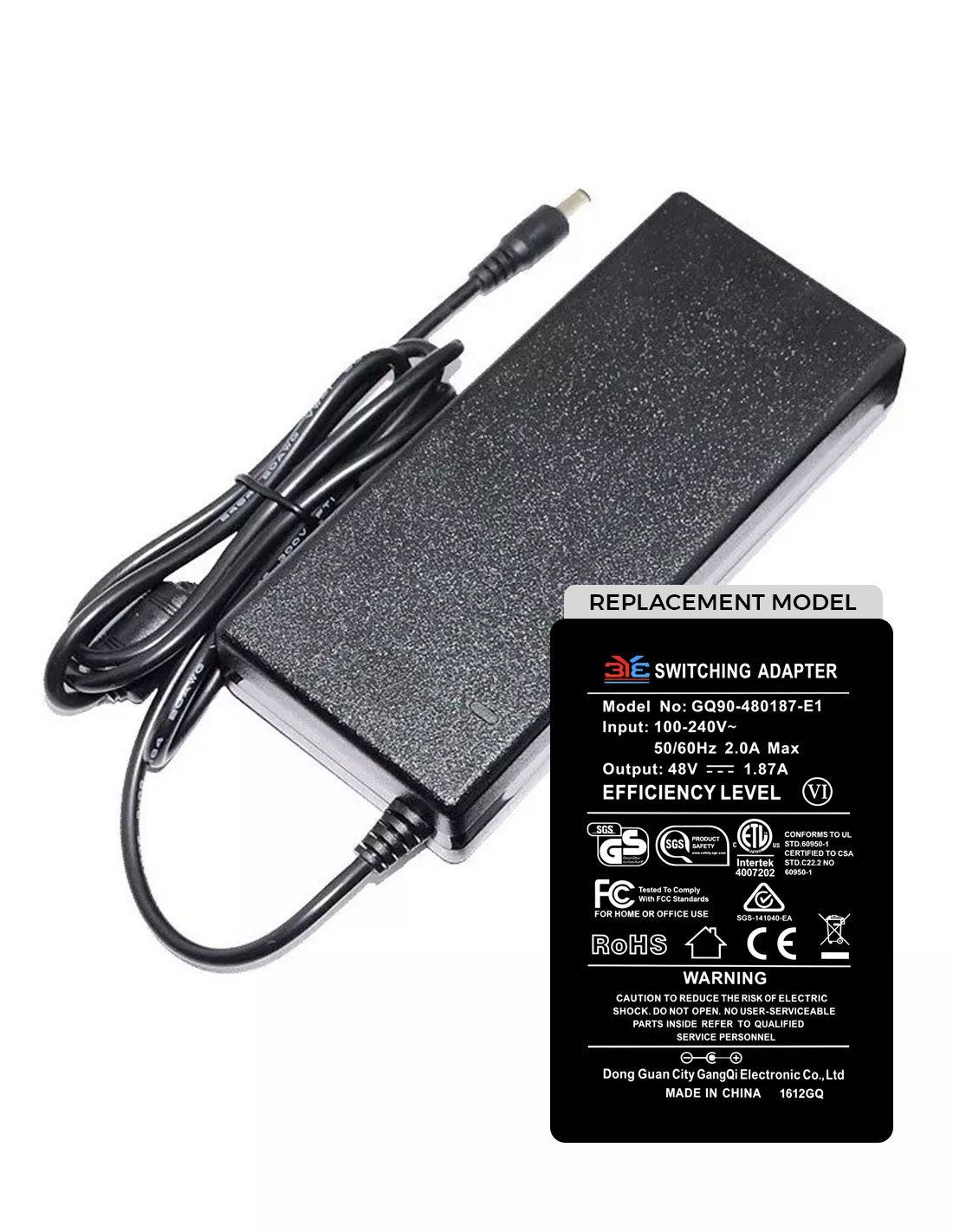

Original figures from the GQ90-480187-E1 rating label. Same voltage and polarity; the 2A rating simply gives a little more headroom than 1.87A.

Common questions

Will this fit my Swann NVR8-7400 or NVR8-7300?

Yes. It is a 48V centre positive replacement for the GQ90-480187-E1 adaptor those recorders use, in 4 and 8 channel versions, including the NVR-7285. Check your old adaptor reads 48V and has a round barrel plug.

Is this the original Swann power supply?

No. It is a compatible replacement with the same 48V output and centre positive plug as the original GQ90-480187-E1, and it can supply 2A.

My old adaptor says 1.87A. Is 2A safe?

Yes. The voltage is the same and the recorder only draws the current it needs. The 2A rating is headroom, not extra push.

Does it fit Swann NVR8-8580 or NVR16-8580 recorders?

No. Those recorders have a round 4-pin socket. They need our genuine Swann 48V 4-pin supplies, 1.5A for 8-channel and 3.75A for 16-channel.

Will it work on a Swann DVR?

No. Swann DVRs with coax cameras run on 12V. 48V would damage them. Use our 12V 2A Swann DVR supply.

Which way round is the plug wired?

Centre positive: the centre pin is +48V and the outer sleeve is ground. That matches the polarity symbol on the original Swann label.

How do I check the supply with a multimeter?

Set the meter to DC volts, plug the supply in, then touch the red probe to the centre pin and the black probe to the outer sleeve. It should read about 48V. Do not let the probes touch each other.

How do I know my old supply has failed?

No power lights, a recorder that restarts by itself, a hard drive that is not found, or cameras that drop out at night. A new supply is the cheapest thing to rule out first.

Is a mains lead included?

Yes. A 240V IEC mains lead comes with it, so it is a straight swap.

Can I use it on other 48V equipment?

Only if the equipment takes 48V DC through the same centre positive plug and draws 2A or less. Plug sizes and polarity differ between makers, so check first or send us a photo of the label.

Can I use it outdoors?

No. Keep it indoors, dry and ventilated, not under the recorder in a closed cupboard.

Can you check my recorder before I order?

Yes. Email a photo of the recorder's underside label and the old adaptor label to [email protected] or call 1300 736 970.

Supported by InFront Technologies.

Not sure it fits? Call 1300 736 970 or email a photo of your recorder and old adaptor labels to [email protected] and we will confirm before you buy.

Installation and safety

Mains powered. The supply plugs into a standard power point with the IEC lead. Do not open the case. A new power point needs a licensed electrician.

Beware of non-compliant supplies. Every mains power supply sold in Australia must carry the RCM mark. Unbranded adaptors from online marketplaces often do not, and some have the wrong polarity or cannot deliver their rated current. A failed supply can take the recorder, its cameras and your footage with it.

Match the voltage, polarity and plug. Only connect it to equipment whose old supply reads 48V DC, centre positive, with the same plug. 48V will damage 12V equipment.

Indoor use. Indoor use only. Keep it dry and give it room to shed heat.

Do not modify the lead. Cutting or rewiring the DC lead voids the warranty. Any custom 48V wiring should be done by someone qualified.

What it does not do. It is not a battery charger, it does not fit 4-pin recorders and it is not the original Swann adaptor.

Figures. Original adaptor figures from the Swann GQ90-480187-E1 rating label. No manufacturer datasheet is published for this replacement.

Model numbers

Swann NVR4-7300, Swann NVR8-7300, Swann NVR4-7400, Swann NVR8-7400, Swann NVR4-7285, Swann NVR8-7285, Swann NVR4-575 (NVR4575), Swann 87300, Swann 87400, Swann 8-7300, Swann 8-7400, Swann 8-7285, Swann NVR87300, Swann NVR87400, Swann NVR87285, GQ90-480187-E1 adaptor.

This list is compiled from model numbers on Swann recorders and adaptors that InFront Technologies has not confirmed with the manufacturer. Always check the voltage, polarity and plug against your equipment's own label before connecting. InFront Technologies takes no liability for damage, loss or injury caused by connecting this supply to equipment it does not suit.
