TP-Link Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+ - DS105GP
- 5× Gigabit RJ45 ports with 4× PoE+ for data and power
- Supports IEEE 802.3af/at compliant devices
- Up to 30W per PoE port, 65W total PoE power budget*
- 802.1p/DSCP QoS ensures smooth, latency-sensitive traffic
- Extend Mode for up to 250m data and power transmission**
- PoE Auto Recovery reboots unresponsive devices automatically
- Plug & Play setup, no configuration needed

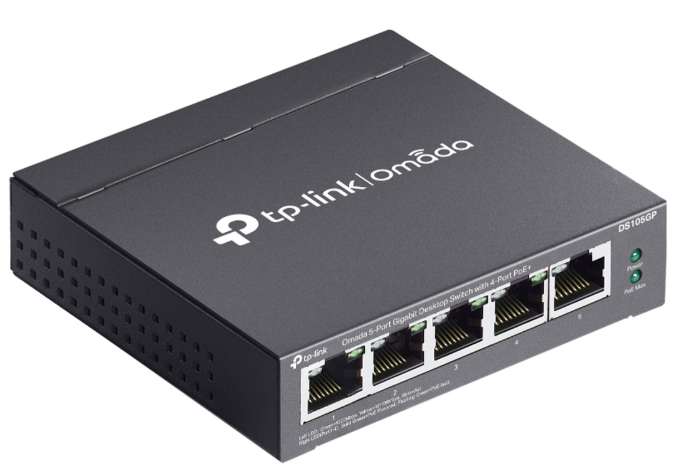

TP-Link Omada DS105GP 5-Port Unmanaged Gigabit PoE+ Switch
5× Gigabit Ports | 4× PoE+ Ports | 65W PoE Budget | Plug & Play | Silent Operation
The TP-Link Omada DS105GP delivers reliable Gigabit connections with built-in PoE+ support for simple deployments of cameras, wireless access points, and IP phones. Its compact metal design, fanless operation, and plug & play setup make it ideal for small networks, home offices, and surveillance systems.
Key Features & Benefits
- 5× Gigabit Ports — Full-speed wired connections for fast, stable networking.
- 4× PoE+ Ports — Delivers up to 30W per port to power cameras, APs, and VoIP phones.
- 65W Total PoE Budget — Supports multiple PoE devices simultaneously.
- Plug & Play Simplicity — Automatic PoE detection, no configuration required.
- Compact & Fanless — Silent, efficient performance in space-saving design.
- Durable Metal Housing — Rugged construction for desktop or wall-mount use.
- Extended Range Mode — Optional 250m transmission for distant PoE devices.
Real-World Applications
Home & Small Business Networks — Expand your wired network with fast Gigabit ports.
IP Camera Installations — Power surveillance cameras with built-in PoE+ support.
Wireless AP Deployment — Simplifies installation of access points with combined data & power.
VoIP Phone Systems — Supplies PoE to phones while providing stable data connectivity.

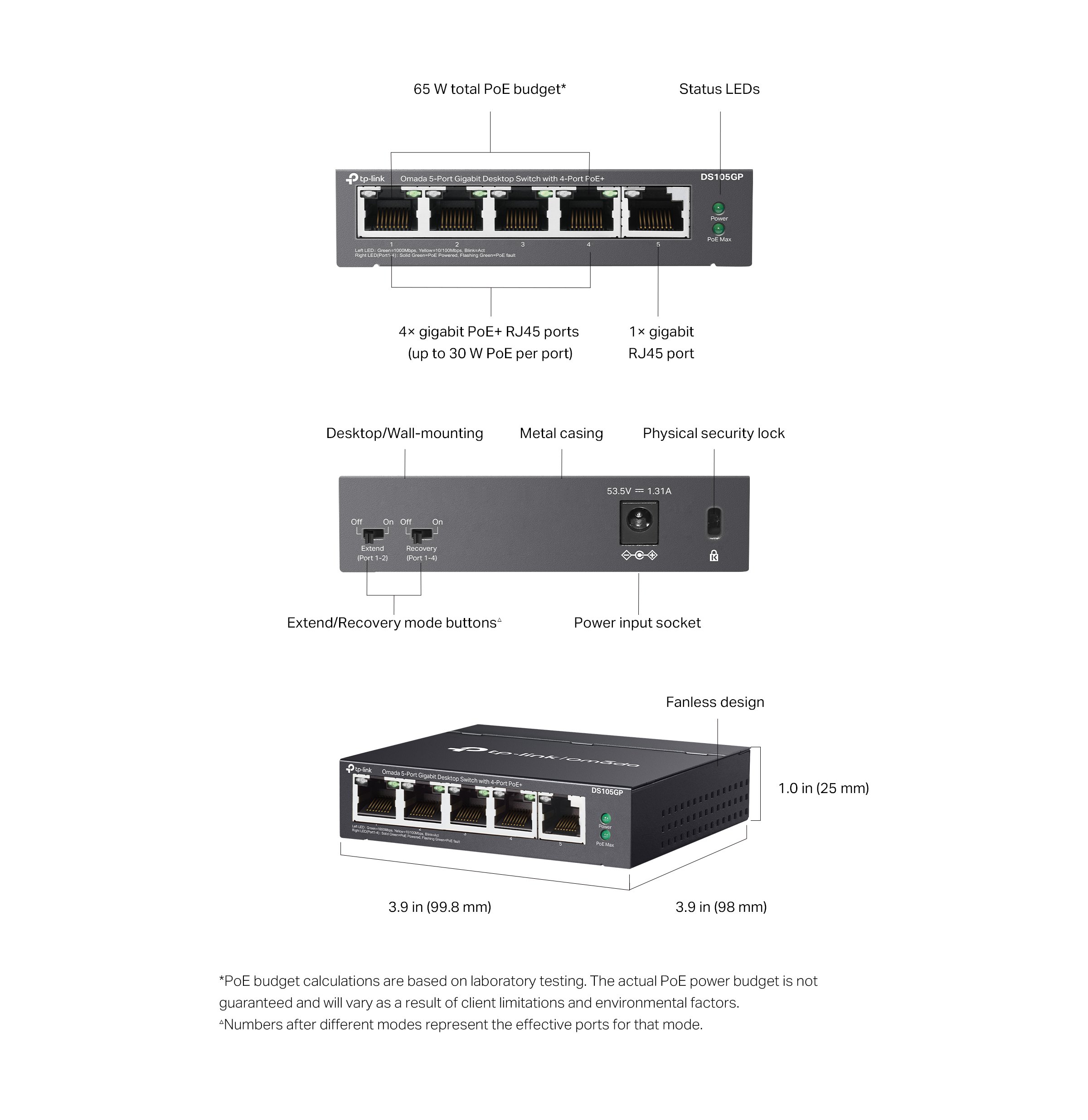

Technical Specifications
- Ports: 5× Gigabit RJ45, 4× PoE+ (802.3af/at compliant)
- PoE Budget: 65W total
- Extended Mode: Up to 250m transmission on PoE ports
- Switching Capacity: 10 Gbps
- Fanless Design: Silent operation, ideal for quiet environments

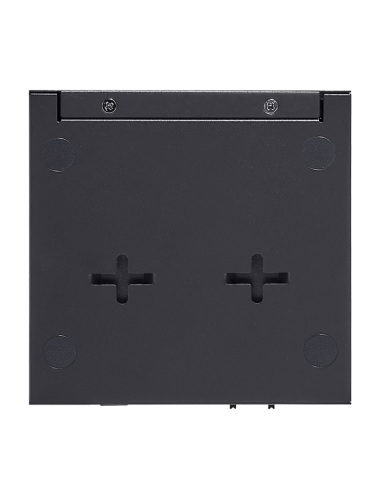

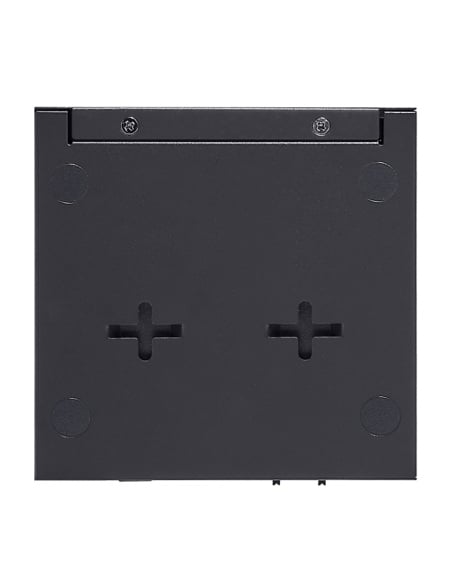

- Mounting: Desktop or wall-mountable
- Durability: Robust metal enclosure
- Dimensions: 165 × 108 × 28 mm
- Power Supply: External adapter included
Compact, Powerful, and Silent Networking — The DS105GP is a reliable solution for powering cameras, APs, and small office networks with PoE+ convenience, extended range support, and silent fanless operation.
