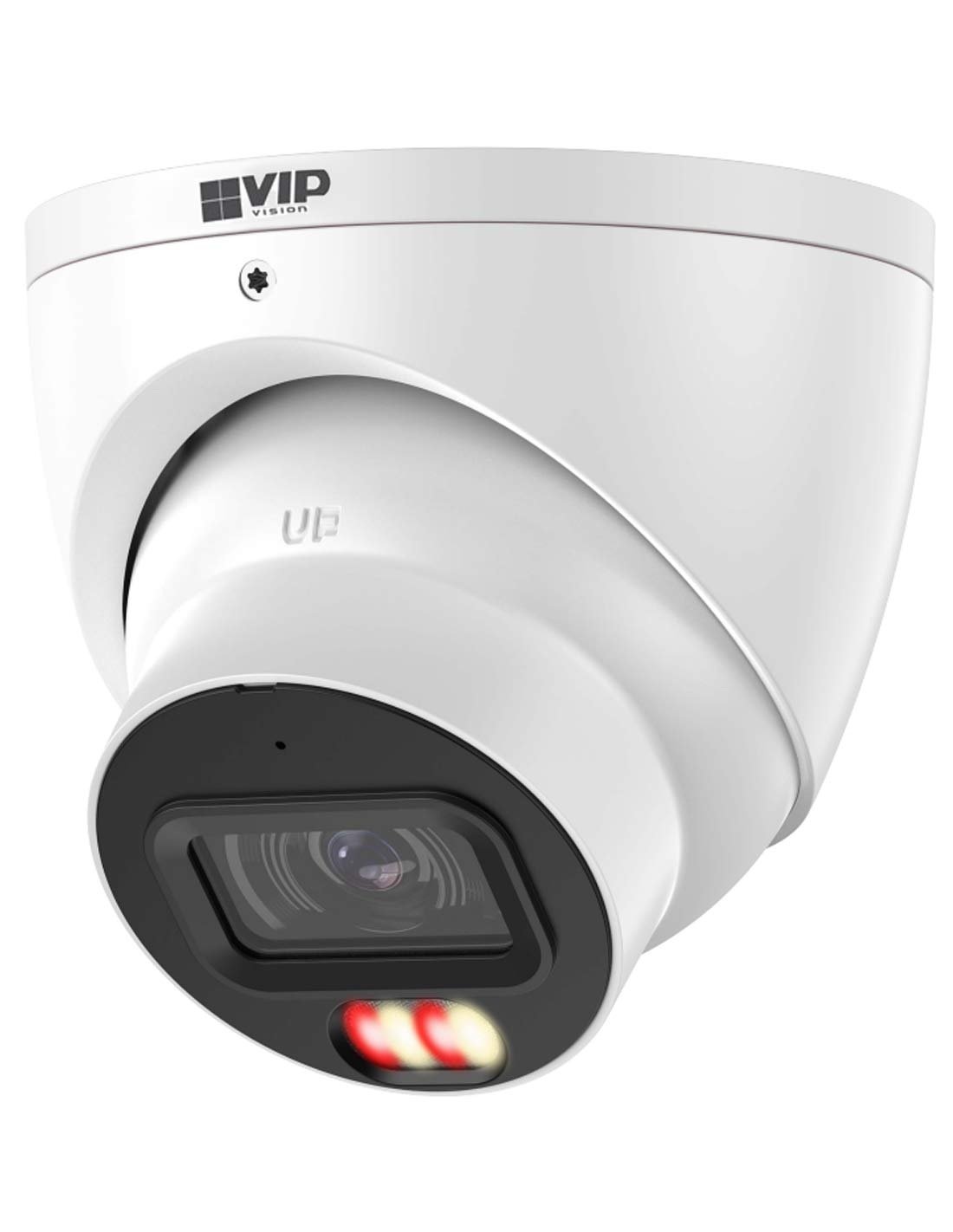

VIP Vision Professional AI Series 4MP IP Fixed Dome Camera - VSIPP-4DIRG-I3

VSIPP-4DIRG-I3
In Stock - Ready to Ship
$ 190.00
inc-GST


• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.8mm fixed lens with 100° viewing angle
• Intelligent search across all Acupick cameras
• Warm LED light triggers on person/vehicle detection
• H.265 encoding for efficient storage & streaming
• Up to 50m infrared range; true day/night (auto ICR)
• Built-in microphone and microSD slot for edge recording
• AI powered perimeter protection & smart motion de

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep



VIP Vision VSIPP-4DIRG-I3 | 4MP AI Fixed Turret IP Camera – 2.8mm Lens, 50m IR, IP67, Built-in Mic

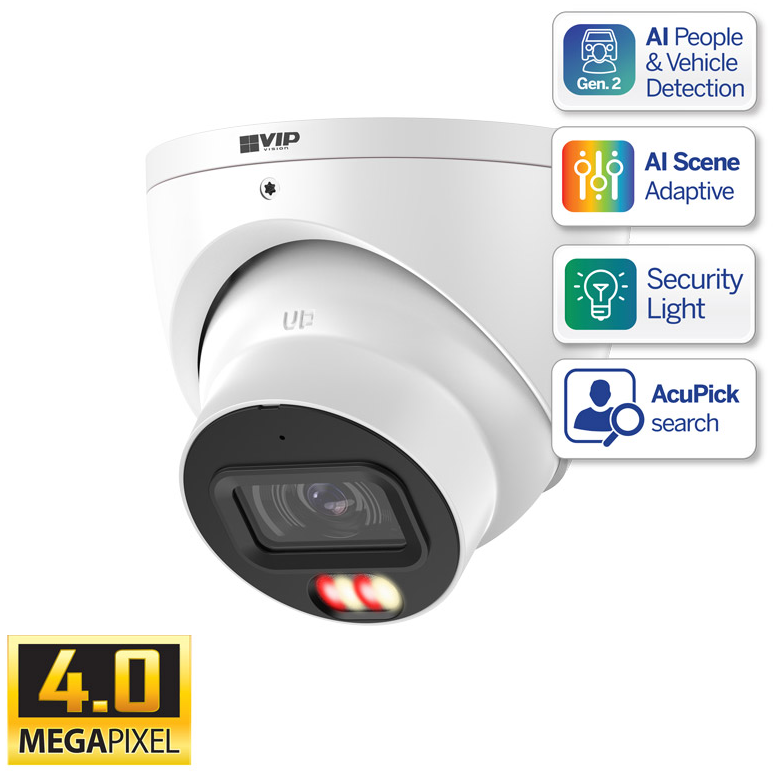

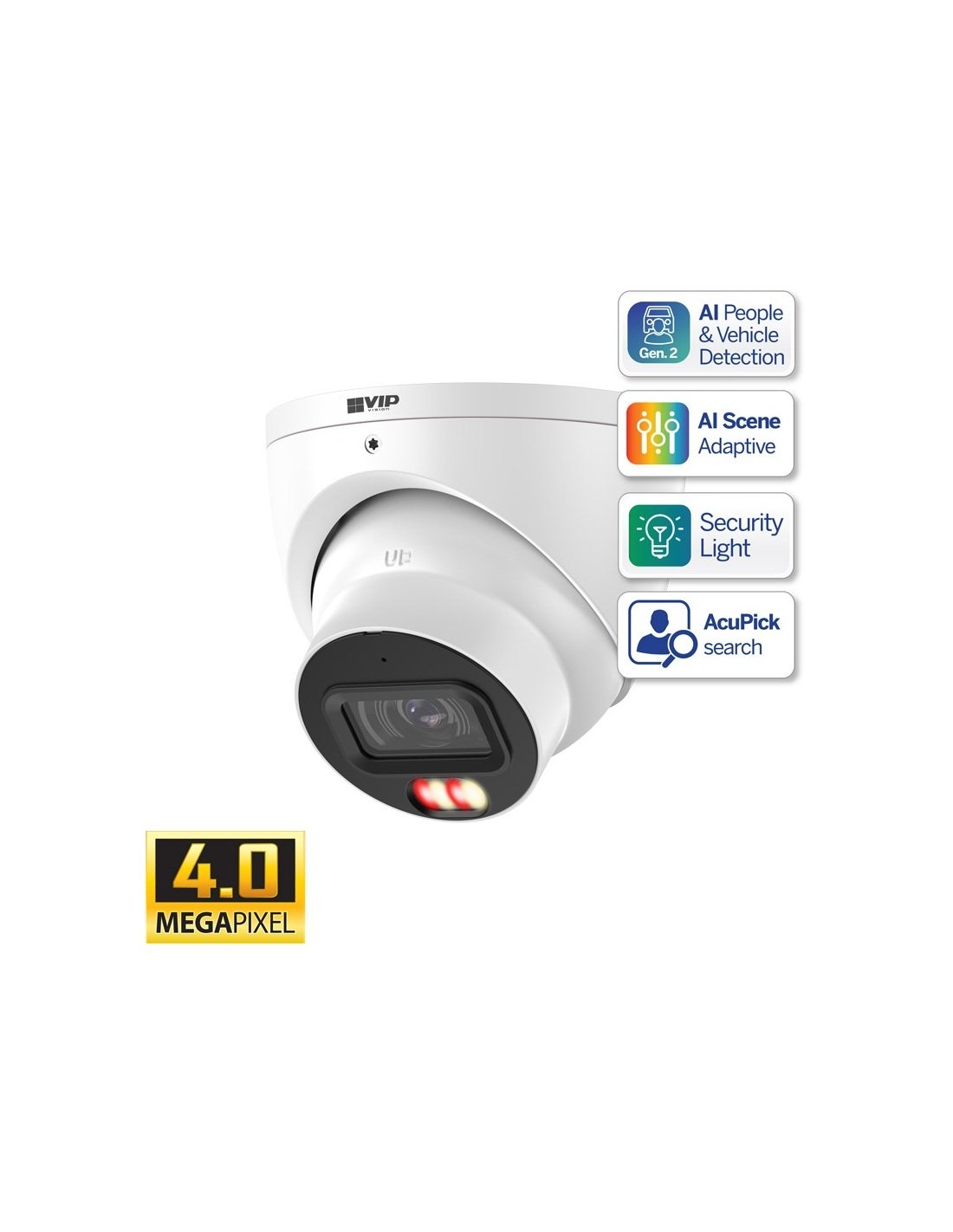

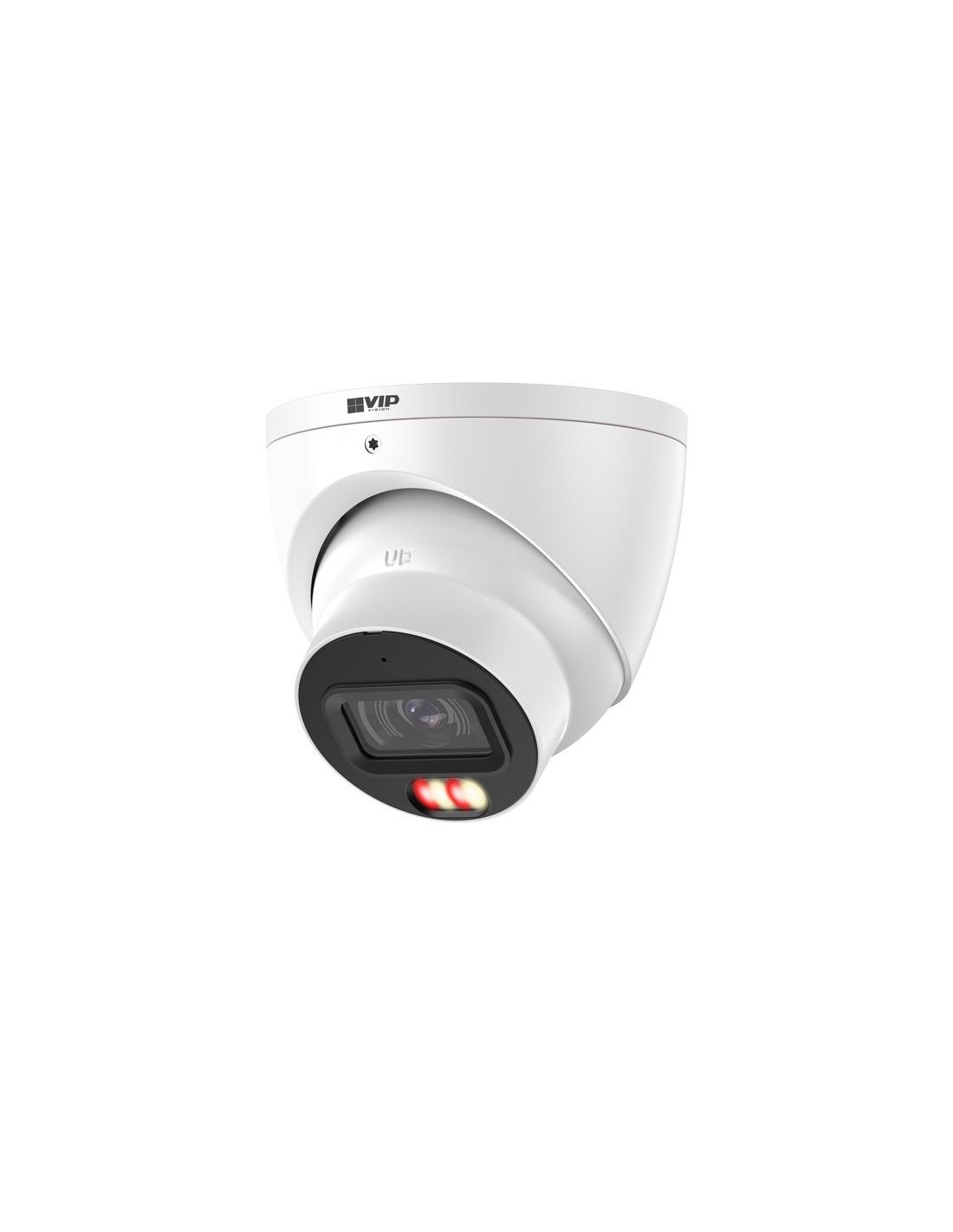

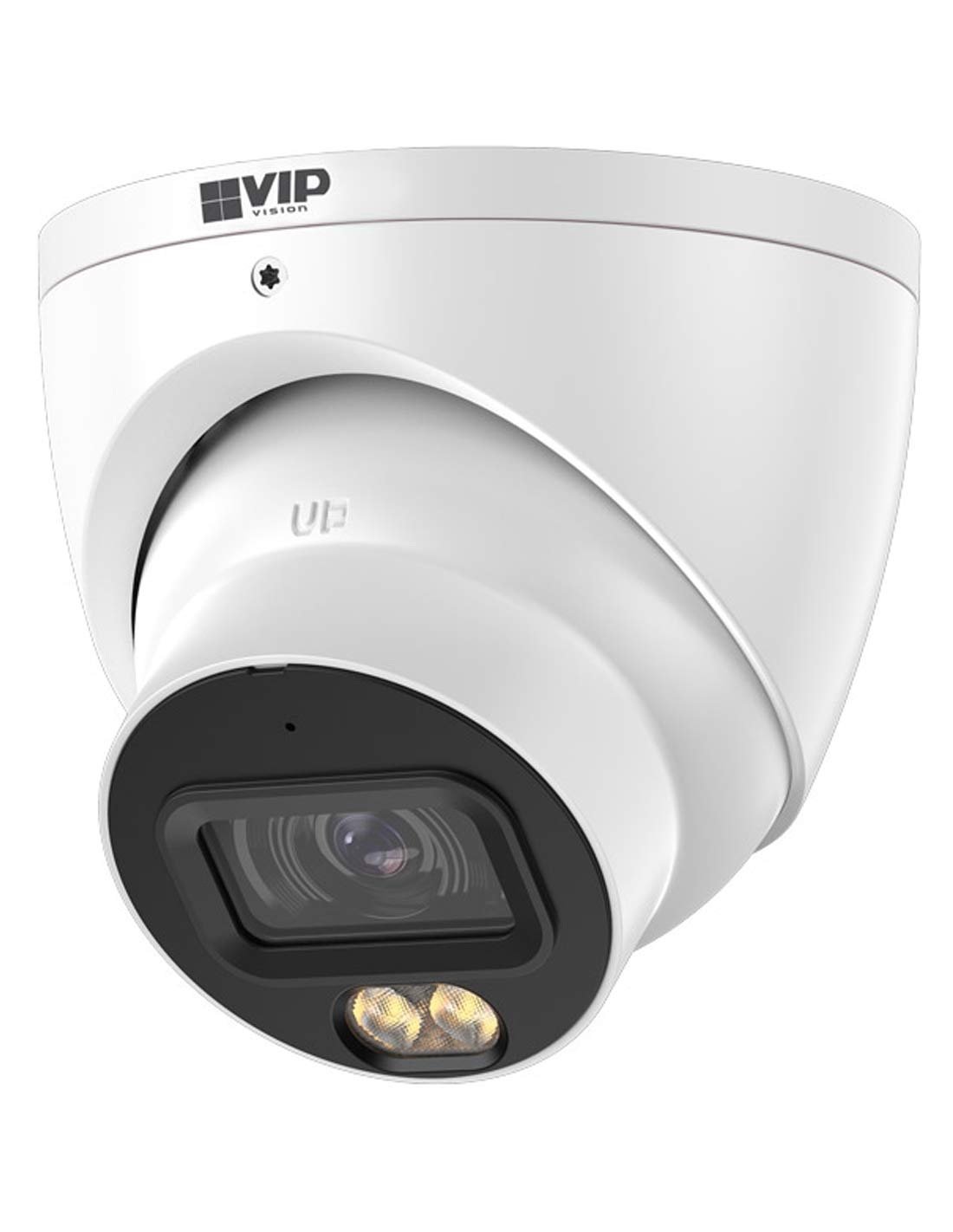

VIP Vision VSIPP-4DIRG-I3 4MP AI Fixed Turret IP Camera

The VIP Vision VSIPP-4DIRG-I3 is a compact, professional-grade 4MP AI fixed turret security camera engineered for reliable indoor/outdoor CCTV surveillance. With a wide-angle 2.8mm lens (≈100°), 50m infrared night vision and a warm LED deterrent light that activates on person/vehicle detection, it captures crisp, detailed evidence day and night while actively discouraging intruders.

Powered by AI analytics including Smart Motion Detection (SMD 4.0), human/vehicle classification and perimeter protection, the VSIPP-4DIRG-I3 reduces false alarms and delivers accurate alerts. It supports AcuPick intelligent search across compatible cameras for fast incident review, plus edge recording to MicroSD (up to 512GB). With IP67 weather resistance, PoE (802.3af) power, and ONVIF interoperability, it drops into most CCTV systems with minimal fuss—ideal for homes and businesses that want smart, easy-to-understand security.

Key Features

  • 4MP Resolution — 2688×1520 @ 25fps for sharp, detailed video.
  • Wide 2.8mm Fixed Lens — ≈100° field of view for broad coverage.
  • 50m IR Night Vision — True day/night (ICR) with smart IR for balanced low-light images.
  • Warm LED Deterrent — Triggers on AI person/vehicle events for full-colour capture and active deterrence.
  • Advanced AI — SMD 4.0, human/vehicle classification, tripwire & intrusion perimeter analytics.
  • AcuPick Smart Search — Quickly find people/vehicles across compatible cameras and NVRs.
  • Edge Storage — Built-in MicroSD slot supports up to 512GB.
  • Built-in Microphone — Capture audio with G.711/G.726/PCM compression options.
  • Rugged BuildIP67 metal housing for outdoor use.
  • Easy IntegrationONVIF, RTSP/RTMP, and more; up to 20 users (64Mb bandwidth).
  • Flexible PowerPoE (802.3af) or 12V DC.

Ideal Applications

  • Homes & Apartments — Front doors, garages, driveways and perimeters; deter porch piracy and intruders.
  • Retail & Shopfronts — Cash registers, entrances, aisles and stock rooms; reduce shrinkage and improve safety.
  • Small Businesses & Offices — Receptions, car parks and shared areas; track visitors and protect assets.
  • Warehouses & Industrial Sites — Loading docks, warehouses and fence lines; monitor deliveries and OH&S.
  • Schools & Childcare — Entryways, corridors and common areas; enhance duty-of-care and incident review.
  • Hospitality & Venues — Bars, restaurants and hotels; improve security and incident response.
  • Car Parks & Garages — Vehicle movement, number plate capture zones*, and vandalism deterrence.
  • Strata & Body Corporate — Lobbies, lifts and bin rooms; improve compliance and community safety.

Technical Specifications

  • Image Sensor: 1/2.9" 4.0MP Progressive Scan CMOS
  • Max Resolution: 4MP (2688×1520)
  • Lens: 2.8mm fixed; FOV ≈ 100° (H) / 56° (V)
  • Min. Illumination: 0.005 lux (Colour, F1.4); 0.0005 lux (B/W, 30 IRE); 0 lux (illuminator on)
  • Illumination: 2× warm LED + 2× IR LED, up to 50m; auto/manual control
  • WDR / DNR: 120dB True WDR; 3D DNR; AI Smart Scene Adaptation
  • Compression: H.265 / H.264 (H/HB/B) / MJPEG; AI H.265 / AI H.264
  • Bitrate: H.265 19–16384 Kbps; H.264 32–16384 Kbps; CBR/VBR
  • Audio: Built-in mic; G.711a / G.711Mu / G.726 / G.723 / PCM
  • AI Functions: SMD 4.0; human/vehicle classification; tripwire & intrusion; smart IR; privacy mask; ROI
  • Smart Search: AcuPick people/vehicle search via compatible NVR
  • Networking: IPv4/IPv6, HTTP/HTTPS, RTSP/RTMP, SMTP, FTP/SFTP, NTP, SNMP, Multicast & more
  • Users: Up to 20 users (total bandwidth 64Mb)
  • Edge Storage: MicroSD up to 512GB; NAS
  • Power: 12V DC / PoE (802.3af); Max <7.1W (12V), 9.2W (PoE)
  • Operating Conditions: −40 °C ~ +60 °C, ≤95% RH
  • Ingress Protection: IP67 (metal housing)
  • Mechanical: Pan 0–360°, Tilt 0–78°, Rotation 0–360°
  • Dimensions / Weight: Ø94 × 106 mm; 0.53 kg (net)
  • Warranty: 4 years

Secure your site with the VIP Vision VSIPP-4DIRG-I3 — a smart, easy-to-install 4MP AI turret camera with warm-light deterrence, long-range night vision and reliable IP67 protection for homes and businesses.

*For dedicated number plate capture, pair with an LPR-optimised camera or adjust placement/angle and shutter settings appropriately.

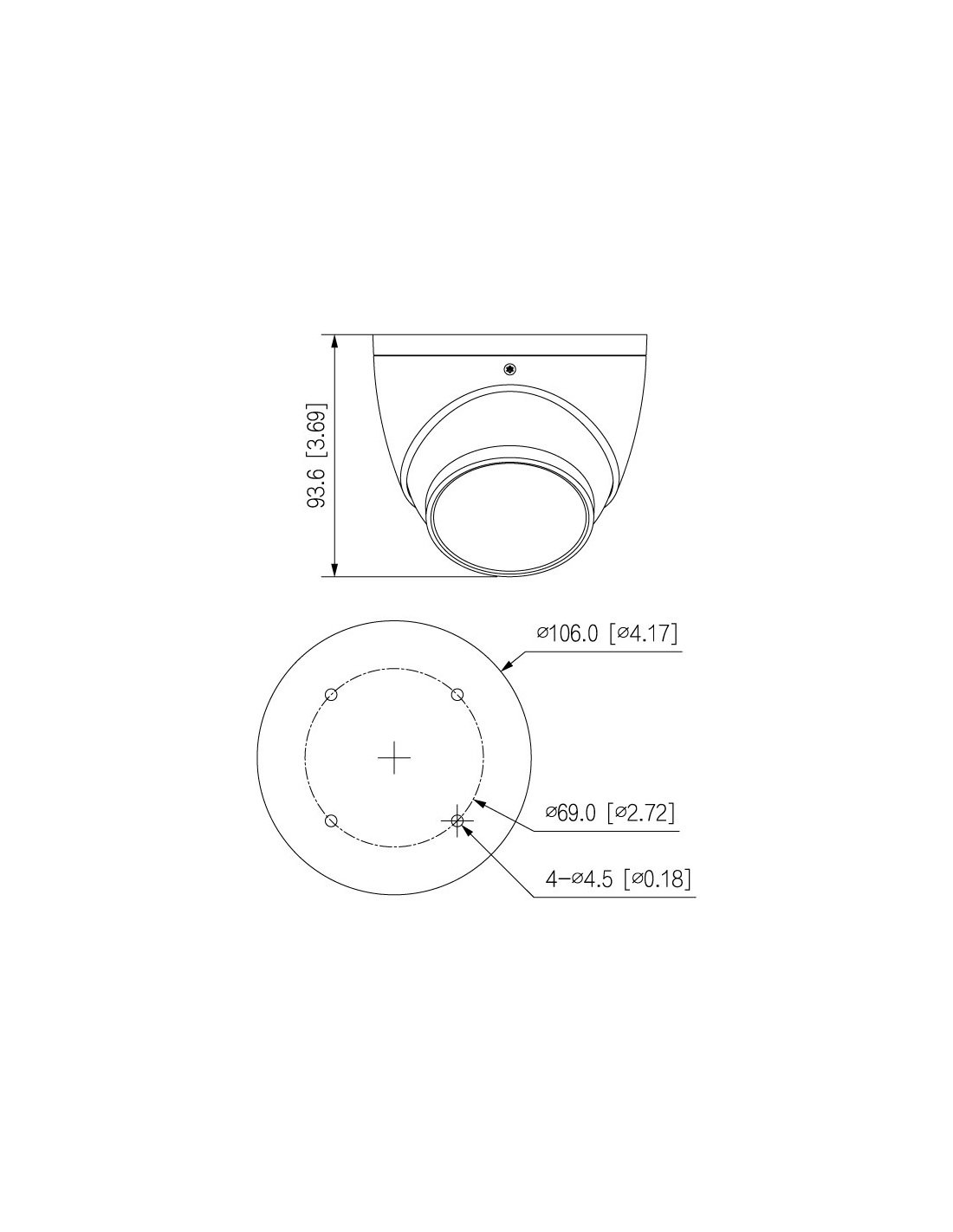

Dimensions
Ø94mm x 106mm
Ethernet
RJ-45 (10/100Base-T)
Housing
Metal
Net Weight
0.53kg
Operating Conditions
-40°C ~ +60°C / ≤95% RH
Power Supply
12VDC / PoE (802.3af)
Ingress Protection
IP67
Vandal Resistance
N/A
Bit Rate
H.265: 19 ~ 16384Kbps / H.264: 32 ~ 16384Kbps
Frame Rate (Main)
4.0MP (1 ~ 25fps) / 4.0MP (1 ~25fps)
Frame Rate (Sub)
1080p (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Max. User Access
20 Users (Total bandwidth: 64MB)
Power Consumption
Max:
Video Compression
H.265 / H.264H / H.264 / H.264B / MJPEG / AI H.265; AI H.264
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Series
Professional AI Series
Focus
Focus / 1.0m Min. Focus Distance
Interoperability
ONVIF / P2P / CGI
Effective Pixels
2688 (H) x 1520 (V)
Image Sensor
1/2.9” 4.0MP Progressive Scan CMOS
RS485
N/A
Alarm Interface
N/A
Camera Type
Turret
Max. Resolution
4.0 Megapixel
Field of View
Horizontal: 100°, Vertical: 56°
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Day/Night
Auto (ICR) / Color / B&W
Detect (25px/m)
62m
Gain Control
Auto
Identify (250px/m)
6m
Lens Type
Fixed
Noise Reduction
3D DNR
Observe (63px/m)
25m
Recognise (125px/m)
12m
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Audio Interface
Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; G.723; PCM
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage
MicroSD Card (up to 512GB) / NAS
ePoE
No
Infrared System
2x warm LED light, 2 x Infrared LED, 50m range, Auto/manual on/off control
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 zones), Smart Infrared
Lens / Iris
2.8mm Fixed Focal Lens with Fixed Iris
Min Illumination
0.005 Lux/F1.4 (Color), 0.0005 lux/F1.4 (B/W, 30 IRE), 0 lux (Illuminator on)
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
RAM / ROM
1GB / 256MB
S/N Ratio
> 56dB
Smart Scene Adaptive (SSA)
No
Streaming Method
Unicast / Multicast
Video Interface
N/A
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Face Attributes
N/A
Face Detection
N/A
Heat Map
N/A
Intelligent Search
Search for people/vehicles across all Acupick cameras, via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
People Counting
N/A
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
