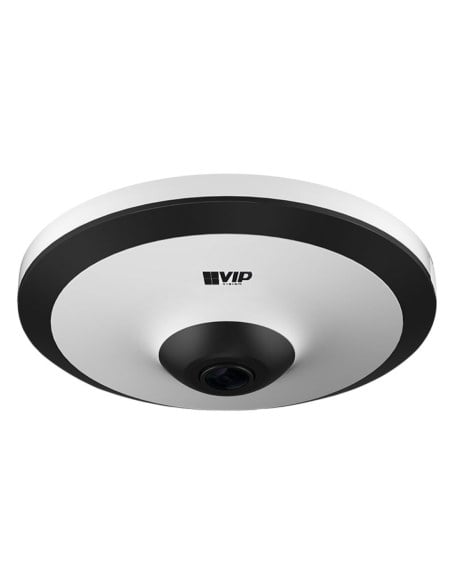

VIP Vision Specialist AI Series 5.0MP People Counting 360° Fisheye Dome - VSIPFE-5IR-I

1 / 7

VIP Vision Specialist AI Series 5MP People Counting 360° Fisheye Dome - VSIPFE-5IR-I

Name: VIP Vision Specialist AI Series 5MP People Counting 360° Fisheye Dome - VSIPFE-5IR-I
Brand: VIP Vision
SKU: VSIPFE-5IR-I
Price: 440 AUD
Availability: InStock

SKU VSIPFE-5IR-I In Stock - Ready to Ship

$440.00 inc GST

Stream up to 5.0MP (2592 x 1944) at 25fps
Circular fisheye lens with 360° viewing angle

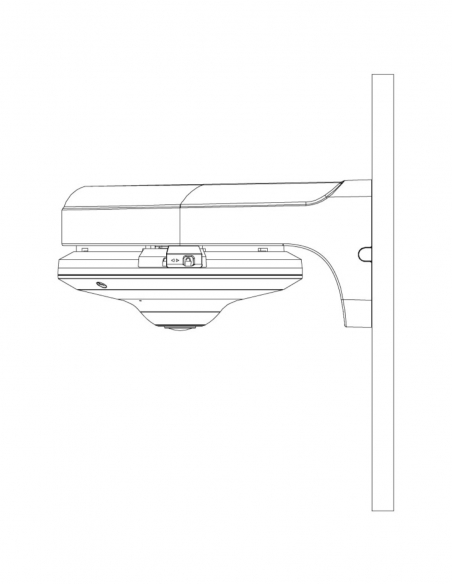

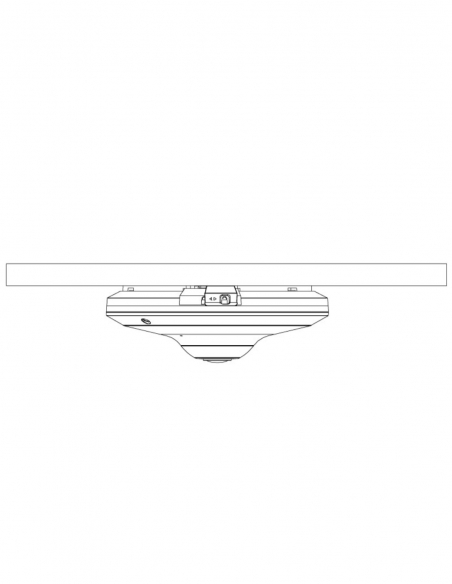

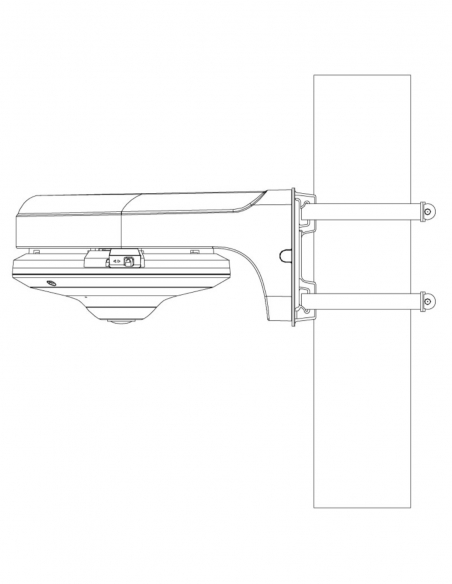

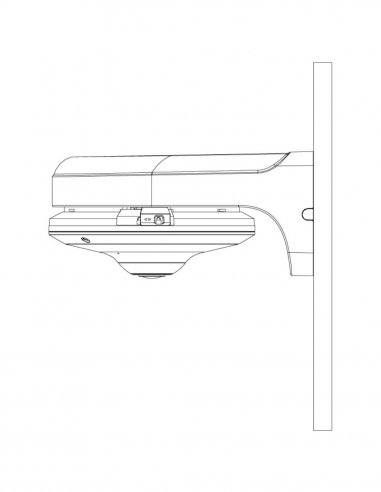

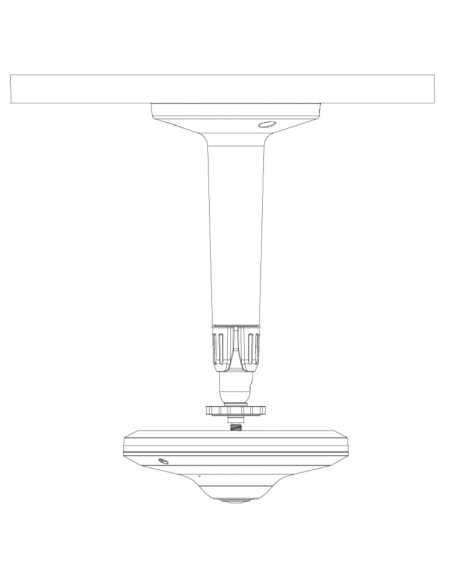

Dewarp modes* for ceiling, floor & wall mounting
Virtual PTZ, panorama, & camera split dewarp modes
Up to 10m infrared range; true day/night (auto ICR)

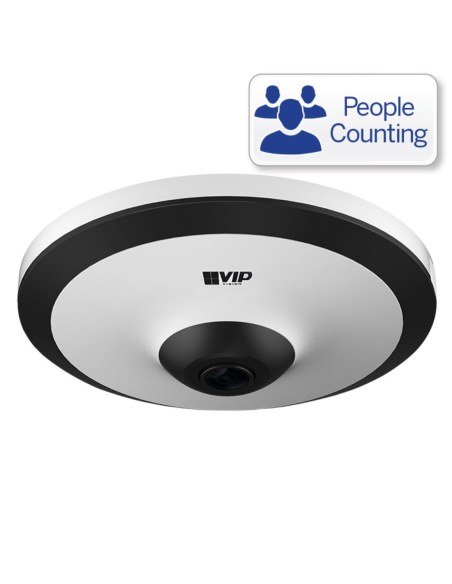

Set up AI-enhanced people tracking for real-time alerts, statistics and business analytics
Heat map, tripwire, intrusion & regions of interest
MicroSD card slot for edge recording up to 256GB
Built in mic and audio/alarm inputs and outputs

VIP Vision Specialist AI Series 5.0MP People Counting 360° Fisheye Dome

VSIPFE-5IR-I

4 Years Warranty!

The VSIPFE-5IR-I performs the duties of multiple cameras, with the powerful benefit of AI-powered people counting and heat mapping functions. Receive real-time alerts when a certain number of people enter an area with AI people & area counting or set up a heat map to observe the amount of time people spend in areas.

Camera Features:

• Stream up to 5.0MP (2592 x 1944) at 25fps

• Circular fisheye lens with 360° viewing angle

• Dewarp modes* for ceiling, floor & wall mounting

• Virtual PTZ, panorama, & camera split dewarp modes

• Up to 10m infrared range; true day/night (auto ICR)

• Set up AI-enhanced people tracking for real-time alerts, statistics and business analytics

• Heat map, tripwire, intrusion & regions of interest

• MicroSD card slot for edge recording up to 256GB

• Built in mic and audio/alarm inputs and outputs

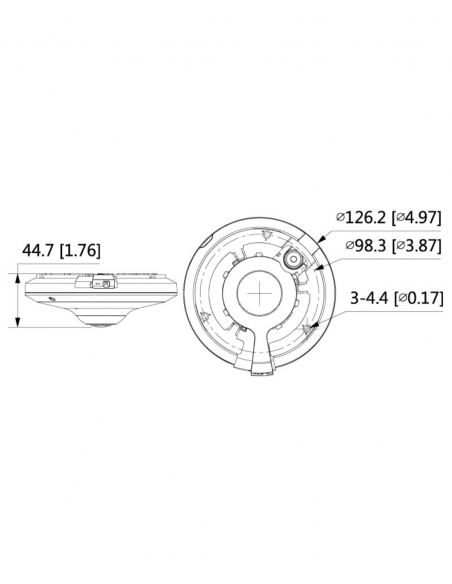

Dimensions: Ø126.2mm x 44.6mm
Ethernet: RJ-45 (100/1000 Base-T)
Housing: Metal + Plastic
Net Weight: 0.3kg
Operating Conditions: -10° ~ +50° C / Less than 95% RH
Power Supply: 12VDC / PoE (802.3af)
Ingress Protection: N/A
Vandal Resistance: N/A
Bit Rate: H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Frame Rate (Main): 5.0MP (1~25fps)
Frame Rate (Sub): D1 (1 ~ 25fps)
Frame Rate (Third): 720p (1 ~ 25fps)
Max. User Access: 20 Users (Total bandwidth: 64M)
Power Consumption
Video Compression: H.265+ / H.265 / H.264+ / H.264 / H.264H / H.264B / MJPEG
Resolution: 5.0MP (2592 x 1944) to CIF (352 x 288)
Series: Specialist AI Series
Focus: Fixed / 0.2m Min. Focus
Interoperability: ONVIF Profile S, G & T / CGI / P2P / Milestone / Genetec
Effective Pixels: 2592 (H) x 1944 (V)
Image Sensor: 1/2.7’’ 5.0MP Progressive Scan CMOS
RS485: N/A
Alarm Interface: 1 Input (5mA 3VDC ~ 5VDC), 1 Output (300mA 12VDC)
Camera Type: Fisheye
Max. Resolution: 5.0 Megapixel
Field of View: Horizontal: 180°, Vertical: 180°
Lighting Compensation: BLC / HLC / True WDR (120dB)
Day/Night: Auto (ICR) / Color / B&W
Detect (25px/m): 28m
Gain Control: Auto / Manual
Identify (250px/m): 3m
Lens Type: Fixed
Noise Reduction: 3D DNR
Observe (63px/m): 11m
Recognise (125px/m): 6m
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Audio Interface: 1 input (RCA Port), 1 Built-in Mic / 1 output (RCA Port) / Audio Compression - PCM; G.711a; G.711Mu; G726; AAC
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage: MicroSD Card (up to 256GB) / NAS / FTP / SFTP
ePoE: No
Infrared System: 3 x Infrared LED, 10m range, Auto/manual on/off control
Intelligent Functions: Tripwire, Intrusion, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Heat Map
Lens / Iris: 1.4mm F2.0 Fixed Circular Fisheye Lens
Min Illumination: 0.006lx/F2.0 (Colour)
Pan/Tilt/Rotation: N/A
Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
RAM / ROM: 512MB / 128MB
S/N Ratio: >56dB
Smart Scene Adaptive (SSA): Yes
Streaming Method: Unicast / Multicast
Video Interface: N/A
People Counting: Supports Area People Counting (No. of people, People quantity thresholds, 4 zones), Heat Mapping (No.of people and time spent)
Dewarping Modes: Original (No dewarp) / Panoramic / Double Panoramic / Virtual PTZ / Original + 3 split, + 4 split, + 8 split
