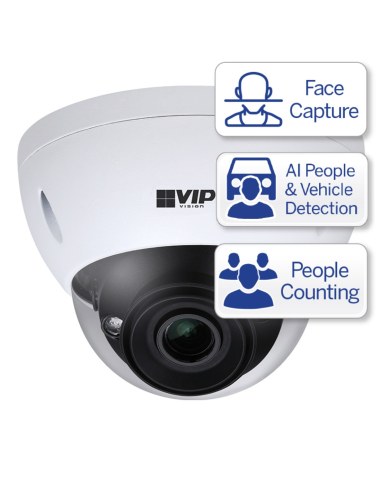

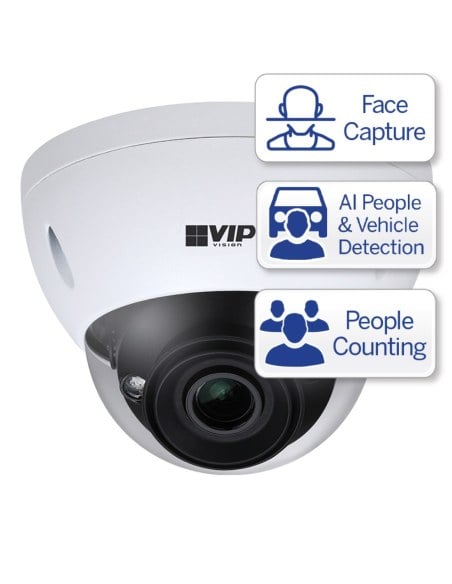

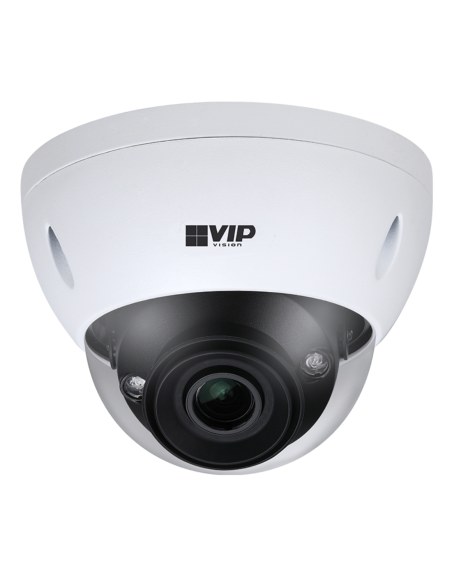

    VIP Vision Ultimate AI Series 4.0MP Motorised Vandal Dome (8~32mm lens) - VSIPU-4DIRM-IZ

    VSIPU-4DIRM-IZ
    In Stock - Ready to Ship
    $ 695.00
    inc-GST
    • Stream up to 4.0MP (2688 x 1520) at 25fps
    • 8 ~ 32mm motorised lens with 43 ~ 15° viewing angles
    • H.265 encoding for efficient storage & streaming
    • Long 80m infrared range; true day/night (auto ICR)
    • Back/highlight compensation & true WDR (140dB)
    • MicroSD slot for recording at the edge up to 256GB
    • Internal face detection & capture to extend recognition
    • Perimeter Protection to identify people & vehicles
    • Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms with any VIP Vision NVR
    • Intelligent AI-enhanced people counting for retail capacity management and flow control
    • Extend PoE up to 800m (requires ePoE NVR/switch)
    • IP67 weather rated & IK10 vandal rated housing

    Various Payment Types at Checkout.

    All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep



    VIP Vision Ultimate AI Series 4.0MP Motorised Vandal Dome (8~32mm lens)



    VSIPU-4DIRM-IZ



    The Ultimate AI Series detects and captures faces from footage using machine-learned algorithms, preparing face data for use with an AI NVR face database. This enables up to 16 channels of face recognition. The series also features intelligent perimeter protection and people counting to provide meaningful video event notifications in real-time.

    The VSIPU-4DIRM-IZ has a narrower field of view than the standard model (VSIPU-4DIRM-I), making it more suited for surveillance of single points of interest, such as entry points & corridors.





    Camera Features:

    • Stream up to 4.0MP (2688 x 1520) at 25fps
    • 8 ~ 32mm motorised lens with 43 ~ 15° viewing angles
    • H.265 encoding for efficient storage & streaming
    • Long 80m infrared range; true day/night (auto ICR)
    • Back/highlight compensation & true WDR (140dB)
    • MicroSD slot for recording at the edge up to 256GB
    • Internal face detection & capture to extend recognition
    • Perimeter Protection to identify people & vehicles
    • Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms with any VIP Vision NVR
    • Intelligent AI-enhanced people counting for retail capacity management and flow control
    • Extend PoE up to 800m (requires ePoE NVR/switch)
    • IP67 weather rated & IK10 vandal rated housing

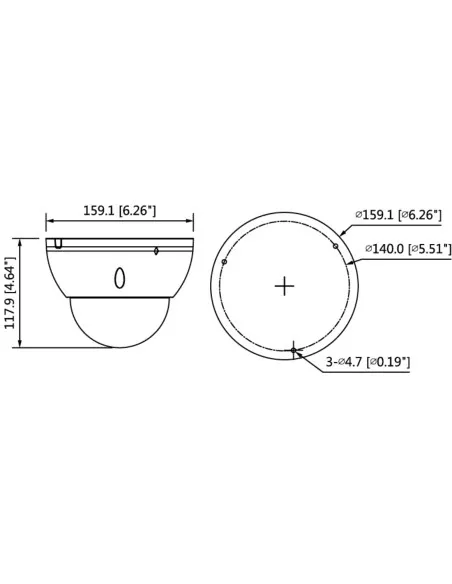

    Dimensions
    Ø159mm x 118mm
    Ethernet
    RJ-45 (10/100Base-T)
    Housing
    Metal, Plastic
    Net Weight
    0.95kg
    Operating Conditions
    -30°C ~ +60°C, ?95% RH
    Power Supply
    12VDC / 24VAC / PoE (802.3af)/ ePoE
    Ingress Protection
    IP67
    Vandal Resistance
    IK10
    Bit Rate
    H.264: 32Kbps ~ 8192Kbps / H.265: 19Kbps ~ 8192Kbps
    Frame Rate (Main)
    4.0MP (1 ~ 25fps)
    Frame Rate (Sub)
    D1 (1 ~ 25fps)
    Frame Rate (Third)
    1080p (1 ~ 25fps)
    Max. User Access
    20 Users
    Power Consumption
    < 12.4W
    Video Compression
    H.265, H.264, H.264B, H.264H, MJPEG
    Resolution
    4.0MP (2688 x 1520) to CIF (352 x 288)
    Category
    Network Surveillance
    Series
    Ultimate AI Series
    Focus
    Auto Focus / 1.2m Min. Focus Distance
    Interoperability
    ONVIF / P2P / CGI / Milestone / Genetec
    Effective Pixels
    2688 (H) x 1520 (V)
    Image Sensor
    1/1.8’’ 4.0MP Progressive Scan CMOS
    RS485
    N/A
    Alarm Interface
    1 channel in: 5mA 5VDC / 1 channel out: 300mA 12VDC
    Camera Type
    Dome
    Max. Resolution
    4.0 Megapixel
    Field of View
    Horizontal: 43~15°, Vertical: 23°~8°
    Lighting Compensation
    BLC / HLC / WDR (140dB)
    Day/Night
    Auto (ICR) / Color / B&W
    Detect (25px/m)
    151.1m (wide) / 400m (tele)
    Gain Control
    Auto / Manual
    Identify (250px/m)
    15.1m (wide) / 40m (tele)
    Lens Type
    Motorised Varifocal
    Noise Reduction
    3D DNR
    Observe (63px/m)
    60.7m (wide) / 160m (tele)
    Recognise (125px/m)
    30.3m (wide) / 80m (tele)
    White Balance
    Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
    Audio Interface
    1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723
    Bit Rate Control
    Constant bit rate (CBR) / Variable bit rate (VBR)
    Edge Storage
    MicroSD Card (up to 256GB) / NAS / FTP /SFTP
    ePoE
    Yes
    Infrared System
    3 x Infrared LED, 80m range, Auto/manual/Zoomprio on/off control
    Intelligent Functions
    Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 areas), Smart Infrared, Abandoned Object, Moving Object
    Lens / Iris
    8 ~ 32.0mm F1.6 Motorised Varifocal Lens with Auto Iris
    Min Illumination
    0.002 Lux / F1.6 (Color)
    Pan/Tilt/Rotation
    Pan: 0° ~ 355°, Tilt: 0° ~ 65°, Rotation: 0° ~ 355°
    Picture Control
    Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 4M resolution and lower)
    Protocol
    IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
    RAM / ROM
    1GB / 128MB
    S/N Ratio
    > 56dB
    Smart Scene Adaptive (SSA)
    Yes
    Streaming Method
    Multicast
    Video Interface
    N/A
    Event Trigger
    Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
    Face Attributes
    Age, Gender, Expression, Glasses, Face Mask, Facial Hair
    Face Detection
    Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)
    Heat Map
    Yes
    Intelligent Search
    Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
    People Counting
    Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
    Perimeter Protection
    Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
