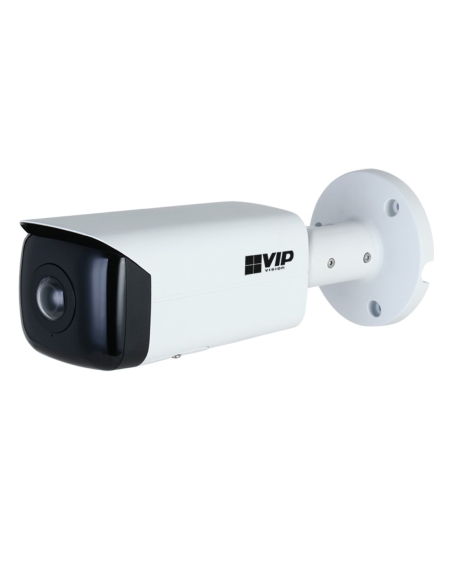

VIP Vision Wide-Angle Professional AI Camera VSIPP-4BIRW-I

VIP Vision Professional AI Series 4.0MP VSIPP-4BIRW-I

1 / 7

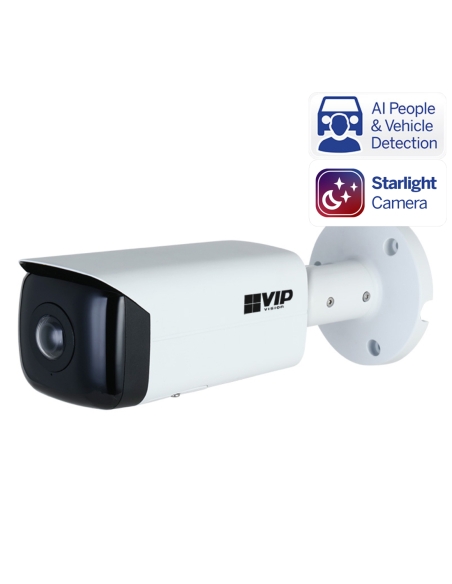

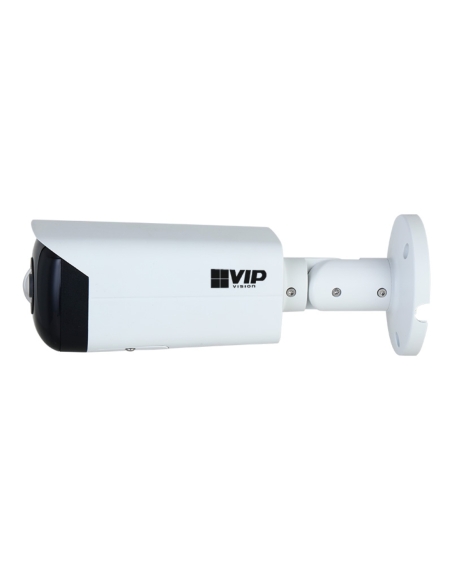

VIP Vision Professional AI Series 4.0MP Wide-Angle Bullet - VSIPP-4BIRW-I

Name: VIP Vision Professional AI Series 4.0MP Wide-Angle Bullet - VSIPP-4BIRW-I
Brand: VIP Vision
SKU: VSIPP-4BIRW-I
Price: 227.5 AUD
Availability: InStock

SKU VSIPP-4BIRW-I In Stock - Ready to Ship

$227.50 inc GST

Stream up to 4.0MP (2880 x 1620) at 25fps
2.1mm panoramic lens for 170° field of view (Lens Distortion Control enabled; 180° when disabled)
Back/highlight compensation & true WDR (120dB)
20m infrared range & virtual PTZ control
Starlight sensor for superb low-light performance
Intelligent AI detection to identify people & vehicles
Smart Motion Detection (SMD+) & Perimeter Protection for AI alerts and to prevent false alarms
MicroSD slot for recording at the edge up to 256GB
3D digital noise reduction & auto white balance
IP67 weather rated housing for outdoor use
Power via 12VDC or Power over Ethernet (802.3at)

VIP Vision Professional AI Series 4.0MP Wide-Angle Bullet -

VSIPP-4BIRW-I

Applying machine-learned algorithms, this Professional AI VSIPP-4BIRW-I camera features intelligent Perimeter Protection and delivers superb image performance with low light colour and a wide-angle lens. The lens provides a panoramic 180° view that can replace multiple cameras in a CCTV system. Perfect for reducing time on installations!

Product Features:

• Stream up to 4.0MP (2880 x 1620) at 25fps

• 2.1mm panoramic lens for 170° field of view (Lens Distortion Control enabled; 180° when disabled)

• Back/highlight compensation & true WDR (120dB)

• 20m infrared range & virtual PTZ control

• Starlight sensor for superb low-light performance

• Intelligent AI detection to identify people & vehicles

• Smart Motion Detection (SMD+) & Perimeter Protection for AI alerts and to prevent false alarms

• MicroSD slot for recording at the edge up to 256GB

• 3D digital noise reduction & auto white balance

• IP67 weather-rated housing for outdoor use

• Power via 12VDC or Power over Ethernet (802.3at)

Specifications:

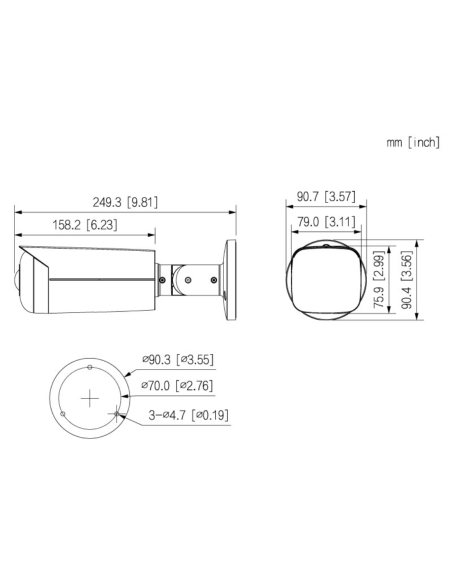

Dimensions: 249.3 mm × 90.7 mm × 90.4 mm
Ethernet: RJ-45 (10/100Base-T)
Housing: Metal
Net Weight: 820 g
Operating Conditions: -40°C ~ +60°C, ?95% RH
Power Supply: 12 VDC/PoE
Ingress Protection: IP67
Vandal Resistance: N/A
Bit Rate: H.264/H.265: 3 kbps–8192 kbps
Frame Rate (Main): 4.6MP (1 ~ 20fps) / 4.0MP (1 ~ 25fps)
Frame Rate (Sub): D1 (1 ~ 25fps)
Frame Rate (Third): 1080p (1 ~ 25fps)
Max. User Access: 20 Users
Power Consumption
Video Compression: H.265, H.264, H.264H, H.264B, MJPEG
Resolution: 4.6MP (2880 x 1620) / 4.0MP (2688 x 1520)
Series: Professional AI Series
Focus: 0.6m Min. Focus Distance
Interoperability: ONVIF / PSIA / CGI
Effective Pixels: 2880 (H) x 1620 (V)
Image Sensor: 1/2.7" CMOS
RS485: N/A
Alarm Interface: 1 channel in: 5 mA 3-5 VDC / 1 channel out: 1,000 mA 30V DC or 500mA 50V DC
Camera Type: Bullet
Max. Resolution: 4.0 Megapixel
Field of View: 180°
Lighting Compensation: BLC / HLC / WDR (120dB)
Day/Night: Auto (ICR) / Color / B&W
Detect (25px/m): 52.0 m
Gain Control: Auto / Manual
Identify (250px/m): 5.2 m
Lens Type: Fixed
Noise Reduction: 3D NR
Observe (63px/m): 20.8 m
Recognise (125px/m): 10.4 m
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Audio Interface: 1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage: MicroSD Card (up to 256GB) / NAS / FTP /SFTP
ePoE: No
Infrared System: 2 x Infrared LED, 20m range, Auto/manual on/off control
Intelligent Functions: Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Lens / Iris: 2.1mm F2.0 Fixed Focal Lens
Min Illumination: 0.01 Lux / F1.6 (Color), 0.001 lux / F2.0 (B/W, 30 IRE), 0 lux (IR on)
Pan/Tilt/Rotation: Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
Picture Control: Mirror / Flip (0°, 90°, 180°, 270°)
Protocol: IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
RAM / ROM: 512 MB/128 MB
S/N Ratio: >56 dB
Smart Scene Adaptive (SSA): No
Streaming Method: Unicast / Multicast
Video Interface: N/A
Event Trigger: Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access
Face Attributes: N/A
Face Detection: N/A
Heat Map: N/A
Intelligent Search: Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
People Counting: N/A
Perimeter Protection: Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
