In Stock - Ready to Ship
VIP Vision Ultimate AI Series 4MP Motorised Turret - VSIPU-4DIRMG-I
VSIPU-4DIRMG-I
In Stock - Ready to Ship $ 504.80
inc-GST
- Stream up to 4.0MP (2688 x 1520) at 25fps
- 2.7 ~ 12mm motorised lens with 114 ~ 47° viewing angles
- H.265 encoding for efficient storage & streaming
- 40m infrared range; true day/night (auto ICR)
- Back/highlight compensation & true WDR (120dB)
- MicroSD slot for recording at the edge up to 256GB
- Internal face detection & capture to extend recognition
- Perimeter Protection to identify people & vehicles
- Combine Perimeter Protection with Tripwire/Intrusion
- Intelligent AI-enhanced people counting
- Extend PoE up to 800m (requires ePoE NVR/switch)
- IP67 weather rated

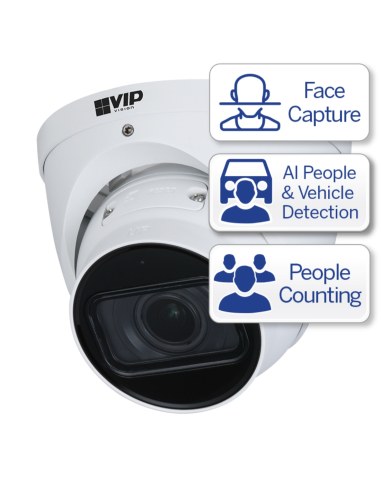

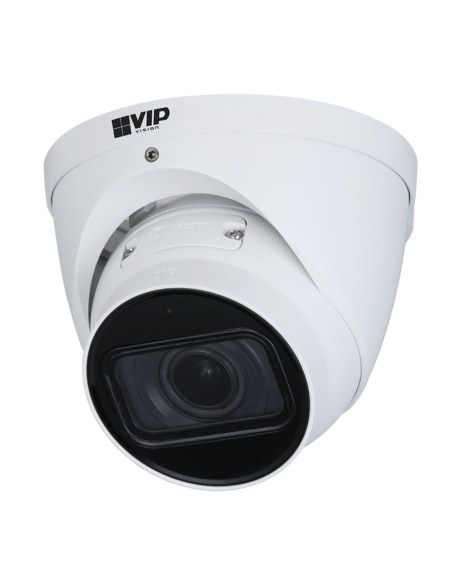

VIP Vision Ultimate AI Series 4.0MP Motorised Turret
VSIPU-4DIRMG-I
4 Years Warranty
The Ultimate AI Series detects and captures faces from footage using machine-learned algorithms, preparing face data for use with an AI NVR face database. This enables up to 16 channels of face recognition. The series also features intelligent perimeter protection and people counting to provide meaningful video event notifications in real-time.
Camera Features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.7 ~ 12mm motorised lens with 114 ~ 47° viewing angles
• H.265 encoding for efficient storage & streaming
• 40m infrared range; true day/night (auto ICR)
• Back/highlight compensation & true WDR (120dB)
• MicroSD slot for recording at the edge up to 256GB
• Internal face detection & capture to extend recognition
• Perimeter Protection to identify people & vehicles
• Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms with any VIP Vision NVR
• Intelligent AI-enhanced people counting for retail capacity management and flow control
• Extend PoE up to 800m (requires ePoE NVR/switch)
• IP67 weather rated
-1.jpg)
-2.jpg)

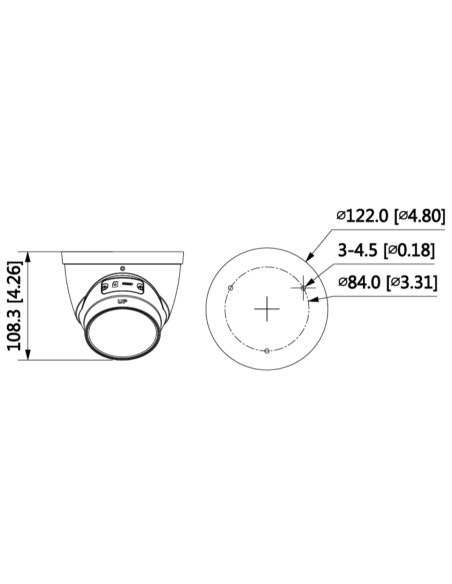

- Dimensions
- Ø122mm x 108mm
- Ethernet
- RJ-45 (10/100Base-T)
- Housing
- Metal, Plastic
- Net Weight
- 0.74kg
- Operating Conditions
- -30°C ~ +60°C, ?95% RH
- Power Supply
- 12V DC (±30%)/PoE (802.3af)/ePoE
- Ingress Protection
- IP67
- Vandal Resistance
- N/A
- Bit Rate
- H.264: 32Kbps ~ 8192Kbps / H.265: 19Kbps ~ 8192Kbps
- Frame Rate (Main)
- 4.0MP (1 ~ 25fps) / 2.0MP (1 ~ 50fps)
- Frame Rate (Sub)
- D1 (1 ~ 50fps)
- Frame Rate (Third)
- 1080p (1 ~ 25fps)
- Max. User Access
- 20 Users
- Power Consumption
- Video Compression
- H.265+ / H.265 / H.264+ / H.264 / H.264B / H.264H / MJPEG
- Resolution
- 4.0MP (2688 x 1520) to CIF (352 x 288)
- Category
- Network Surveillance
- Series
- Ultimate AI Series
- Focus
- Auto Focus / 1.2m Min. Focus Distance
- Interoperability
- ONVIF / P2P / CGI / Milestone / Genetec
- Effective Pixels
- 2688 (H) x 1520 (V)
- Image Sensor
- 1/1.8’’ 4.0MP Progressive Scan CMOS
- RS485
- N/A
- Alarm Interface
- N/A
- Camera Type
- Turret
- Max. Resolution
- 4.0 Megapixel
- Field of View
- Horizontal: 114°~47°, Vertical: 62°~26°
- Lighting Compensation
- BLC / HLC / WDR (140dB)
- Day/Night
- Auto (ICR) / Color / B&W
- Detect (25px/m)
- 58m (wide) / 131m (tele)
- Gain Control
- Auto / Manual
- Identify (250px/m)
- 6m (wide) / 13m (tele)
- Lens Type
- Motorised Varifocal
- Noise Reduction
- 3D DNR
- Observe (63px/m)
- 23m (wide) / 52m (tele)
- Recognise (125px/m)
- 12m (wide) / 26m (tele)
- White Balance
- Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
- Audio Interface
- Built in MIC/ Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723
- Bit Rate Control
- Constant bit rate (CBR) / Variable bit rate (VBR)
- Edge Storage
- MicroSD Card (up to 256GB) / NAS / FTP /SFTP
- ePoE
- Yes
- Infrared System
- 2 x Infrared LED, 40m range, Auto/manual on/off control
- Intelligent Functions
- Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
- Lens / Iris
- 2.7 ~ 12.0mm F1.8 Motorised Varifocal Lens with Auto Iris
- Min Illumination
- 0.003 Lux / F1.8 (Color)
- Pan/Tilt/Rotation
- Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
- Picture Control
- Mirror / Flip (0°, 90°, 180°, 270°)
- Protocol
- IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
- RAM / ROM
- 1GB / 128MB
- S/N Ratio
- > 56dB
- Smart Scene Adaptive (SSA)
- No
- Streaming Method
- Unicast / Multicast
- Video Interface
- N/A
- Event Trigger
- Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
- Face Attributes
- Age, Gender, Expression, Glasses, Face Mask, Facial Hair
- Face Detection
- Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)
- Heat Map
- Yes
- Intelligent Search
- Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
- People Counting
- Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
- Perimeter Protection
- Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
