VIP Vision Professional AI Series 8MP 4K-UHD Motorised Turret - VSIPP-8DIRMG-I3

VSIPP-8DIRMG-I3
In Stock - Ready to Ship
$ 368.00
inc-GST
  • Stream up to 8.0MP (3840 x 2160) at 20fps
  • 2.7 ~ 13.5mm motorised lens with 114 ~ 32° viewing angles
  • Intelligent search across all Acupick cameras
  • Warm LED light triggers on person/vehicle detection
  • H.265 encoding for efficient storage & streaming
  • Up to 40m infrared range; true day/night (auto ICR)
  • MicroSD slot for recording at the edge up to 512GB
  • AI powered perimeter protection & smart motion detection (SMD 4.0)
  • Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
  • IP67 weather rated housing for outdoor use
  • AI weather and anti-flicker scene self-adaption

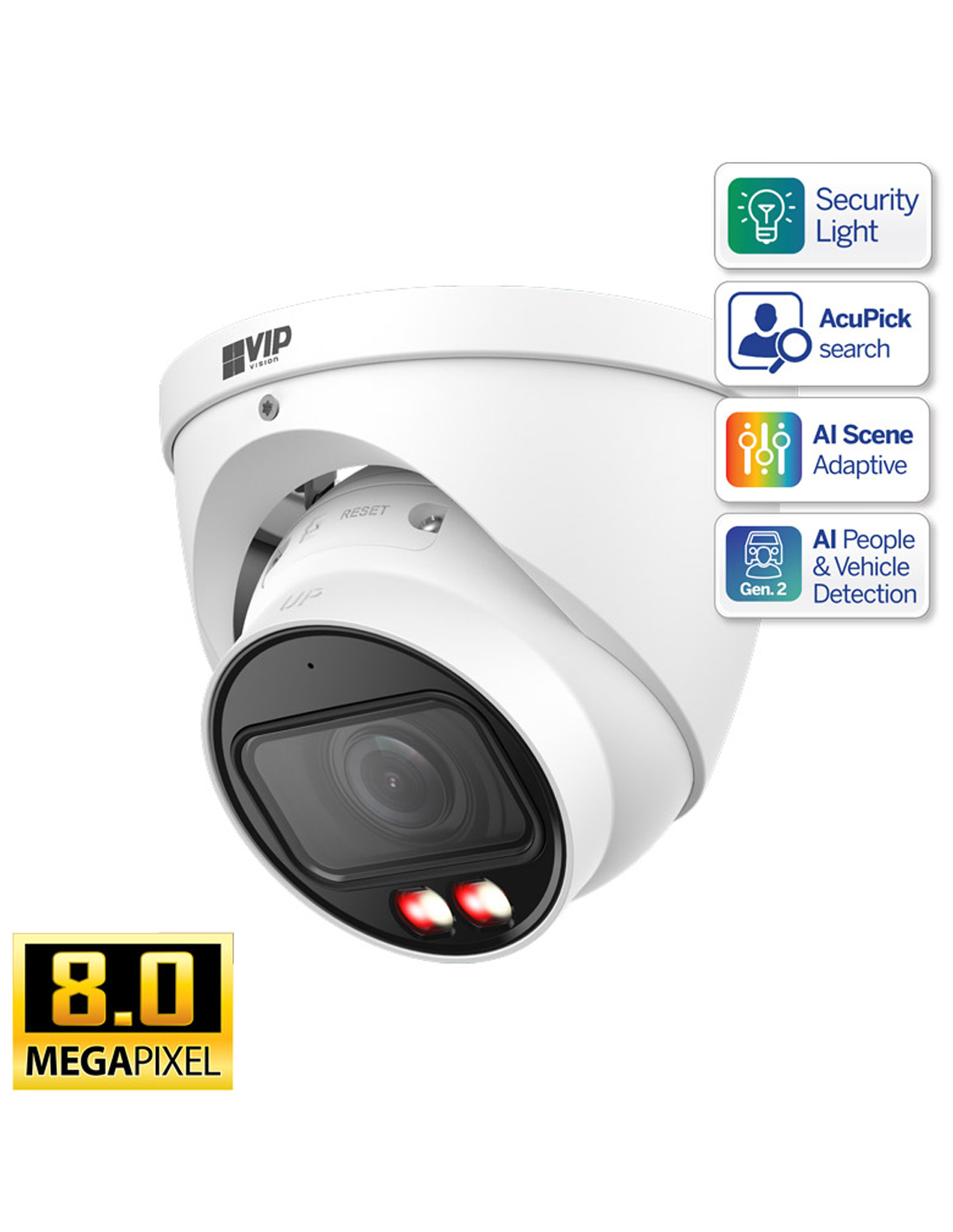

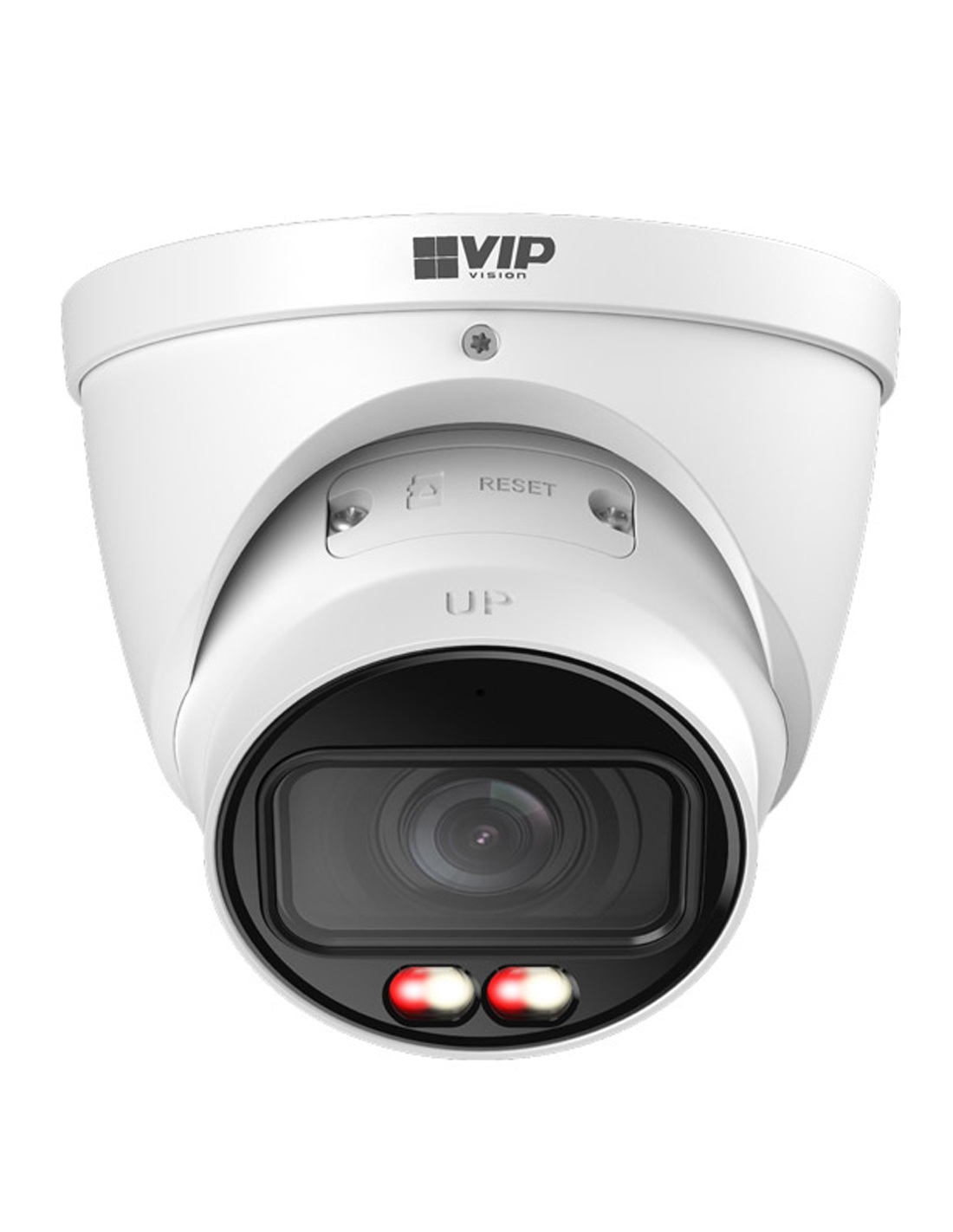

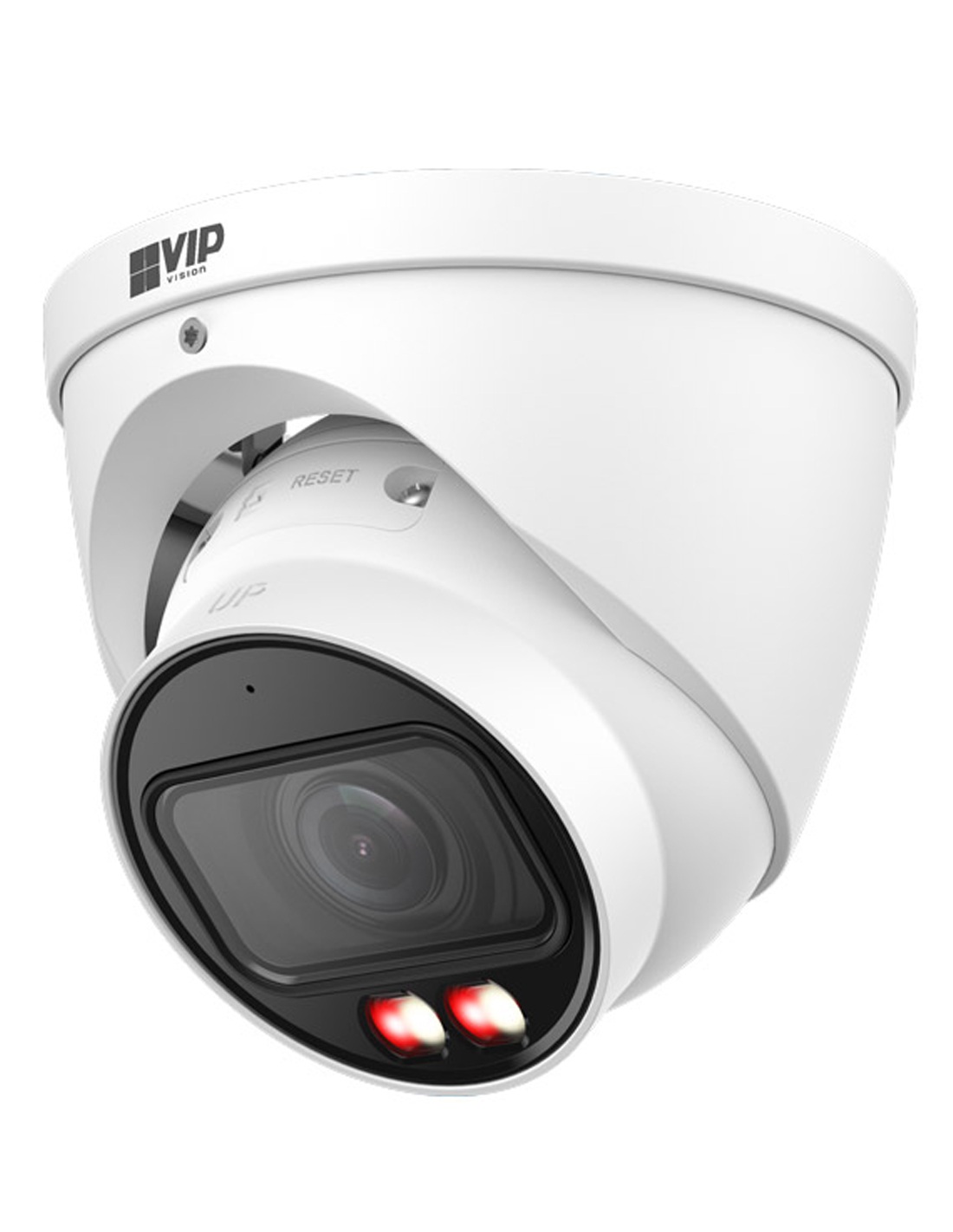

VIP Vision Professional AI Series 8.0MP Motorised Turret

Model: VSIPP-8DIRMG-I3

AI-Enhanced Detection with Motorised Clarity

The Professional AI Series identifies people & vehicles using machine learning to reduce false alerts and enhance real-time monitoring. When used with VIP Vision NVRs, events can be filtered by human or vehicle motion for faster review and playback.

VSIPP-8DIRMG-I3 Motorised Turret

Key Features:

  • Stream up to 8.0MP (3840 x 2160) at 20fps
  • 2.7 ~ 13.5mm motorised lens with 114 ~ 32° viewing angles
  • Intelligent search across all Acupick cameras
  • Warm LED light triggers on person/vehicle detection
  • H.265 encoding for efficient storage & streaming
  • Up to 40m IR range, true day/night (auto ICR)
  • MicroSD recording up to 512GB
  • AI-powered perimeter protection & SMD 4.0 motion detection
  • Receive alerts and playback by object type (person/vehicle)
  • IP67 weatherproof housing
  • AI weather adaption and anti-flicker features

Specifications:

  • Image Sensor: 1/2.7’’ 8.0MP Progressive Scan CMOS
  • Resolution: 3840 x 2160
  • Lens: 2.7 ~ 13.5mm Motorised Varifocal
  • Field of View: H: 114° ~ 32°, V: 58° ~ 17°
  • Lighting: 4x Warm LED (40m), 2x IR (50m)
  • AI Detection: Tripwire, Intrusion with human/vehicle classification
  • Compression: H.265, H.264, Smart AI Codecs
  • Audio: Built-in Mic, G.711 / G.726 / PCM
  • Storage: MicroSD (up to 512GB) / NAS
  • Network: RJ-45, 20 users max, ONVIF support
  • Power: 12VDC / PoE (802.3af)
  • Housing: Metal turret, IP67 rated
  • Operating Temp: -30°C to +60°C
  • Dimensions: Ø108mm x 122mm
  • Weight: 0.69kg
  • Warranty: 4 Years

Applications:

  • High-traffic building entrances
  • Commercial parking and perimeter zones
  • Warehouses and logistics yards
  • Suburban homes or gated estates

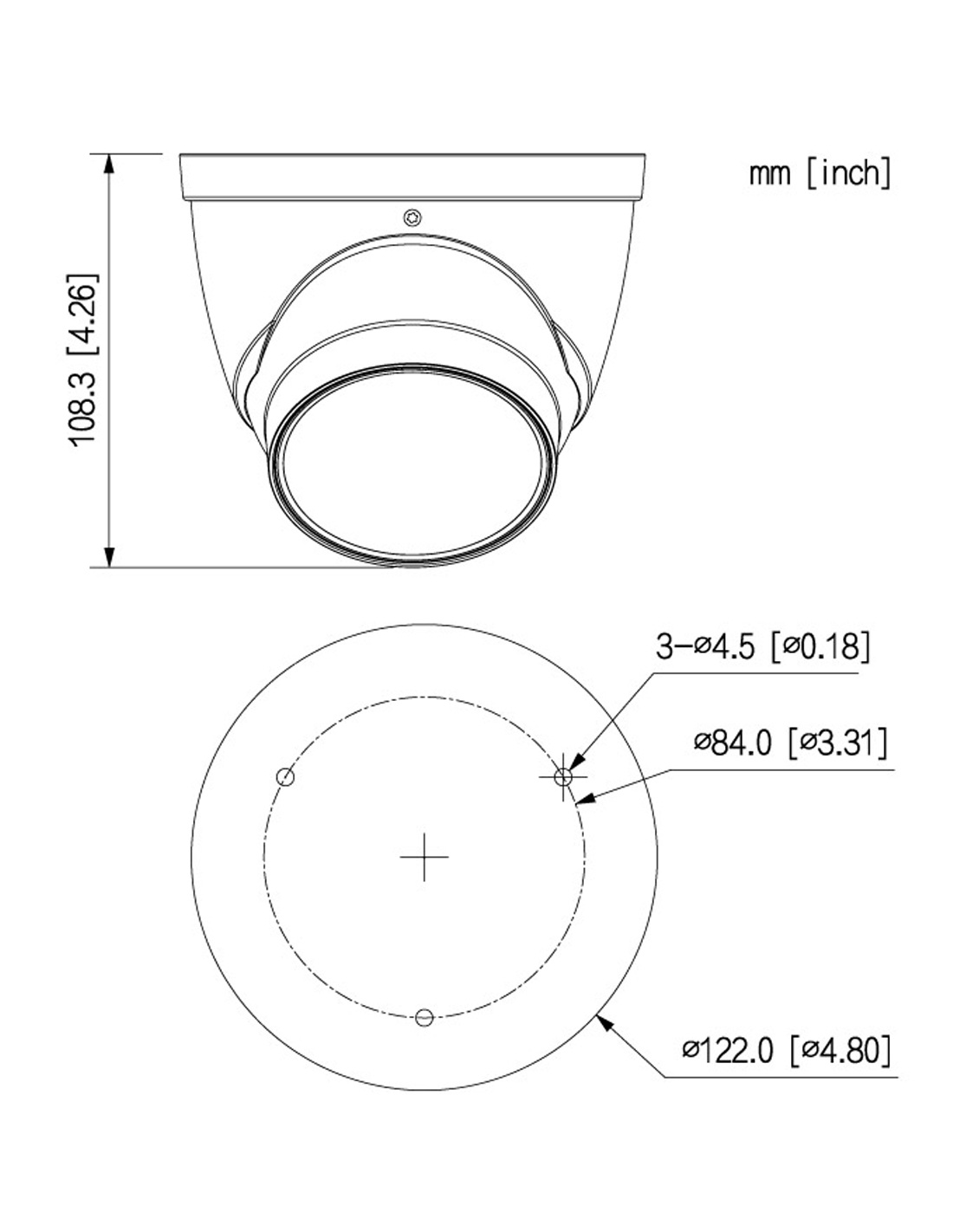

Dimensions
Ø122mm x 108mm
Ethernet
RJ-45 (10/100Base-T)
Housing
Metal
Net Weight
0.715kg
Operating Conditions
-30°C ~ +60°C / ≤95% RH
Power Supply
12VDC / PoE (802.3af)
Ingress Protection
IP67
Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Frame Rate (Main)
8.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Max. User Access
20 Users
Video Compression
H.265 / H.264 / H.264H / H.264B / MJPEG
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Series
Professional AI Series
Focus
Auto Focus / 0.8m Min. Focus Distance
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Effective Pixels
3840 (H) x 2160 (V)
Image Sensor
1/2.8’’ 8.0MP Progressive Scan CMOS
Camera Type
Turret
Max. Resolution
8.0 Megapixel
Field of View
Horizontal: 109°~30°, Vertical: 56°~17° (5x Optical Zoom)
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Day/Night
Auto (ICR) / Color / B&W
Detect (25px/m)
88m (wide) / 290m (tele)
Gain Control
Auto
Identify (250px/m)
9m (wide) / 29m (tele)
Lens Type
Motorised Varifocal
Noise Reduction
3D DNR
Observe (63px/m)
35m (wide) / 116m (tele)
Recognise (125px/m)
18m (wide) / 58m (tele)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Audio Interface
Built-in Mic / Audio Compression - G.711a; G.711Mu; G726
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage
MicroSD Card (up to 256GB) / NAS
Infrared System
4 x Infrared LED, 50m range, Auto/manual on/off control
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Lens / Iris
2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris
Min Illumination
0.007 Lux/F1.5 (Color)
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
Protocol
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
RAM / ROM
1GB / 128MB
S/N Ratio
> 56dB
Streaming Method
Multicast
Event Trigger
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
