VIP Vision Specialist AI Series 12MP People Counting 360° Fisheye Dome - VSIPFE-12IR-I
- Stream up to 12.0MP (4000 x 3000) at 25fps
- Circular fisheye lens with 360° viewing angle

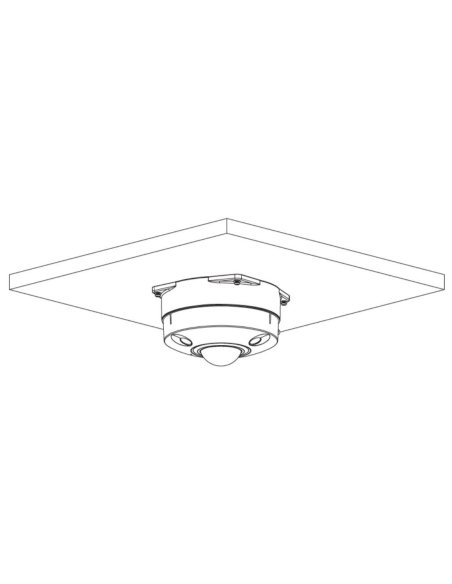

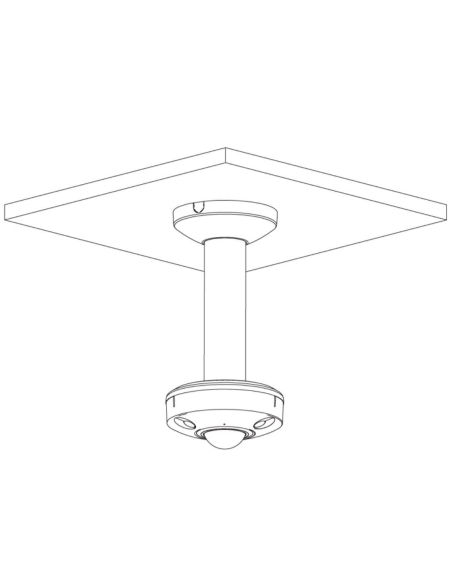

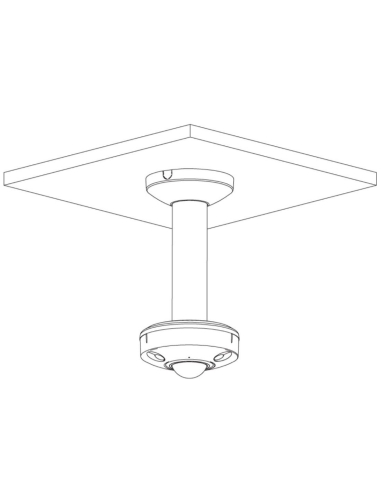

- Dewarp modes* for ceiling, floor & wall mounting
- Virtual PTZ, panorama, & camera split dewarp modes
- Up to 10m infrared range; true day/night (auto ICR)
- Set up AI-enchanced people tracking
- Heat map, queue management & regions of interest
- MicroSD card slot for edge recording up to 128GB
- IP67 weather & IK10 vandal resistant housing

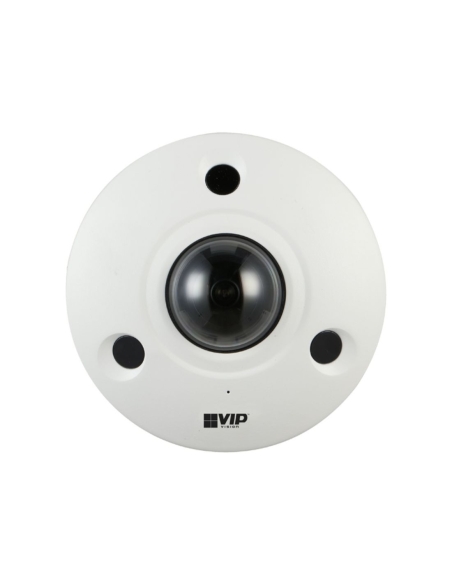

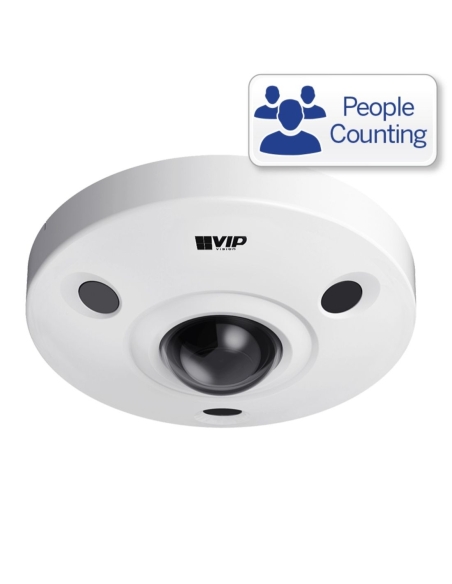

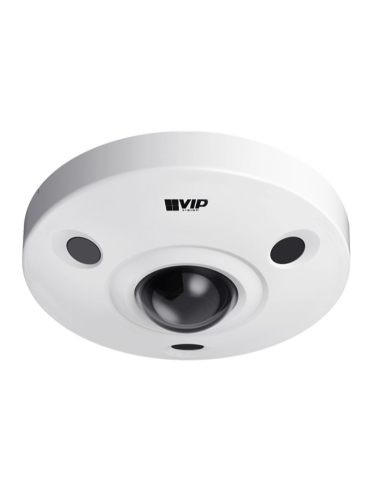

VIP Vision Specialist AI Series 12.0MP People Counting 360° Fisheye Dome
VSIPFE-12IR-I
The VSIPFE-12IR-I performs the duties of multiple cameras, with the powerful benefit of AI-powered people counting, queue management, and heat mapping. Receive alerts when a certain number of people enter an area with queue management or set up a heat map to observe the amount of time spent in areas.
Camera Features:
• Stream up to 12.0MP (4000 x 3000) at 25fps
• Circular fisheye lens with 360° viewing angle
• Dewarp modes* for ceiling, floor & wall mounting
• Virtual PTZ, panorama, & camera split dewarp modes
• Up to 10m infrared range; true day/night (auto ICR)
• Set up AI-enchanced people tracking for real-time alerts, statistics and business analytics
• Heat map, queue management & regions of interest
• MicroSD card slot for edge recording up to 128GB
• IP67 weather & IK10 vandal resistant housing

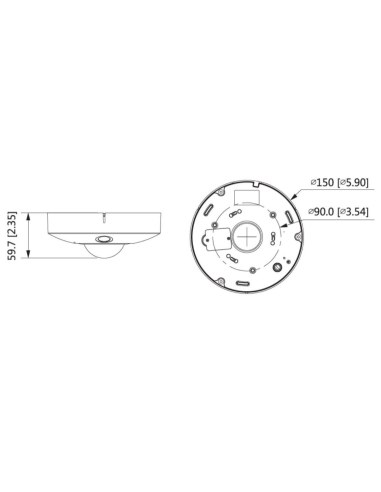

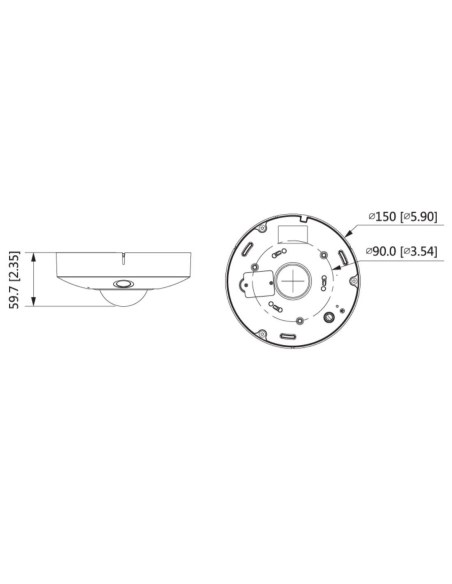

- Dimensions
- Ø150mm x 60mm
- Ethernet
- RJ-45 (10/100Base-T)
- Housing
- Metal, Plastic
- Net Weight
- 0.77kg
- Operating Conditions
- -30°C to +45°C, ≤95% RH
- Power Supply
- 12VDC / PoE
- Ingress Protection
- IP67
- Vandal Resistance
- IK10
- Bit Rate
- H264: 88Kbps-16384Kbps ;H265: 52Kbps-16384Kbps
- Frame Rate (Main)
- 12.0MP (1 ~ 25fps)
- Frame Rate (Sub)
- D1 (1 ~ 25fps)
- Frame Rate (Third)
- D1 (1 ~ 25fps)
- Max. User Access
- 20 Users
- Power Consumption
- Video Compression
- H.265, H.264, H.264H, H.264B, MJPEG
- Resolution
- 12.0MP (4000 x 3000) to CIF (352 x 288)
- Series
- Specialist AI Series
- Focus
- Fixed
- Interoperability
- ONVIF (Profile S / Profile G), GB/T28181, CGI
- Effective Pixels
- 4000 (H) x 3000 (V)
- Image Sensor
- 1/1.7" 12.0MP Progressive Scan CMOS
- RS485
- N/A
- Alarm Interface
- 2 Channel Input / 2 Channels Output
- Camera Type
- Fisheye Dome
- Max. Resolution
- 12.0 Megapixel
- Field of View
- Horizontal: 185°, Vertical: 180°
- Lighting Compensation
- DWDR
- Day/Night
- N/A
- Detect (25px/m)
- 40m
- Gain Control
- Manual
- Identify (250px/m)
- 4m
- Lens Type
- Fixed
- Noise Reduction
- 3D DNR
- Observe (63px/m)
- 16m
- Recognise (125px/m)
- 8m
- White Balance
- Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
- Audio Interface
- 1 Channel Input (RCA), 1 Built-in Mic / 1 Channel Output / Audio Compression: G.711A, G.711Mu, G726, AAC
- Bit Rate Control
- Constant bit rate (CBR) / Variable bit rate (VBR)
- Edge Storage
- MicroSD Card (up to 256GB) / FTP
- ePoE
- No
- Infrared System
- 3 x Infrared LED, 10m range
- Intelligent Functions
- Intrusion, Tripwire, Region of Interest (4 zones), Privacy Masking (4 zones) Smart Infrared, Heat Map
- Lens / Iris
- 1.85mm F2.0 Fixed Focal Lens with Fixed Aperture
- Min Illumination
- 0.001 Lux/F2.0 (colour 1/3s), 0.01 Lux/F2.0 (colour 1/30s), 0 Lux/F2.0 (IR on)
- Pan/Tilt/Rotation
- N/A
- Protocol
- HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP
- RAM / ROM
- 4GB / 4GB
- S/N Ratio
- 49.7dB
- Smart Scene Adaptive (SSA)
- No
- Streaming Method
- Unicast / Multicast
- Video Interface
- N/A
- People Counting
- Queue Management (Triggers alarm when designated amount of people enters zone, 4 zones), Heat Mapping (Number of people and time spent)
- Dewarping Modes
- Original (Dewarp Supported) / Panoramic / Double Panoramic / Virtual PTZ / Original + 3 split, + 4 split, + 8 split
