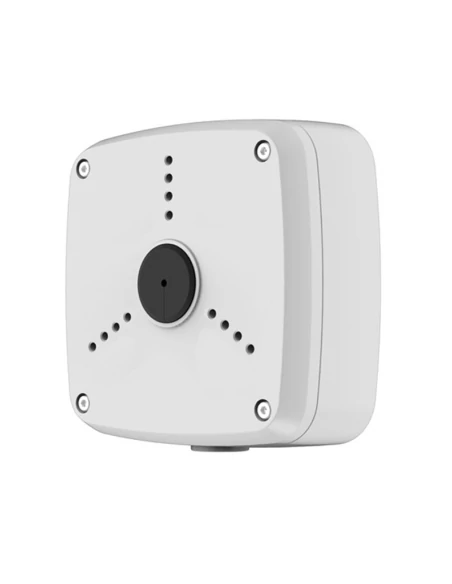

    VIP Vision VSBKTA122 square aluminium junction box, white
    VSBKTA122 close-up of the rubber cable grommet and M4 screw holes
    VSBKTA122 close-up of the corner, lid seam and bottom of the box

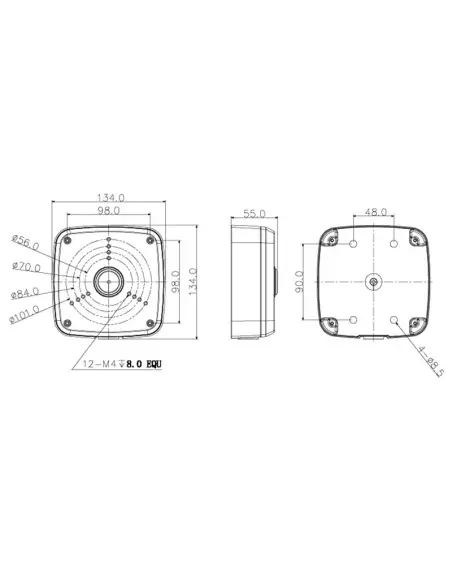

    VSBKTA122 dimension drawing, 134 x 134 x 55 mm
    1 / 4

    Adapter / Junction Box for Surveillance Cameras - VSBKTA122

    SKU VSBKTA122 In Stock - Ready to Ship
    $20.51 inc GST

    VIP Vision VSBKTA122: a square white aluminium junction box with a rubber grommet seal that holds the cable joints behind VIP Vision motorised bullet cameras.

    • ✓Fits VSIPP-4, 6 and 8BIRMG-I3 bullets and the VSIPU-4DIRG-IM
    • ✓134 × 134 × 55 mm, 0.50 kg
    • ✓IP66 rated, rubber grommet weather seal
    • ✓3 kg load rating, −40 °C to 60 °C
    • ✓Mounts on a pole with the VSBKTA152E



    Description

    VIP Vision VSBKTA122 square aluminium junction box, white, with a rubber cable grommet in the centre of the face
    VIP Vision · Mounting accessory · Junction box

    The square junction box
    for VIP Vision motorised bullets.

    The VIP Vision VSBKTA122 is a white aluminium junction box, 134 mm square and 55 mm deep, with a rubber grommet weather seal. It sits behind the camera, holds the cable joints and is the adapter onto VIP Vision's pole mount.

    In one sentence: the VIP Vision VSBKTA122 is a 134 × 134 × 55 mm IP66 aluminium junction box with a rubber grommet seal and a 3 kg load rating, for VIP Vision -BIRMG-I3 motorised bullets and the VSIPU-4DIRG-IM.

    Junction box only. The camera is separate.

    This listing is the VSBKTA122 junction box. The camera, cable and any pole mount are sold separately. Check your camera model against VIP Vision's list below.

    In the box
    • VSBKTA122 junction box
    You also need
    • A compatible VIP Vision camera (see the list below)
    • Fixings to suit your wall
    • A VSBKTA152E pole mount if it goes on a pole

    A deep, sealed box behind the bullet.

    A motorised bullet's network plug and power lead need somewhere to go. The VSBKTA122 gives them 55 mm of depth behind the camera's base, sealed with a rubber grommet, so the joints stay out of the wall cavity and out of the weather.

    VIP Vision VSBKTA122 close-up of the rubber cable grommet and the rows of M4 screw holes on the box face

    Face

    Rubber grommet, rows of screw holes.

    The cable passes through a slit rubber grommet in the centre. VIP Vision's drawing shows 12 M4 holes on 56, 70, 84 and 101 mm circles, so the camera bases on its list screw straight on.

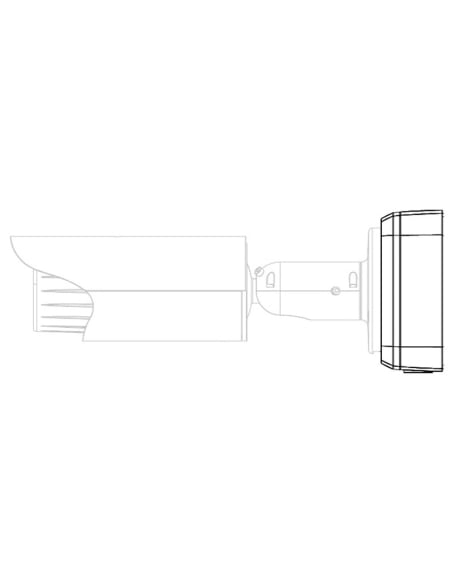

    VIP Vision side-view drawing of a bullet camera fitted to the front of the VSBKTA122 junction box

    Fitted

    The bullet's base screws to the face.

    VIP Vision's drawing shows a bullet camera's mounting foot on the front of the box. Rated IP66 and for a 3 kg load, from −40 °C to 60 °C.

    How it goes in

    Fix, feed, connect, fit.

    01

    Fix the box

    Screw the VSBKTA122 to the wall through the holes in its back, or onto a VSBKTA152E pole mount.

    02

    Bring the cable in

    Bring the building cable into the box from behind, and feed the camera's cable tail in through the rubber grommet on the face.

    03

    Make the joints

    Connect the camera's network and power leads and tuck the joints inside the box.

    04

    Fit the camera

    Screw the camera's base to the box face, then aim the camera and check the picture.

    Pair it with

    What this junction box works with

    Camera

    VSIPP-8BIRMG-I3 motorised bullet

    The 8MP motorised bullet VIP Vision lists for this box, along with the 4MP and 6MP versions.

    Camera

    VSIPU-4DIRG-IM dual lens turret

    VIP Vision lists this box among the junction boxes for its Ultimate AI dual lens turret.

    Pole

    VSBKTA152E pole mount

    Clamps the box to a pole 80 to 150 mm across, as shown in VIP Vision's guide.

    Turrets and domes

    VSBKTA137

    The round junction box VIP Vision lists for its turrets, vandal domes and fisheye dome.

    Where it is used

    Where this junction box goes.

    Driveways

    A motorised bullet on a wall or post zoomed in on the gate.

    Car parks

    On a pole with the VSBKTA152E, looking along the bays.

    Warehouse walls

    High on a wall covering loading docks and roller doors.

    Farm sheds

    Keeps the joints sealed on an exposed shed wall.

    Shopfronts

    A neat box behind a bullet at the entry or rear lane.

    Fence lines

    On posts along a boundary where the cable runs up the post.

    VSBKTA122 or VSBKTA137

    VSBKTA122 (this box)VSBKTA137
    Shape and sizeSquare, 134 × 134 × 55 mmRound, 122 mm diameter × 34 mm
    Made for (VIP Vision 2025 guide)Motorised bullets, VSIPU-4DIRG-IMTurrets, vandal domes, fisheye dome
    Load rating3 kg1 kg
    Weight0.50 kg0.18 kg
    Weather sealingIP66, rubber grommet sealWeather resistant
    Side entryNot listedM20 (G1/2)
    MaterialAluminiumAluminium

    Figures from VIP Vision's VSBKTA122 and VSBKTA137 brochures, product specifications and 2025 accessory compatibility guide. Both fit the VSIPU-4DIRG-IM dual lens turret.

    Common questions

    Which cameras fit the VSBKTA122?

    VIP Vision's 2025 guide lists the VSIPP-4BIRMG-I3, VSIPP-6BIRMG-I3 and VSIPP-8BIRMG-I3 motorised bullets and the VSIPU-4DIRG-IM dual lens turret. For another model, ask us.

    Does it fit older VIP Vision cameras?

    VIP Vision's earlier list included the VSIP1/3MPDIR/V2, VSIP1/3MPVDMINIIRC, VSIP1MPFBIRM, VSIP3MPFBIRM2.8-12, VSIP1/3MPFBIR/MINIIR/V2 and the Securview VSCVI1/2MPFBIRV2 and VSCVI1/2MPFBIRM. Confirm fit with us with your camera model.

    Is the camera included?

    No. This listing is the junction box only. The camera and cable are sold separately.

    How big is it?

    134 mm square and 55 mm deep, and it weighs 0.50 kg.

    Is it weatherproof?

    Yes. VIP Vision rates it IP66, with a rubber grommet weather seal, for −40 °C to 60 °C.

    How much weight does it carry?

    VIP Vision rates it for a 3 kg load.

    Can it go on a pole?

    Yes. VIP Vision's guide pairs it with the VSBKTA152E pole mount, which clamps to poles 80 to 150 mm across.

    Can conduit go into it?

    VIP Vision lists no pipe thread for this box. Bring the cable in from behind; if you need a conduit entry, ask us which box suits.

    What is the difference from the VSBKTA137?

    The VSBKTA122 is a square 134 mm box, 55 mm deep and rated for 3 kg, for motorised bullets. The VSBKTA137 is a round 122 mm box rated for 1 kg, for turrets and domes.

    What is it made of?

    Aluminium, finished in white.

    Does it have power or network parts inside?

    No. It is an empty box for the cable joints, with the camera screwed to its face.

    What warranty does it have?

    VIP Vision lists a 2 year warranty for the VSBKTA122.

    Supported by InFront Technologies.

    Need to check a camera fits? Call 1300 736 970 or email [email protected]. The VIP Vision brochure is on the Attachments tab.

    Installation and safety

    Working at height. Use safe access equipment and fixings rated for the wall or pole.

    Cabling. Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

    What it does not do. It has no power or network parts inside; it houses the cable joints and carries the camera.

    Figures. From VIP Vision's VSBKTA122 brochure, product specifications, dimension drawing and 2025 accessory compatibility guide.

    Dimensions
    134 x 134 x 55mm
    Operating Conditions
    -40° ~ 60°C / 90% RH (max)
    Weight
    0.50kg
    Weather Resistance
    IP66 rated
    Materials
    Aluminium
    Bracket Type
    Junction Box
    Load Bearing Capacity
    3.00kg
    Pipe Thread
    N/A
