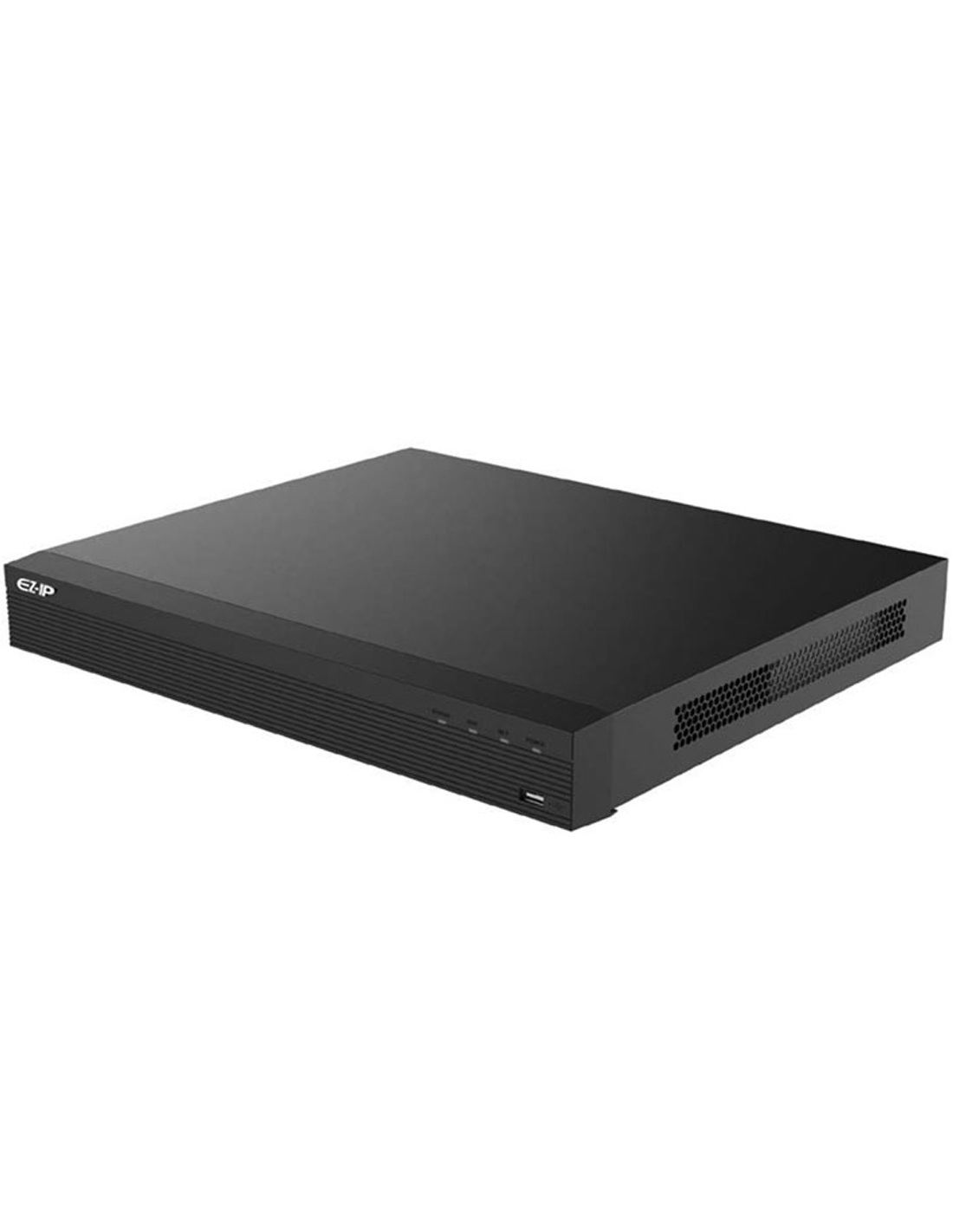

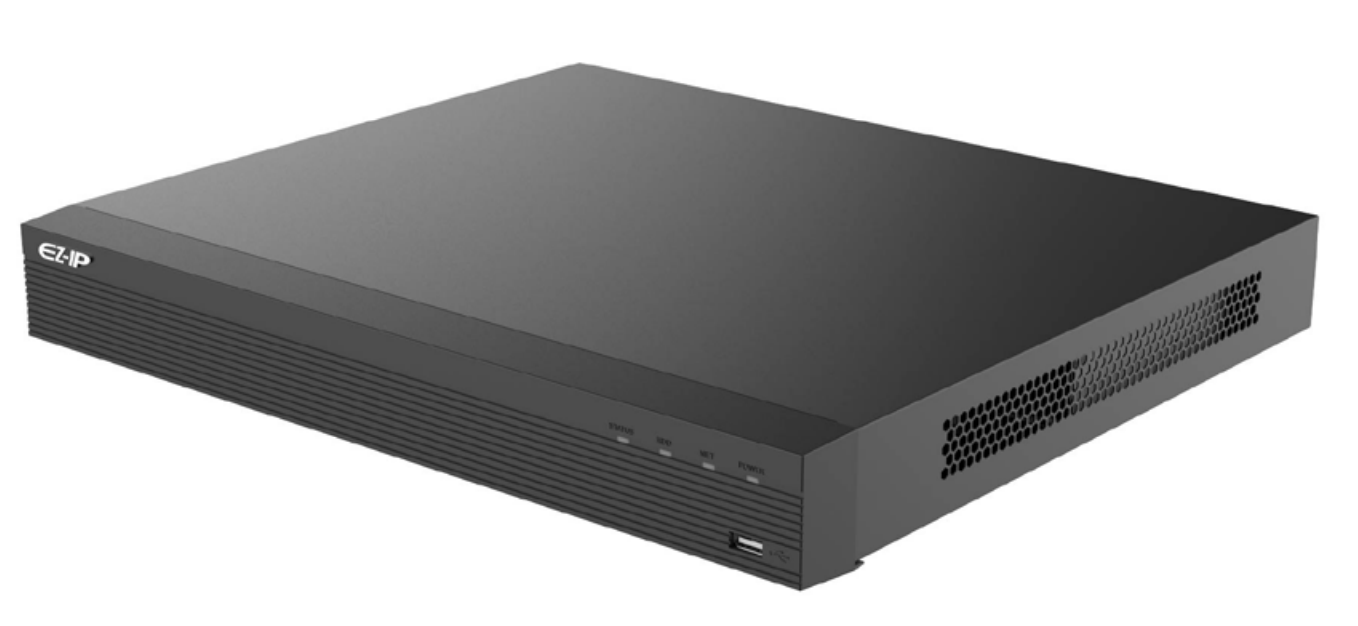

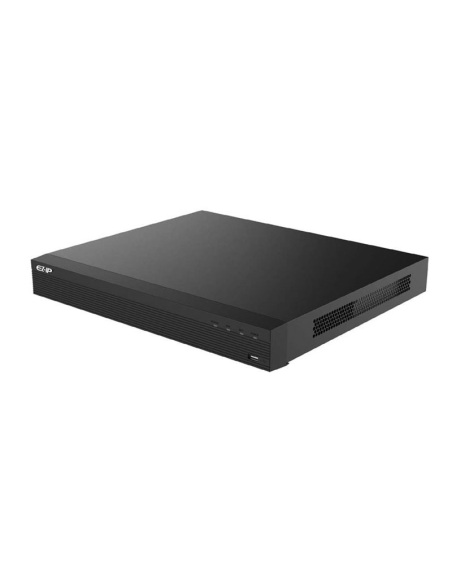

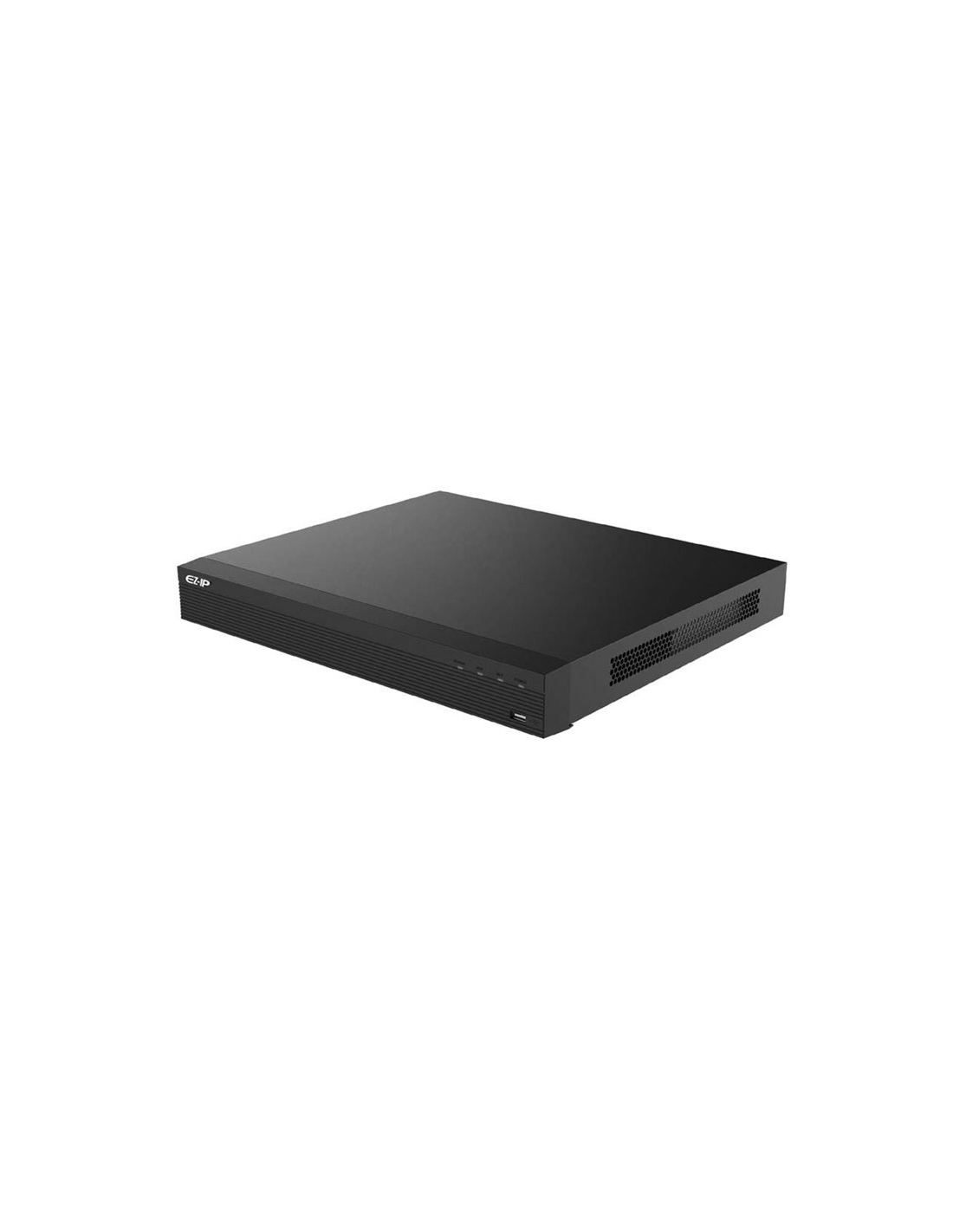

EZ-IP 12MP 16CH NVR with 16-Port PoE, HDMI/VGA EZ-N416PRO

EZ-IP 12MP 16CH NVR with 16-Port PoE, HDMI/VGA Output & 40TB Support - EZ-N416PRO

Name: EZ-IP 12MP 16CH NVR with 16-Port PoE, HDMI/VGA Output & 40TB Support - EZ-N416PRO
Brand: VIP Vision
SKU: EZ-N416PRO
Price: 538 AUD
Availability: InStock

Reference EZ-N416PRO

In Stock - Ready to Ship

$ 538.00

inc-GST

• Records up to 12.0 megapixel (4000 x 3000)
• Up to 160Mbps incoming bandwidth
• Decoding 8CH@1080p/2MP/25fps
• 2 x SATA bay with support for up to 20TB capacity HDDs
• Built-in 16 port power over Ethernet switch
• HDMI and VGA simultaneous video output
• Backup footage via external USB device or local network

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

EZ‑N416PRO | 16‑Channel PoE NVR — EZ‑IP Series

1U recorder with 16‑port PoE, 2 × SATA bays (up to 20TB each), 4K HDMI output and 160 Mbps recording bandwidth for dependable mid‑size CCTV.

EZ‑IP EZ‑N416PRO 16‑Channel PoE NVR

The EZ‑IP EZ‑N416PRO simplifies 16‑camera deployments by combining a compact 1U NVR with an integrated 16‑port PoE switch. Record up to 12MP per channel with Smart H.265+ efficiency, display on HDMI up to 4K (plus VGA 1080p), and store months of footage on two SATA bays (up to 20 TB each). ONVIF interoperability and plug‑and‑play PoE make installs fast and tidy.

Key Features & Benefits

16 × IP channels — Built‑in 16‑port PoE (802.3af/at) for plug‑and‑play cameras.
12MP recording — Crisp capture, configurable down to QCIF.
Smart H.265+ — Reduce storage/bandwidth vs. H.264 while maintaining quality.
4K display — HDMI up to 3840×2160 plus VGA up to 1920×1080.
Dual‑bay storage — 2 × SATA bays, each up to 20TB; quick USB export.
Real‑world throughput — 160 Mbps incoming/record, 80 Mbps outgoing.
Smart functions (via camera) — IVS, SMD human/vehicle, people counting, heat map, face detect/recognition.
ONVIF/SDK support — Broad camera/VMS interoperability.
Quiet, compact 1U — Small footprint for counters, offices & back rooms.

Ideal Deployments

Retail, hospitality & offices with up to sixteen IP cameras.
Reception areas, stock rooms & small warehouses.
Sites upgrading from analog to simple PoE IP CCTV.

Technical Details — At a Glance

Model: EZ‑N416PRO • Inputs: 16 × IP channels • PoE: 16 × (802.3af/at) — max 25.5W/port, 130W total
Max recording: Up to 12MP/channel • Decoding: 8CH @ 1080p/25fps
Codec: Smart H.265+/H.265/H.264/Smart H.264+
Display: 1 × HDMI (up to 4K) • 1 × VGA (up to 1080p)
Storage: 2 × SATA bays (≤ 20TB each) • USB backup (front/rear)
Throughput: 160 Mbps incoming/record • 80 Mbps outgoing
Audio I/O: 1 × in (RCA) • 1 × out (RCA)
Network: 1 × 10/100/1000Mbps Ethernet uplink • 16 × PoE camera ports
Interoperability: ONVIF 22.12 (Profiles T/S/G) • CGI • SDK
Power: 100–240VAC PSU • < 10W (NVR only)
Environment: −10 °C ~ +55 °C • 10–93% RH
Size/Weight: 375 × 327.9 × 53 mm • 2.60 kg (no HDD) • Form: 1U
Warranty: 4 Years

Before you order:

Confirm camera resolution/bitrate vs. the 160 Mbps recorder budget.
Choose HDD sizes (up to 20TB each) to meet retention targets.
Check PoE budget (130W total) and cable lengths per camera.
Plan remote viewing (ports, P2P or VPN) and user permissions.

Design & Quote: Tell us your camera count, desired retention (days) and cabling distances. We’ll size storage, PoE and a turnkey kit around EZ‑N416PRO.

Details based on current EZ‑IP EZ‑N416PRO specs. Features may vary by firmware/region; verify against the latest datasheet.

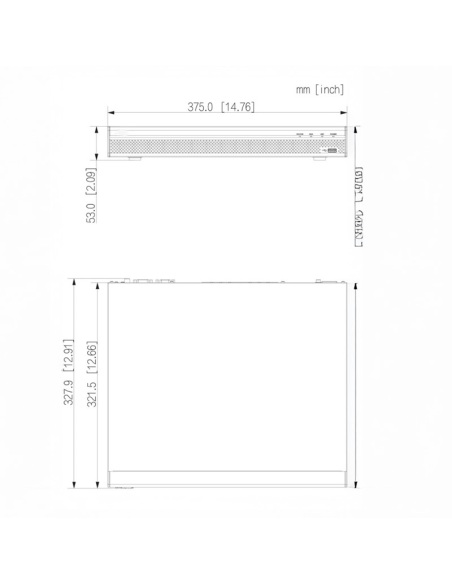

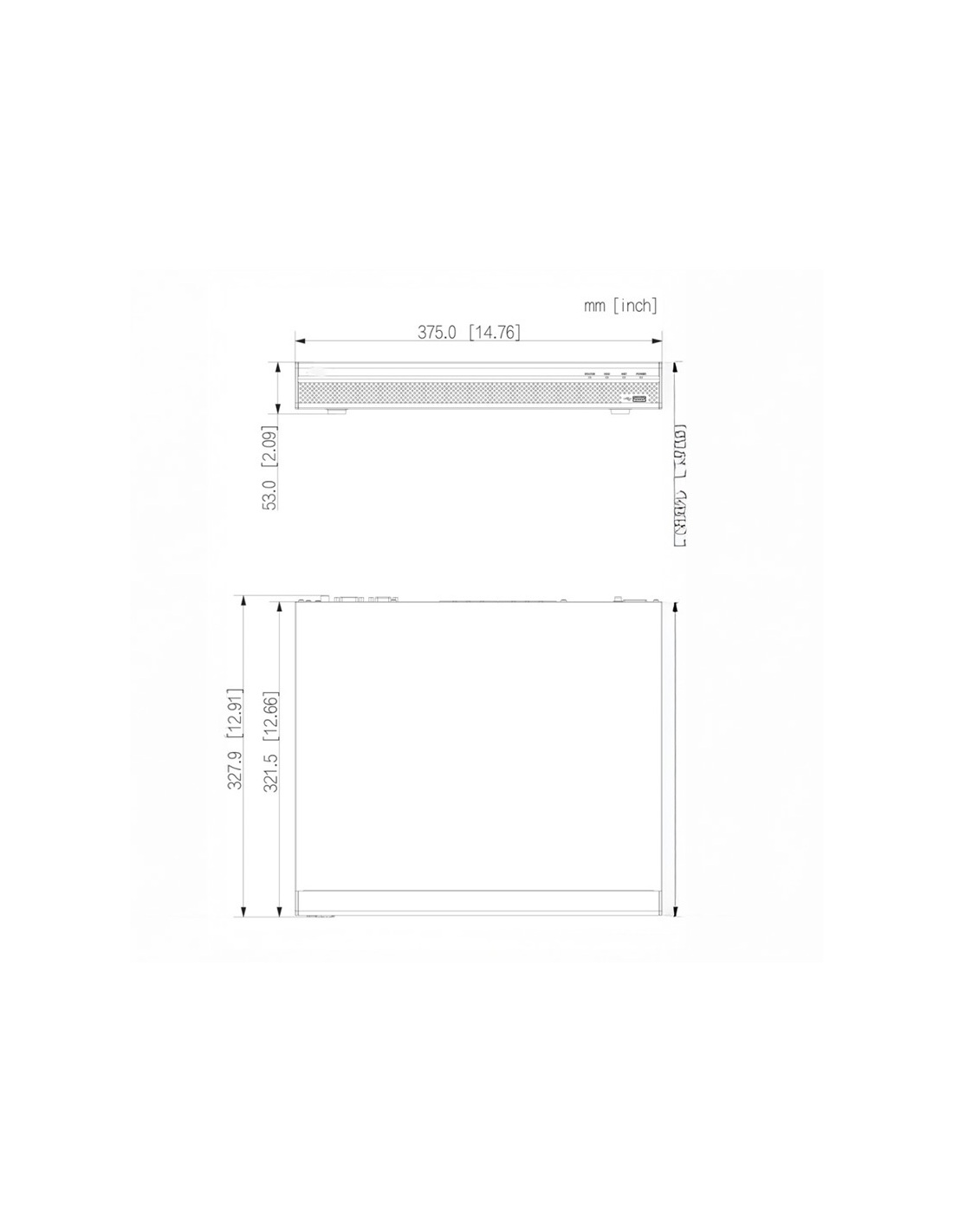

Dimensions: 375mm x 327.9mm x 53mm
Power Supply: 100~240VAC / 50/60 Hz
Audio: 1 channel input (RCA), 1 channel output (RCA)
Operating Environment: -10°C ~ +55°C / 10 ~ 93%RH
Weight: 2.60kg (without HDD)
Display Split: 1st screen - 1/4/8/9/16, 2nd screen - 1/4/8/9/16
Network Functions: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, FTP, SNMP, Alarm Server, P2P, Auto Registration, IP Search
Power Consumption: NVR:
Rackmount Units: 1U
Interoperability: ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Recording Resolution: Configurable from 12.0MP (4000 x 3000) to QCIF (176 x 144)
Alarm Types: Record, snapshot, IPC external alarm output, audio, buzzer, log, preset, email
App Integration: iOS / Android
Decoding Capacity (AI Disabled): 8CH@1080p/2MP/25fps
Display Mode: HDMI1 + VGA1 (Mirror)
Display Output: 1 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080)
Face Detection (By Camera): 6 channels
Face Detection Functions: Gender, Age Group, Glasses, Expressions, Face Mask, Beard
HDD: 2 x SATA bays, up to 20TB
Human/Vehicle Detection (By Camera): IVS: 6 channels, SMD: 6 channels
Network Bandwidth (AI Disabled): 160Mbps (incoming/recording) 80Mbps (outgoing)
Network Input: 1 x 10/100/1000Mbps Ethernet uplink, 16 x PoE 10/1000Mbps (802.3af/at)
Playback Modes: Instant playback, general playback, event playback, tag playback, smart playback
Processor & Operation: Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Supported Camera AI: Face Detection, Face Recognition, People Counting, Heatmap, AI Tripwire/Intrusion and AI Human/Vehicle Detection
USB & Other Inputs: 1 x Front USB 2.0, 1 x Rear USB 2.0
Video & Audio Compression: Video: Smart H.265+ / H.265 / H.264 / Smart H.264+
