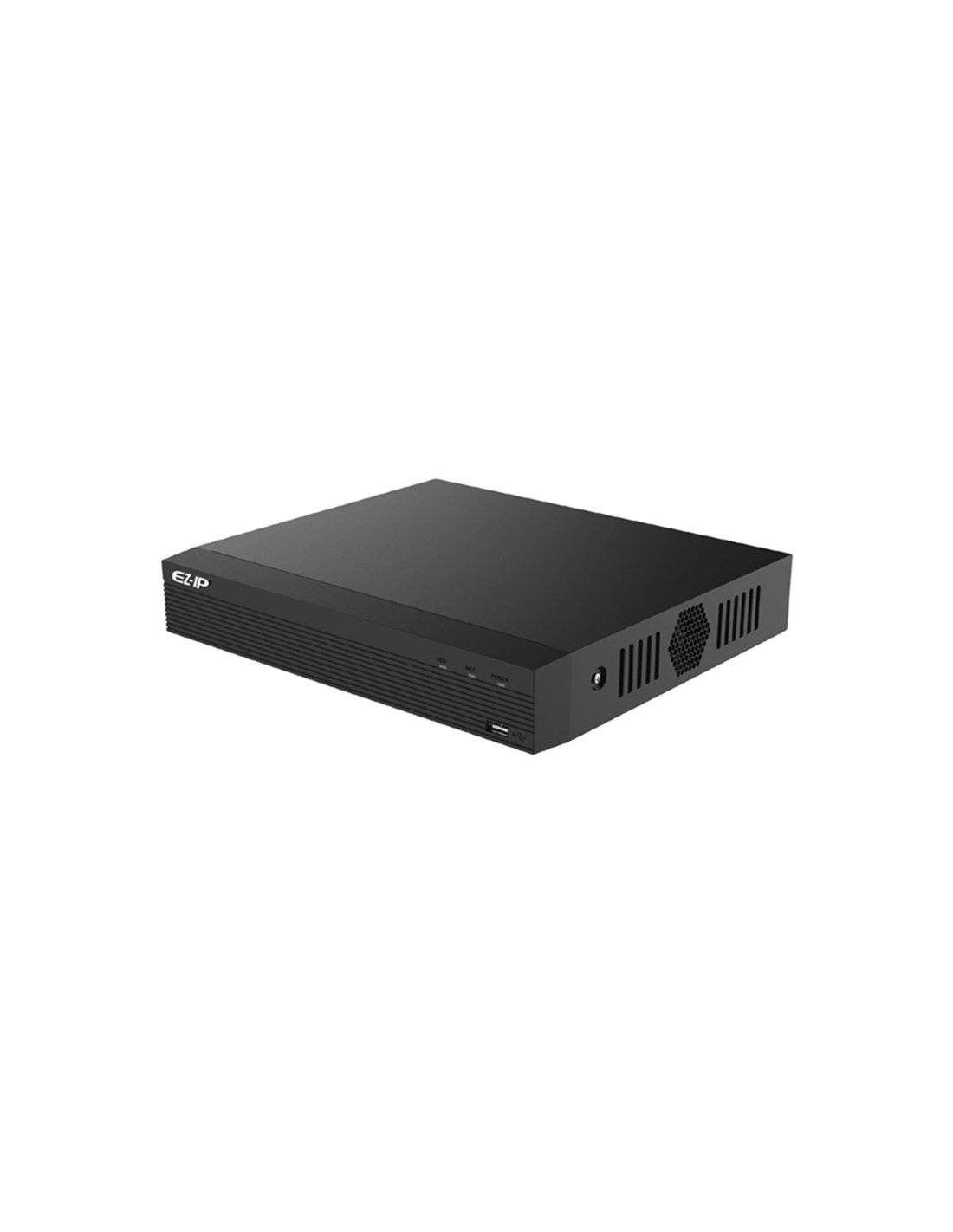

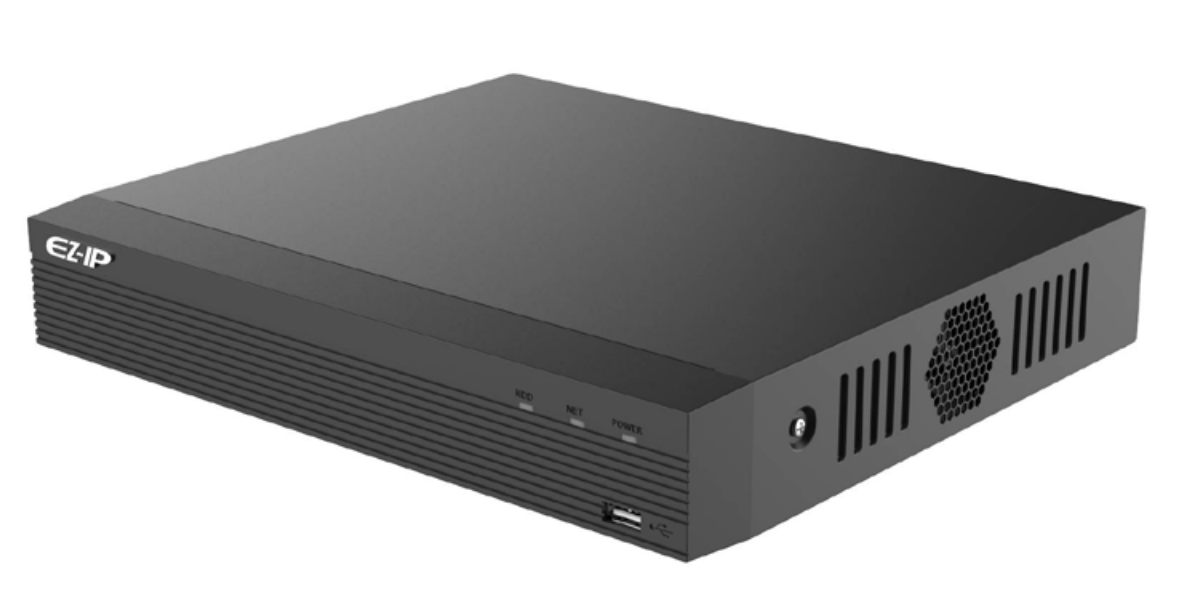

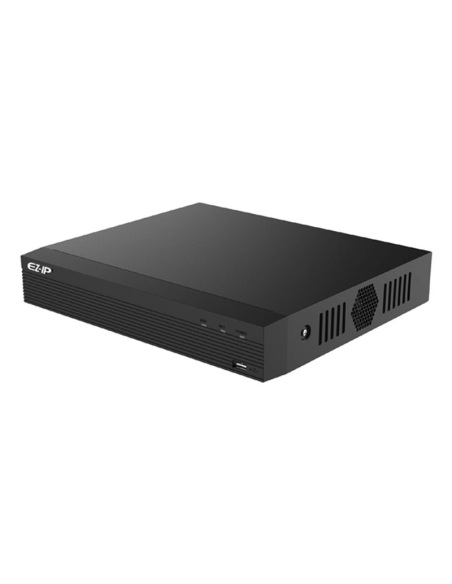

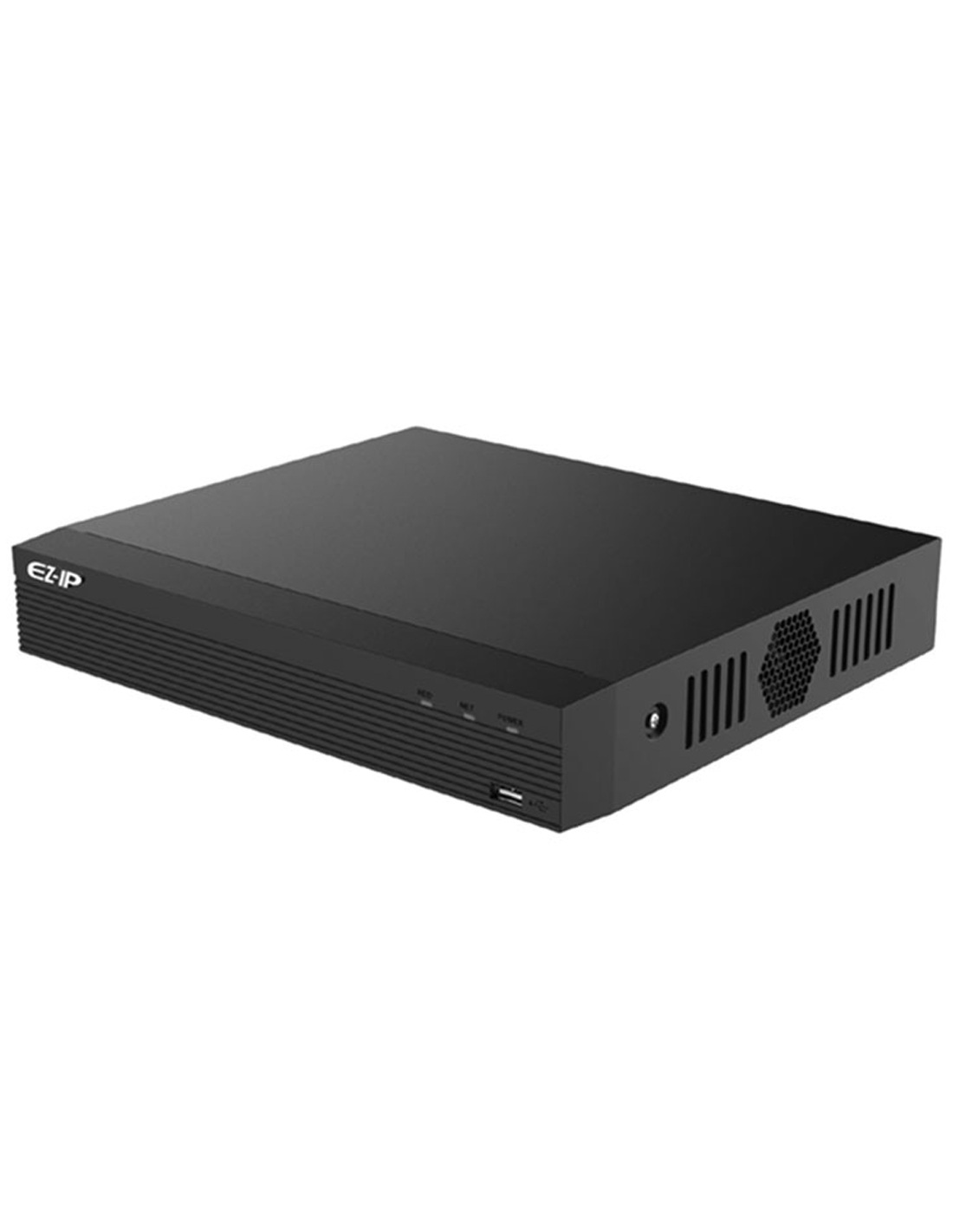

EZ‑N44PRO | 4‑Channel PoE NVR — EZ‑IP Series
Compact 4‑channel recorder with built‑in 4‑port PoE, 4K HDMI output, and a single 20TB SATA bay for easy small‑site CCTV.
The EZ‑IP EZ‑N44PRO streamlines small CCTV deployments by combining a 4‑channel NVR and an integrated 4‑port PoE switch. Record up to 12MP per channel with Smart H.265+ efficiency, display on HDMI up to 4K or VGA 1080p, and store footage on a single SATA bay (up to 20TB). ONVIF interoperability and plug‑and‑play PoE make installs fast and tidy.
Key Features & Benefits
- 4 × IP channels — Built‑in 4‑port PoE (802.3af/at) for plug‑and‑play cameras.
- 12MP recording — Crisp capture with flexible per‑channel settings.
- Smart H.265+ — Reduce storage/bandwidth vs. H.264 while maintaining quality.
- 4K display — HDMI up to 3840×2160 plus VGA up to 1920×1080.
- Single‑bay storage — 1 × SATA drive up to 20TB; quick USB export.
- Real‑world throughput — 80 Mbps in/record, 60 Mbps out.
- Smart functions (via camera) — IVS, SMD human/vehicle, people counting, heat map, face detect/recognition.
- ONVIF/SDK support — Broad camera/VMS interoperability.
- Quiet, compact 1U — Small footprint for counters, offices & back rooms.
Ideal Deployments
- Homes, cafés & small retail (up to four cameras).
- Reception areas, stock rooms & office suites.
- Workshops & small warehouses needing simple PoE CCTV.
Technical Details — At a Glance
- Model: EZ‑N44PRO • Inputs: 4 × IP channels • PoE: 4 × 100M (802.3af/at) — max 25.5W/port, 36W total
- Max recording: Up to 12MP/channel • Decoding: 4CH @ 4MP/25fps
- Codec: Smart H.265+/H.265/H.264/Smart H.264+
- Display: HDMI up to 4K • VGA up to 1080p
- Storage: 1 × SATA bay (≤ 20TB) • USB backup (front/rear)
- Throughput: 80 Mbps incoming/record • 60 Mbps outgoing
- Audio I/O: 1 × in (RCA) • 1 × out (RCA)
- Network: 1 × 100M Ethernet uplink
- Interoperability: ONVIF 22.12 (Profiles T/S/G) • CGI • SDK
- Power: 53V DC (PSU) • <10W (NVR only)
- Environment: −10 °C ~ +55 °C • 10–93% RH

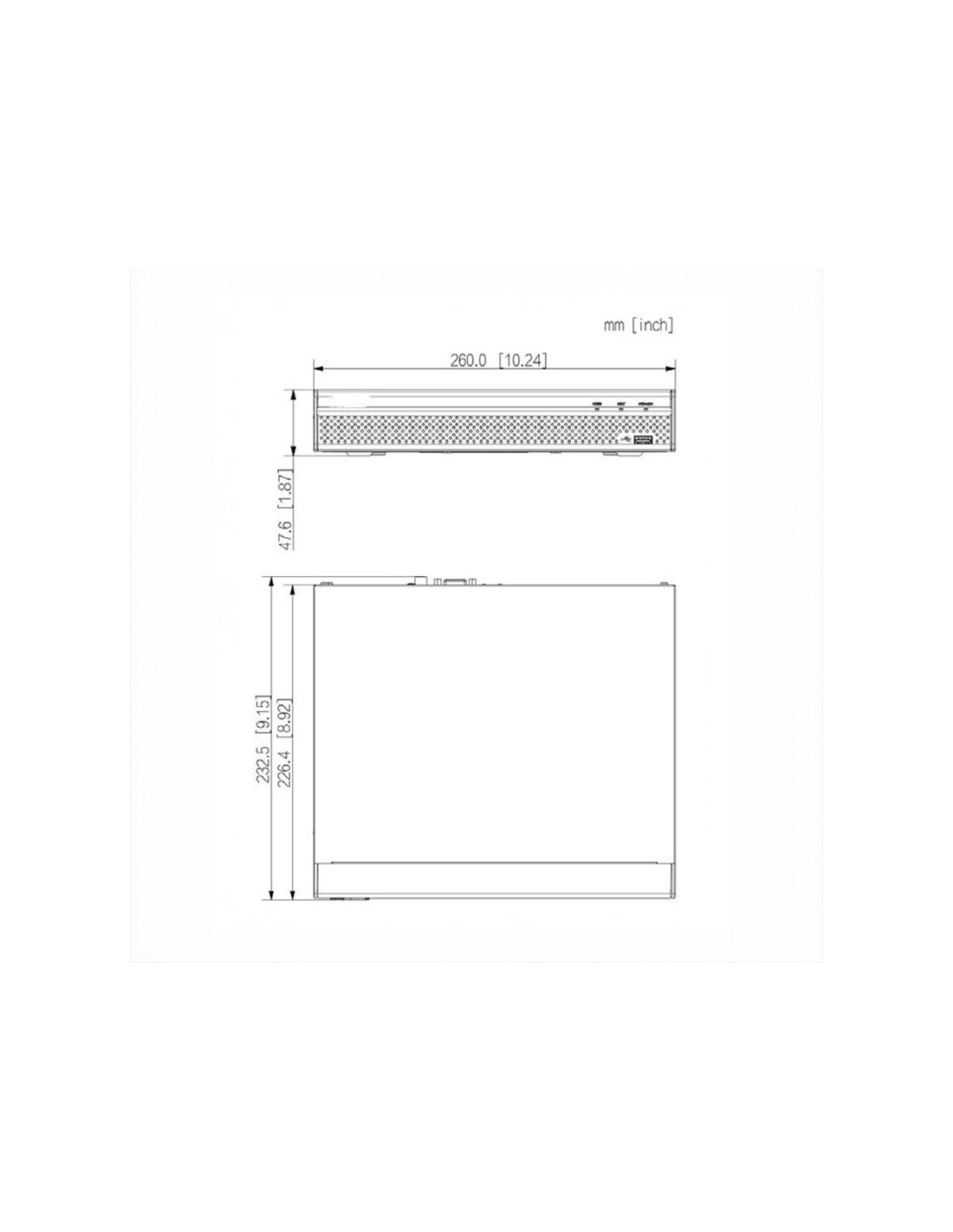

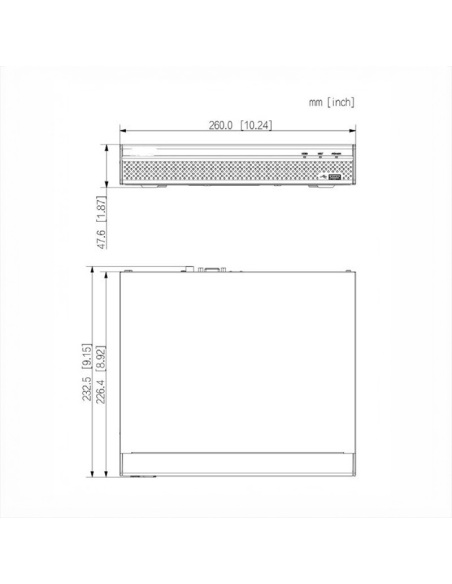

- Size/Weight: 260 × 232.5 × 47.6 mm • 0.87 kg (no HDD) • Form: 1U
- Warranty: 4 Years
Before you order:
- Confirm camera resolution/bitrate vs. the 80 Mbps recorder budget.
- Choose HDD size (up to 20TB) to meet retention targets.
- Check PoE budget (36W total) and cable lengths per camera.
- Plan remote viewing (ports, P2P or VPN) and user permissions.
Design & Quote: Tell us your camera count, desired retention (days) and cabling distances. We’ll size storage, PoE and a turnkey kit around EZ‑N44PRO.
Details based on current EZ‑IP EZ‑N44PRO specs. Features may vary by firmware/region; verify against the latest datasheet.
