VIP Vision Professional AI Series 32CH NVR with 4 NVR32PRO-I3

VIP Vision Professional AI Series 32CH NVR with 4 x HDD Bays - NVR32PRO-I3

Name: VIP Vision Professional AI Series 32CH NVR with 4 x HDD Bays - NVR32PRO-I3
Brand: VIP Vision
SKU: NVR32PRO-I3
Price: 900 AUD
Availability: OutOfStock

Reference NVR32PRO-I3

Call for stock OR Max already in cart.

$ 900.00

inc-GST

Record up to 32.0MP with H.265 video compression
Up to 384Mbps bandwidth (200Mbps AI enabled)
Suite of AI functions for improved alerts & playback
Supports AI face detection and recognition via NVR
Supports AI human/vehicle detection via NVR
Supports ANPR by camera up to 4 channels
Up to 4 x SATA bay (HDD support) with up to 16TB/bay
HDMI (4K) and VGA simultaneous video output
Backup via an external USB device or local network
2 x 1000Mbps Ethernet network input

VIP Vision Professional AI Series 32CH NVR with 4 x HDD Bays

NVR32PRO-I3

The VIP Visions Professional AI Series NVR32PRO-I3 transforms the way you secure your home or small business. Use superb accuracy AI detection to take the guesswork out of searching footage and get important AI video notifications as they happen. Experience peace of mind with the capacity for months of footage storage and integrate a huge range of cameras to protect what's most important to you.

Product Features:

• Record up to 32.0MP with H.265 video compression

• Up to 384Mbps bandwidth (200Mbps AI enabled)

• Suite of AI functions for improved alerts & playback

• Supports AI face detection and recognition via NVR

• Supports AI human/vehicle detection via NVR

• Supports ANPR by camera up to 4 channels

• Up to 4 x SATA bay (HDD support) with up to 16TB/bay

• HDMI (4K) and VGA simultaneous video output

• Backup via an external USB device or local network

• 2 x 1000Mbps Ethernet network input

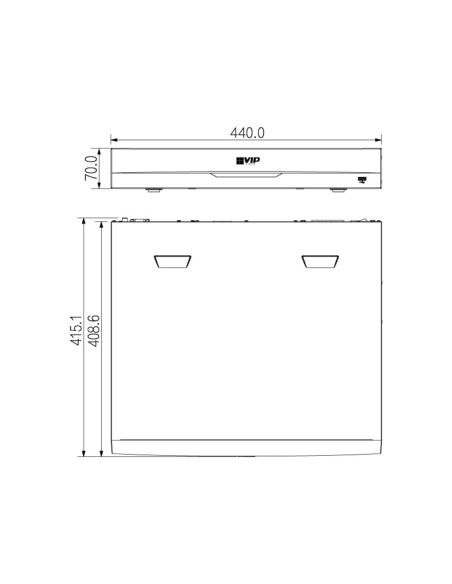

Dimensions: 440mm × 415mm × 70mm
Power Supply: 100–240 VAC / 50-60 Hz
Audio: 1 channel input (RCA), 2 channel output (RCA)
Operating Environment: -10°C ~ +55°C / 10 ~ 93%RH
Weight: 4.74kg (without HDD)
Display Split: 1st Screen: 1/4/8/9/16/25/36, 2nd Screens: 1/4/8/9/16
Network Functions: HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
Power Consumption: ≤ 13W (without HDD)
Rackmount Units: 1.5U
Interoperability: ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK. Supports Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Canon. Chrome, IE9 and later, Firefox support.
Recording Resolution: Configurable from 32.0MP (6528 x 4896) to QCIF (176 x 144)
Alarm Actions: Begin record, take snapshot, camera external alarm output, access controller, audio, buzzer, NVR log, camera preset, email
Alarm Interface: 16 channels input, 6 channels output
Alarm Types: General (motion, video loss, scene change, etc.), Anomalies (camera disconnect, disk full, IP conflict , etc.), Intelligent (AI alerts, face, human/vehicle, etc.)
ANPR Functions: Up to 20,000 plate numbers, blocklist & allowlist
App Integration: iOS / Android
Backup Method: USB device / Network / eSATA
Decoding Capacity (AI Disabled): [email protected]/25fps, 32CH@1080P/25fps
Decoding Capacity (AI Enabled): 24CH@1080p/25fps
Display Mode: Multiple sources: HDMI1+VGA1 (Mirror), HDMI2+VGA2 (Mirror)
Display Output: 2 x HDMI (up to 3840 x 2160), 2 x VGA (up to 1920 x 1080)
Face Detection (By NVR): 2 channels (up to 12 face images per second, per channel)
Face Detection Functions: Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Face Recognition (By NVR): 2 channels (Face detection via NVR video stream analysis; Face recognition performed by NVR) 16 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
Face Recognition Capacity: NVR Supports up to 20 face databases and 20,000 face images
HDD: 4 x SATA bays, up to 16TB per bay
Human/Vehicle Detection (By Camera): IVS: 16 channels, SMD: 16 channels
Human/Vehicle Detection (By NVR): IVS: 4 channels (10 rules per channel), SMD: 8 channels
Human/Vehicle Detection Functions: AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
Network Bandwidth (AI Disabled): 384Mbps (incoming/recording/outgoing)
Network Bandwidth (AI Enabled): 200Mbps (incoming/recording/outgoing)
Network Input: 2 x 1000Mbps Ethernet
NVR Operated AI: Face Detection, Face Recognition, AI Human/Vehicle Detection
Playback Channels: Up to 16 channels
Playback Modes: General Recording, Motion Detection, Intelligent Events, Alarm Triggers, POS
Processor & Operation: Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Supported Camera AI: Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp

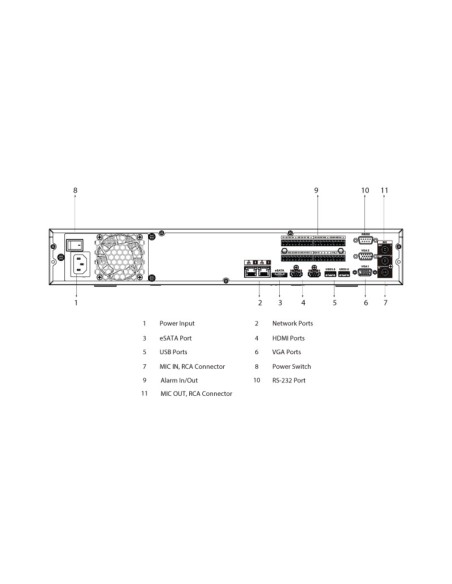

USB & Other Inputs: 1 x Front USB 2.0, 2 x Rear USB 3.0 1 x RS-485, 1 x RS-232, 1 x eSATA
Video & Audio Compression: Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG, Audio: G.711a / G.711u / PCM / G726
Video Metadata Functions: People (clothing colour, hat, bag, umbrella, etc.), Vehicle (vehicle colour, vehicle model, number plate, etc.)
