VIP Vision Ultimate AI Series 64CH NVR with 8 x NVR64ULT-I

VIP Vision Ultimate AI Series 64CH NVR with 8 x HDD Bays - NVR64ULT-I

Name: VIP Vision Ultimate AI Series 64CH NVR with 8 x HDD Bays - NVR64ULT-I
Brand: VIP Vision
SKU: NVR64ULT-I
Price: 4145 AUD
Availability: InStock

Reference NVR64ULT-I

In Stock - Ready to Ship

$ 4,145.00

inc-GST

Record up to 32.0MP with H.265 video compression
Up to 1024Mbps bandwidth (800Mbps outgoing)
Suite of AI functions for improved alerts & playback
Supports AI face detection and recognition via NVR
Supports AI human/vehicle detection via NVR
Supports ANPR by camera up to 32 channels
8 x SATA bay with HDD support up to 16TB/bay
Backup via an external USB device or local network
Supports 2 x 2.5GBps Ethernet network input
Decode up to 64 channels at 720p (25fps)

*This NVR requires external Power over Ethernet switches.

*Same AI enabled and disabled decoding capacity

VIP Vision Ultimate AI Series 64CH NVR with 8 x HDD Bays

NVR64ULT-I

Monitor your enterprise's operations with ease using the VIP Vision Ultimate AI Series NVR64ULT-I. Enjoy accurate video notifications and seamless footage search powered by advanced AI. Simultaneously connect more users with 2.5GBps Ethernet input for a better user experience. Protect what's most important to you by integrating a wide range of cameras and benefit from ample footage storage.

Product features:

• Record up to 32.0MP with H.265 video compression

• Up to 1024Mbps bandwidth (800Mbps outgoing)

• Suite of AI functions for improved alerts & playback

• Supports AI face detection and recognition via NVR

• Supports AI human/vehicle detection via NVR

• Supports ANPR by camera up to 32 channels

• 8 x SATA bay with HDD support up to 16TB/bay

• Backup via external USB device or local network

• Supports 2 x 2.5GBps Ethernet network input

• Decode up to 64 channels at 720p (25fps)

*This NVR requires external Power over Ethernet switches.

*Same AI enabled and disabled decoding capacity

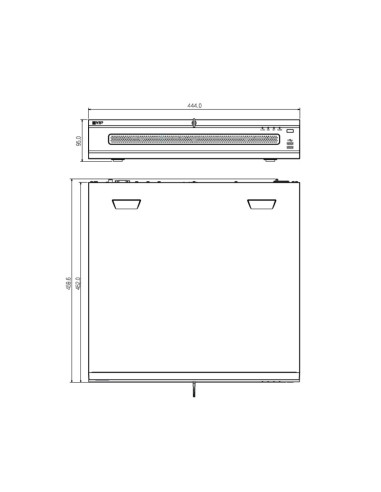

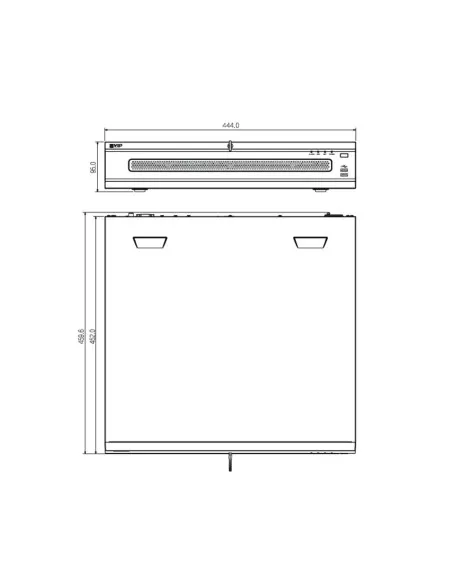

Dimensions: 440mm × 460mm × 95mm
Power Supply: 100–240 VAC / 50-60 Hz
Audio: 1 channel input (RCA), 2 channel output (RCA)
Operating Environment: -10°C ~ +55°C / 10 ~ 93%RH
Weight: 6.4kg (without HDD)
Display Split: 1st Screen: 1/4/8/9/16/25/36/64, 2nd Screen: 1/4/8/9/16/25/36
Network Functions: HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
Power Consumption: ≤ 18W (without HDD)
Rackmount Units: 2U
Rackmountable: Yes
Video Input: 64 channels
Interoperability: ONVIF (Profile T; Profile S; Profile G); CGI; SDK. Supports RTSP, Sony, Samsung, Axis, Pelco, Arecont, Canon. Chrome, IE9 and later, Firefox support.
PoE: No
Recording Resolution: Configurable from 32.0MP (6528 x 4896) to D1 (704 x 576)
Alarm Actions: Begin record, take snapshot, camera external alarm output, audio, buzzer, NVR log, camera preset, email
Alarm Interface: 16 channels input, 8 channels output
Alarm Types: General (motion, video loss, scene change, etc.), Anomalies (camera disconnect, disk full, IP conflict , etc.), Intelligent (AI alerts, face, human/vehicle, etc.)
ANPR (By Camera): 32 Channels
ANPR Functions: Up to 20,000 plate numbers, blocklist & allowlist
App Integration: iOS / Android
Backup Method: Portable hard drive / Burner / USB device / Network / eSATA
Decoding Capacity (AI Disabled): [email protected]/25fps, 64CH@720P/25fps
Decoding Capacity (AI Enabled): [email protected]/25fps, 64CH@720P/25fps
Display Mode: Single Source (Mirrored): HDMI1@4K, HDMI2@4K, HDMI3@8K, HDMI4@1080p, VGA1@1080p, VGA2@1080p Multiple Sources (Up to 4 sources): HDMI1@4K + VGA1@1080p (mirror), HDMI2@4K + VGA2@1080p (mirror), HDMI3@4K, HDMI4@1080p
Display Output: 4 x HDMI (up to 3840 x 2160), 2 x VGA (up to 1920 x 1080)
Face Detection (By Camera): 64 channels
Face Detection (By NVR): 4 channels (up to 12 face images per second, per channel)
Face Detection Functions: Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Face Recognition (By Camera): 64 channels
Face Recognition (By NVR): 4 channels (Face detection via NVR video stream analysis; Face recognition performed by NVR) 20 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
Face Recognition Capacity: NVR Supports up to 40 face databases and 300,000 face images
HDD: 8 x SATA bays up to 16TB per bay, RAID 0/1/5/6/10, Hot swapping
HDD Capacity: 8
Human/Vehicle Detection (By Camera): IVS: 64 channels, SMD: 64 channels
Human/Vehicle Detection (By NVR): IVS: 24 channels (10 rules per channel), SMD: 32 channels
Human/Vehicle Detection Functions: AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
Network Bandwidth (AI Disabled): 1024Mbps (incoming/recording), 800Mbps (outgoing)
Network Bandwidth (AI Enabled): 512Mbps (incoming/recording), 400Mbps outgoing
Network Input: 2 x 2500Mbps Ethernet
NVR Operated AI: Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata
Playback Channels: Up to 16 channels
Playback Modes: General Recording, Motion Detection, Intelligent Events, Alarm Triggers
Processor & Operation: Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Supported Camera AI: Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp

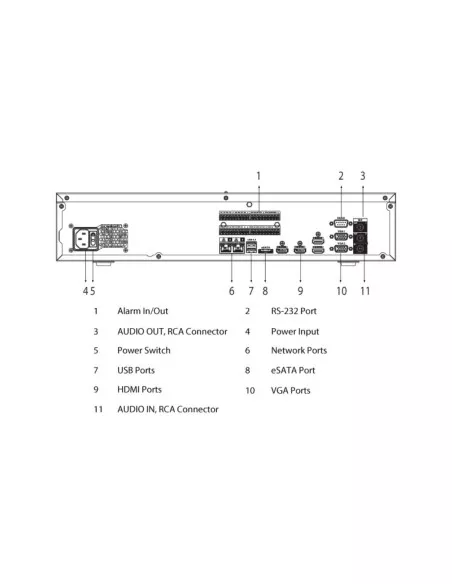

USB & Other Inputs: 2 x Front USB 2.0, 2 x Rear USB 3.0 / 1 x RS-485 A/B, 1 x RS-232, 1 x eSATA
Video & Audio Compression: Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG / MPEG4, Audio: G.711a / G.711u / PCM / G726
Video Metadata (By Camera): 32 Channels
Video Metadata (By NVR): 8 channels
Video Metadata Functions: People (clothing colour, hat, bag, umbrella, etc.), Vehicle (vehicle colour, vehicle model, number plate, etc.)
