VIP Vision Ultra HD Network Video Decoder (2 x HDMI Out) - NVD-A2
- Roaming decoder displays all video feeds on network
- Video wall slicing for up to 36 displays per monitor
- Split screen control with zoom, merge, roam and overlay
- Switch between standard and high definition streams
- Decode up to 2CH 4K, 10CH 1080p or 32CH D1
- Support for audio and multi-video split display
- Manage via web browser or VIP Vision SmartPSS
VIP Vision Ultra HD Network Video Decoder (2 x HDMI Out) - NVD-A2
Dual Output IP Video Decoder | Real-Time Camera Streaming for Video Walls
Dual HDMI Decoder for Intelligent Video Wall Management
The NVD-A2 from VIP Vision is a compact yet powerful IP video decoder capable of driving two HDMI displays with high-definition surveillance streams. It enables the creation of video walls or standalone monitoring setups that deliver real-time footage from connected IP cameras, NVRs, or HDMI inputs—without the need for a dedicated PC.
Ideal for security monitoring, this device lets you switch, split, zoom, roam, and merge camera feeds across two displays. Setup and management are seamless via web browser or SmartPSS software, giving operators maximum control in commercial, retail, or industrial security environments.
Key Features:
- Decodes IP video streams to 2 x HDMI monitors
- Supports 2CH 4K, 10CH 1080p, or 32CH D1 streams
- Advanced video wall slicing: up to 36 camera splits per screen
- Roaming decoder for seamless multi-camera display across the network
- Split-screen control: zoom, merge, roam, and overlay views
- Switch between HD and SD streams dynamically
- Supports multi-channel audio with HDMI output
- Easy configuration via web interface or SmartPSS
Specifications:
- Video Outputs: 2 x HDMI (up to 3840x2160)
- Decoding: 2CH 4K / 10CH 1080p / 32CH D1
- Audio: Multi-channel audio support
- Video Wall Features: Merge, zoom, roam, and overlay
- Control Methods: Web browser or SmartPSS
- Network Compatibility: ONVIF compliant
- Form Factor: Compact, desktop design
- Power: 12VDC input
- Warranty: 3 Years
Applications:
- Retail stores and mall security systems
- Corporate reception and command centers
- Small-to-medium video walls for control rooms
- Surveillance upgrades without the need for a PC

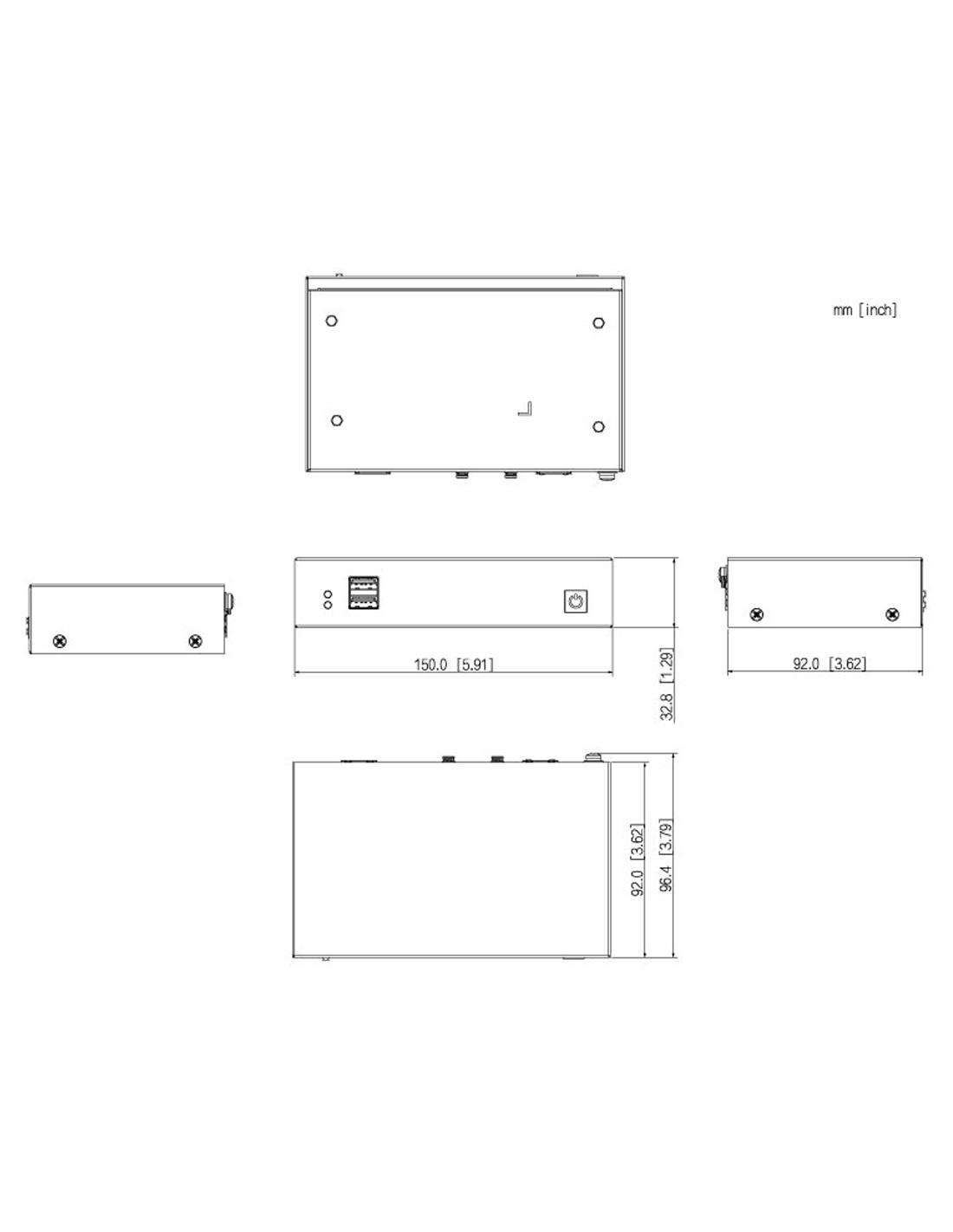

- Dimensions
- 150.0 mm x 92.0 mm x 32.8 mm (L x H x W)
- Power Supply
- 100-240 VAC, 50-60Hz
- Weight
- 0.30kg
- Alarm Output
- -
- Operating temperature
- -10°C to +55°C
- Display Resolution
- 1024 x 768@60Hz, 1280 x 720@60Hz, 1280 x 1024@60Hz and 1920 x 1080@60Hz
- Display Split
- 1 / 4 / 6/ 8 / 9 / 16 / 25 split. Supports M x N custom split and M x N < 36
- Operating System
- Embedded Linux
- Power Consumption
- Video Input
- -
- Video Output
- 2 x HDMI
- Alarm Input
- -
- Audio Format
- PCM
- Bi-directional Talk
- -
- Collection Resolution
- -
- Communication Interface
- 1 x RJ45 network port (10 / 100 / 1000M), 1 x RS232 (via RJ45, 3 x USB
- Decoding Resolution
- 8MP / 6MP / 5MP / 3MP / 1080p / 960H / D1
- Processor
- High-Performance Embedded Processor
- Video Decoding Capacity (Separate)
- -
- Video Decoding Capacity (Total)
- Decodes maximum 2Ch@8MP(25fps), 3CH@6MP(25fps), 5CH@5MP(25fps), 5CH@4MP(25fps), 7CH@3MP(25fps), 10CH@1080p(30fps) and 32CH@D1(30FPS) Simultaneously
- Video Format
- H.265 / H.264
- Video Frame Rate
- PAL: 1~25fps / NTSC: 1~30fps
