EZ-IP 12MP 8CH NVR with 8-Port PoE, HDMI/VGA Output & 20TB Support - EZ-N48PRO
EZ-N48PRO-0T
In Stock - Ready to Ship
$ 268.00
inc-GST
or 4 interest-free payments of $67.00 with
• Records up to 12.0 megapixel (4000 x 3000)
• Up to 160Mbps incoming bandwidth
• Decoding 8CH@1080p/2MP/25fps
• 1 x SATA bay with support for up to 20TB capacity HDD (no HDD included)
• Built-in 8 port power over Ethernet switch
• HDMI and VGA simultaneous video output
• Backup footage via external USB device or local network
EZ‑N48PRO | 8‑Channel PoE NVR — EZ‑IP Series
Compact 8‑channel recorder with built‑in 8‑port PoE, 4K HDMI output and a single 20TB SATA bay for easy, reliable CCTV at small‑to‑mid sites.
The EZ‑IP EZ‑N48PRO simplifies 8‑camera deployments by combining a 1U NVR with an integrated 8‑port PoE switch. Record up to 12MP per channel with Smart H.265+ efficiency, display on HDMI up to 4K (plus VGA 1080p), and store footage on a single SATA bay (up to 20TB). ONVIF interoperability and plug‑and‑play PoE make installs fast and tidy.
Key Features & Benefits
- 8 × IP channels — Built‑in 8‑port PoE (802.3af/at) for plug‑and‑play cameras.
- 12MP recording — Crisp capture with flexible per‑channel settings.
- Smart H.265+ — Reduce storage/bandwidth vs. H.264 while maintaining quality.
- 4K display — HDMI up to 3840×2160 plus VGA up to 1920×1080.
- Single‑bay storage — 1 × SATA drive up to 20TB; quick USB export.
- Real‑world throughput — 160 Mbps incoming/record, 80 Mbps outgoing.
- Smart functions (via camera) — IVS, SMD human/vehicle, people counting, heat map, face detect/recognition.
- ONVIF/SDK support — Broad camera/VMS interoperability.
- Quiet, compact 1U — Small footprint for counters, offices & back rooms.
Ideal Deployments
- Cafés, retail & offices with up to eight IP cameras.
- Reception areas, stock rooms & small warehouses.
- Sites upgrading from analog to simple PoE IP CCTV.
Technical Details — At a Glance
- Model: EZ‑N48PRO • Inputs: 8 × IP channels • PoE: 8 × (802.3af/at) — max 25.5W/port, 72W total
- Max recording: Up to 12MP/channel • Decoding: 8CH @ 1080p/25fps
- Codec: Smart H.265+/H.265/H.264/Smart H.264+
- Display: 1 × HDMI (up to 4K) • 1 × VGA (up to 1080p)
- Storage: 1 × SATA bay (≤ 20TB) • USB backup (front/rear)
- Throughput: 160 Mbps incoming/record • 80 Mbps outgoing
- Audio I/O: 1 × in (RCA) • 1 × out (RCA)
- Network: 1 × 10/100/1000Mbps Ethernet uplink • 8 × PoE camera ports
- Interoperability: ONVIF 22.12 (Profiles T/S/G) • CGI • SDK
- Power: 53V DC / 1.81A PSU • <10W (NVR only)
- Environment: −10 °C ~ +55 °C • 10–93% RH

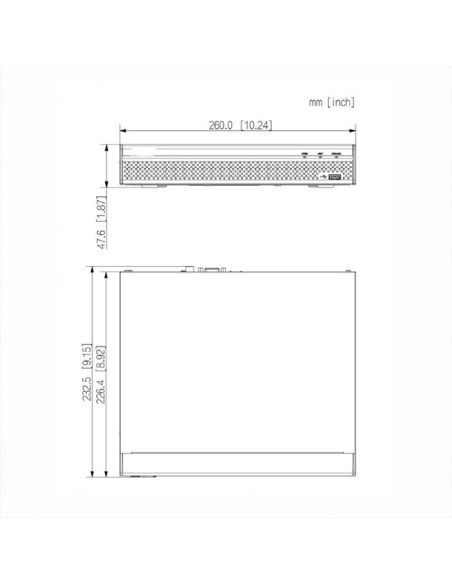

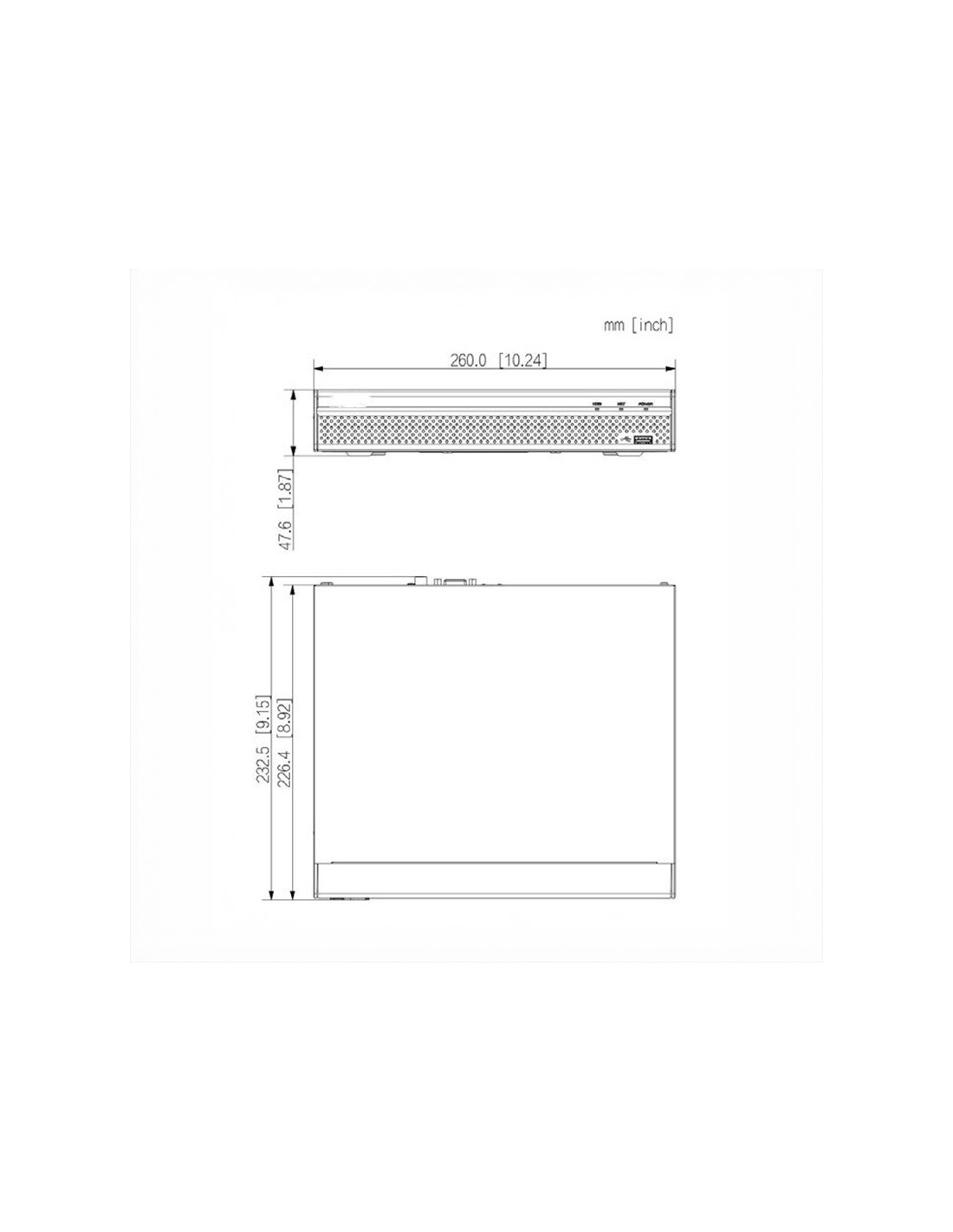

- Size/Weight: 260 × 232.5 × 47.6 mm • 0.92 kg (no HDD) • Form: 1U
- Warranty: 4 Years
Before you order:
- Confirm camera resolution/bitrate vs. the 160 Mbps recorder budget.
- Choose HDD size (up to 20TB) to meet retention targets.
- Check PoE budget (72W total) and cable lengths per camera.
- Plan remote viewing (ports, P2P or VPN) and user permissions.
Design & Quote: Tell us your camera count, desired retention (days) and cabling distances. We’ll size storage, PoE and a turnkey kit around EZ‑N48PRO.
Details based on current EZ‑IP EZ‑N48PRO specs. Features may vary by firmware/region; verify against the latest datasheet.
- Dimensions
- 260mm x 232.5mm x 47.6mm
- Power Supply
- 53VDC / 1.81A
- Audio
- 1 channel input (RCA), 1 channel output (RCA)
- Operating Environment
- -10°C ~ +55°C / 10 ~ 93%RH
- Weight
- 0.92kg (without HDD)
- Display Split
- 1st screen - 1/4/8/9, 2nd screen - 1/4/8/9
- Network Functions
- HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, FTP, SNMP, Alarm Server, P2P, Auto Registration, IP Search
- Power Consumption
- NVR:
- Rackmount Units
- 1U
- Rackmountable
- Yes
- Video Input
- 8 channels
- Interoperability
- ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
- PoE
- Yes
- Recording Resolution
- Configurable from 12.0MP (4000 x 3000) to QCIF (176 x 144)
- Alarm Actions
- -
- Alarm Interface
- -
- Alarm Types
- Record, snapshot, IPC external alarm output, audio, buzzer, log, preset, email
- ANPR (By Camera)
- -
- ANPR Functions
- -
- App Integration
- iOS / Android
- Backup Method
- USB Device / Network
- Decoding Capacity (AI Disabled)
- 8CH@1080p/2MP/25fps
- Decoding Capacity (AI Enabled)
- -
- Display Mode
- HDMI1 + VGA1 (Mirror)
- Display Output
- 1 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080)
- Face Detection (By Camera)
- 6 channels
- Face Detection (By NVR)
- -
- Face Detection Functions
- Gender, Age Group, Glasses, Expressions, Face Mask, Beard
- Face Recognition (By Camera)
- 6 channels
- Face Recognition (By NVR)
- -
- Face Recognition Capacity
- -
- HDD
- 1 x SATA bays, up to 20TB
- HDD Capacity
- 1
- Human/Vehicle Detection (By Camera)
- IVS: 6 channels, SMD: 6 channels
- Human/Vehicle Detection (By NVR)
- -
- Human/Vehicle Detection Functions
- -
- Network Bandwidth (AI Disabled)
- 160Mbps (incoming/recording) 80Mbps (outgoing)
- Network Bandwidth (AI Enabled)
- -
- Network Input
- 1 x 10/100/1000Mbps Ethernet uplink, 8 x PoE 10/1000Mbps (802.3af/at)
- NVR Operated AI
- -
- Playback Channels
- 8 channels
- Playback Modes
- Instant playback, general playback, event playback, tag playback, smart playback
- Processor & Operation
- Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
- Supported Camera AI
- Face Detection, Face Recognition, People Counting, Heatmap, AI Tripwire/Intrusion and AI Human/Vehicle Detection
- USB & Other Inputs
- 1 x Front USB 2.0, 1 x Rear USB 2.0
- Video & Audio Compression
- Video: Smart H.265+ / H.265 / H.264 / Smart H.264+
- Video Metadata (By Camera)
- -
- Video Metadata (By NVR)
- -
- Video Metadata Functions
- -
EZ-N48PRO
