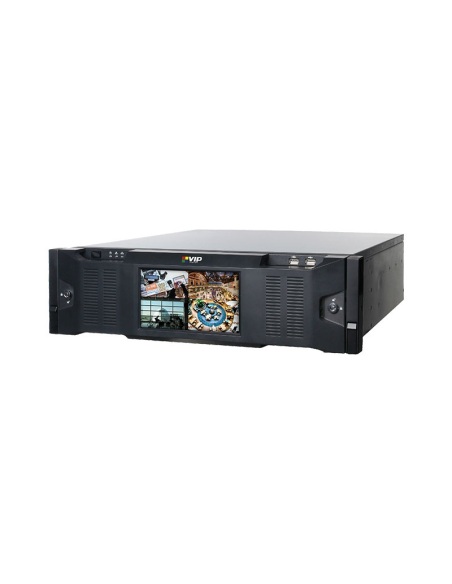

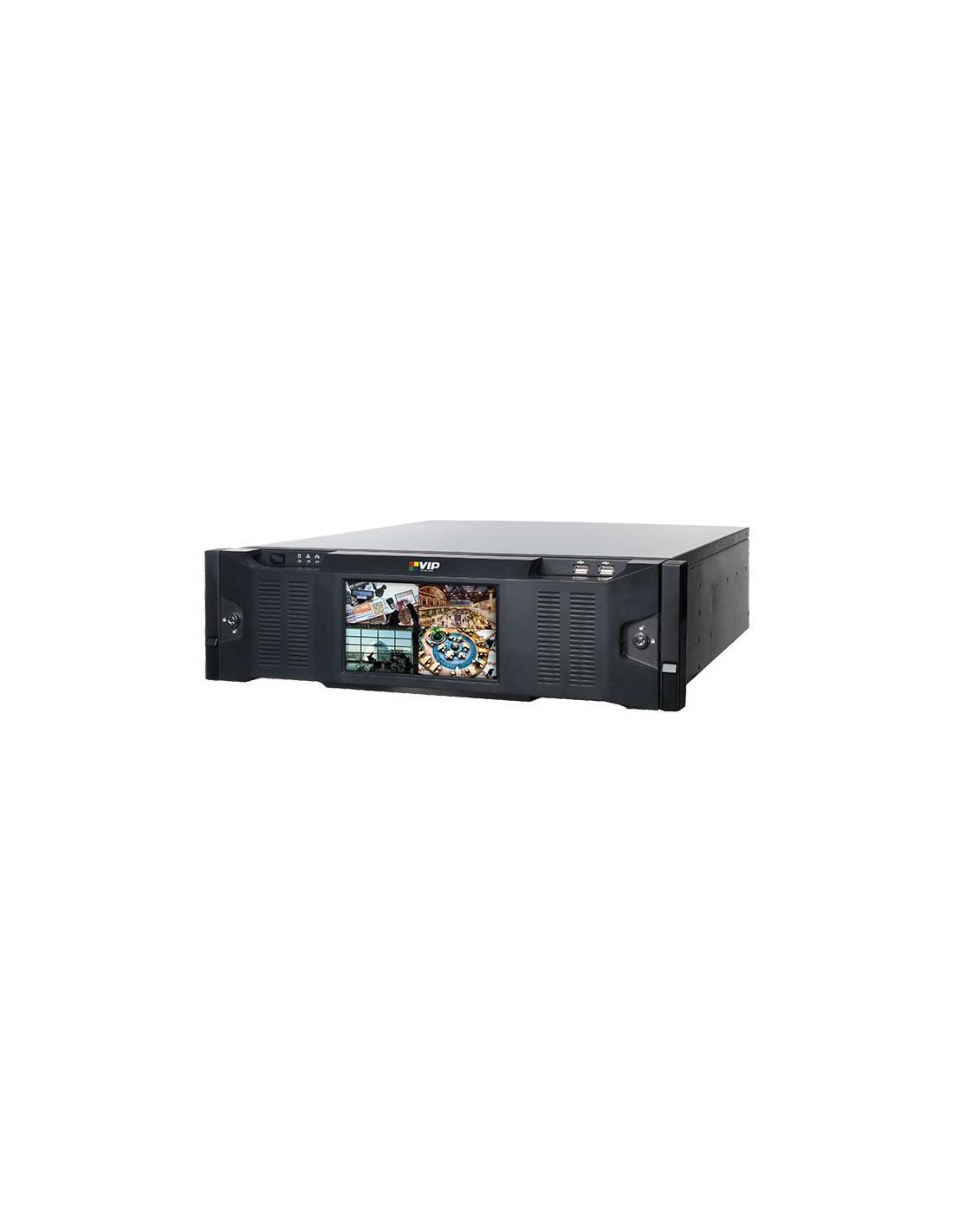

VIP Vision NVR General System Management Centre - NVR-GSMC2

VIP Vision NVR General System Management Centre - NVR-GSMC2

Name: VIP Vision NVR General System Management Centre - NVR-GSMC2
Brand: VIP Vision
SKU: NVR-GSMC2
Price: 16995 AUD
Availability: InStock

Reference NVR-GSMC2

In Stock - Ready to Ship

$ 16,995.00

inc-GST

Centralised CCTV, access control & intercom management
Set different access rights hierarchies per user/group
Manage access w/ card reader & fingerprint scan
Event & alarm logging, searching, timestamp & overlay
Create impressive live video walls displays
Intelligent functions + ANPR, AI & face recognition
PTZ control/tour, audio, alarm, etc.
Manual and automatic system backup/restore
Built-in 2TB HDD - supports 15x 3.5” HDDs for storage
High reliability with hot standby & hot swapping

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

VIP Vision NVR-GSMC2 | General System Management Centre • 1,000 Channels • CCTV + Access + Intercom

VIP Vision NVR-GSMC2 General System Management Centre

The VIP Vision NVR-GSMC2 is an enterprise General System Management Centre preloaded with the DSS interface and 1,000 pre‑activated video channels. It centralises IP surveillance, access control and video intercom into one scalable platform with advanced AI features, E‑maps and video wall control.

Key Features & Benefits

1,000 Channels Pre‑activated — Single server: up to 500 devices / 1,000 channels; scale with up to 5 sub‑servers for 2,500 devices / 5,000 channels
Unified Management — Centralised CCTV, access control (doors, cards, fingerprints) & intercoms with auditing and event logs
Powerful User Control — Up to 50 online users and 200 accounts with role‑based permissions
AI & Analytics — ANPR, face recognition, metadata, people counting & heat map
Video Walls & E‑maps — Build live multi‑screen walls, visualise sites with main & sub‑maps
Enterprise‑grade Storage — Built‑in 2TB system HDD plus 15× 3.5" bays for video/picture storage (up to 16TB per HDD; 200TB per server)
High Reliability — Hot‑swap drive support & 1+1 redundant power with hot standby
Rich I/O — 4× Gigabit LAN, 3× HDMI + 1× VGA, 2× USB 2.0 (front) + 2× USB 3.0 (rear)
Pro Hardware — 64‑bit quad‑core Intel® Core i5‑6600, 16GB RAM, Linux OS
4‑Year Warranty — Long‑term assurance for mission‑critical deployments

Ideal Applications

Campuses, hospitals & government facilities
Shopping centres, stadiums & entertainment venues
Transportation hubs, councils & multi‑site enterprises
Any large site needing centralised CCTV, access & intercom management

Specifications at a Glance

Model: NVR-GSMC2
Role: General System Management Centre (DSS server)
Channels / Devices: Single server: up to 500 devices / 1,000 channels; Multiple servers (with up to 5 sub‑servers): up to 2,500 devices / 5,000 channels
Accounts & Users: 200 total accounts; up to 50 online users
Access Control: Up to 200 devices / 500 doors (single); 600 devices / 1,500 doors (multiple)
Intercom & AI: Up to 2,000 intercom devices; 100–500 ANPR channels; 100–500 face/metadata channels; People Counting/Heat Map 32–160 ch
CPU / OS / Memory: Intel® Core™ i5‑6600; Linux; 16GB RAM
System Disk: 2TB Enterprise HDD (2.5"), 7200 RPM
Video Storage: 15× 3.5" bays (max 16TB per HDD) • Max capacity 200TB per server (1PB multi‑server)

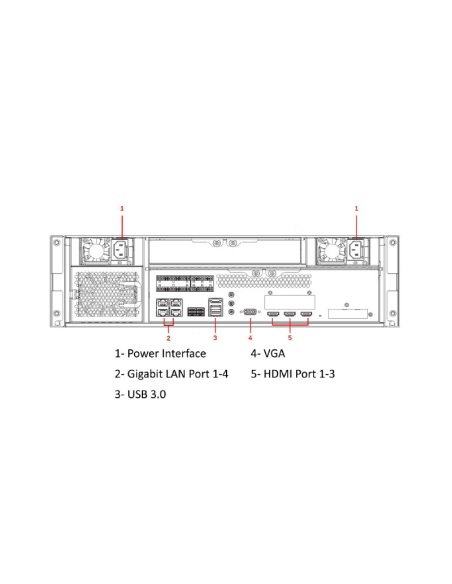

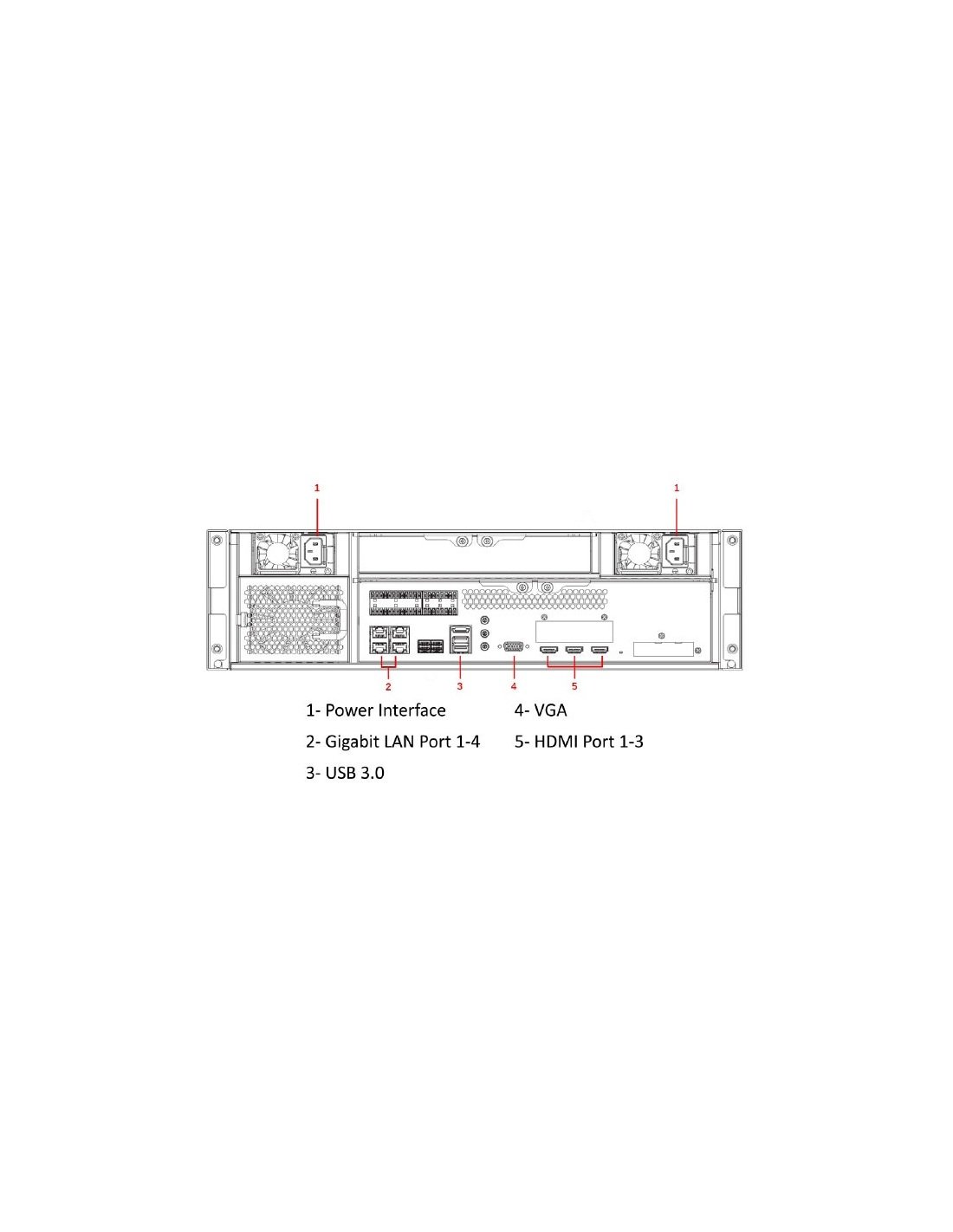

Interfaces: 4× Gigabit LAN • 3× HDMI • 1× VGA • 2× USB 2.0 (front) • 2× USB 3.0 (rear)
Power: 1+1 redundant PSU • 315W max / 210W typical • Hot‑swap/online replacement
Environment: 0°C ~ 40°C operating • –20°C ~ 70°C storage • 10%–80% RH operating
Dimensions / Weight: 444.8 × 133.2 × 522.2 mm • 19.1 kg • 19" rack‑mount
Warranty: 4 Years

Unify security at scale. Centralise CCTV, access control and intercoms with analytics, video walls and enterprise storage in one resilient platform.

Access Control: 200 devices, 500 Doors (single server) / 600 devices, 1500 Doors (multiple servers)
Main Processor: 64 bit 4 core CPU (CORE-I5-6600)
Memory: 16GB
Operating Environment: 0°C~40°C / 10%~80% RH
Power: 315W (max), 210W (stable)
Operating System: Linux

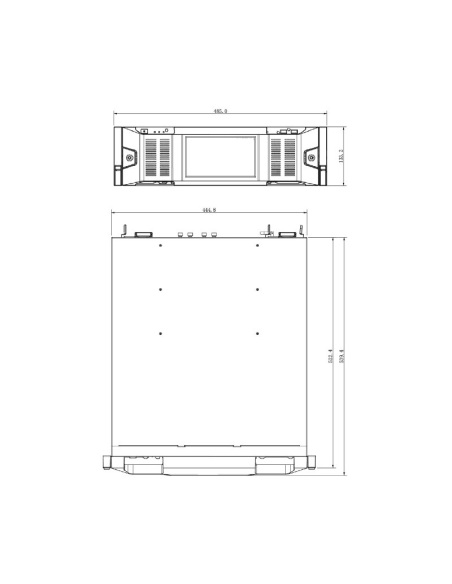

Dimension: 444.8mm × 133.2mm × 522.2mm
HDD Installation: Built-in 1× 2T HDD disk (2.5”) for system Support 15HDD disks (3.5”) for Video & Picture storage (max 16TB per HDD, 200TB per server)
HDMI: 3 HDMI
Installation Method: Standard 19” rack installation
Network Port: 4 Ethernet Ports (100/1000Mbps )
Storage Environment: -20°C~70°C / 5%~90% RH

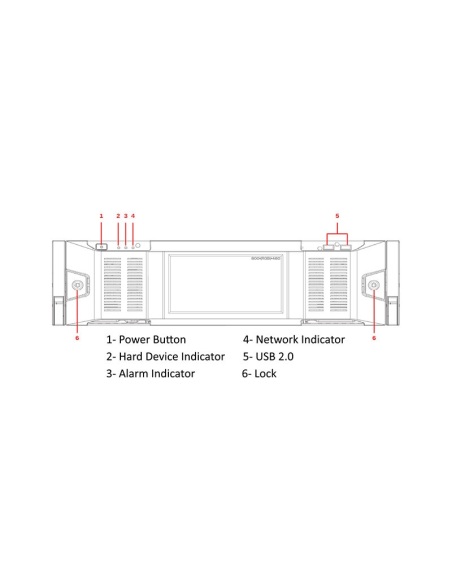

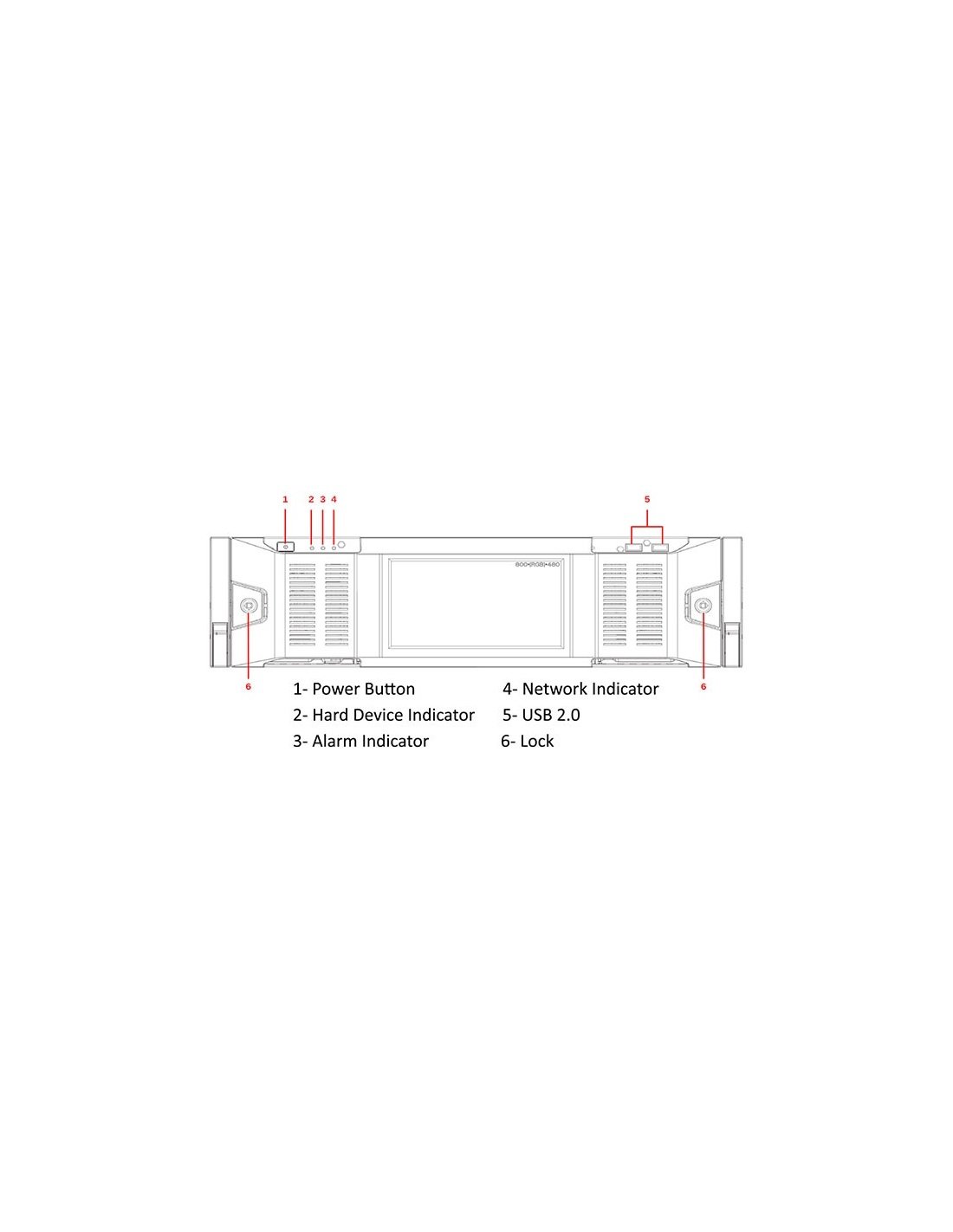

USB Port: Front panel: 2 × USB 2.0, Rear panel: 2 × USB 3.0
VGA: 1 VGA, as network config
Weight (Without Package): 19.1kg
Zones: 256
Features: Face Recognition / ANPR / Metadata / People Counting / Heat Map / Video Intercom / Access Controller / Operation Logs / Service Logs (5,000,000 each)
ONVIF: 500 devices, 1000 Channels (single server) / 2500 devices, 5000 Channels (multiple servers)
Access Control Events: 240 per Second (single server) / 480 per second (multiple servers)
Alarm Controllers: 64 devices, 640 zones (single server) / 320 devices, 3200 zones (multiple servers)
Alarm Host: 100 channels (single server) / 500 channels (multiple servers)
ANPR Camera: 100 channels (single server) / 500 channels (multiple servers)
Appointments in Progress: 10,000
Cards: 200,000
Combined Event Rules: 100
Combined Events: 200
Door Access rules: 200
Door Access Rules For People: 10,000 people (1 password, 2 face images, 3 fingerprints & 5 cards for each person)
DSS Mobile for VDP: 500 Online, 5000 Total
Entrances & Exits: 16
Event Reception (w/ Picture): 100 per second (single server)
Event Reception (w/o Picture): 240 per Second (single server) / 480 per second (multiple servers)
Event Sources for Event Rules: 3,000
Face Watch List: 50
Faces: 100,000
Faces Per Watch List: 50,000
Facial Recognition Channels: 20 devices, 100 channels (single server) / 100 channels, 500 channels (multiple servers)
Fingerprints: 200,000
General Recording Plans: 3,000
Group Levels: 10
Hard Disk Compatibility: SAS/SATA disk
Hierarchy of Raster Map: 8 Hierarchies
Hot Swap: Supports hot swap & online replacement
Included Device License: 1,000 devices (single server) / 5,000 devices (multiple servers)
Map Size of Raster Map: Up to 15MB
Maximum Capacity per Storage Server (local & IPSAN): 200 TB (single server) / 1PB (multiple servers)
Maximum Device Licences: 2,000 devices (single server) / 6,000 devices (multiple servers)
Motherboard: Embedded board (7 × 24 operation)
Motion Detection Recording Plans: 3,000
Notification Center Message: 1,000
P2P: 32 devices
Parking Lots: 8
PC Client & DSS Mobile Users: 50 Online, 200 Total
People Counting & Heat Map: 32 channels (single server) / 160 channels (multiple servers)
Persons: 100,000
Persons & Vehicle Groups: 999
Picture Bandwidth Incoming / Outgoing / Storage: 100 channels (single server) / 500 channels (multiple servers)
Power Redundancy: 1+1 redundant power
Prerecording Bandwidth for Alarm Recordings: 400 Mbps (single server) / 2,000 Mbps
Public Passwords: 1,500
Raster Map Total: 256
Resources per Raster Map: 300
Roles: 100 (32 per user)
Rules Per Group: 20
Secondary Development: Platform SDK provided
Sub Servers: Up to 5 sub-servers
System Disk: Seagate 7200 RPM Enterprise Class HDD 2 TB
Total Bandwidth Incoming / Outgoing / Storage: 600 Mbps (single server) / 3000 Mbps (multiple servers)
Total Faces: 100,000
Total Groups: 8
Total Vehicle Groups: 16 groups
Total Vehicles: 20,000
Vehicle Watch Lists: 16
Vehicles: 20,000
Vehicles per Vehicle Watch List: 20,000
Video: 500 devices, 1000 Channels (single server) / 2500 devices, 5000 Channels (multiple servers)
Video Bandwidth Incoming / Outgoing / Storage: 600 Mbps (single server) / 3000 Mbps (multiple servers)
Video Intercom Devices: 2000 devices
Video Metadata: 100 channels (single server) / 500 channels (multiple servers)
Video Retrieval Plans: 3,000
