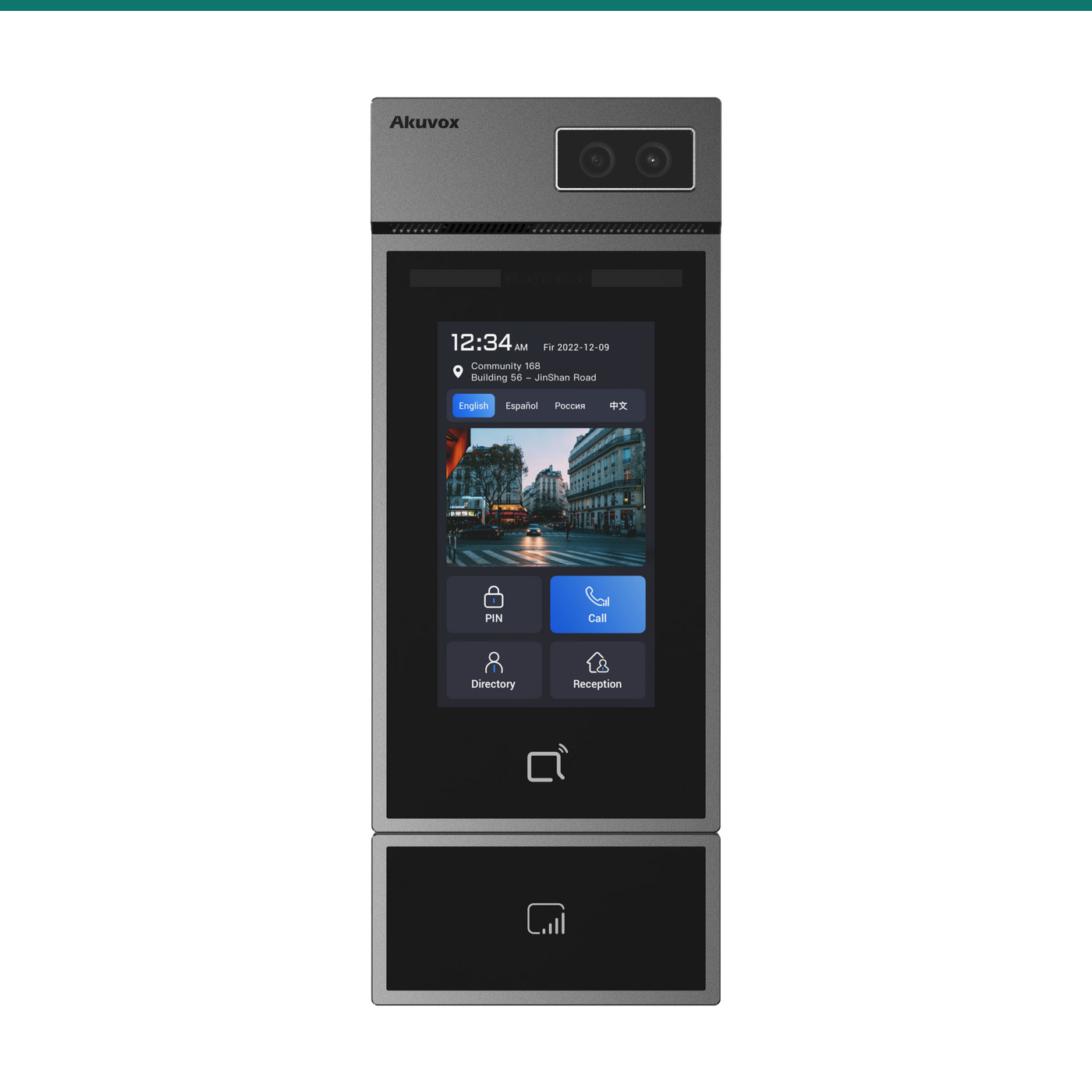

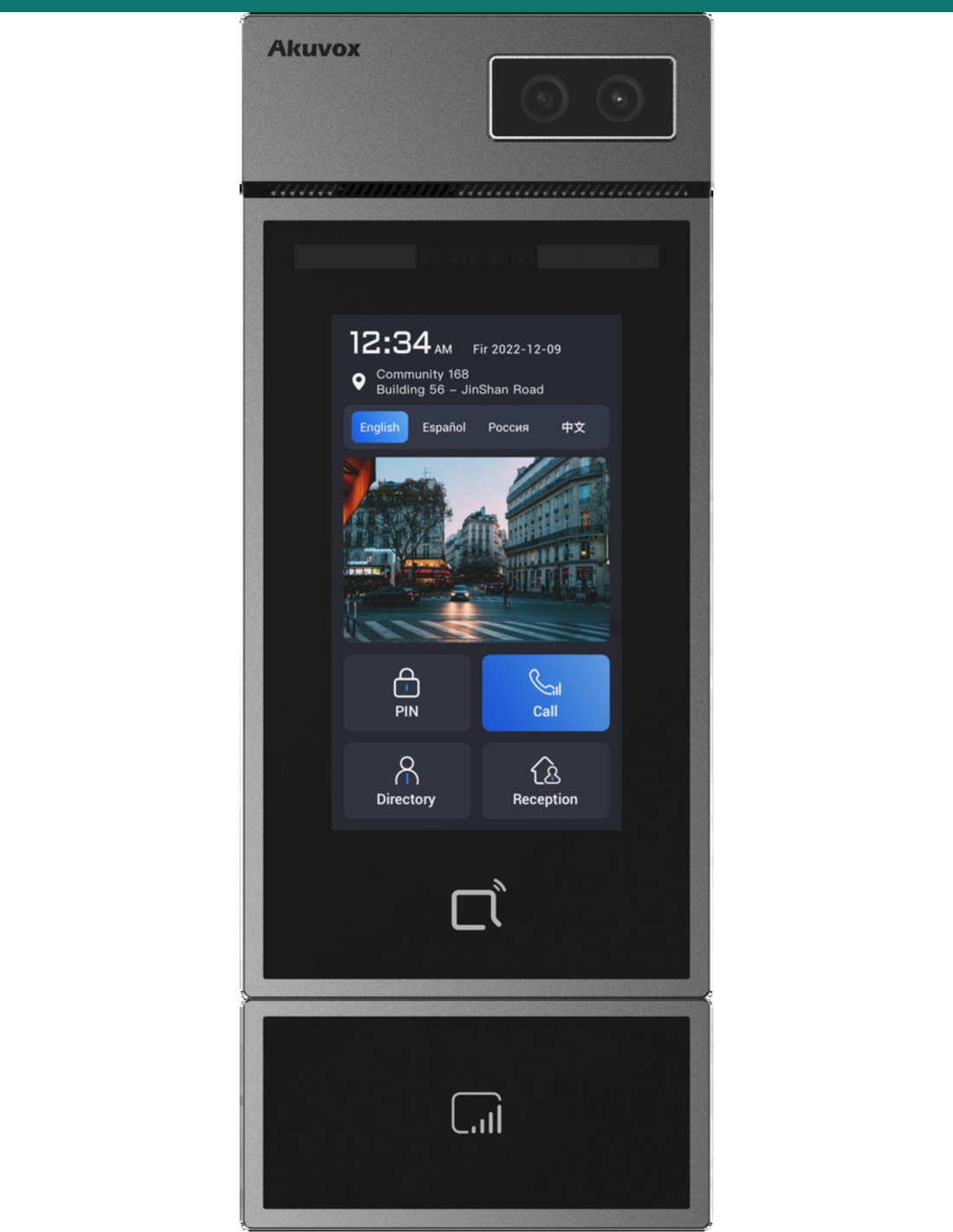

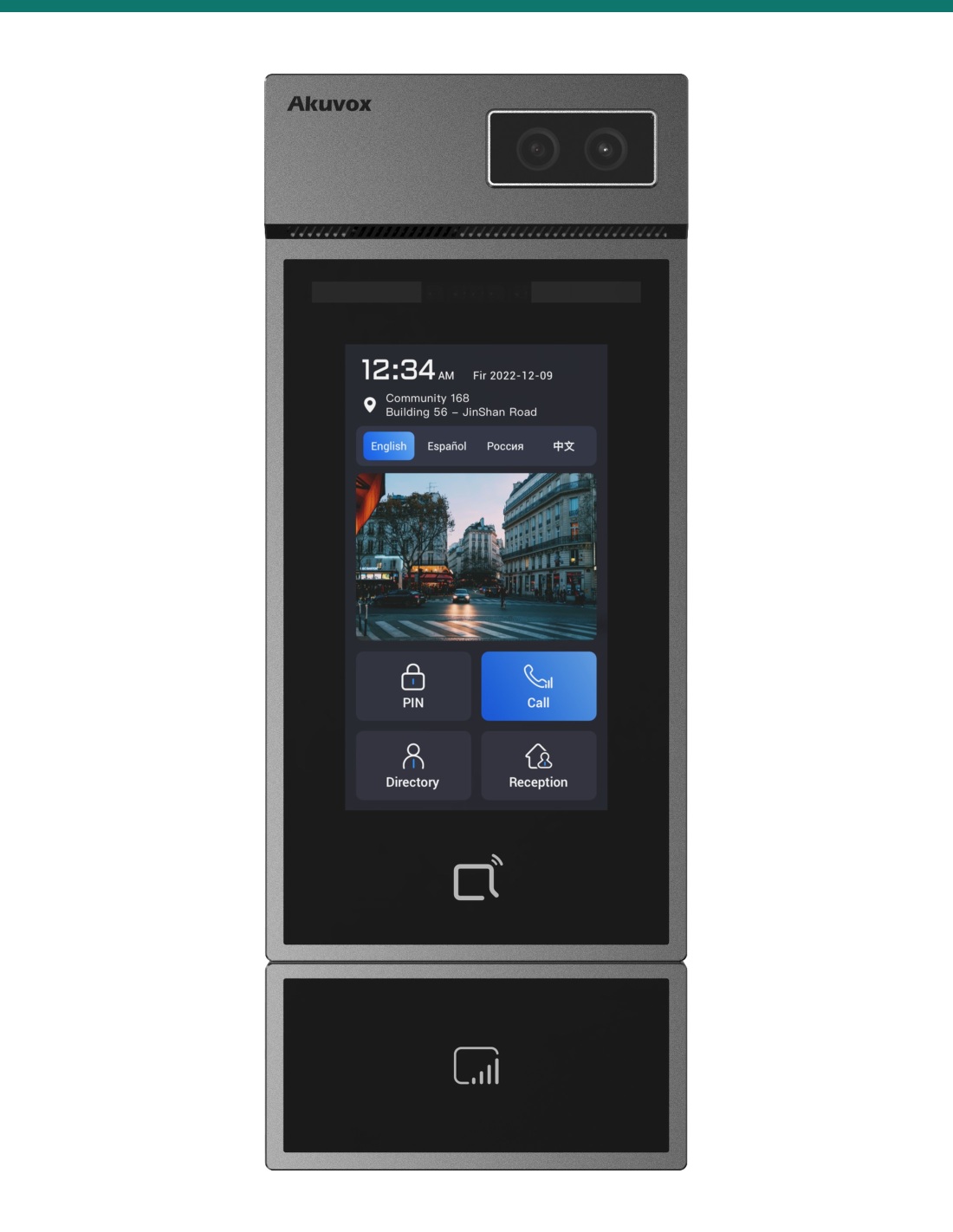

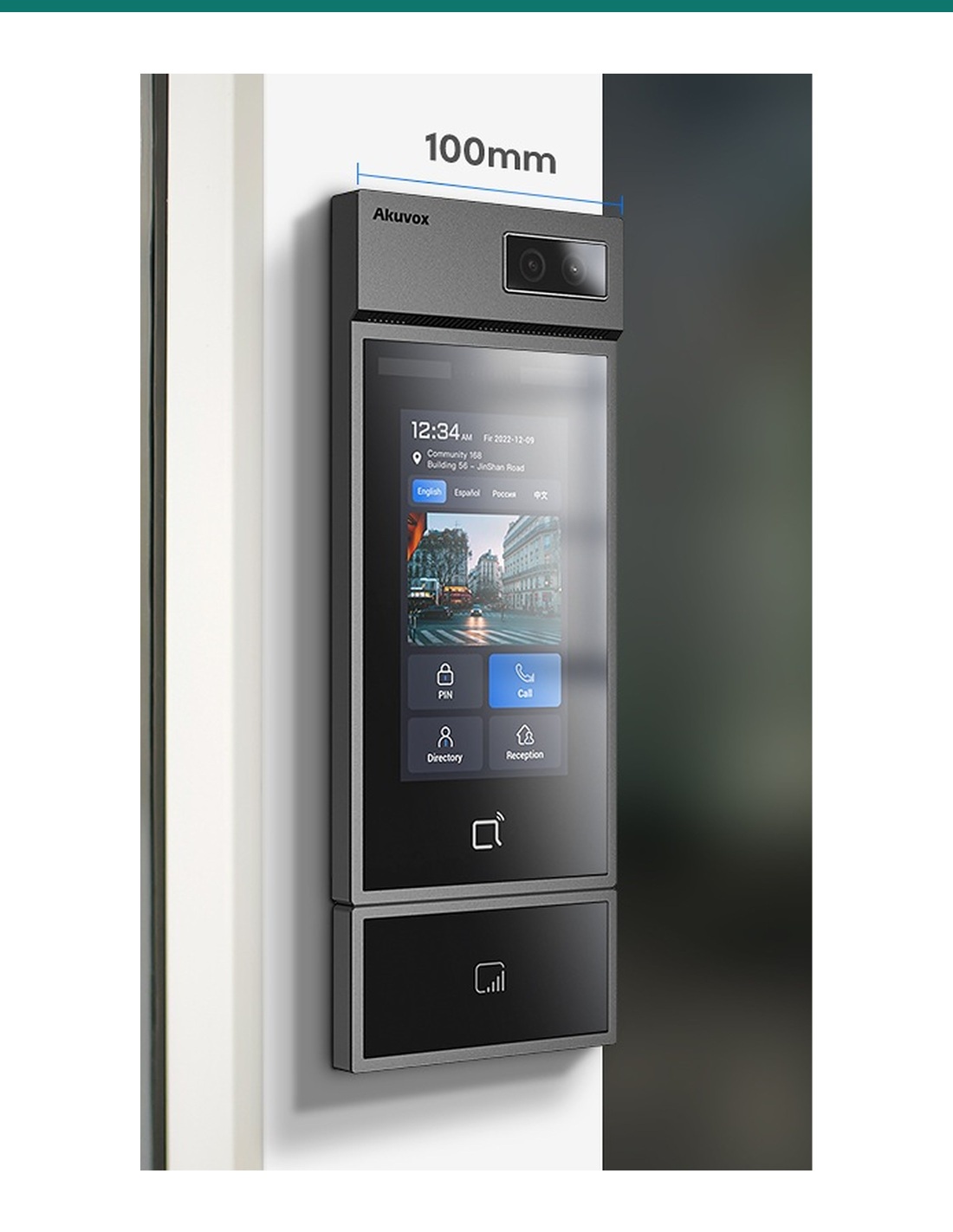

Akuvox S535 with LTE module — front, LTE module fitted

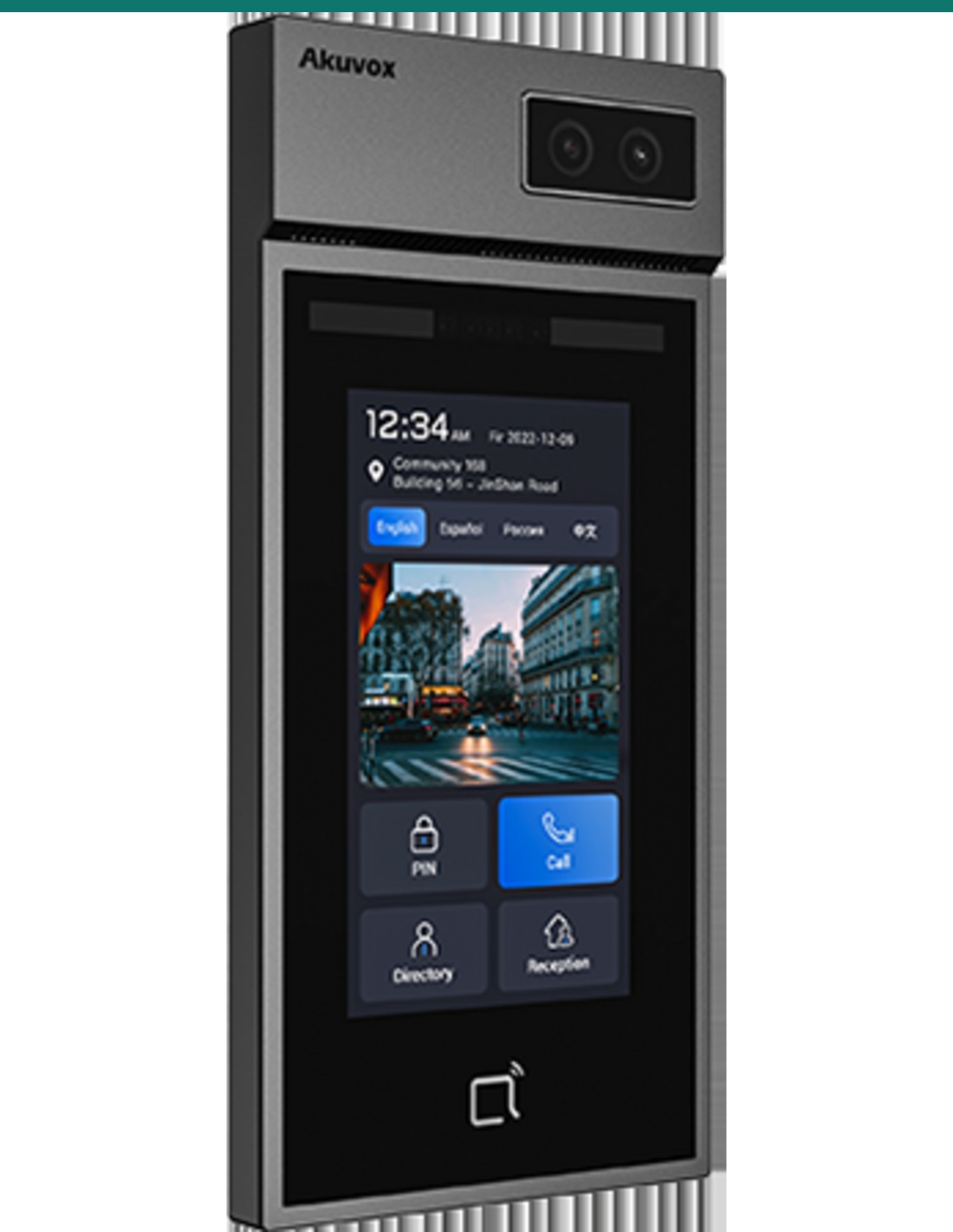

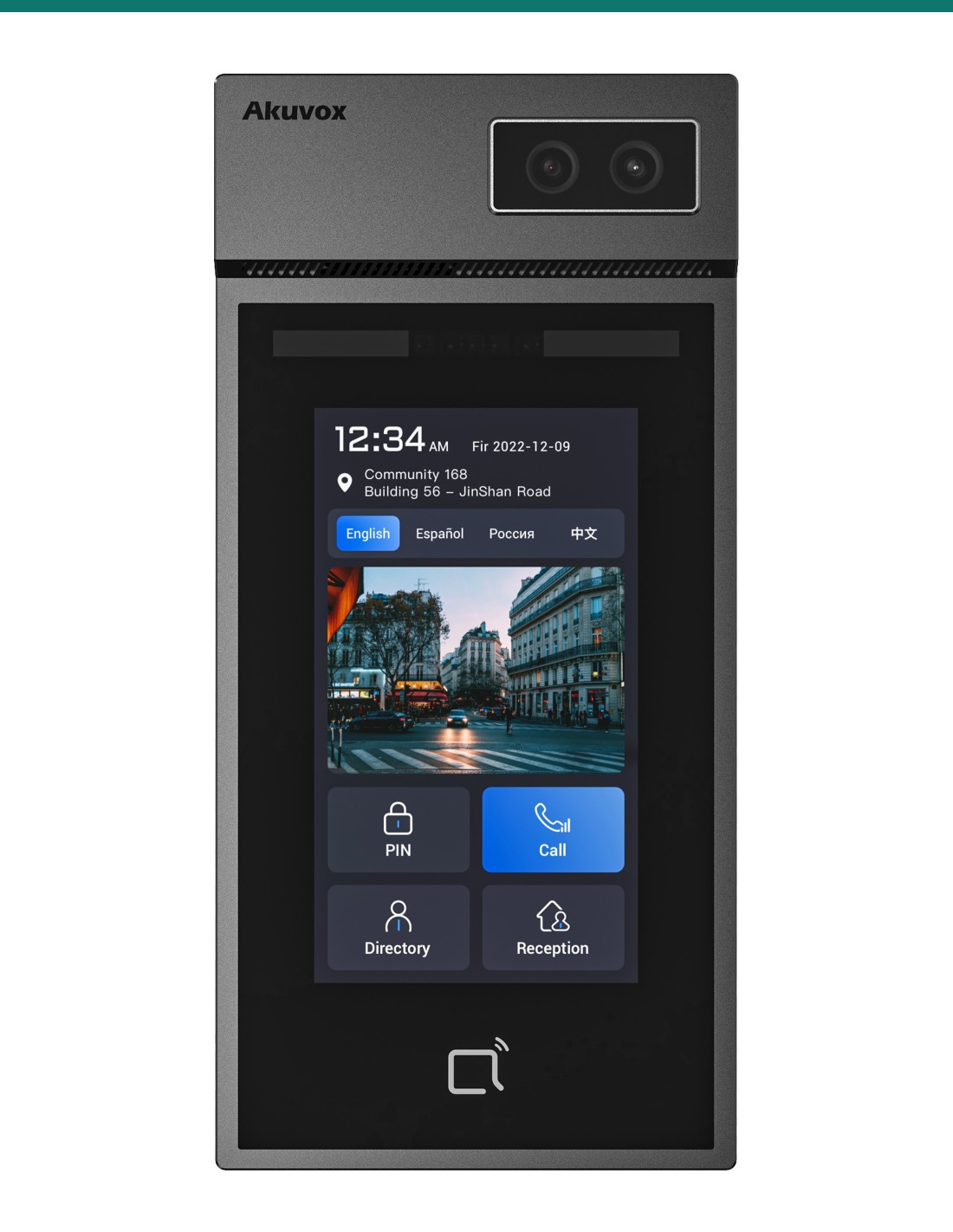

Akuvox S535 with LTE module — S535 door phone on its own
Akuvox S535 with LTE module mounted beside a glass entrance

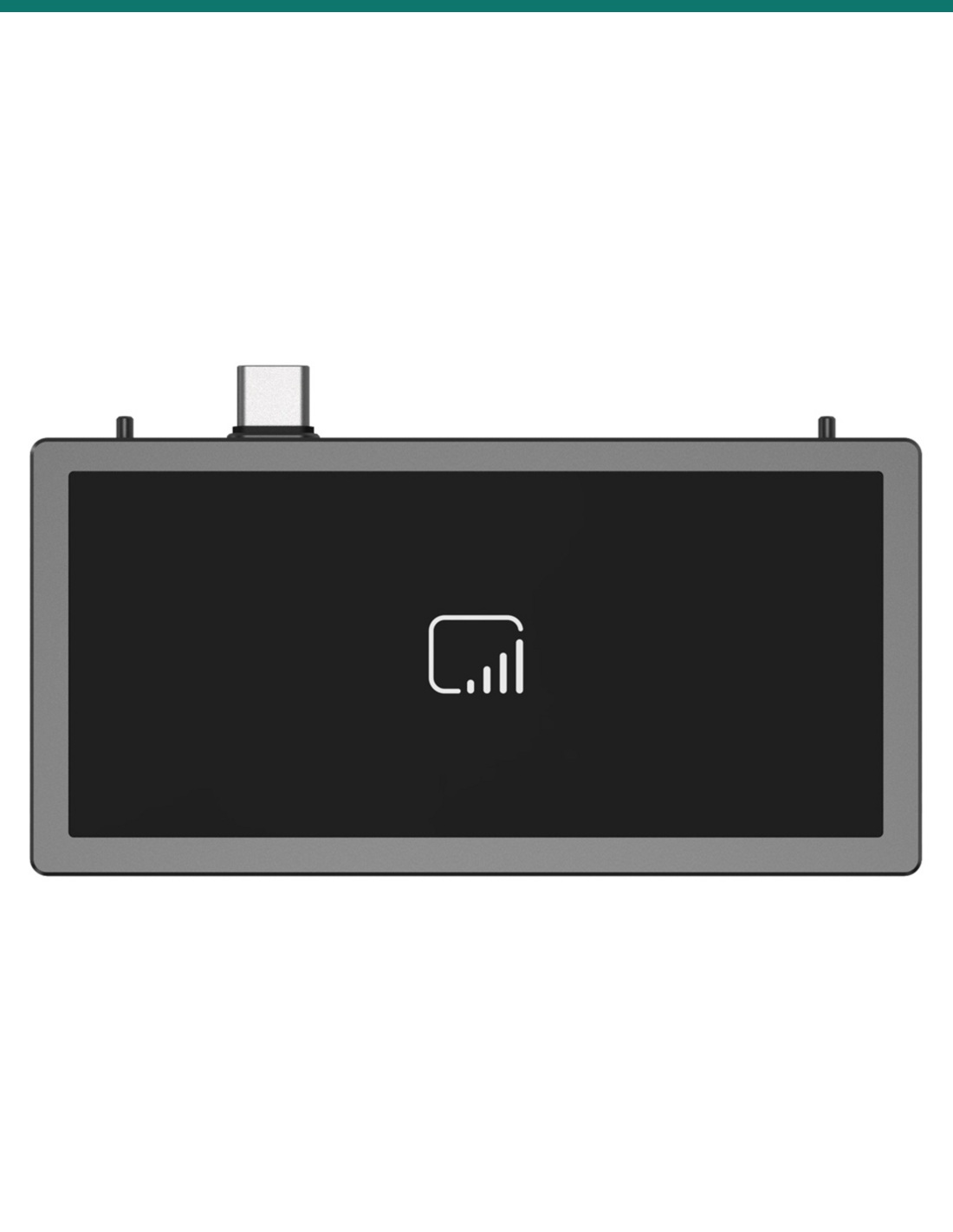

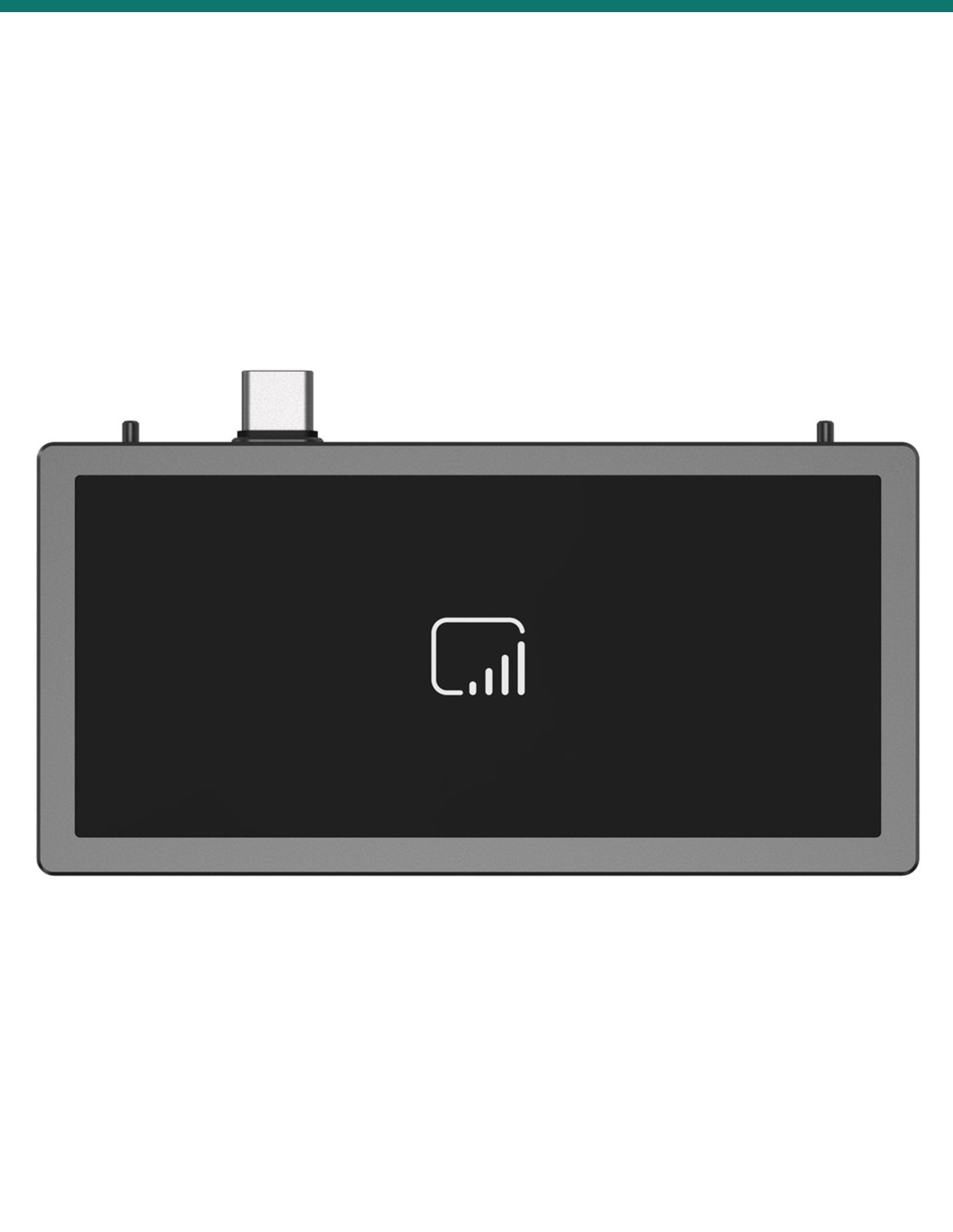

Akuvox S535 LTE expansion module

Akuvox S535 5″ Facial Recognition Door Phone with LTE Module Kit — AK-S535-LTE-KIT

AK-S535-LTE-KIT
In Stock - Ready to Ship
$ 1,348.50
inc-GST

or 4 interest-free payments of $337.12 with

Akuvox S535 LTE kit pairs the 5-inch facial recognition door phone with its LTE expansion module, so the entrance can call residents over the mobile network where running a data cable is impractical. Face, card, PIN, Bluetooth and QR entry, IP66 / IK08.

  • ✓S535 door phone and LTE expansion module in one SKU
  • ✓LTE-FDD bands include B1, B3, B5, B7 and B28; LTE-TDD B38–B41; WCDMA
  • ✓Face, card, PIN, BLE and QR code entry · 20,000 faces, 100,000 cards
  • ✓PoE 802.3at or 12 V DC · IP66 / IK08 · 260 × 100 × 27 mm assembled

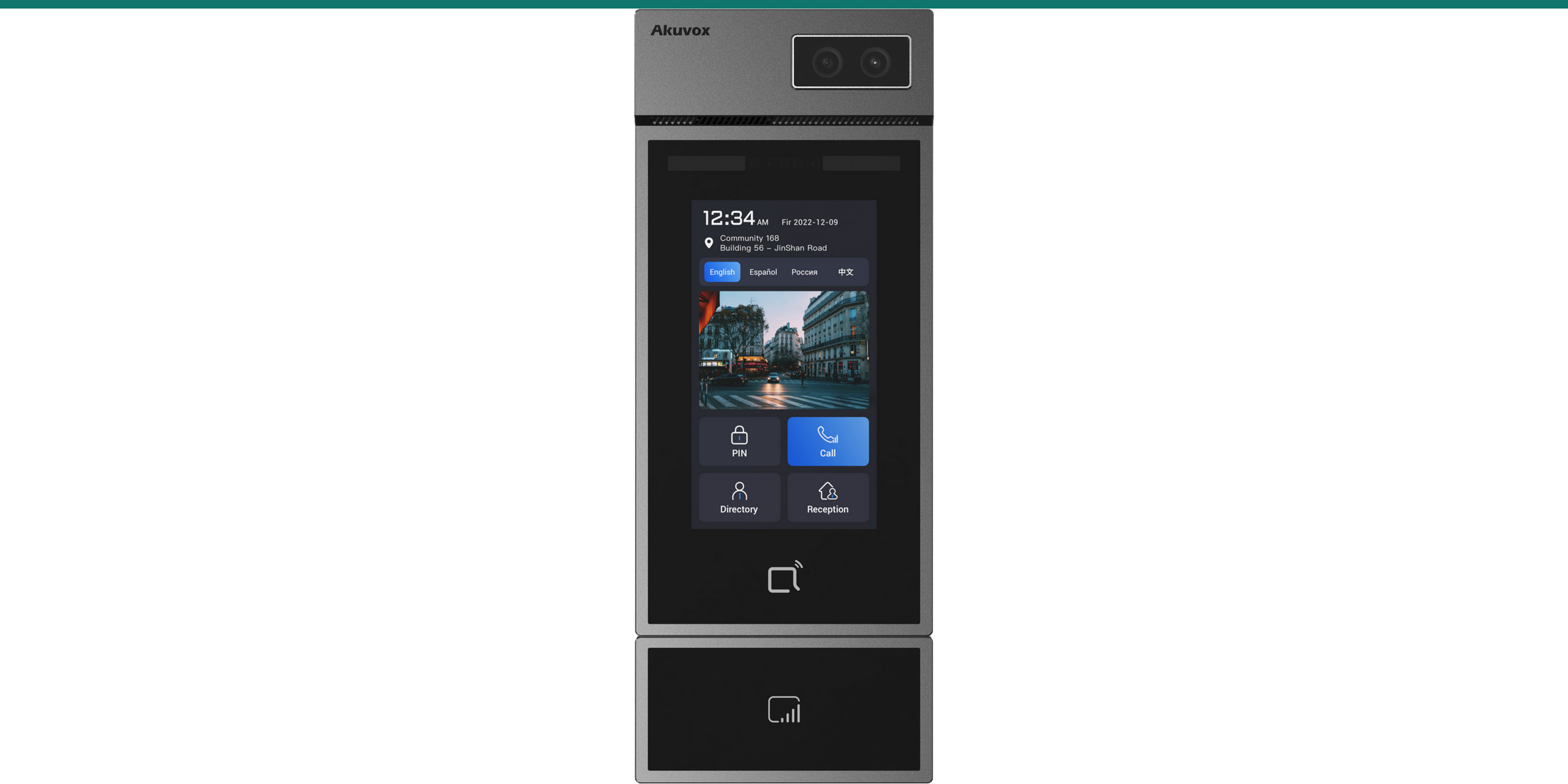

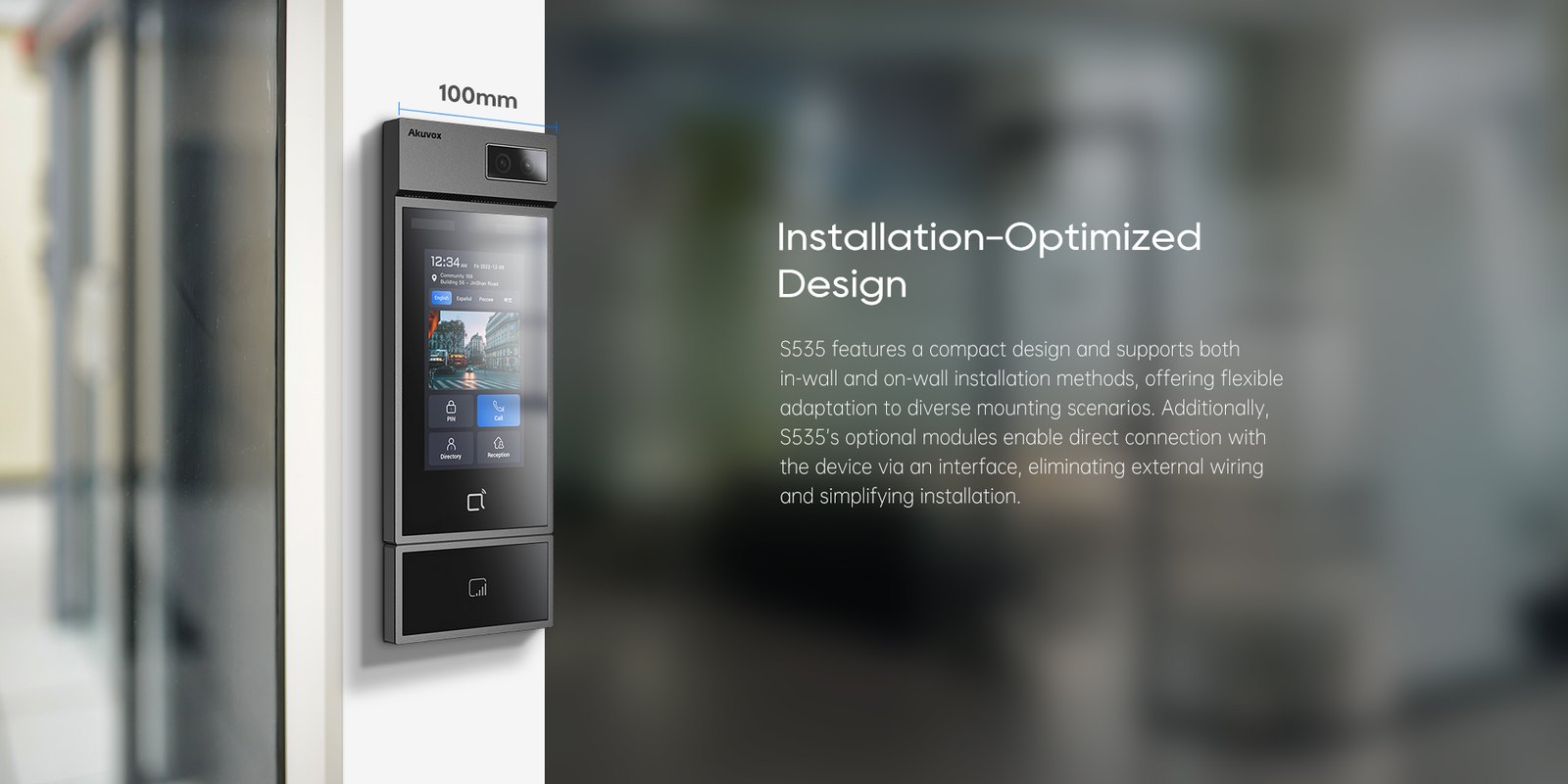

Akuvox S535 with LTE expansion module mounted at a building entrance
Akuvox · S535 · LTE kit

Facial recognition at the door.
No data cable required.

The AK-S535-LTE-KIT bundles Akuvox’s S535 5-inch facial recognition door phone with the S535 LTE expansion unit. Akuvox designed the LTE module for renovating older intercom systems — the station reaches the cloud and residents’ phones over the mobile network instead of a new network run.

This kit is the S535 door station plus the LTE module.

You receive the S535 main unit with its wiring accessories and the LTE expansion module with its fixing screws. A data SIM and the mounting box are not included — use the S535 box made for an expansion module.

In the box
  • Akuvox S535 door station
  • S535 LTE expansion module and 2 shoulder screws
  • Wiring cover, cable plugs, 9-pin and 6-pin cables
  • Torx wrench, screws and diode
What you also need (sold separately)
  • Data SIM with mobile coverage at the entrance
  • S535 on-wall or in-wall box for use with a module
  • 12 V DC 3–4 A supply or PoE 802.3at
  • Electric lock / maglock and lock PSU

Upgrade the entrance, keep the old cable.

Swap a tired audio panel for a facial recognition door phone without trenching a new network cable. Residents answer on the SmartPlus app; the station handles face, card, PIN, phone and QR entry locally.

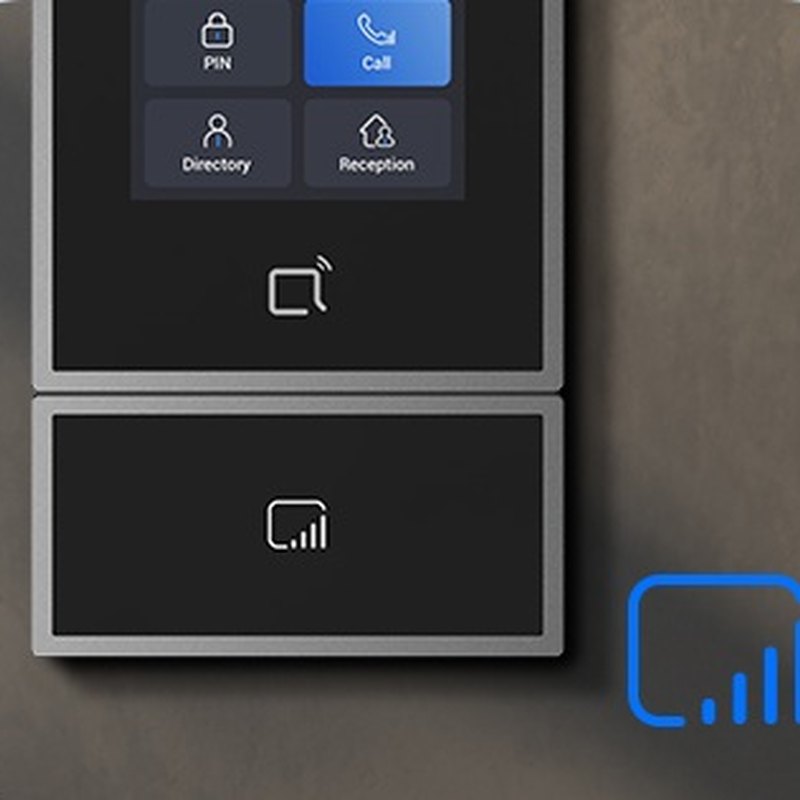

Akuvox S535 with LTE expansion module on a stone wall

LTE

A mobile connection under the screen.

The LTE module covers LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28, LTE-TDD B38–B41 and WCDMA — including the 700 MHz B28 and 1800 MHz B3 bands used in Australia.

It plugs into the expansion port with no extra wiring and takes the plate to 260 mm tall. Mount it in the S535 box made for modules.

Built for outside

IP66, IK08 and −40 °C rated.

Aluminium front panel, IP66 against water and dust and IK08 for impact, rated −40 °C to +55 °C.

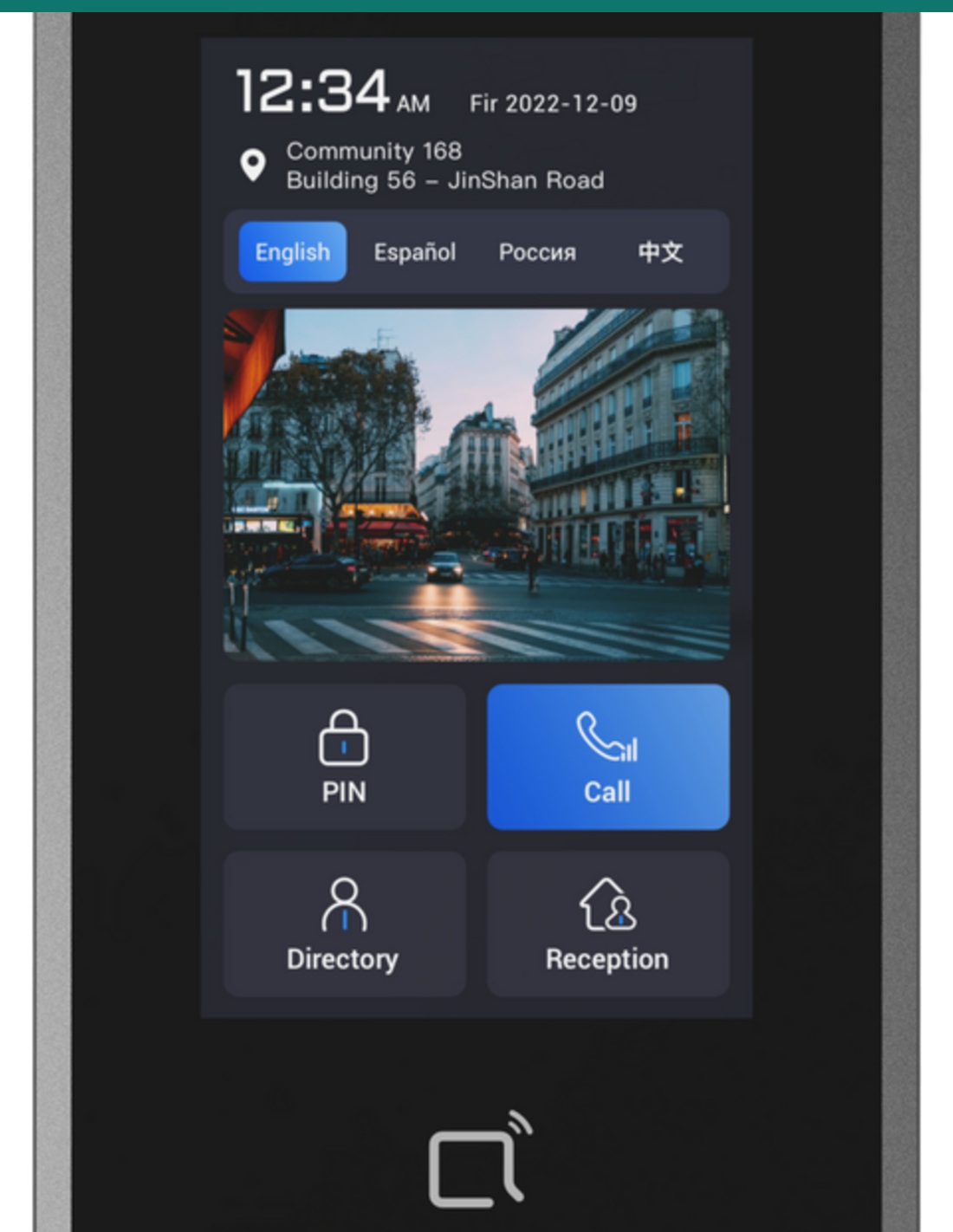

A 5-inch 720 × 1280 touchscreen with a 2 MP main camera and a 2 MP face-liveness camera. Face matching takes under 200 ms at 99.7% accuracy.

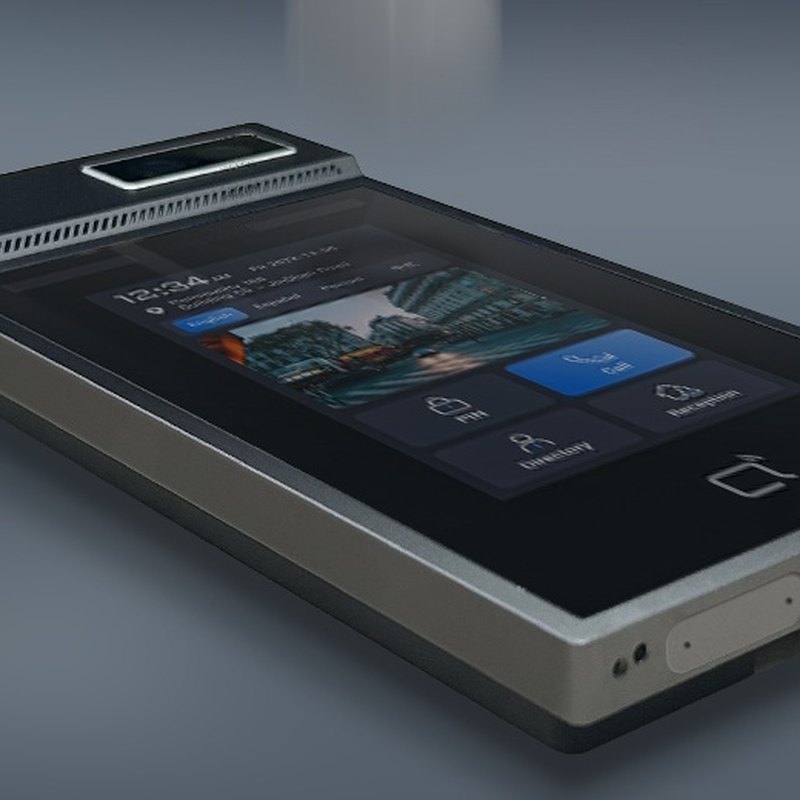

Akuvox S535 aluminium door phone rated IP66 and IK08

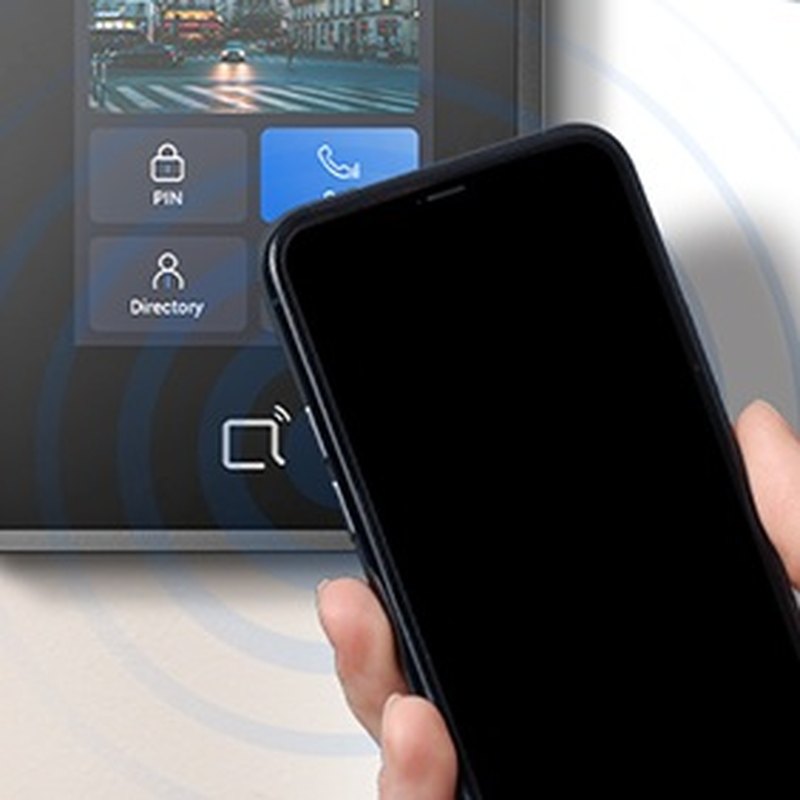

Phone tapped to an Akuvox S535 door phone for Bluetooth entry

Mobile access

Phones, cards and QR codes too.

BLE 5.0 supports hands-free entry, tap-to-go and shake-to-open with the Akuvox SmartPlus app, plus NFC and the Akuvox Bkey fob.

The 13.56 MHz and 125 kHz reader takes EM, MIFARE, DESFire EV2 / EV3 and FeliCa cards. Up to 20,000 faces, 100,000 cards and 100,000 PINs.

How it works

From old panel to 4G door phone.

01

Fit the box

Install the S535 on-wall or in-wall box for use with a module — it is taller than the standard box.

02

Attach the module

Remove the expansion port cover, plug in the LTE module and secure it with the shoulder screws.

03

Power and connect

Connect 12 V DC or PoE+, insert the data SIM and set up LTE in the web portal.

04

Enrol and test

Enrol faces and cards, place a test call to the SmartPlus app and confirm the relay releases the door.

Pair it with

Builds a complete door entry system

Mount

S535 box for use with modules

The taller in-wall or on-wall box made for the S535 plus one expansion module.

App

Akuvox SmartPlus

Residents answer video calls and open the door from their phone over the mobile link.

Credentials

MIFARE cards and fobs

Akuvox 13.56 MHz cards work with the S535 reader once enrolled.

Lock

Electric lock / maglock

The relay switches your lock power supply. Strike, maglock and PSU are separate items.

Works with

Platforms and integrations

SIP PBX and softphones

Standard SIP v1 / v2 lets the S535 call Akuvox monitors, IP phones or extensions on your own PBX.

NVRs over ONVIF / RTSP

Record the 1080p HDR entrance picture on an ONVIF or RTSP-capable NVR alongside your CCTV cameras.

Akuvox SmartPlus over LTE

With a data SIM the station reaches SmartPlus over the mobile network, so residents answer and unlock from their phones without a data cable to the door.

Wiegand and RS485 access control

The selectable Wiegand port and RS485 connect third-party access controllers, readers and Akuvox relay modules.

Watch

See it in action

Configuring LTE on the S535
Installing the S535 with an expansion module

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Is this only the LTE module?

No. This kit includes the S535 door station and the LTE module. The module on its own is AK-S535-LTE.

Will it work on Australian networks?

The module supports LTE bands 1, 3, 5, 7 and 28 among others, which cover the main Australian 4G bands. Check coverage at the entrance and use a data SIM from your chosen carrier.

Is a SIM card included?

No. Supply a data SIM and insert it into the LTE module before the module is fitted to the station.

Which mounting box do I need?

The S535 on-wall or in-wall box made for modules. The standard S535 box is too short for the 260 mm assembled height; flush installs need a 255.5 × 94 × 34 mm opening.

What power does it need?

IEEE 802.3at PoE+ or a 12 V DC 3 A supply; allow 4 A if the 12 V / 500 mA output also powers a lock or reader. On an LTE-only site a local 12 V DC supply is the usual choice.

Can residents still use the app?

Yes. Over LTE the station reaches Akuvox SmartPlus, so residents answer video calls and unlock from their phones.

Is an indoor monitor included?

No. Pair it with the SmartPlus app, a compatible Akuvox indoor monitor or any SIP endpoint.

A 4G door phone.

Choose the LTE kit for retrofits, gates and sites where a network cable to the entrance is not practical.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3at PoE+ or a 12 V DC, 3 A supply (4 A with the 12 V output in use). Power the station off before fitting or removing the module.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Power
PoE 802.3at or 12 V DC 3–4 A
Colour
Dark grey
Capacity
20,000 faces, 100,000 cards, 100,000 PINs
Working Temperature
−40 °C to +55 °C
Brand
Akuvox
Display
5″ IPS touchscreen, 720 × 1280
Protection
IP66 / IK08
Face Recognition
Under 200 ms, 99.7% accuracy
Camera
2 MP main + 2 MP face-liveness, 116° (H) / 62° (V)
Size
260 × 100 × 27 mm (H × W × D) assembled
Warranty
Australian warranty
Video
H.264, HDR, 1080p at 30 fps
Product Type
Facial recognition door station kit
Model
S535 + LTE module
RF Reader
13.56 MHz and 125 kHz, NFC
I/O
1 relay, 2 inputs, Wiegand, RS485, 12 V / 500 mA output
OS
Linux
Unlock
Face, card, PIN, BLE, NFC, QR code
Cellular
LTE-FDD 15 bands incl. B1, B3, B5, B7, B28; LTE-TDD B38–B41; WCDMA
Card Types
EM, MIFARE, DESFire EV2 / EV3, FeliCa
