Hikvision 8MP 4K AcuSense IK10 Dome 2.8mm, Mic+I/O — DS-2CD2186G2-ISU(2.8mm)(C)

DS-2CD2186G2-ISU(2.8mm)(C)
In Stock - Ready to Ship
$ 287.50
inc-GST

4K in an IK10 vandal dome, built-in mic, alarm I/O.

Hikvision 21xx line fixed dome. Content below cross-checks a 2186G2H editorial template — confirm your exact 2186G2 Gen2 firmware+SKU against the stamped PDF before a warranty or council submission.

  • ✓ Genuine Hikvision, Infront Technologies Australia

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

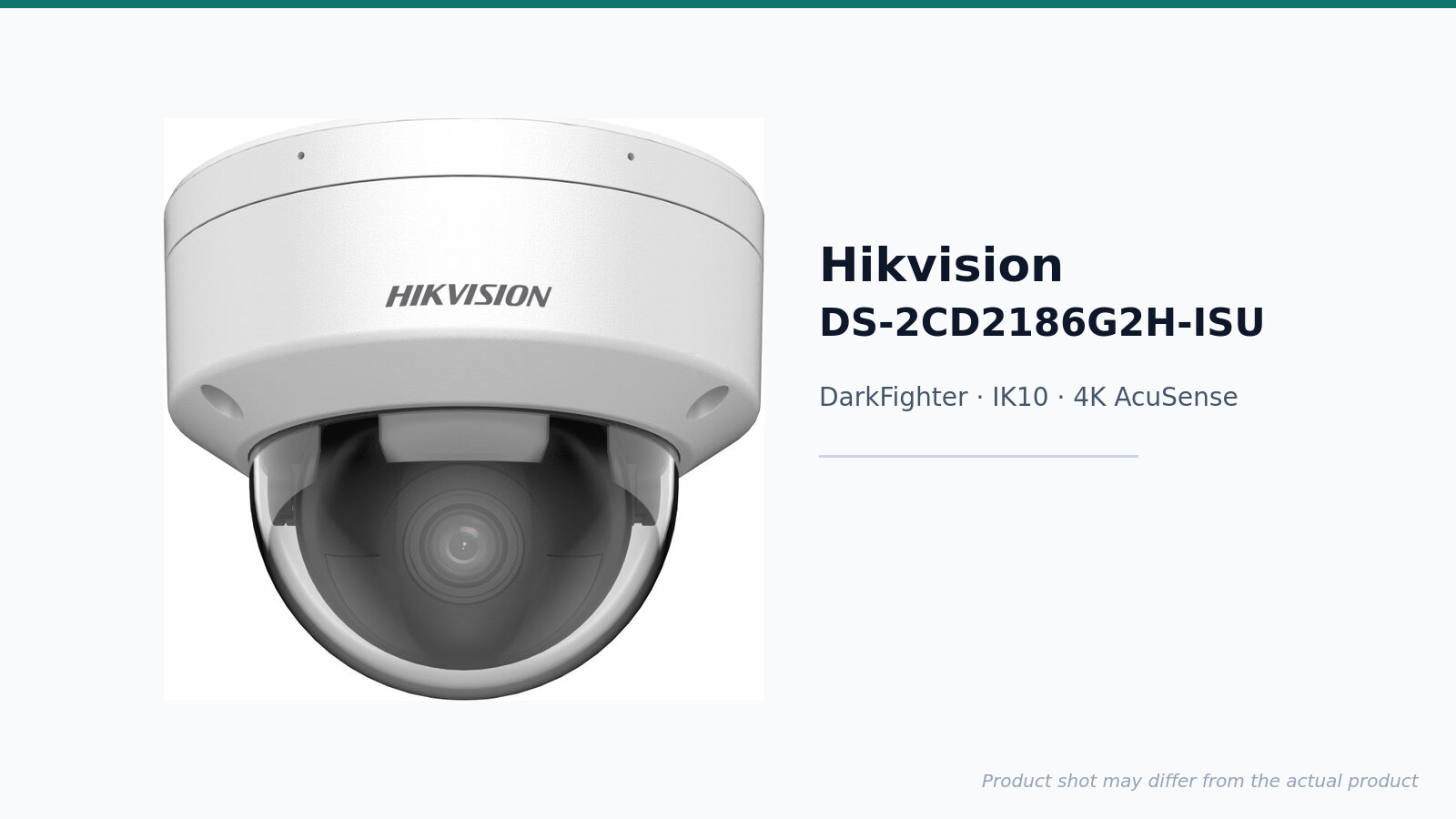

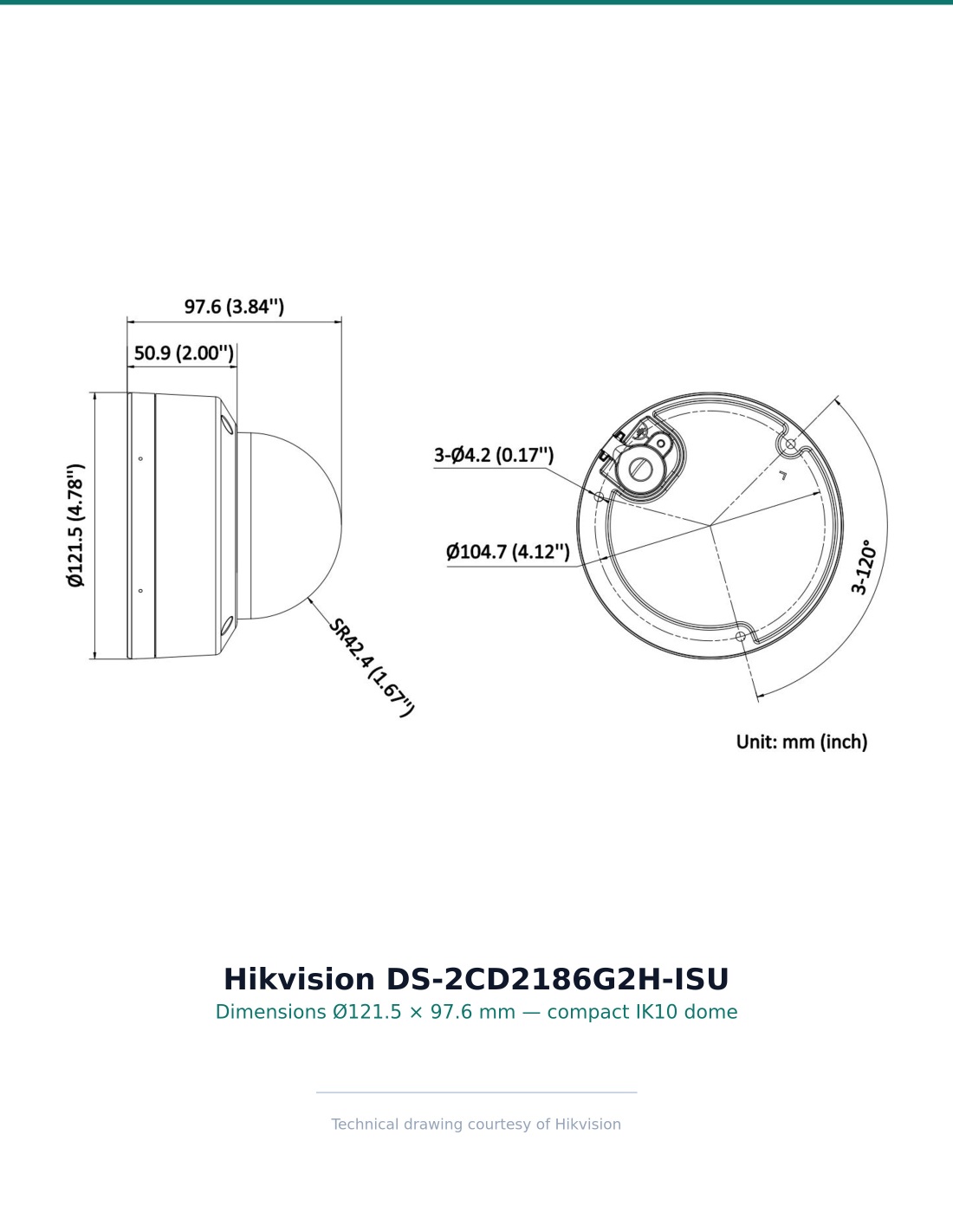

Hikvision DS-2CD2186G2-ISU 8 MP 4K AcuSense camera — editorial hero shot on a light background
Hikvision · Pro Series EasyIP

Low-light 4K clarity.
Vandal-proof IK10 dome.

The Hikvision DS-2CD2186G2-ISU is an 8 MP 4K DarkFighter fixed dome with AcuSense G2 and an IK10 vandal-resistant metal body. Purpose-built for exposed entry points — car parks, reception vestibules, loading bays — where a camera needs to survive a deliberate strike and still deliver court-quality 4K.

Product shot may differ from the actual product.

This is a STANDALONE 4K IP CAMERA — it is a complete camera by itself, but most installs pair it with a PoE NVR or PoE switch.

The DS-2CD2186G2-ISU will operate standalone — point it at the network, power via PoE or 12 VDC and configure via web browser or iVMS-4200. Most professional installs record to a Hikvision PoE NVR or a third-party ONVIF-compatible VMS.

In the box
  • Hikvision DS-2CD2186G2-ISU camera
  • Mounting template and hardware pack (screws + plastic expansion anchors)
  • Waterproof RJ45 cable gland
  • Security Torx L-wrench
  • Quick start guide

Packing list subject to final Hikvision QSG revision.

You’ll also need (sold separately)
  • Hikvision or compatible PoE NVR or PoE+ injector/switch
  • Shielded Cat 6 Ethernet cable run to the camera
  • Optional microSD card (up to 512 GB) for edge recording
  • Compatible wall / pendant / pole mount if surface-mounting on irregular substrate

Unsure what’s compatible? Check the Compatible Hardware section below, or contact us before ordering — we’ll confirm everything you need so nothing’s missing on install day.

Professional-grade 4K, without the professional-grade complexity.

Hikvision built the Gen2 range to cover the 95 % of Australian residential and small-commercial surveillance installs where the customer wants 4K resolution, AI detection and a camera that simply works — without stepping up to a Ultra‑series budget.

Genuine Hikvision, shipped, supported and warrantied in Australia by Infront Technologies.

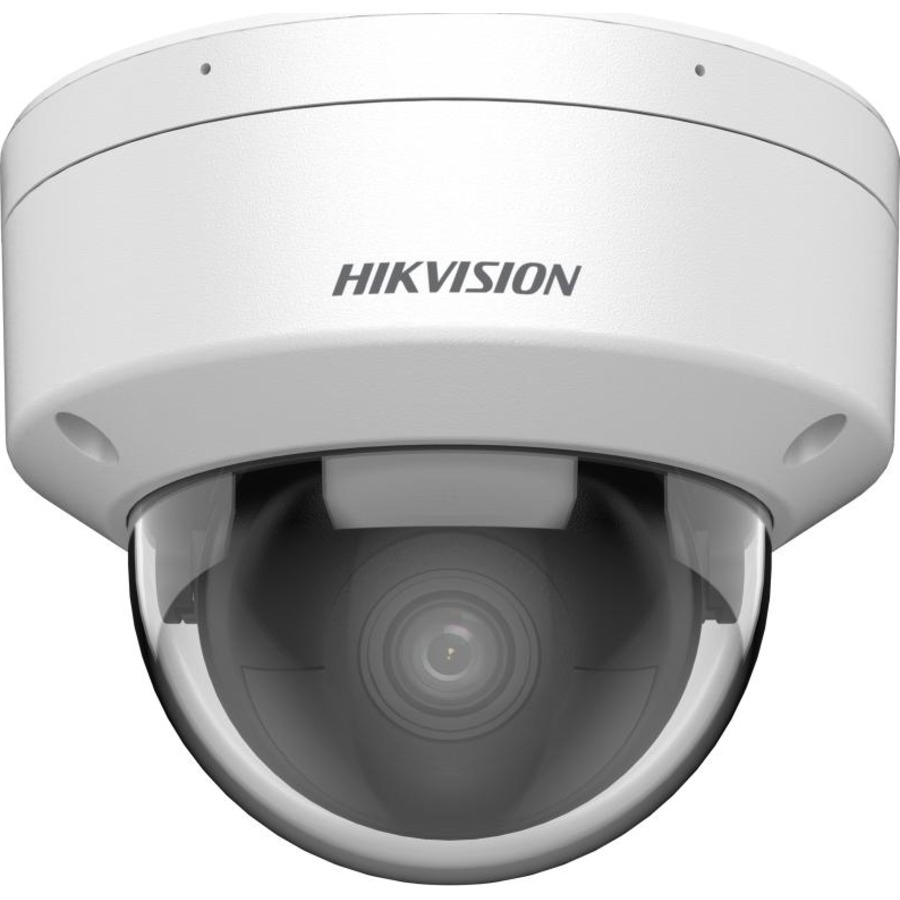

Hikvision DS-2CD2186G2-ISU camera front view — lens, LED ring, microphone

CLARITY · 01

DarkFighter low-light. 0.0008 lux colour, then clean B/W IR.

With a 1/1.8" DarkFighter CMOS behind F1.0 fixed optics, the DS-2CD2186G2-ISU holds 0.0008 lux colour well into the evening and switches to Smart IR for clean black-and-white detail out to 30 metres. 3D DNR and 130 dB True-WDR handle mixed lighting without smearing or noise.

Every frame is captured at 3840 × 2160 at 25 fps with H.265+ compression. The triple stream (main / sub / third) lets you record full 4K on the NVR while the phone app pulls a lighter sub-stream — no cellular overage.

DETECTION · 02

AcuSense G2. Fewer false alarms, faster investigations.

Onboard AcuSense 2.0 classifies every motion event as human, vehicle or “ignore” before it hits your NVR. The result is fewer false alerts, faster playback — no more scrubbing through hours of fence-shake and branch-sway.

Face capture is included, as is scene-change detection. All events stream into Hik-Connect, iVMS-4200 or HikCentral — and any compatible Hikvision AcuSense-2.0 NVR (DS-7xxx / DS-76xx / DS-96xx) over ONVIF Profile S/G/T or ISAPI.

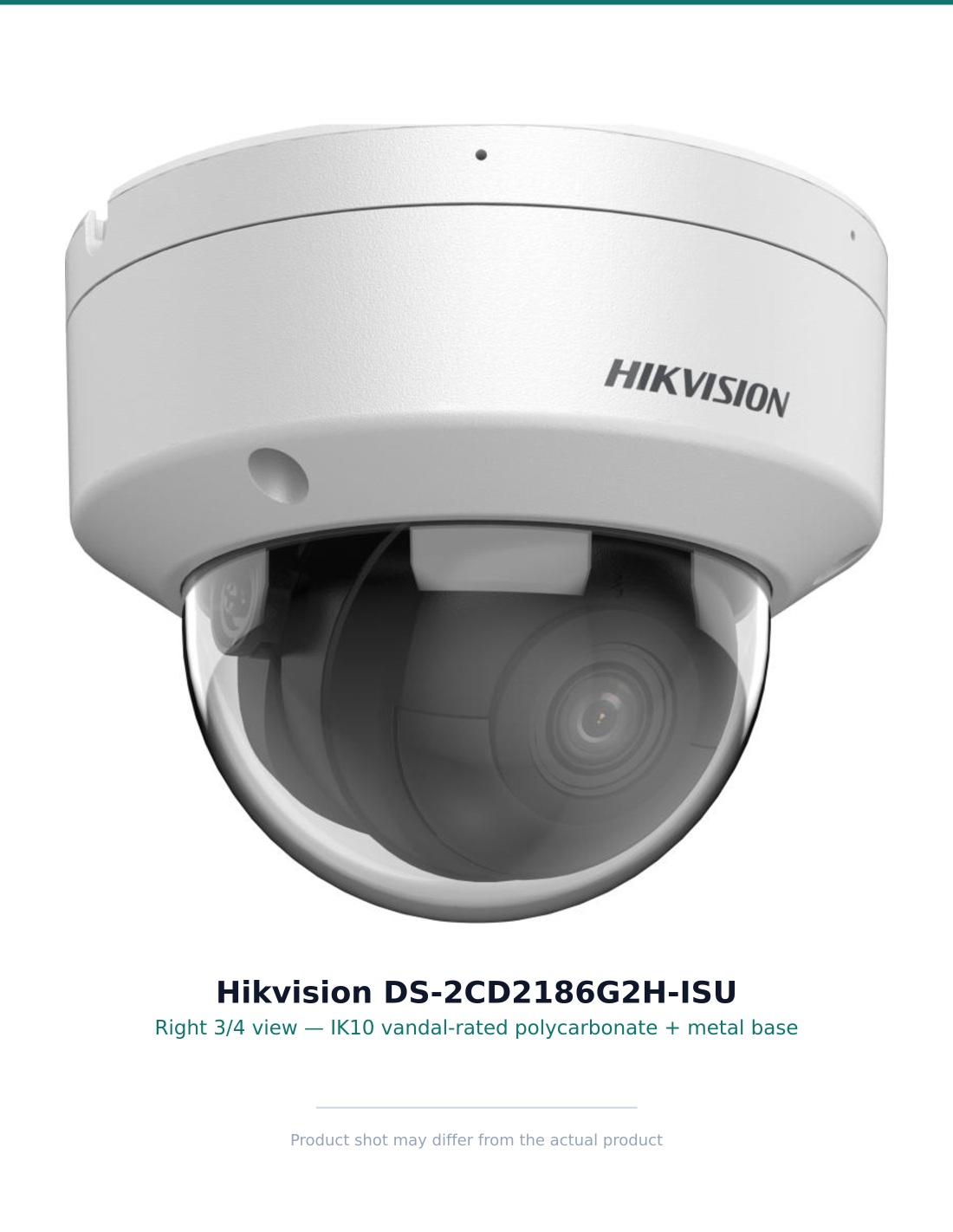

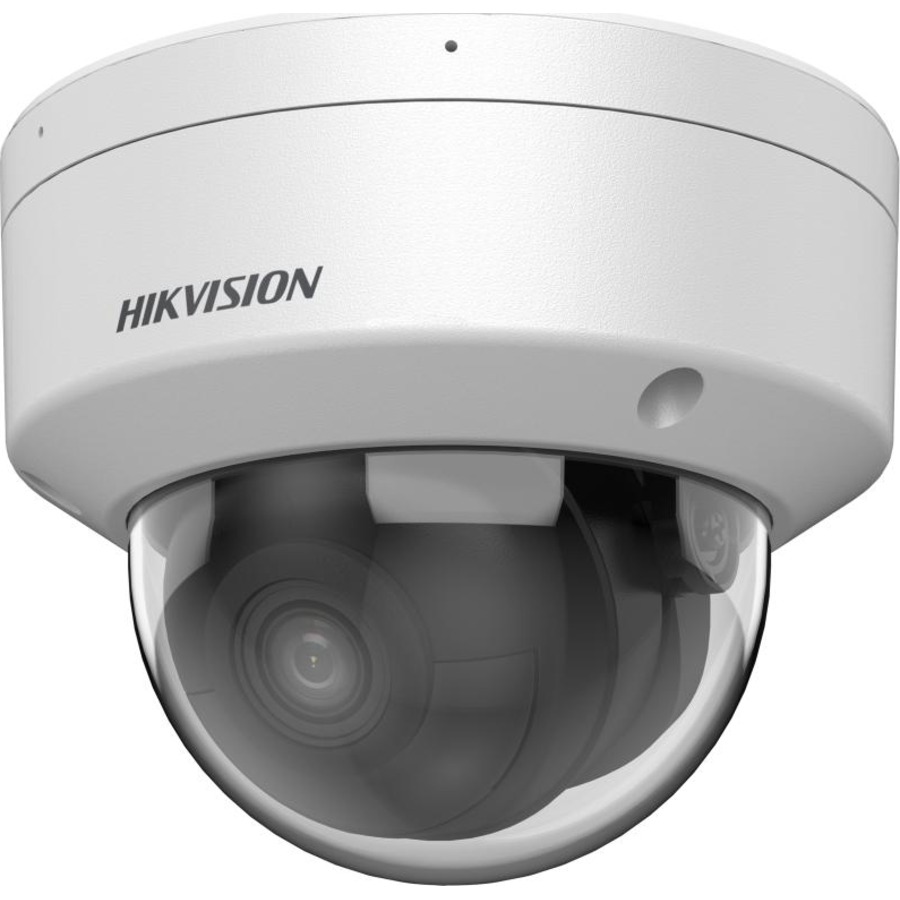

Hikvision DS-2CD2186G2-ISU camera 3/4 side view — metal body and mounting base

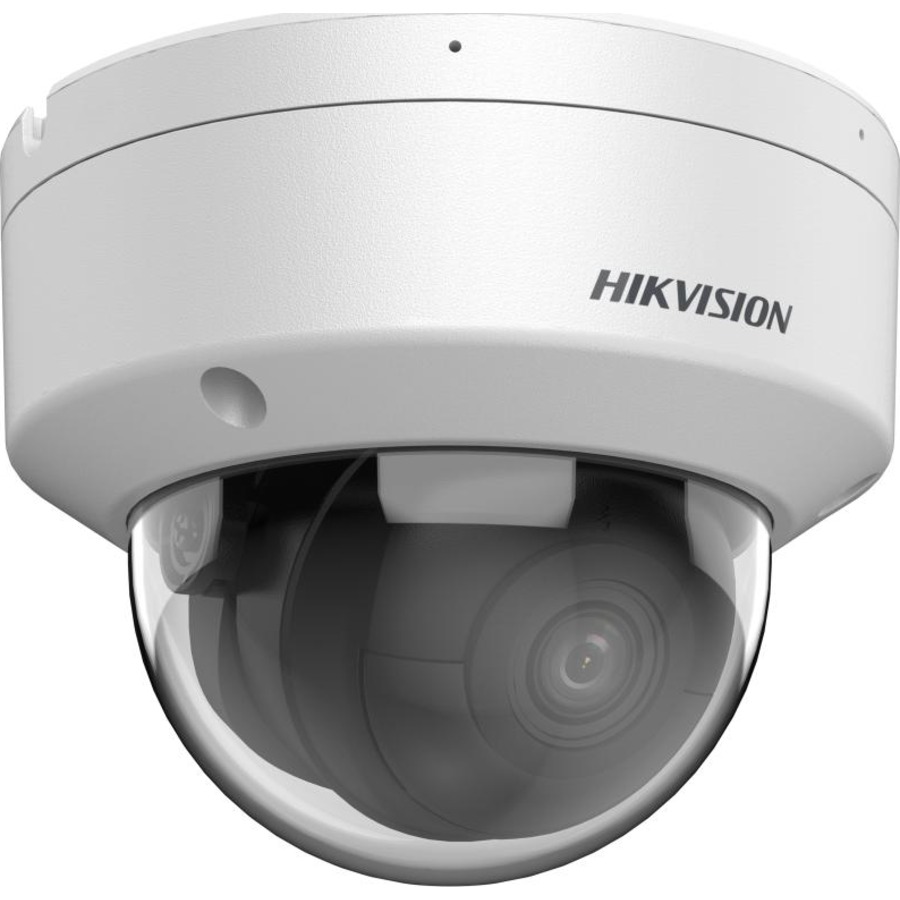

Hikvision DS-2CD2186G2-ISU camera right angle view showing lens housing and LED array

BUILD · 03

IP67 + IK10 metal dome. Resistant to weather and vandals.

Aluminium-alloy base and cover, ingress-protected to IP67 and IK10 (IEC 62262:2002) impact-rated — the only camera in this Gen2 range with the certified vandal rating. Operates across −30 °C to 60 °C. Pan 0–355°, Tilt 0–75°, Rotate 0–355° at the mount.

Single-cable PoE (IEEE 802.3af Class 3) delivers power and data up to a 9.5 W budget — no 240 V work at the camera. A compliant microSD card up to 512 GB gives local edge recording + ANR if the network drops.

How it works

From PoE to 4K recording in four steps.

01

Power over Ethernet

Run a single Cat 6 cable from the camera to any 802.3af PoE switch or NVR port.

02

Discover + activate

iVMS-4200, SADP or the NVR auto-discovers the camera on the LAN; set the admin password and assign an IP.

03

Tune AcuSense

Draw line-crossing, intrusion or region rules, enable human/vehicle filter, set event linkages.

04

Record & view

Record to NVR, NAS or microSD with ANR; view live via Hik-Connect app, iVMS-4200 or any ONVIF client.

At a glance

Key specs — DS-2CD2186G2-ISU

Form factor
Fixed dome (IK10)
Low-light
DarkFighter (B/W with IR)
WDR
130 dB True-WDR
Min illumination
0.0008 lux colour @ F1.0
Vandal rating
IK10 (IEC 62262:2002)
Built-in audio
Microphone + audio line in/out
Alarm I/O
1 in / 1 out, 12 V / 30 mA max
Dimensions
Ø 121.5 × 97.6 mm
Weight
≈ 525 g
Resolution
3840 × 2160 (4K UHD)
Sensor
1/1.8" Progressive Scan CMOS
Lens
2.8 mm fixed, F1.0
Field of view
≈ 108.8° (H) on 2.8 mm
Compression
H.265+ / H.265 / H.264+ / H.264
IR range
Up to 30 m (Smart IR)
Onboard storage
microSD up to 512 GB (ANR)
Network
1 × RJ45 10/100 Mbps
Power
PoE (IEEE 802.3af Class 3) or 12 VDC
Operating temperature
−30 °C to 60 °C
Environmental rating
IP67 (IEC 60529-2013)
ONVIF
Profile S, G, T
Management
Hik-Connect, iVMS-4200, HikCentral
Warranty
3 years Australian warranty

Full specifications are published in the attached datasheet. Hikvision reserves the right to revise specifications without notice.

Physical

Dimensions & mounting

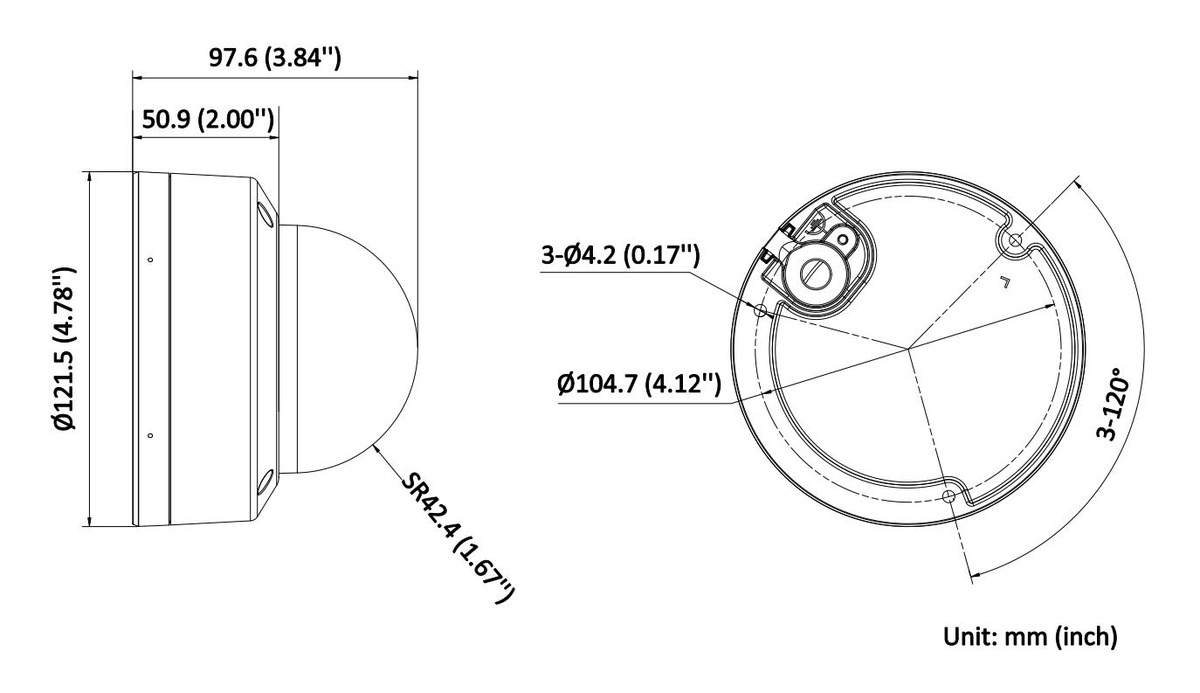

Hikvision DS-2CD2186G2-ISU dimension drawing — front / side / base view with measurements in mm

Pair it with

Compatible hardware & services

RECORD

Hikvision M-Series PoE NVR

8-channel DS-7608NI-M2/8P with 4 TB HDD and integrated PoE — the simplest supported recorder for 4K AcuSense.

NETWORK

Cat 6 Ethernet run

Use shielded Cat 6 between the camera and the NVR / PoE switch for reliable power delivery and 4K bandwidth headroom.

EDGE STORAGE

WD 128 GB Surveillance microSD

Endurance-graded card for 24/7 continuous write plus ANR buffering if the network drops.

MOBILE VIEW

Hik-Connect cloud

Free Hikvision mobile app — live view, AI event push, two-way audio and remote playback over the internet.

Answers

Frequently asked questions

Will this camera work with my existing non-Hikvision NVR?

Yes, via ONVIF Profile S/G/T and ISAPI. Most current-generation Dahua, Uniview, Milestone and Synology Surveillance Station deployments accept 4K H.265+ from this camera. For AcuSense event push on a non-Hikvision platform, verify your NVR supports Hikvision ISAPI event posting first.

How do I power it — PoE or 12 V DC?

Either. A standard 802.3af PoE switch or NVR PoE port supplies power and data on one cable. Alternatively a 12 VDC adapter in a GPO powers the camera and you run Ethernet separately. PoE is the professional default.

Does it need a subscription to work?

No. The Hik-Connect app and cloud service is free. AcuSense runs locally on the camera — it does not require a cloud AI subscription. Optional paid cloud storage is available but not required.

What microSD card should I use?

An endurance-graded surveillance microSD (WD Purple or Hikvision HS-TF-L2I) up to 512 GB. Consumer microSD cards will wear out within months of 24/7 surveillance write.

Is it compatible with Google Home or Amazon Alexa?

Hik-Connect on iOS and Android is the primary interface. Amazon Alexa voice control and Google Home view-casting are supported via Hik-Connect. Direct IFTTT or smart-home bridge scenes are not officially supported.

Can I run this over Wi-Fi?

No — this is a wired-Ethernet camera. For Wi-Fi, choose a Hikvision ezviz or DS-2CV camera variant. Wired is the professional choice for 4K AcuSense: 802.3af PoE over Cat 6 delivers reliable power and enough bandwidth for triple-stream 4K.

Hikvision calls this a “Fixed Dome” — is it actually a dome or a turret?

Hikvision's product page lists it as a Fixed Dome. Physically it's a compact eyeball body (≈ Ø121.5 mm × 97.6 mm) that most Australian installers call a turret or eyeball dome. Either term is valid; they describe the same physical SKU.

What does the IK10 rating mean in practical terms?

IK10 (IEC 62262:2002) certifies the camera body to survive a 5 kg mass dropped from 400 mm — roughly the energy of a hard kick or an impact from a thrown brick. The aluminium-alloy base and cover take the hit while the electronics stay sealed.

Ready to upgrade to 4K AcuSense?

Genuine Hikvision, shipped Australia-wide by Infront Technologies. Local support from a team that designs, installs and maintains professional CCTV and security systems every day — call 1300 736 970 or email [email protected].

Installation & safety notice

Low-voltage product (SELV). The DS-2CD2186G2-ISU is a 12 VDC / IEEE 802.3af PoE IP camera. There is no mains wiring inside the device. A standard plug-in 12 V DC adapter in an existing GPO is fine to use as-is, or the camera can be powered directly off a PoE switch or PoE NVR port — no electrician is required to power the unit.

When a licensed tradesperson is required. Concealed structured data cabling between the camera, the PoE switch/NVR and any remote rack or ceiling run is customer cabling under AS/CA S009 and must be performed by an ACMA-registered cabler. New GPOs, rack mains or any modification to the premises wiring is the job of a licensed electrician under AS/NZS 3000 Wiring Rules.

Specifications & imagery in good faith. Specifications, firmware features and published imagery can change without notice at Hikvision’s discretion. Verify the current datasheet (attached) for your firmware revision before ordering. Product appearance and packaging may differ from marketing images.

By placing an order you confirm the product is fit for your intended use and that any concealed cabling or third-party integration will be performed by an appropriately licensed tradesperson. Infront Technologies does not accept liability for incorrect site preparation or misuse outside the manufacturer’s specifications.

Brand
Hikvision
Model
DS-2CD2186G2-ISU(2.8mm)(C)
Form
Fixed dome IK10
Family note
Content aligned to 2186G2H editorial — verify 2186G2 sheet
