Key specifications

Form factor

Outdoor bullet, strobe+LED & 2-way audio, AcuSense

Model

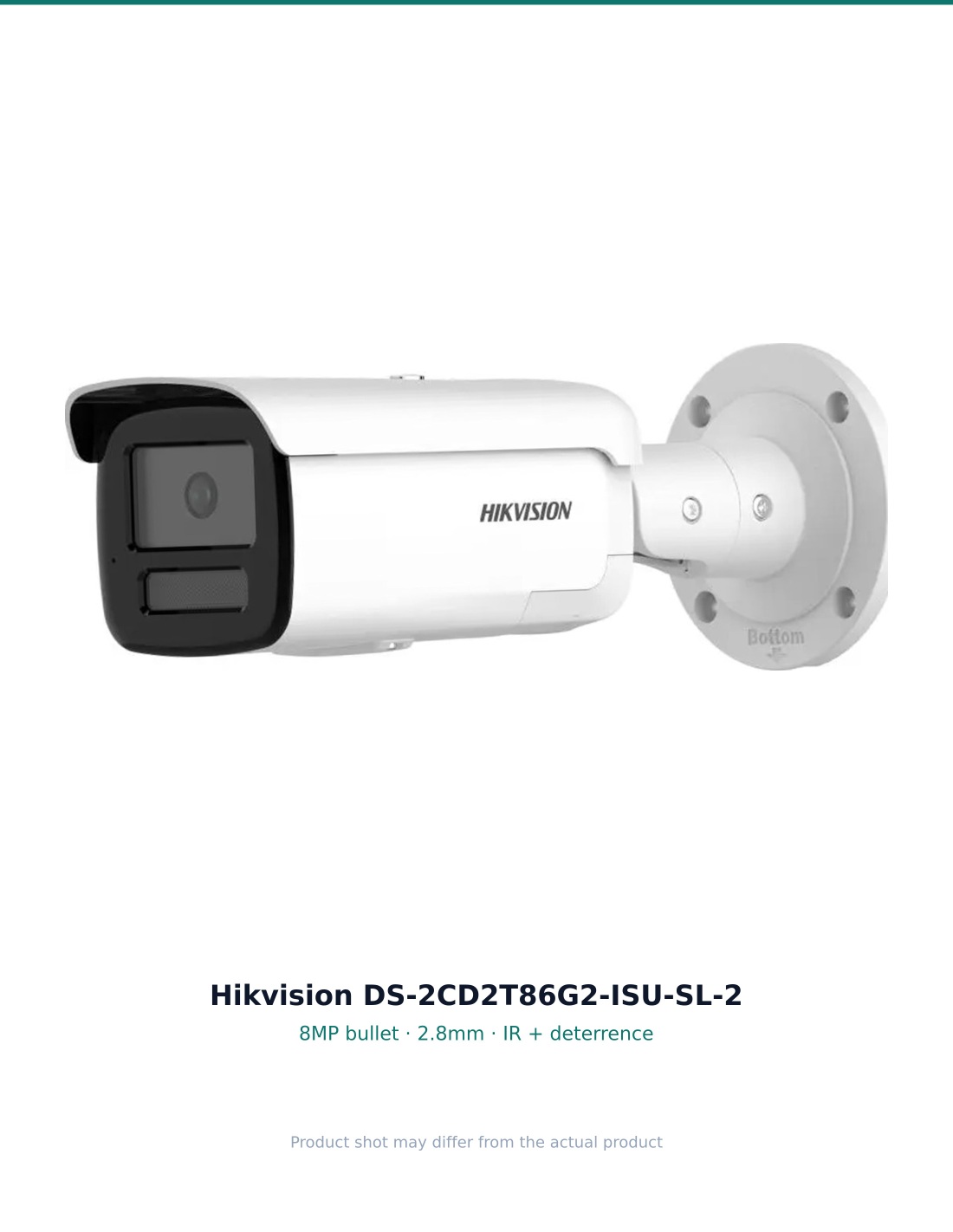

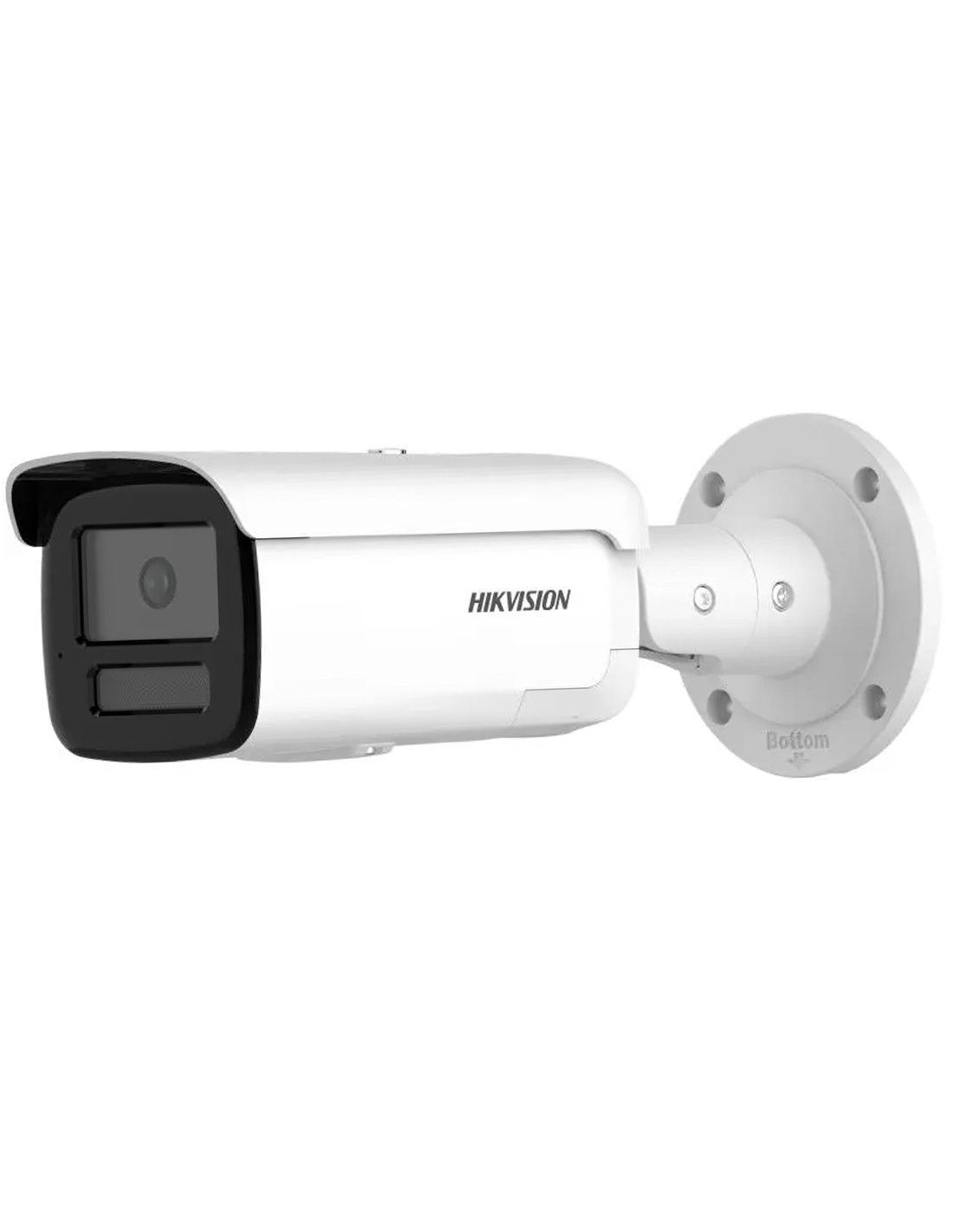

DS-2CD2T86G2-ISU/SL-2, 2.8 mm, per Hikvision listing

Deterrence

Visible/white + audible path — schedule & signage per state law

IR

60 m class line (verify datasheet)

Body

IP67, per product family

Power

802.3at may be required when lights+strobe+IR peak — size switch port to datasheet, verify

Values from Hikvision marketing and datasheets; verify the stamped PDF and label before you promise exact limits for legal or RFP work.

Low-voltage (SELV). This IP camera is powered from 12 VDC and/or 802.3af PoE. Concealed data cabling must be completed by an ACMA-registered cabler under the Wiring Rules. Infront Technologies supplies genuine Hikvision and Australian warranty admin.

How to commission this SKU

Run a fresh Cat6 home-run or homerun-to-switch design with 802.3af/802.3at headroom. Adopt the camera in SADP or from your PoE NVR, set a long admin passphrase, disable default accounts, and enable HTTPS + time sync. For AcuSense, start with a human+vehicle filter on your highest-traffic line-cross, then add intrusion/region after a week of tuning so you do not flood the app with false positives. Record on the NVR; use microSD only for edge/ANR with an endurance card.

FAQ — will it work on my NVR? If the NVR is ONVIF and supports H.265, usually yes for video. Deep Hikvision events (full AcuSense filter payload) are happiest on a Hikvision AcuSense channel plan or on iVMS-4200 test bench before you deploy site-wide. Third-party VMS may see standard motion before AI metadata — plan accordingly.

Regulatory & good faith. Specifications move with firmware. Our page is built from the current public EasyIP/Pro story plus your exact order code on the label. Do not use marketing renders as expert evidence. For audio-capable or deterrence models, follow consent, signage, workplace, strata and state surveillance laws before you enable the mic, speaker, strobe, or white light.
