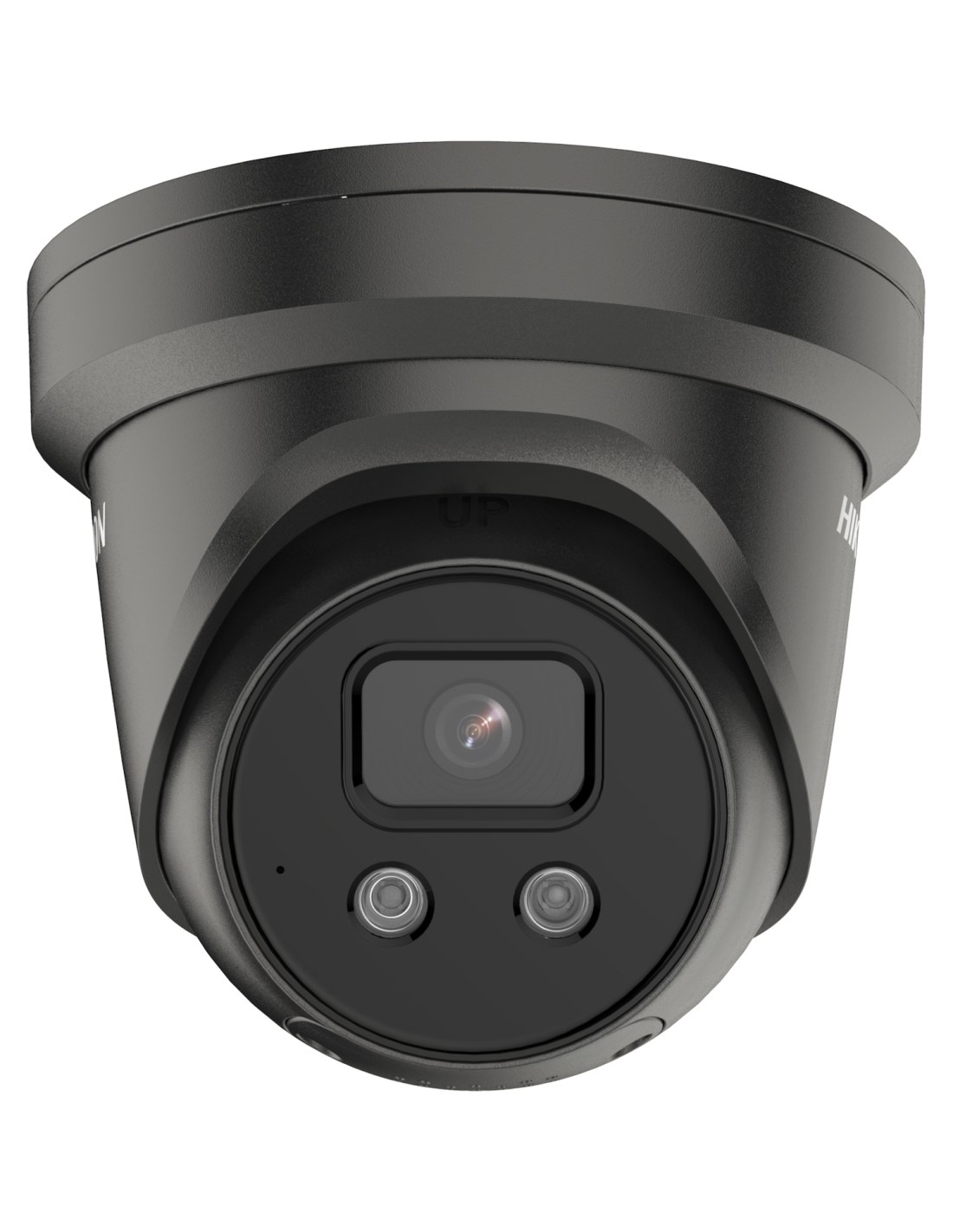

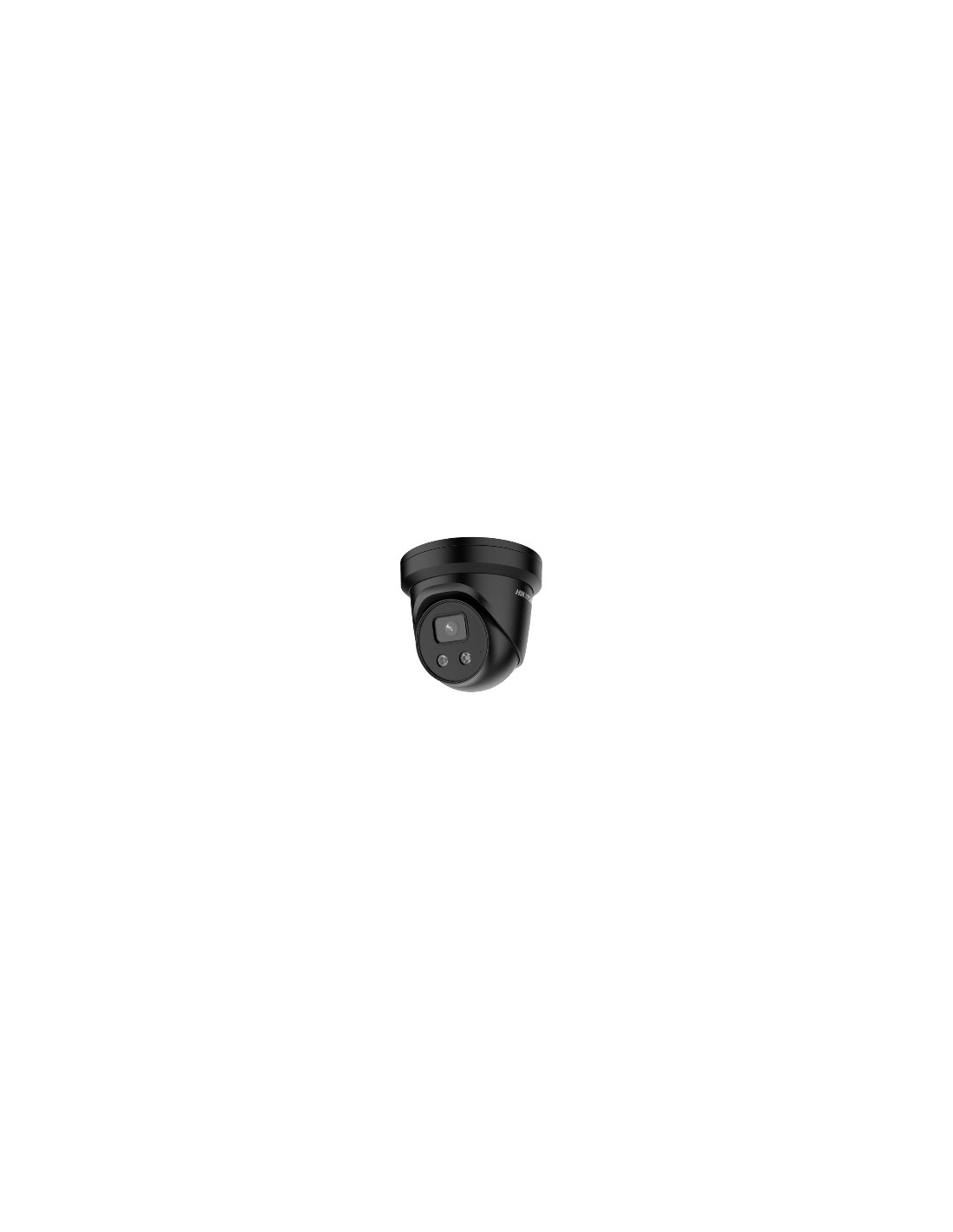

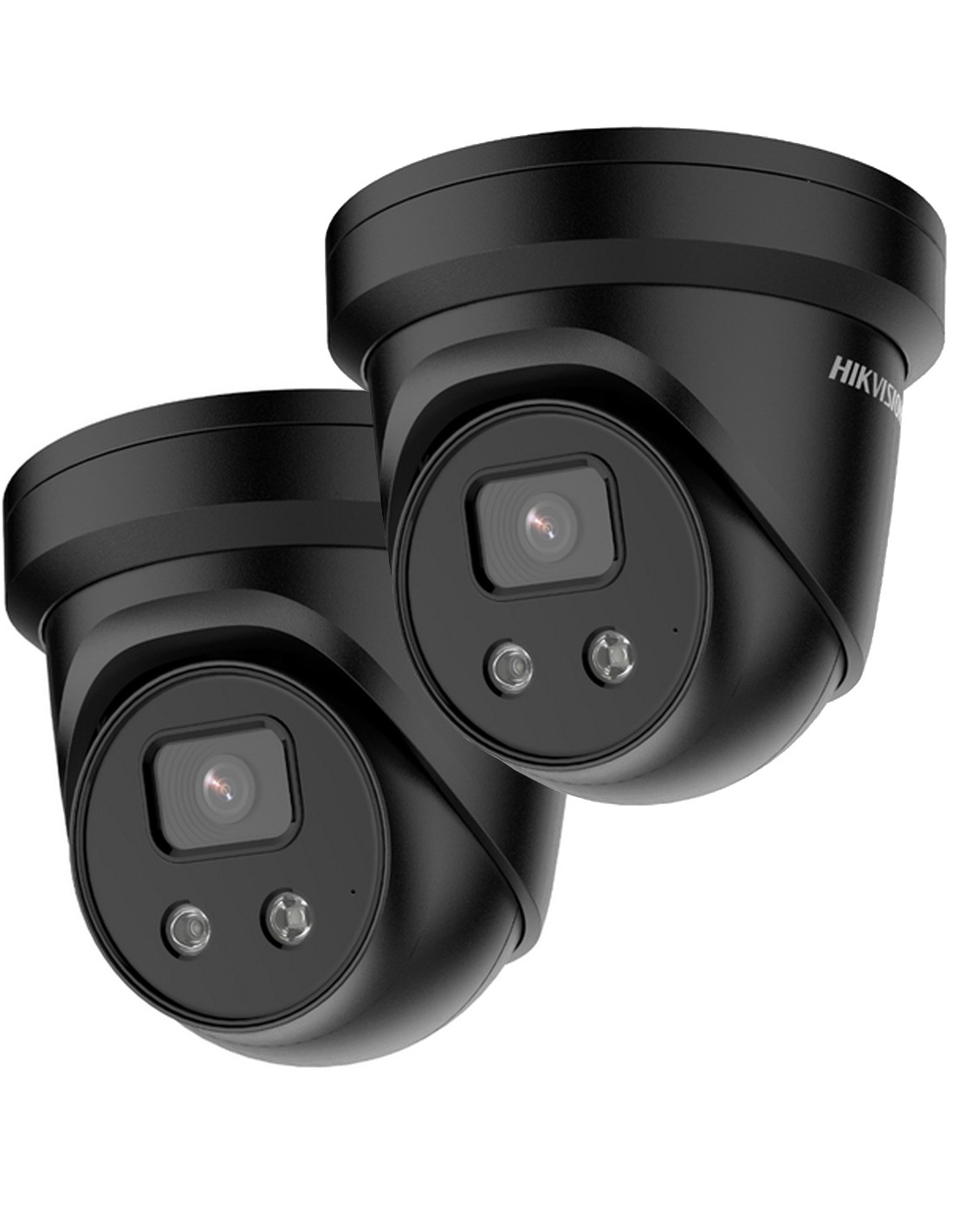

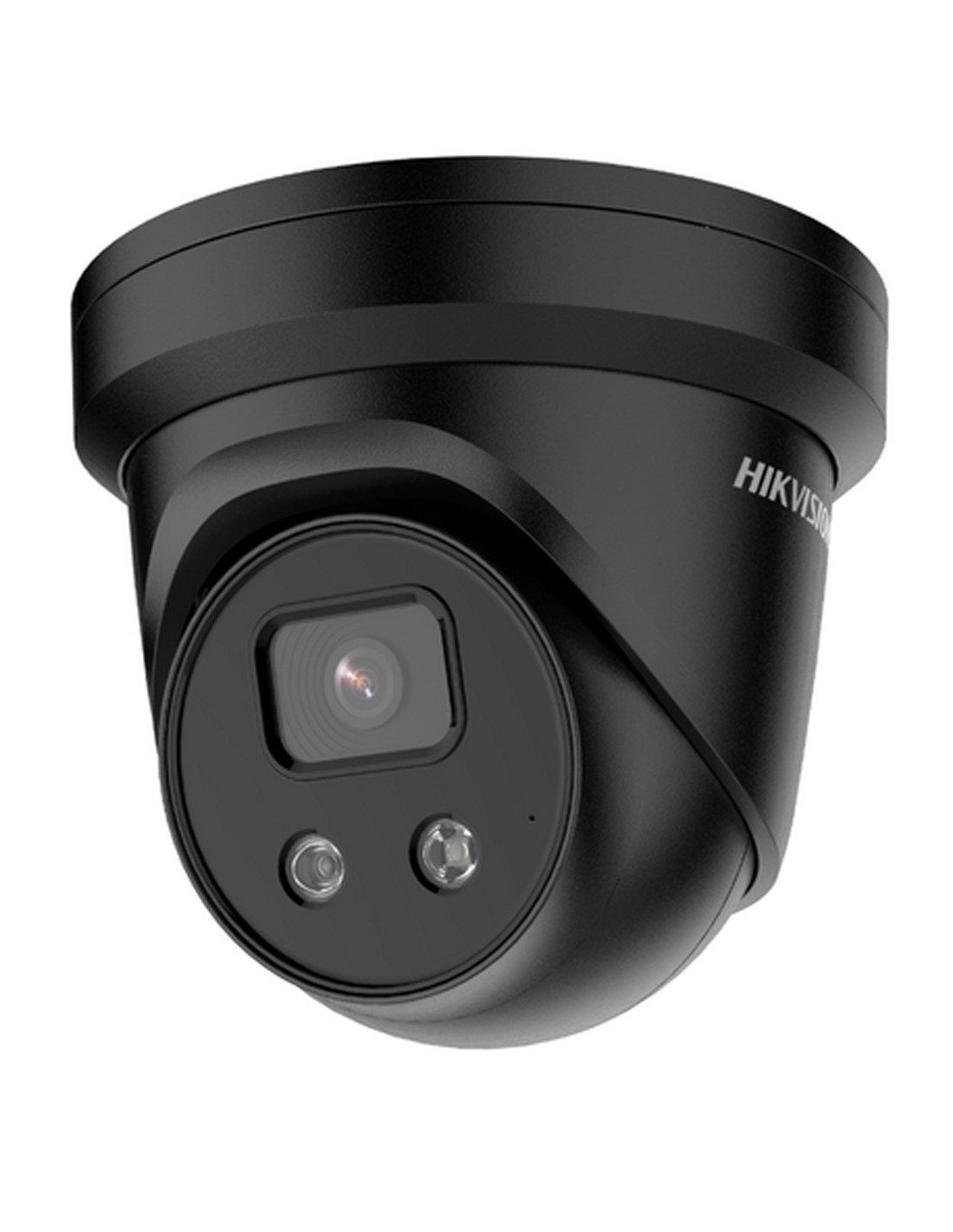

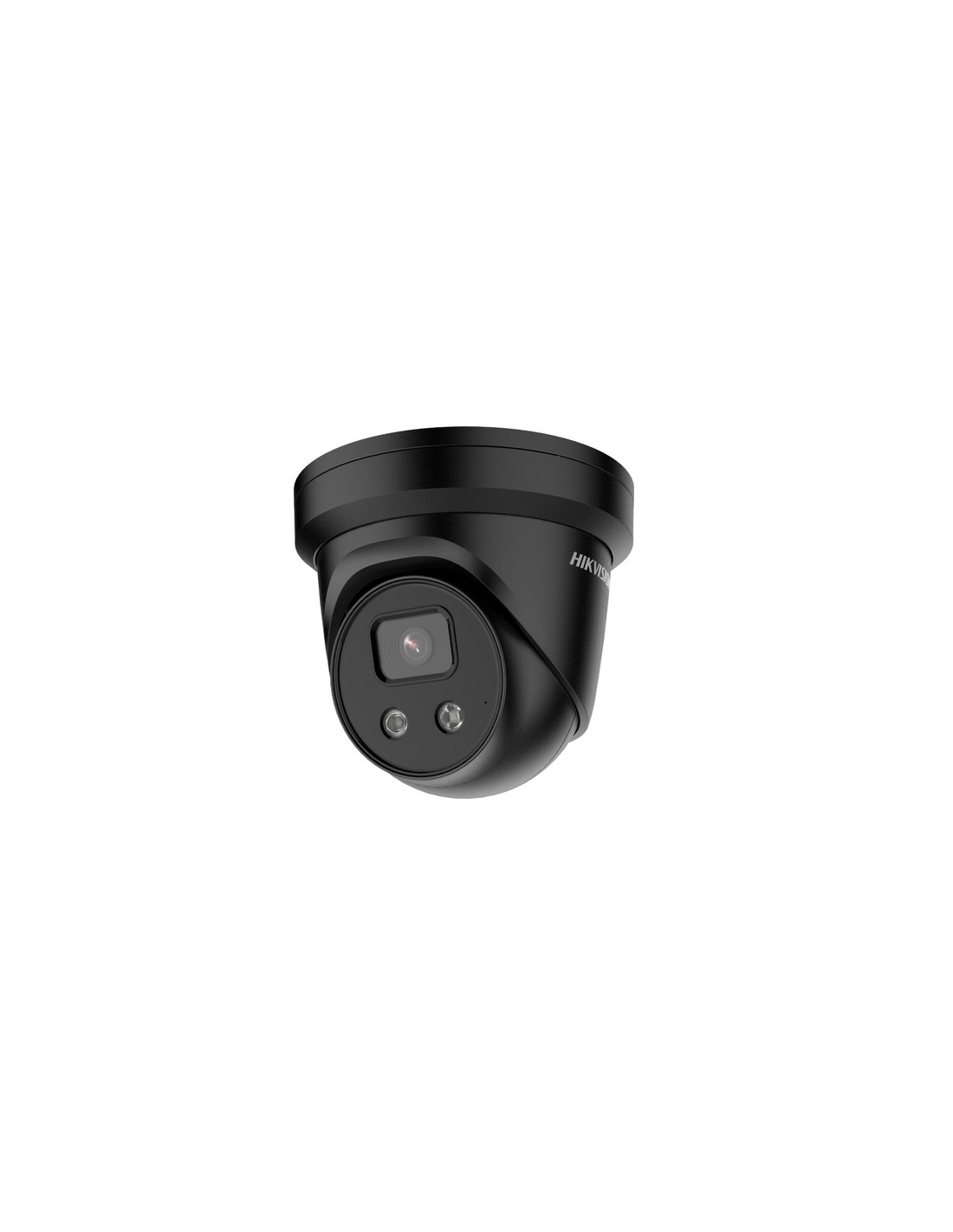

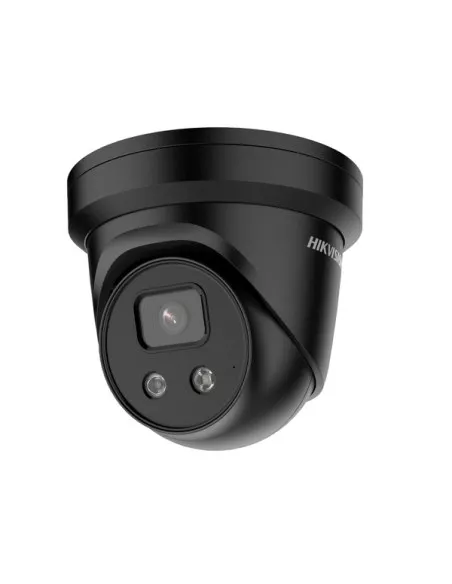

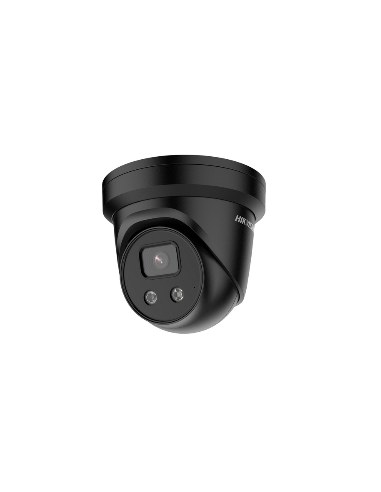

Hikvision 2-PACK Acusense 8MP 4K PoE Dome Camera 2.8mm - BLACK Edition DS-2CD2386G2-ISU/SL-2PK

Hikvision Acusense IP Camera 8MP 4K With Audible Warning & Strobe Turret Network Camera 2 Dome Camera Pack

DS-2CD2386G2-ISU/SL-2PK ( BLACK EDITION )

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.

Product Features:

• High-quality imaging with 8 MP resolution

• Excellent low-light performance with powered-by-DarkFighter technology

• Clear imaging against strong backlight due to 120 dB true WDR technology

• Efficient H.265+ compression technology

• Focus on human and vehicle targets classification based on deep learning

• Active strobe light and audio alarm to warn intruders off

• Provide real-time security via built-in two-way audio

• Water and dust resistant (IP67)

Specifications:

Camera

• Image Sensor - 1/1.8" Progressive Scan CMOS
• Min. Illumination - Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed - 1/3 s to 1/100,000 s
• Slow Shutter - Yes
• P/N - P/N
• Wide Dynamic Range - 120 dB
• Day & Night - IR cut filter
• Angle Adjustment - Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°Lens

Lens

• TypeFixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV
• - 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
• - 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
• - 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°
• Lens Mount - M12
• Iris Type - Fixed
• Aperture - F1.6

Illuminator

• Supplement Light Type - IR
• Smart Supplement Light - Yes
• IR Wavelength - 850 nm
• IR Range - Up to 30 m

Video

• Max. Resolution - 3840 × 2160

Main Stream

• - 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• - 60 Hz: 24 fps (3840 × 2160)
• - 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

• - 50 Hz: 25 fps (640 × 480, 640 × 360)
• - 60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

• - 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• - 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Video Compression

• Mainstream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264

*Third stream is supported under certain settings.

• Video Bit Rate - 32 Kbps to 16 Mbps
• H.264 Type - Baseline Profile/Main Profile/High Profile
• H.265 Type - Main Profile
• H.264+ - Mainstream supports
• H.265+ - Mainstream supports
• Bit Rate Control - CBR/VBR
• Scalable Video Coding (SVC) - H.264 and H.265 encoding
• Region Of Interest (ROI) - 1 fixed region for mainstream and sub-stream

Audio

• Audio Type - Mono sound
• Environment Noise Filtering - Yes
• Audio Sampling Rate - 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression - G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate - 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

• Simultaneous Live View - Up to 6 channels
• API - Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• User/Host - Up to 32 users. 3 user levels: administrator, operator and user
• Security - Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

• - MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• - Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client - iVMS-4200, Hik-Connect, Hik-Central

Web Browser

• - Plug-in required live view: IE 10+
• - Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• - Local service: Chrome 57.0+, Firefox 52.0+


• SNR - ≥ 52 dB
• Target Cropping - Yes
• Day/Night Switch - Day, Night, Auto, Schedule
• Image Enhancement - BLC, HLC, 3D DNR
• Image Parameters Switch - Yes
• Image Settings - Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• Alarm - 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)

Audio

• - 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
• - 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium;
• - 1 built-in speaker, 1 built-in microphone

Built-In Microphone - Yes

Built-In Speaker - Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.

On-Board Storage - Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Hardware Reset - Yes

Ethernet Interface - 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event - Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event - Scene change detection

Deep Learning Function

• Face Capture - Yes

Perimeter Protection

• - Line crossing detection, intrusion detection, region entrance detection, region exiting detection
• - Supports human and vehicle targets classification

General

• Linkage Method - Upload to FTP/NAS/memory card, notify surveillance center, send an email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
• Web Client Language - 33 languages
• English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function - Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Software Reset - Yes
• Firmware Version - V5.5.112
• Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power Supply

• - 12 VDC ± 25%, reverse polarity protection
• - PoE: 802.3af, Class 3

Power Consumption And Current

• - 12 VDC, 0.75 A, max. 9 W
• - PoE (802.3af, 36 V to 57 V), 0.28 A to 0.17 A, max. 10 W
• Power Interface - Ø5.5 mm coaxial power plug
• Camera Material - Metal except for trim ring
• Camera Dimension - Ø138.3 mm× 124.5 mm (Ø5.4" × 4.9")
• Package Dimension - 170 mm × 170 mm × 150 mm (6.9" × 6.9" × 5.9")
• Camera Weight - Approx. 840 g (1.9 lb.)
• With Package Weight - Approx. 1160 g (2.6 lb.)

Approval

• EMC - FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety - UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )
• Environment - CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection - IP67 (IEC 60529-2013)
