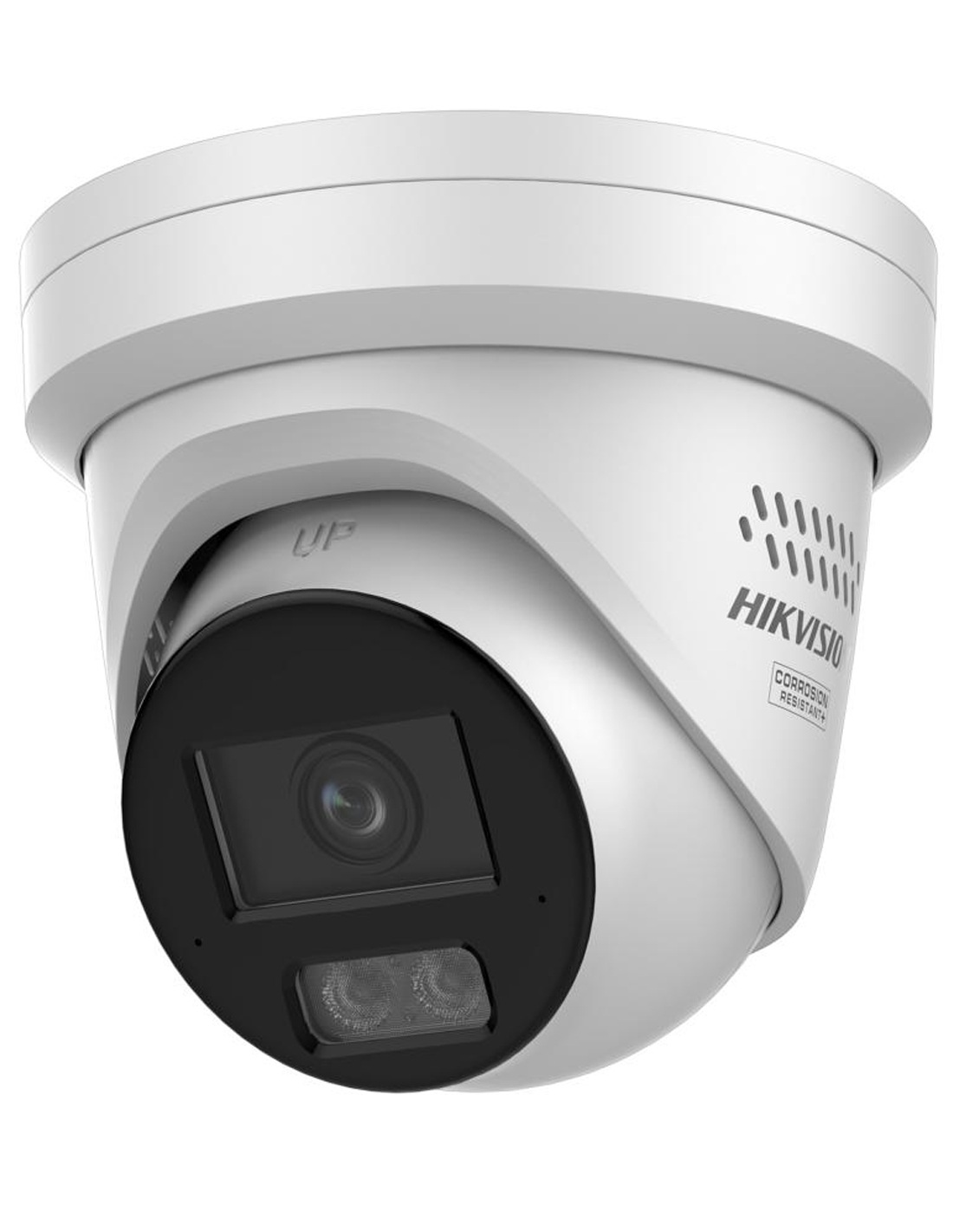

Model: DS-2CD2387G3-LIS2UY/SL
| Category | Specification |
|---|---|
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | 0.0005 Lux @ F1.0 AGC ON; 0 Lux with light |
| Shutter Time | 1 s to 1/100 000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0–360°; Tilt: 0–75°; Rotate: 0–360° |
| Lens | |
| Lens Type | Fixed focal lens; 2.8 mm & 4 mm optional |
| Focal & FOV | 2.8 mm: H 108.8°, V 56.4°, D 134.3° 4 mm: H 93.3°, V 47.2°, D 114.2° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 3.3 m–∞; 4 mm: 3.8 m–∞ |
| DORI | |
| 2.8 mm | Detect 89 m; Observe 35 m; Recognize 17 m; Identify 8 m |
| 4 mm | Detect 109 m; Observe 43 m; Recognize 21 m; Identify 10 m |
| Illuminator | |
| Supplement Light | White Light & IR, up to 30 m; IR wavelength 850 nm; Smart |
| Video | |
| Main Stream | 50 Hz: 25 fps @ 3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720 60 Hz: 30 fps @ same resolutions |
| Sub-Stream | 50 Hz: 25 fps @ 1280×720, 640×480, 640×360 60 Hz: 30 fps @ same |
| Third Stream* | 50/60 Hz: 10 fps @ 1920×1080, 1280×720, 640×480, 640×360 |
| Compression | Main: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264 |
| Bit Rate | 32 Kbps–16 Mbps; CBR/VBR; SVC supported |
| Profiles | H.264: Baseline/Main/High; H.265: Main |
| ROI | 1 fixed region for main stream |
| Audio | |
| Type | Mono |
| Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Bit Rate | 8–320 Kbps depending on codec |
| Sampling Rate | 8/16/32/48 kHz |
| Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP |
| Live View | Up to 6 channels |
| API | ONVIF S/G/T, ISAPI, SDK, ISUP |
| Users | Up to 32 (Admin, Operator, User) |
| Security | Password, HTTPS, 802.1X, watermark, IP filter, digest, WSSE, TLS 1.1/1.2/1.3, MAC auth, audit log |
| Storage | NAS (NFS/SMB), ANR, microSD up to 512 GB |
| Image | |
| Param Switch | Yes |
| Settings | Rotate, saturation, brightness, contrast, sharpness, gain, white balance |
| Day/Night | Day, Night, Auto, Schedule |
| Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| SNR | ≥ 52 dB |
| WDR | 130 dB |
| EIS | Yes |
| Privacy Mask | 4 programmable polygon masks |
| Interface | |
| Ethernet | 1× RJ45 10/100 Mbps |
| Storage | microSD up to 512 GB |
| Speaker | 2 W max; 110 dB @ 10 cm |
| Microphone | Array dual-mic |
| Audio I/O | 1× line in; 1× line out terminal block |
| Alarm I/O | 1 input; 1 output (24 VDC/AC, 1 A) |
| Reset Key | Yes |
| Event | |
| Basic | Motion (human/vehicle), video tamper, exception |
| Smart | Scene change detection |
| Linkage | FTP/NAS/SD upload, notify, email, alarm, record, capture, audible/strobe warning |
| Deep Learning Function | |
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance/exiting (human & vehicle) |
| General | |
| Power | 12 VDC ±25%, 1.29 A (max 15.5 W); PoE 802.3at Class 4 (max 17 W) |
| Material | Metal body & cover |
| Dimensions | Ø138.3 × 115.4 mm |
| Package | 170 × 170 × 160 mm |
| Weight | 820 g; 1200 g with package |
| Storage Conditions | -30 °C to 60 °C; ≤95% RH |
| Operating Conditions | Same as storage |
| Functions | Heartbeat, mirror, flash log, email reset, pixel counter, anti-banding |
| Language | |
| Supported | 33 languages (incl. English, Chinese, Spanish, etc.) |
| Flashing Light | |
| Model Dependent | /SRB: Red & Blue; /SL: White |
| Approval | |
| EMC | CE-EMC, RCM, ICES-003, KN32/35 |
| Safety | UL 62368-1, CB 62368-1, CE-LVD 62368-1 |
| Environment | CE-RoHS, WEEE, REACH |
| Protection | IP67, NEMA 4X |
