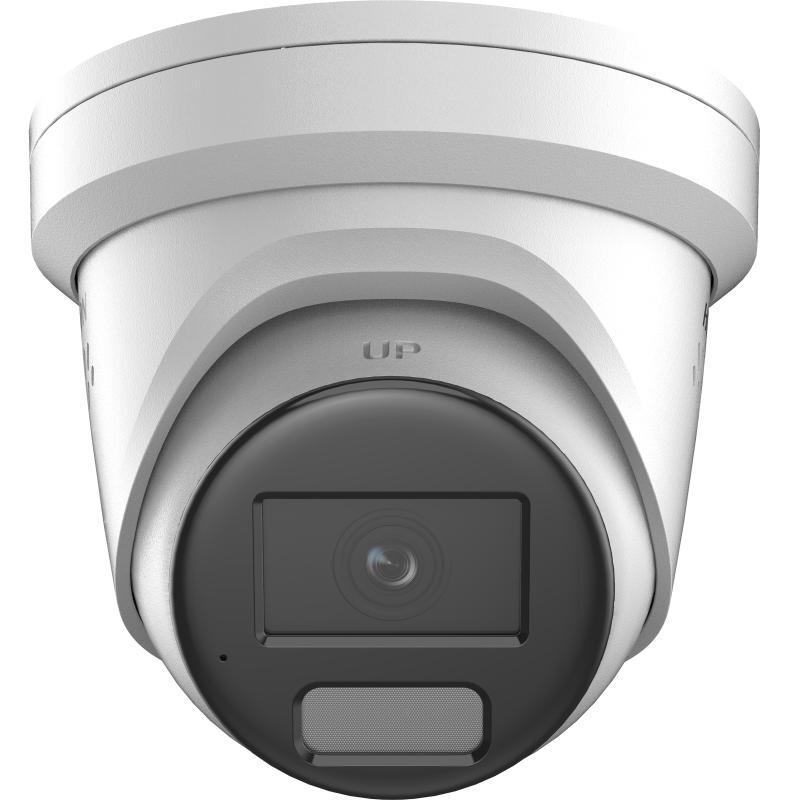

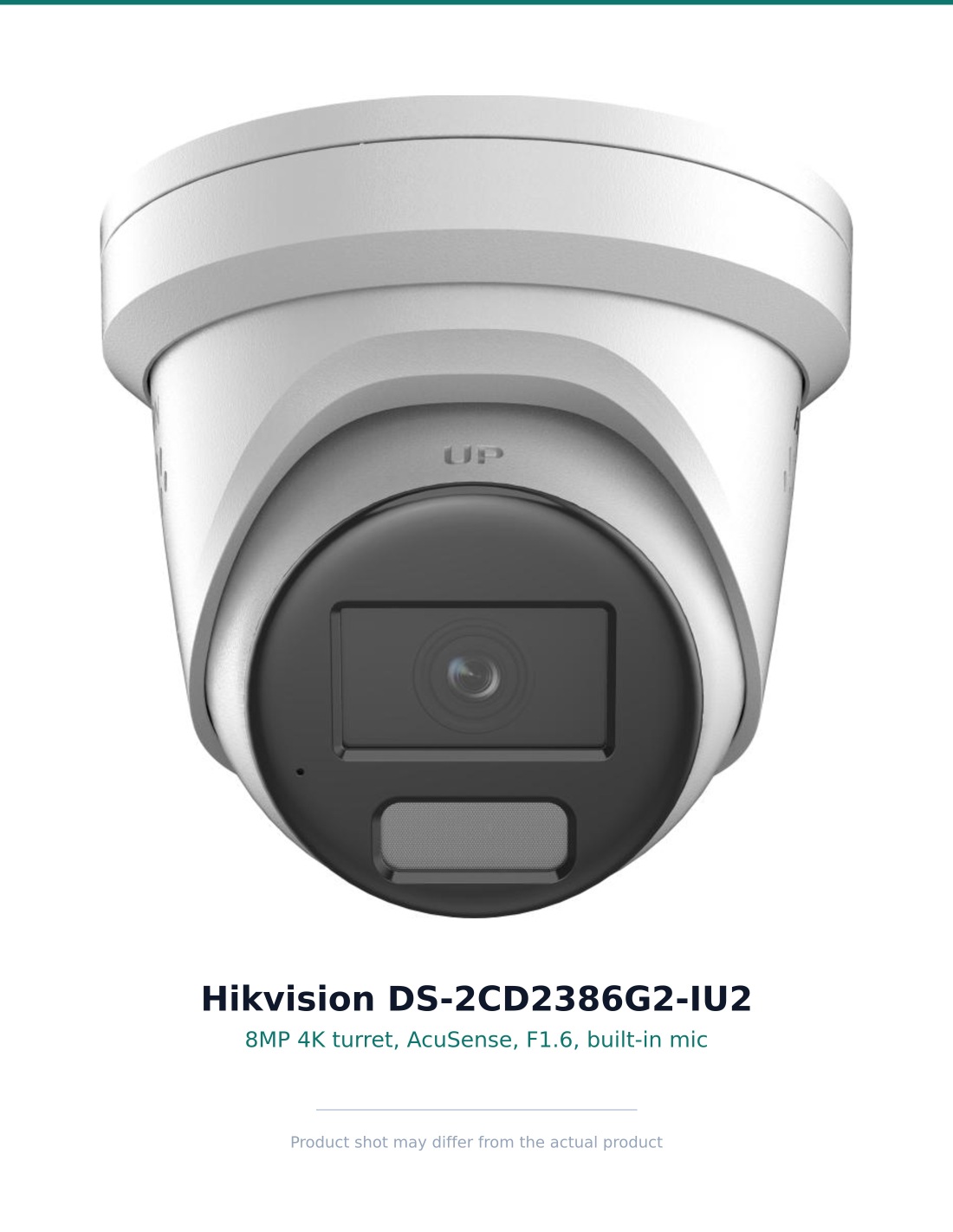

Hikvision DS-2CD2386G2-IU2 — 4K AcuSense front, F1.6, 2.8mm turret with mic

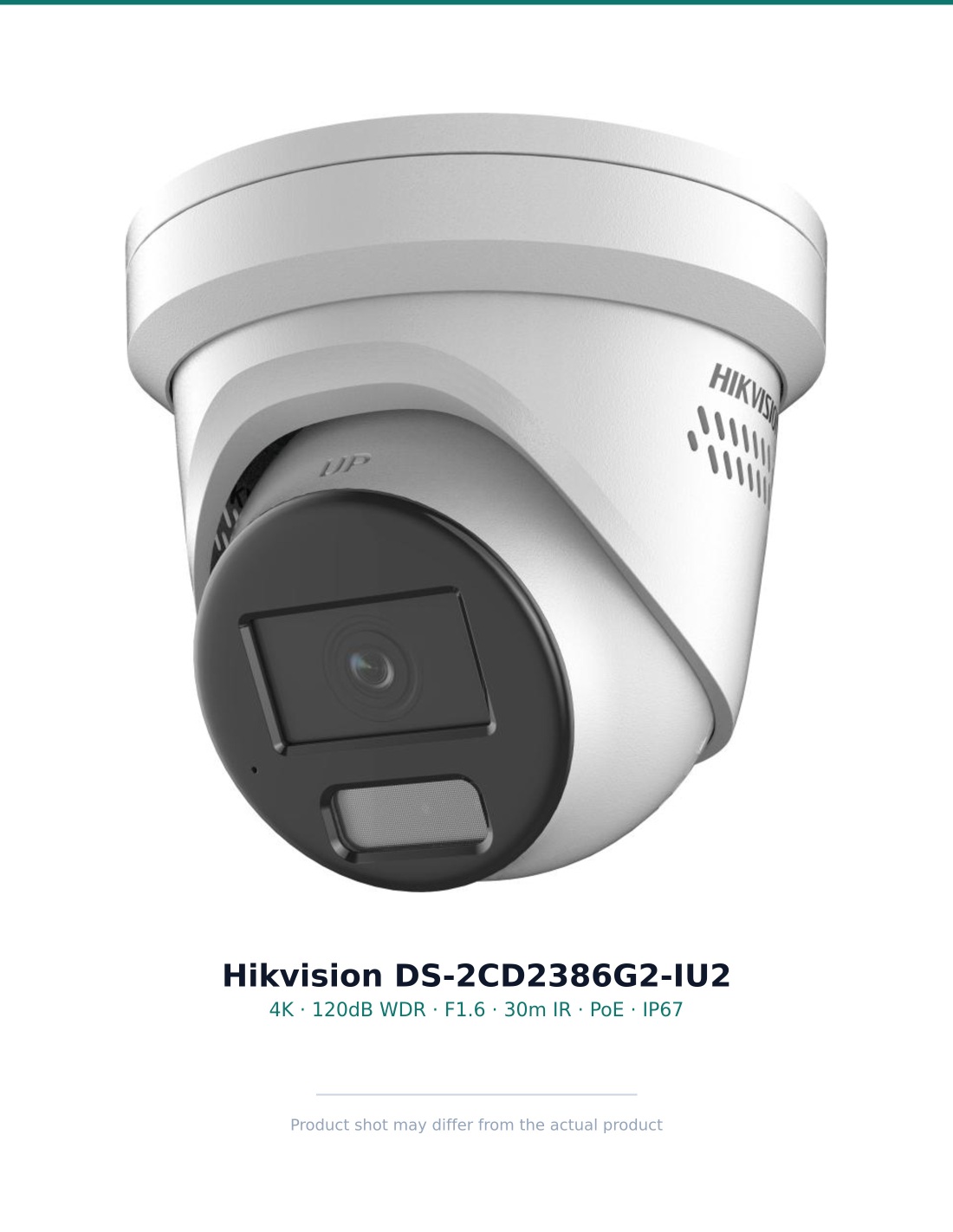

Hikvision DS-2CD2386G2-IU2 — 4K spec line card, IP67

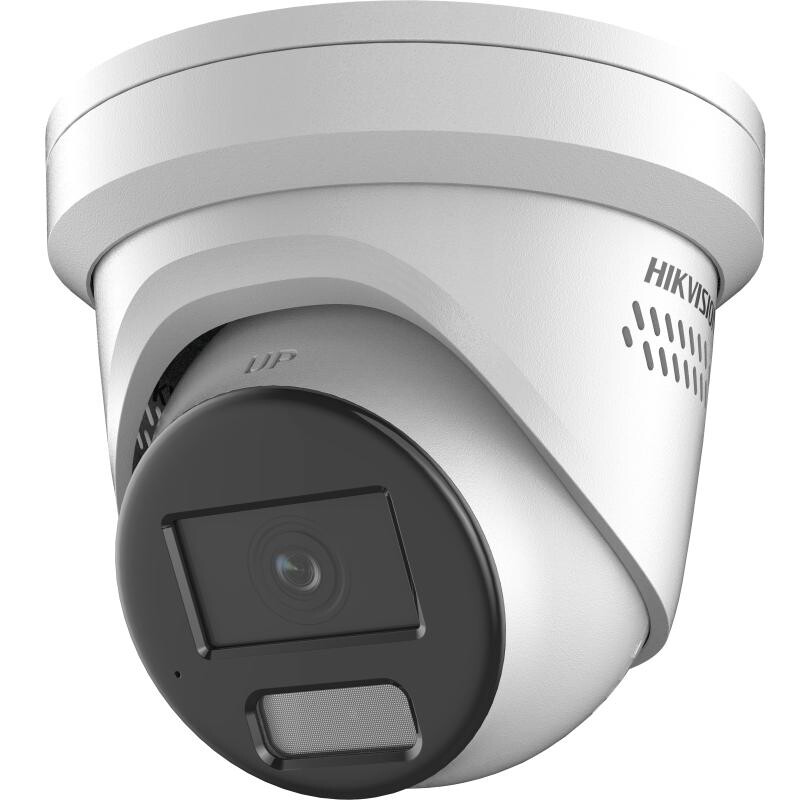

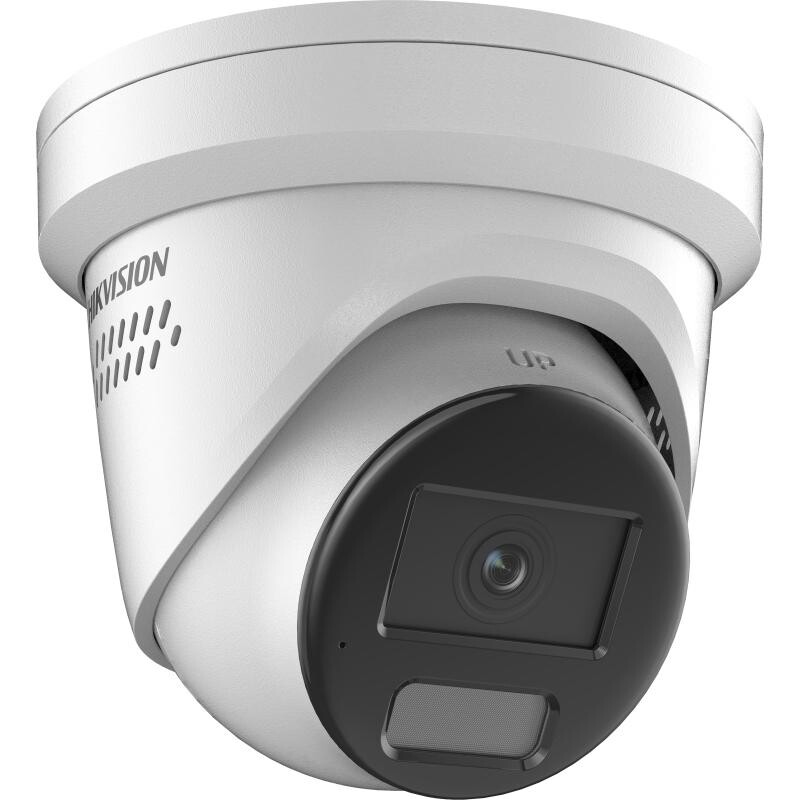

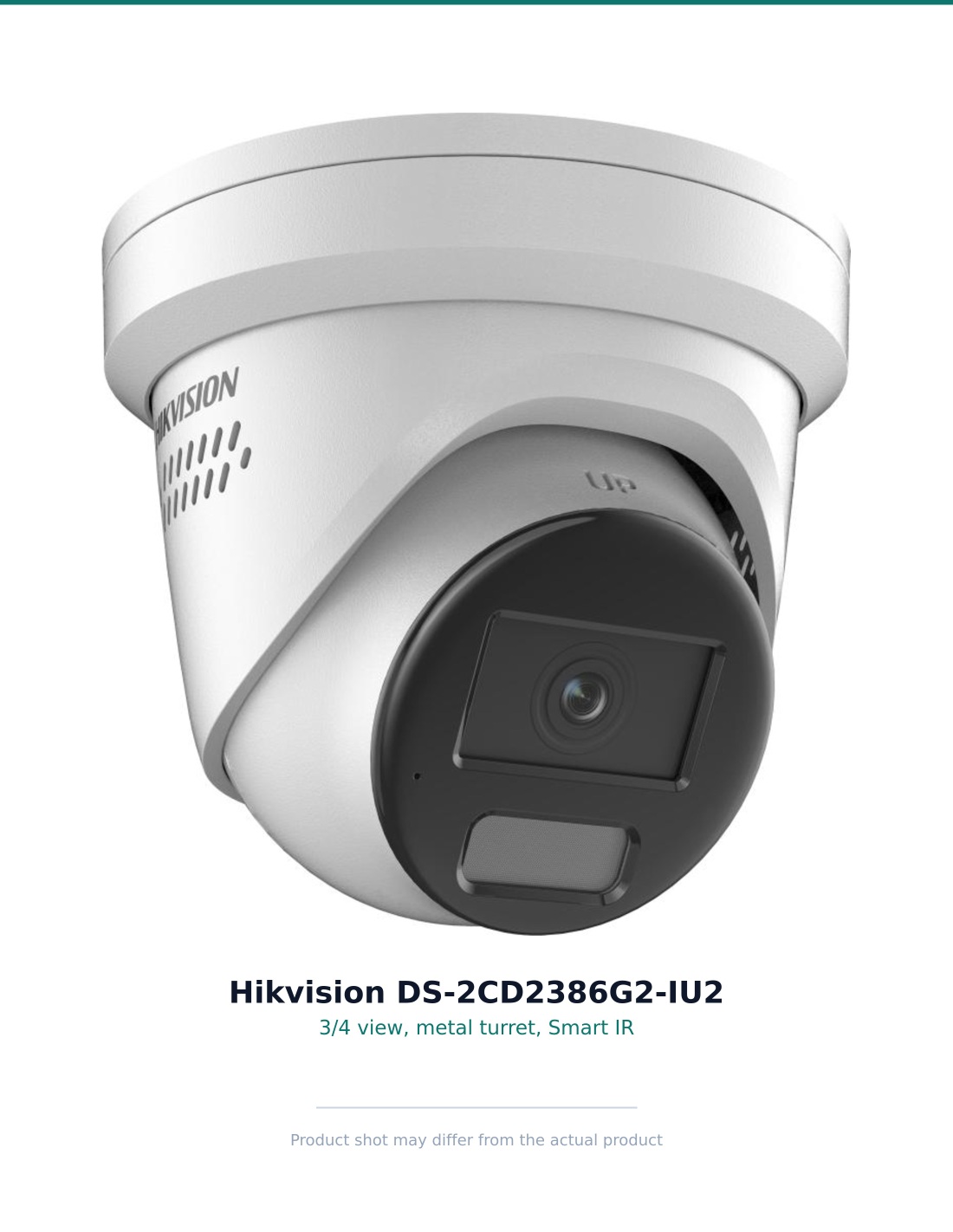

Hikvision DS-2CD2386G2-IU2 — 3/4 turret, Smart IR

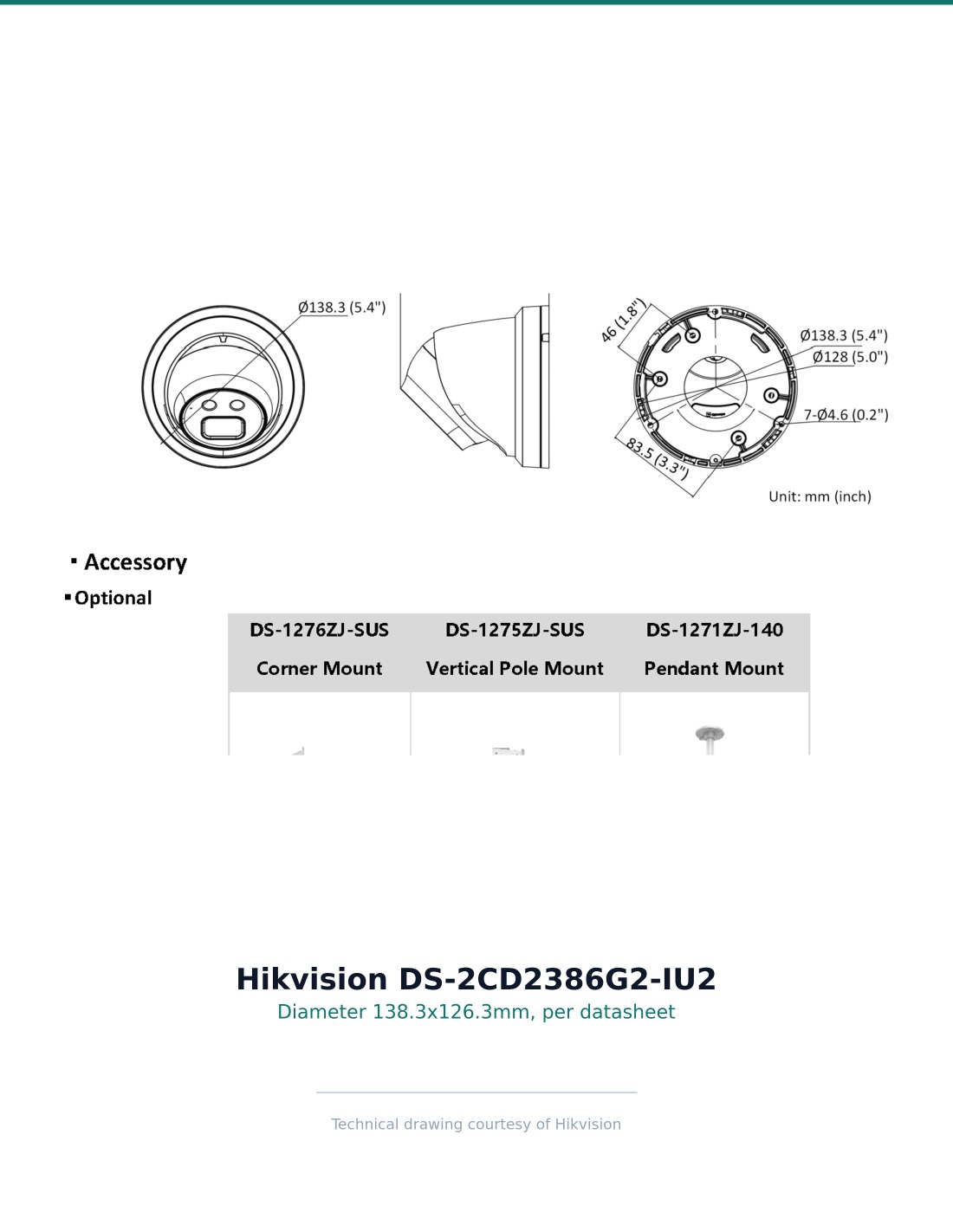

Hikvision DS-2CD2386G2-IU2 — datasheet dimensions (138.3 x 126.3 mm body)

Hikvision 8MP 4K AcuSense Gen 2 IR Fixed Turret, 2.8mm F1.6, Built-in Mic — DS-2CD2386G2-IU2

Name: Hikvision 8MP 4K AcuSense Gen 2 IR Fixed Turret, 2.8mm F1.6, Built-in Mic — DS-2CD2386G2-IU2
Brand: HIKVision Australia
SKU: DS-2CD2386G2-IU2
Price: 267.5 AUD
Availability: InStock

Reference: DS-2CD2386G2-IU2

In Stock - Ready to Ship

$ 267.50

inc-GST

4K AcuSense. F1.6. Built-in mic.

8 MP turret (Gen 2) with 120dB WDR, 30m Smart IR, human/vehicle detection, 256GB microSD ceiling, IP67 — full datasheet attached.

4K, 1/1.8" sensor, 2.8mm F1.6 (111° H) per Hikvision datasheet
AcuSense human/vehicle classification, built-in microphone, PoE
IP67 metal body, -30°C–+60°C, ~740g camera, Ø138×126.3mm

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

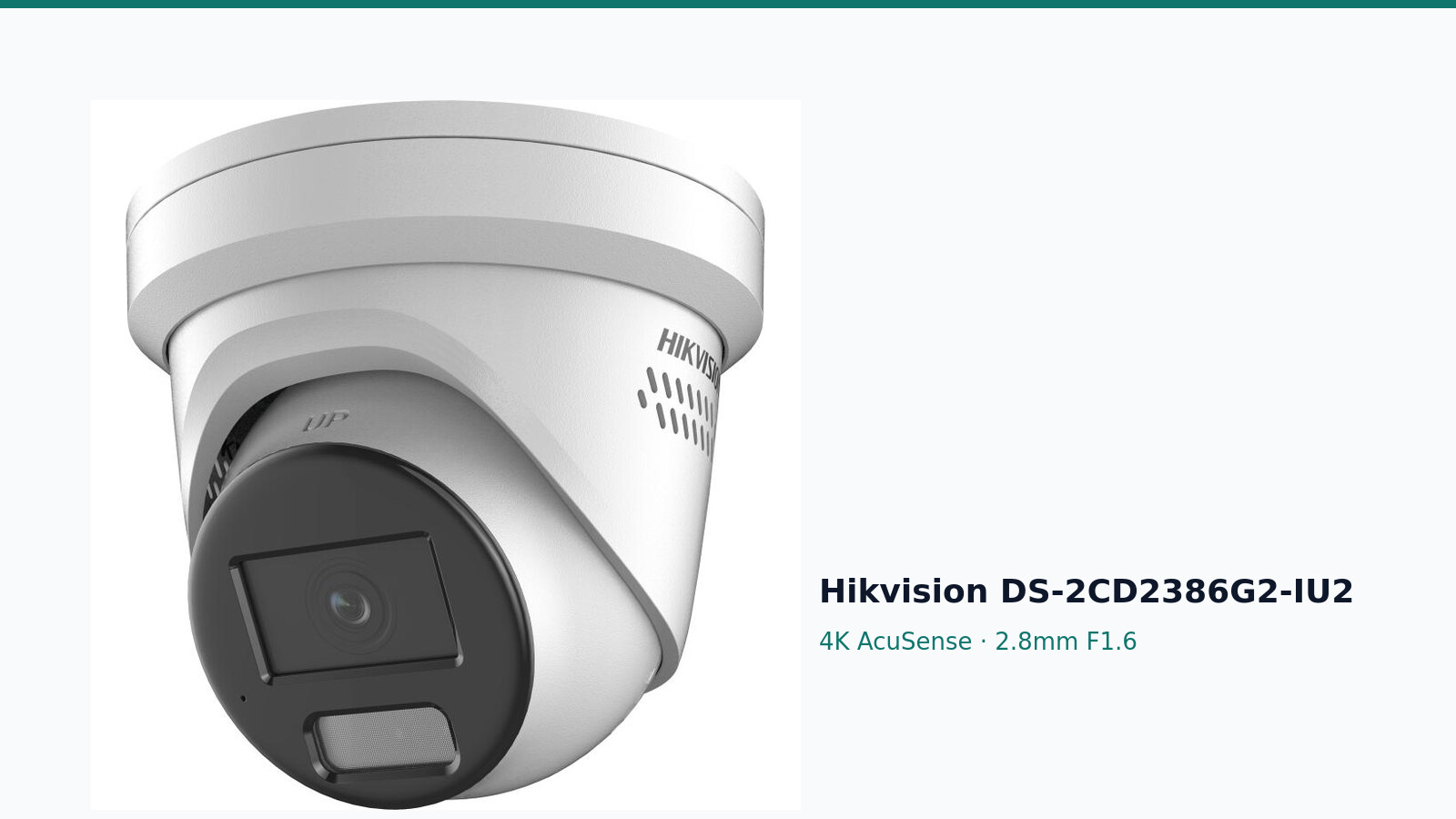

Hikvision DS-2CD2386G2-IU2 8 MP 4K AcuSense turret on a light background

Hikvision · Pro Series EasyIP (Gen 2 AcuSense)

4K turret, proven Gen-2 value.
AcuSense & built-in mic.

The Hikvision DS-2CD2386G2-IU2 is an 8 MP 4K fixed turret with DarkFighter‐style low‐light performance, on‐sensor human/vehicle AcuSense classification, 120 dB True‐WDR, and a built‐in microphone. Per Hikvision’s DS‐2CD2386G2‐I(U) datasheet, it ships in a metal IP67 (IEC 60529‐2013) housing sized Ø138.3 × 126.3 mm — a practical upgrade path when you do not need the F1.0 G2H turret’s very latest body revision.

Product shot may differ from the actual product.

This is a STANDALONE 4K IP CAMERA — a complete device by itself, but most installs add a PoE NVR or a managed PoE switch.

The DS-2CD2386G2-IU2 is a complete camera. Most sites record to a PoE NVR, PoE+ switch, or a VMS — add accessories only as your mounting surface demands.

In the box (typical)

Camera, mounting hardware and drill template (per Hikvision QSG)
Sealed cable gland and Torx L‐wrench (typical for this class)

Packing list subject to regional kit.

Often purchased separately

PoE NVR or 802.3af switch (Class 3)
External Cat 6 cable run to the camera
Optional microSD, up to 256 GB (per datasheet, surveillance‐grade)

4K, AI filtering, and audio — without a flagship price.

Hikvision’s Pro Series EasyIP line exists so mainstream residential and small‐commercial customers can get eight megapixels, AcuSense‐style detection, a metal outdoor body and an integrated mic on one PoE run — see the DS‐2CD2386G2‐I(U) datasheet (attached) for the exact 2.8 mm numbers.

Genuine Hikvision, distributed in Australia with local support from Infront Technologies.

CLARITY · 01

DarkFighter‐class night vision. 120 dB WDR in mixed light.

The DS-2CD2386G2-IU2 uses a 1/1.8" sensor behind F1.6 fixed 2.8 mm optics (M12) with 111° horizontal FOV. Official datasheet minimum illumination: 0.003 lux colour (F1.6, AGC on), 0 lux with 850 nm Smart IR out to 30 m.

Main stream records 3840 × 2160 up to 25 fps at 50 Hz with H.265+, H.265, H.264+ and H.264 — triple‐stream capable for a clean NVR recording path plus a lighter Hik‐Connect pull.

DETECTION · 02

AcuSense. Human and vehicle, before the false alarm email.

Hikvision’s deep‐learning AcuSense 2.0 engine classifies people and cars against motion noise and environmental clutter. You get line‐crossing, intrusion, region in/out and a basic smart event set — tune target types so trees and possums are not the headline event.

Face capture and scene‐change are included. Events are consumable in iVMS‐4200, Hik‐Connect, HikCentral, or a third‐party ONVIF‐compatible VMS.

BUILD · 03

IP67 metal, PoE‐efficient, microSD‐ready.

Egress‐sealed to IP67 (IEC 60529‐2013) and rated for −30°C to +60°C operation, with a 3‐axis turret head for pan, tilt and rotate. The built‐in microphone captures on‐scene audio per the “U” model suffix.

A single‐cable 802.3af Class‐3 PoE run is typically well under 7 W at the camera, per datasheet. Up to a 256 GB surveillance‐rated card gives you edge recording, ANR against brief network blips, and a buffer when the recorder is offline.

How it works

From PoE to 4K recording in four steps.

Run PoE to the turret

802.3af Class‐3 at the PSE, Cat 5e minimum (we recommend Cat 6).

Discover in SADP / NVR

Assign an IP, set a strong admin password, align the horizon, enable H.265+ and AcuSense rules.

Test audio + IR

With consent, verify mic levels and that Smart IR distance matches your soffit height (avoid over‐exposed bloom).

Handover

Issue credentials, Hik‐Connect pairing instructions, and record where the card goes if you are using on‐board storage only.

At a glance

Key specs — DS-2CD2386G2-IU2 (2.8 mm)

Form factor: Fixed turret (Gen 2 AcuSense, Pro Series EasyIP)
Resolution: 3840 × 2160 (4K UHD)
Sensor: 1/1.8" progressive scan CMOS
Lens: 2.8 mm fixed, F1.6, M12 mount
Field of view: 111° (H) / 59° (V) / 131° (D) on 2.8 mm per datasheet
Min illumination: Colour: 0.003 lux @ (F1.6, AGC ON); B/W: 0 lux with IR
WDR: 120 dB True WDR
IR: Up to 30 m (Smart IR, 850 nm)
Onboard storage: microSD / SDHC / SDXC up to 256 GB (per datasheet) + ANR over NAS (NFS/SMB/CIFS)
Network: 1 × RJ45 10/100 Mbps
Power: 802.3af / Class 3 (max 6.8 W PoE) or 12 VDC ± 25% (0.48 A, max 5.8 W)
Body: Full metal, IP67 (IEC 60529-2013)
Audio: Built-in microphone (mono) — G.711, G.722, PCM, etc.
Operating temperature: −30 °C to 60 °C
ONVIF: Profile S, G, T
Weight (camera body): Approx. 740 g (per datasheet)
Dimensions: Ø 138.3 mm × 126.3 mm
Warranty: 3 years Australian warranty

Hikvision DS‐2CD2386G2‐I(U) datasheet, revision as supplied in our stamped PDF, governs. Values above are a plain‐English selection.

Physical

Dimensions (DS‐2CD2386G2‐I(U) 2.8 mm)

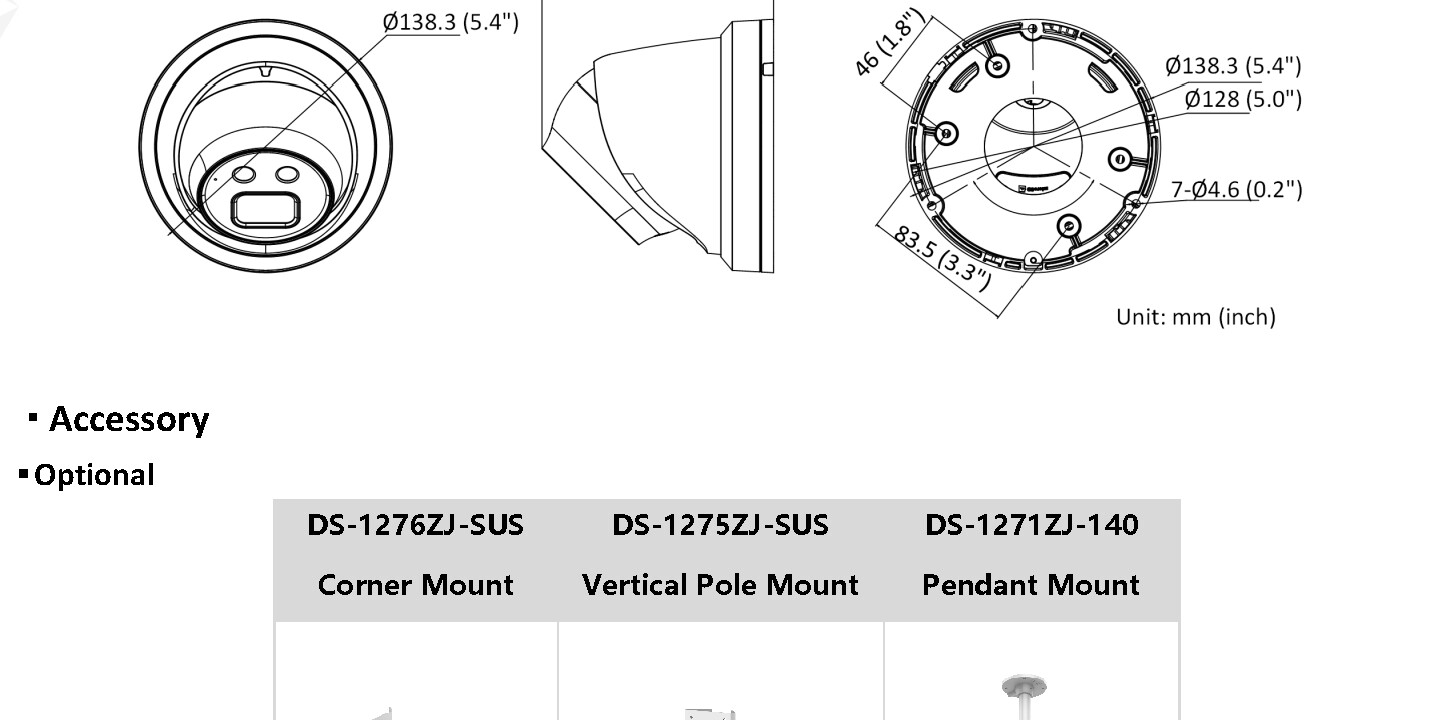

Hikvision DS-2CD2386G2-IU2 — dimension block from the manufacturer datasheet

Pair it with

Compatible hardware

RECORD

Hikvision M‐Series PoE NVR

8‐channel DS‐7608NI‐M2/8P (or your existing AcuSense‐capable Hikvision NVR) — plug‐in PoE, scheduled recording, and mobile playback.

NETWORK

Cat 6 run

Run shielded Cat 6 between the turret, switch and NVR for 4K headroom and low packet loss.

EDGE

Up to 256 GB microSD

Match Hikvision’s documented 256 GB ceiling with a surveillance‐endurance (WD Purple, Hikvision L2I‐class) card, not a consumer‐grade U1 promo card.

SUPPORT

Infront Technologies

Australian warranty, RMA, pre‐sale lens advice and integration with our national install partner network.

Answers

Frequently asked questions

Is this the same as the newer DS-2CD2386G2H‐IU?

The “G2H” models are a newer revision. This SKU (DS‐2CD2386G2‐IU2) is the 2.8 mm Gen‐2 8 MP turret with built‐in microphone per Hikvision’s Pro Series DS‐2CD2386G2‐I(U) line. The attached datasheet (IU‐C) is the current optical and electrical reference for 2.8 mm −U.

What microSD capacity does it support?

Hikvision specifies built‐in microSD / SDHC / SDXC up to 256 GB on the official datasheet. Use a surveillance‐rated endurance card for 24/7 write. For edge retention beyond 256 GB, add an NVR or VMS‐managed array.

Will this camera work with a non‐Hikvision NVR?

Yes, in most cases via ONVIF Profile S/G/T and H.264/H.265 streams. For AcuSense‐specific events you get the most seamless integration on a Hikvision AcuSense‐capable NVR or on iVMS‐4200.

How do I power it?

802.3af “Class‐3” PoE (max 6.8 W at the port per datasheet) or 12 VDC. PoE is the default for single‐cable data + power.

Questions before you buy?

Genuine Hikvision, supported Australia‐wide by Infront Technologies — 1300 736 970 · [email protected].

Installation & safety notice

Low-voltage product (SELV). The DS-2CD2386G2-IU2 is a 12 VDC / IEEE 802.3af PoE IP camera. There is no mains wiring inside the device. A standard plug-in 12 V DC adapter in an existing GPO is fine to use as-is, or the camera can be powered directly off a PoE switch or PoE NVR port — no electrician is required to power the unit.

When a licensed tradesperson is required. Concealed structured data cabling between the camera, the PoE switch/NVR and any remote rack or ceiling run is customer cabling under AS/CA S009 and must be performed by an ACMA-registered cabler. New GPOs, rack mains or any modification to the premises wiring is the job of a licensed electrician under AS/NZS 3000 Wiring Rules.

Specifications & imagery in good faith. Specifications, firmware features and published imagery can change without notice at Hikvision’s discretion. Verify the current datasheet (attached) for your firmware revision before ordering. Product appearance and packaging may differ from marketing images.

By placing an order you confirm the product is fit for your intended use and that any concealed cabling or third-party integration will be performed by an appropriately licensed tradesperson. Infront Technologies does not accept liability for incorrect site preparation or misuse outside the manufacturer’s specifications.

Ethernet: 1 RJ45 10/100 M self-adaptive, per datasheet
Audio: Built-in mic, G.711, G.722, PCM, G.726, per datasheet
Operating temperature: -30 deg C to 60 deg C, 95% RH non-condensing, per datasheet
Power: 802.3af Class 3 PoE max 6.8W, or 12VDC max 5.8W, per General section, datasheet
Video Compression: H.265 plus, H.265, H.264 plus, H.264, MJPEG, per datasheet
Brand: Hikvision
IP Rating: IP67, IEC 60529-2013, per Protection line, datasheet
Image Sensor: 1/1.8" Progressive Scan CMOS
Lens: 2.8mm fixed, F1.6, M12, per Hikvision datasheet
Max. Resolution: 3840 × 2160 4K UHD 8 MP
Field of View: 111 deg H, 59 deg V, 131 deg D, 2.8mm, per datasheet
Min. Illumination: Colour: 0.003 lux at F1.6 AGC ON, B-W: 0 lux with IR, per datasheet
Management: iVMS-4200, Hik-Connect, HikCentral, web
WDR: 120dB True WDR, per datasheet
Shutter: 1/3s to 1/100,000s
ONVIF: Profile S, G, T, ISAPI
Warranty: 3 Years Australian Warranty
Product Family: Pro Series (EasyIP) Gen 2 8 MP 4K
Onboard Storage: microSD, SDHC, SDXC, up to 256 GB, per datasheet; ANR and NAS, per datasheet
IR Range: 30m Smart IR, 850nm, per datasheet
Model: DS-2CD2386G2-IU2 2.8mm
Max. frame rate: 25 fps at 3840 x 2160, 50 Hz, main stream, per datasheet
DORI 2.8mm: D 89.2m, O 35.4m, R 17.8m, I 8.9m, per datasheet
Body: Metal, white, per marketing
Body dimensions: Diameter 138.3 x height 126.3mm, 740g camera, per General section, datasheet
Angle: Pan 0-360, tilt 0-75, rotate 0-360, per General section, datasheet
AcuSense: Human-vehicle target classification, deep learning motion events, per Hikvision datasheet and marketing
