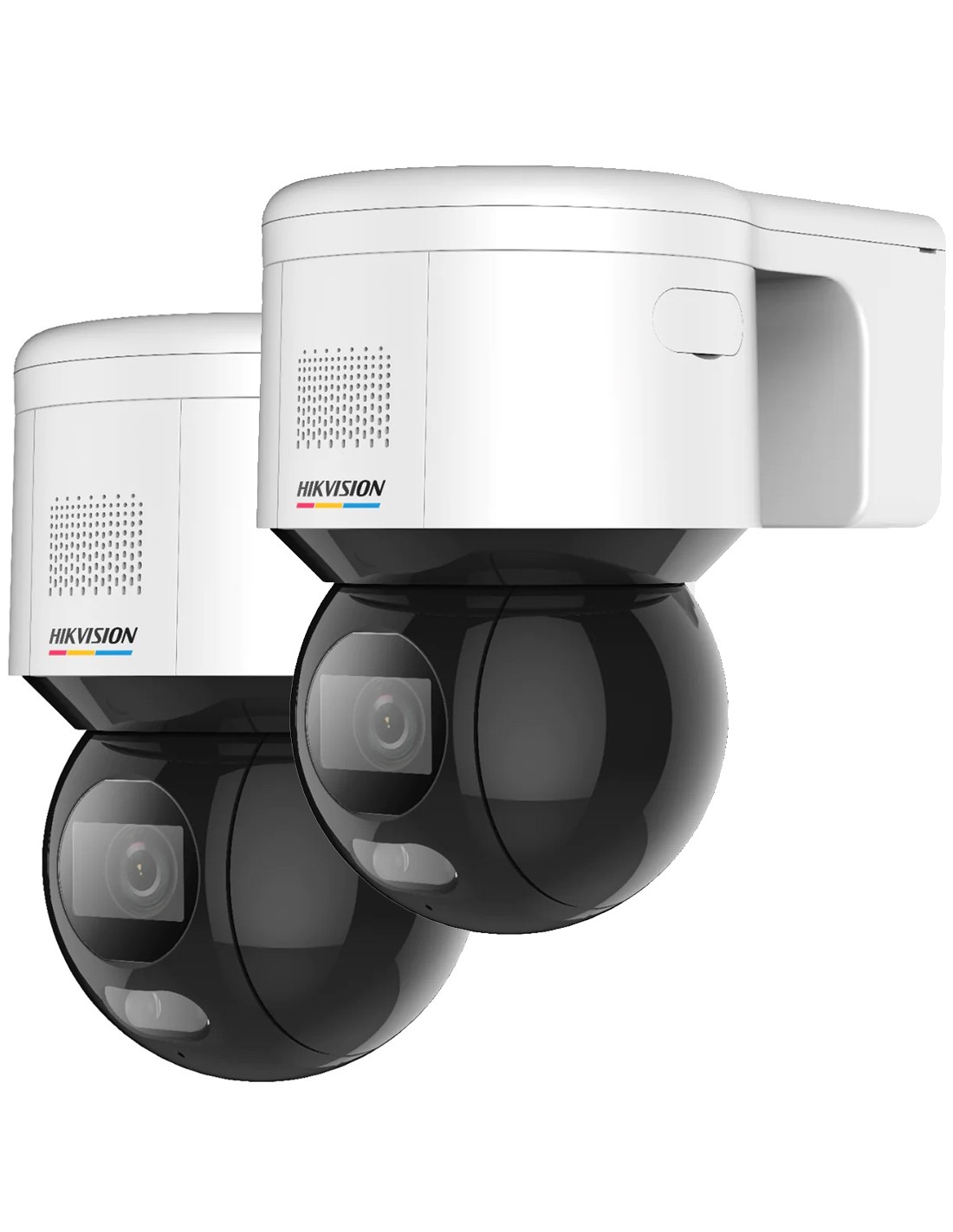

• 2 × DS-2DE3A400BW-DE(T5) pan-tilt dome cameras

• Two PoE+ (802.3at) NVR or switch ports, or two 12 VDC supplies
• A Cat5e or Cat6 cable run to each camera
• An NVR, NAS or microSD cards (up to 512 GB each) for recording

01

Run one cable

One Cat5e or Cat6 run per camera to a PoE+ (802.3at) port on an NVR or switch. Each camera draws up to 14 W. A 12 VDC supply also works.

02

Mount the arm

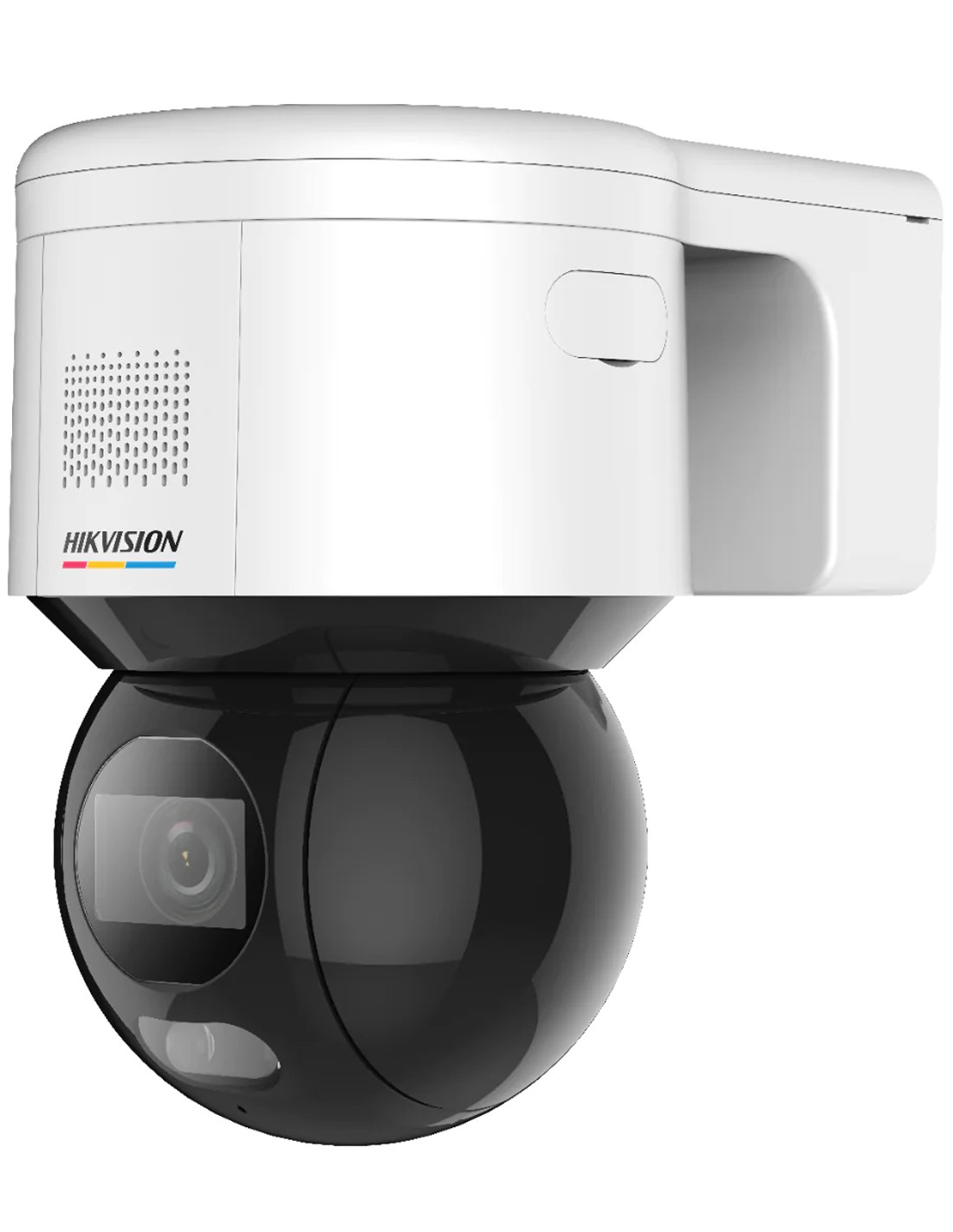

The wall arm is part of the housing. Fix the base plate to a wall or eave and hang the camera with the ball facing the area you want to cover.

03

Activate and add it

Set the admin password in a browser or iVMS-4200, then add the camera to your NVR, Hik-Connect or HikCentral.

04

Set presets and rules

Save presets for each view, build a patrol, then draw line crossing or intrusion zones and tick human, vehicle or both.

Recorder

A PoE+ NVR

Powers and records both cameras. A Hikvision AcuSense NVR can search by the human and vehicle tags.

Power

Two 802.3at PoE+ ports

Allow 14 W per camera, 28 W for the pair. A standard 802.3af port is not listed as a power option.

Cabling

Cat5e or Cat6 cable

One run per camera, up to the usual 100 m Ethernet limit.

Storage

A microSD card

Optional, up to 512 GB per camera, for recording in the camera itself.

Homes

Driveway, front gate and yard from one corner, in colour at night, with a voice warning.

Shops and car parks

Pan between the entry, the counter and the car park with presets.

Farms and sheds

Swing between the shed door, the yard and the gate on a patrol.

Building sites

Light up and warn off anyone inside the fence after hours.

Schools and clubs

Watch play areas and entries with one camera instead of three.

Warehouses

Roller doors and loading bays with human and vehicle alarms.

Does this camera zoom?

Only digitally. The lens is a fixed 4 mm F1.0, with 16× digital zoom. It pans and tilts to change the view, but there is no optical zoom.

Is the night picture in colour?

Yes. ColorVu imaging keeps colour down to 0.0005 lux at F1.0, and the white supplement light reaches up to 30 m when it is fully dark.

How far can it pan and tilt?

Pan is 350° and tilt is 0° to 90°. Pan speed runs up to 60°/s and tilt up to 50°/s, with 300 presets and patrol scans.

Does it have two-way audio?

Yes. It has a built-in microphone and a built-in speaker, plus a line in and line out for an external microphone or speaker.

What power does it need?

Each camera needs PoE+ (IEEE 802.3at) or 12 VDC, and draws up to 14 W including up to 4 W for the white light. Allow two PoE+ ports for the pair.

How many cameras are in this pack?

Two. Each is a complete DS-2DE3A400BW-DE(T5) pan-tilt camera. No recorder is included; they record to an NVR, a NAS, or a microSD card of up to 512 GB in each camera.

What does AcuSense do on this camera?

It sorts people and vehicles from other movement, so line crossing, intrusion and region alarms trigger only on the target types you choose.

Can it scare intruders off?

Yes. An alarm can trigger the audible warning through the speaker and flash the white light, as well as recording and notifying you.

Can I mount it outside?

Yes. It is rated IP66, has 6000 V lightning and surge protection, and runs from −30 °C to 65 °C.

Will it work with a non-Hikvision NVR?

It supports ONVIF Profile S, G and T, so most ONVIF recorders can record it. Pan-tilt control and smart alarms work best on a Hikvision NVR.

Does it capture faces?

Yes. It detects up to 5 faces at once and keeps the best shot of each face in motion.

Who can install the cable?

Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.
