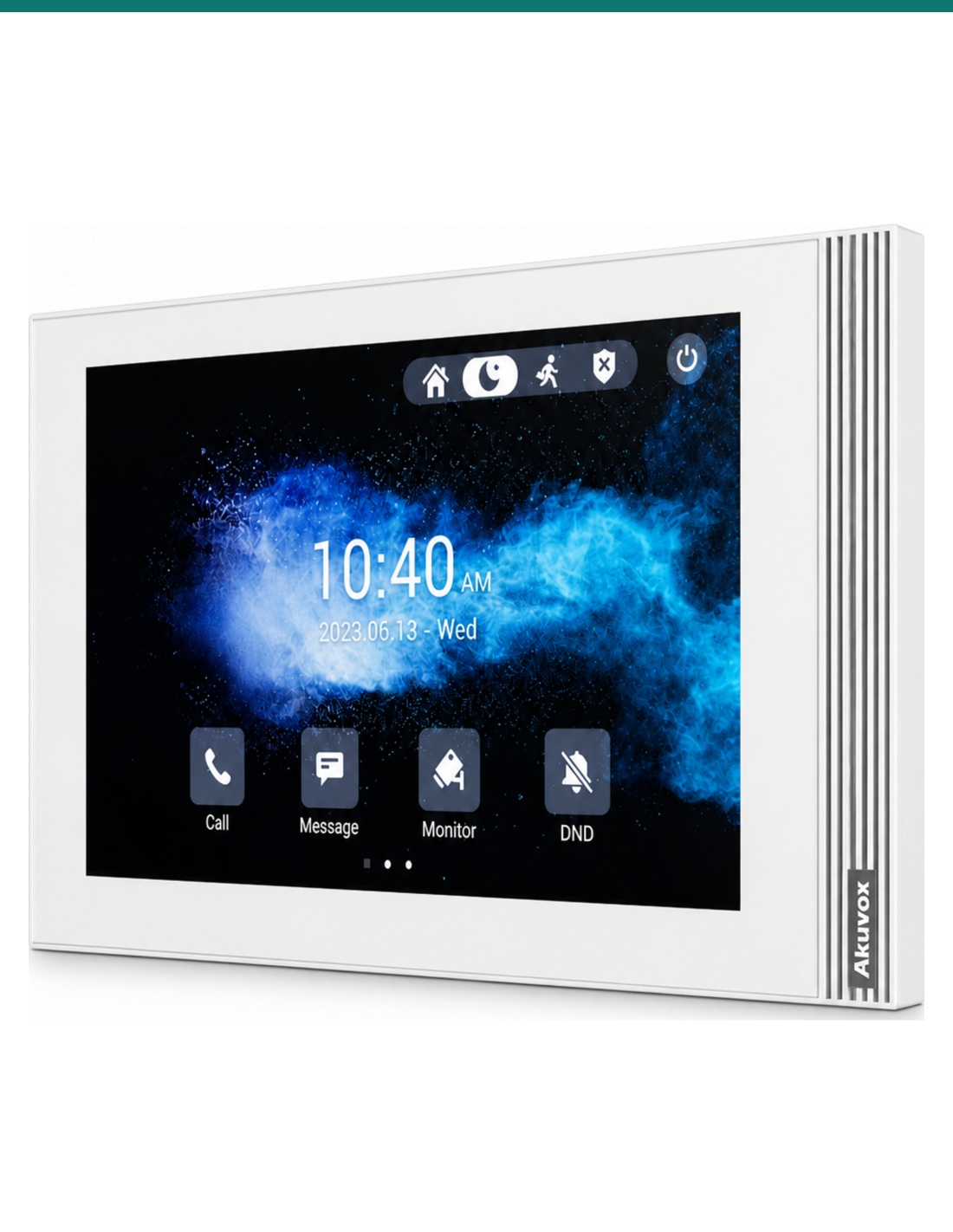

Akuvox S562 white — three-quarter angle showing slim body and grille

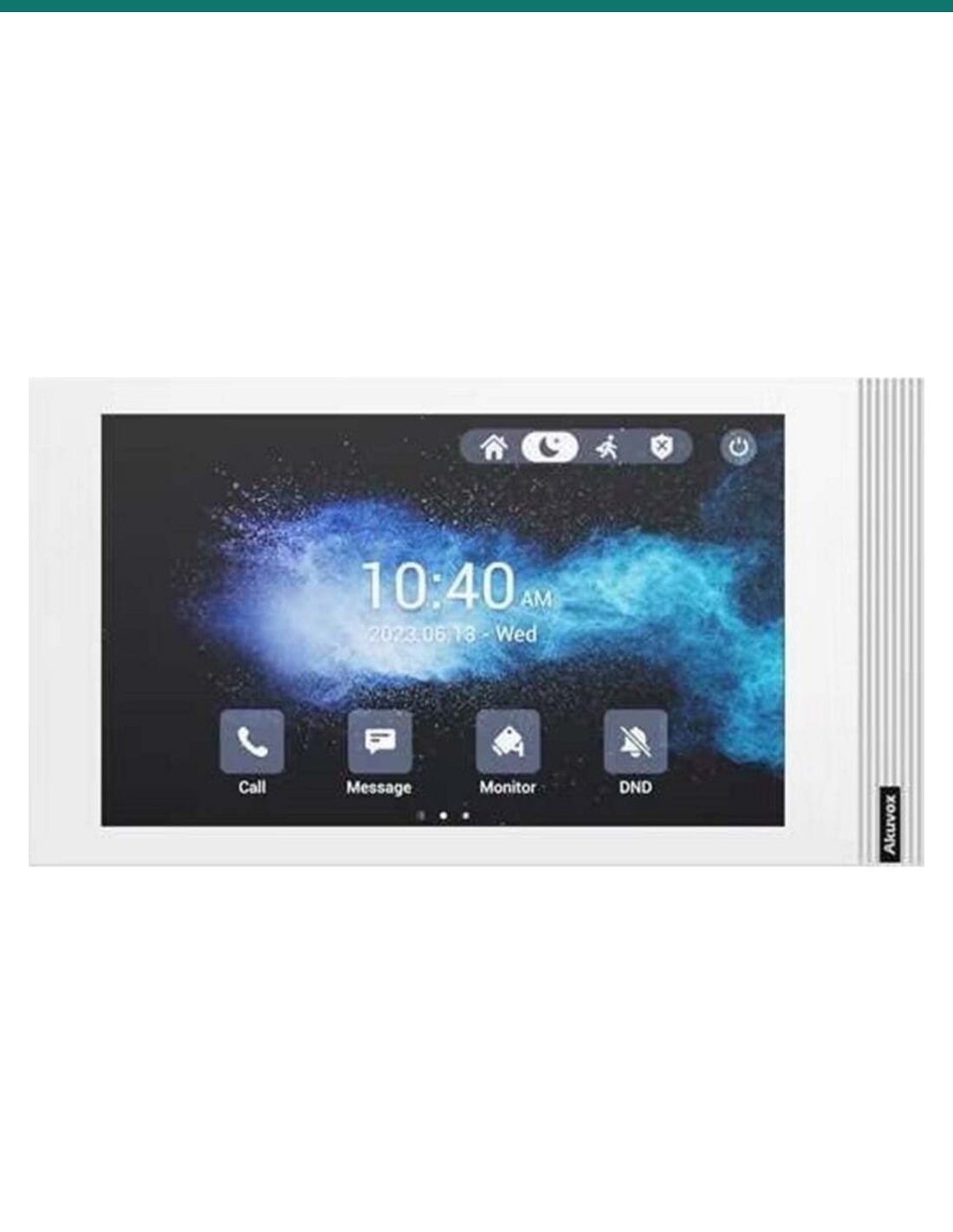

Akuvox S562 white — front product shot on white

Akuvox S562 7″ White Linux SIP Indoor Monitor — AK-S562-WHITE

Name: Akuvox S562 7″ White Linux SIP Indoor Monitor — AK-S562-WHITE
Brand: Akuvox
SKU: AK-S562-WHITE
Price: 186.38 AUD
Availability: InStock

Reference: AK-S562-WHITE

In Stock - Ready to Ship

$ 186.38

inc-GST

Akuvox S562 white Linux indoor monitor — a slim 7″ capacitive SIP station for apartments, townhouses and offices that need clear door video, two-way talk and simple PoE installs without Wi-Fi on the panel.

✓7″ IPS capacitive touch, 1024×600, energy-saving mode
✓SIP v2 two-way audio/video with Akuvox door stations
✓802.3af PoE or 12 VDC; dual RJ45 10/100
✓8 alarm inputs, 1 relay, doorbell in, RS485
✓Wall or desktop mount — 216.4×118.8×21.7 mm

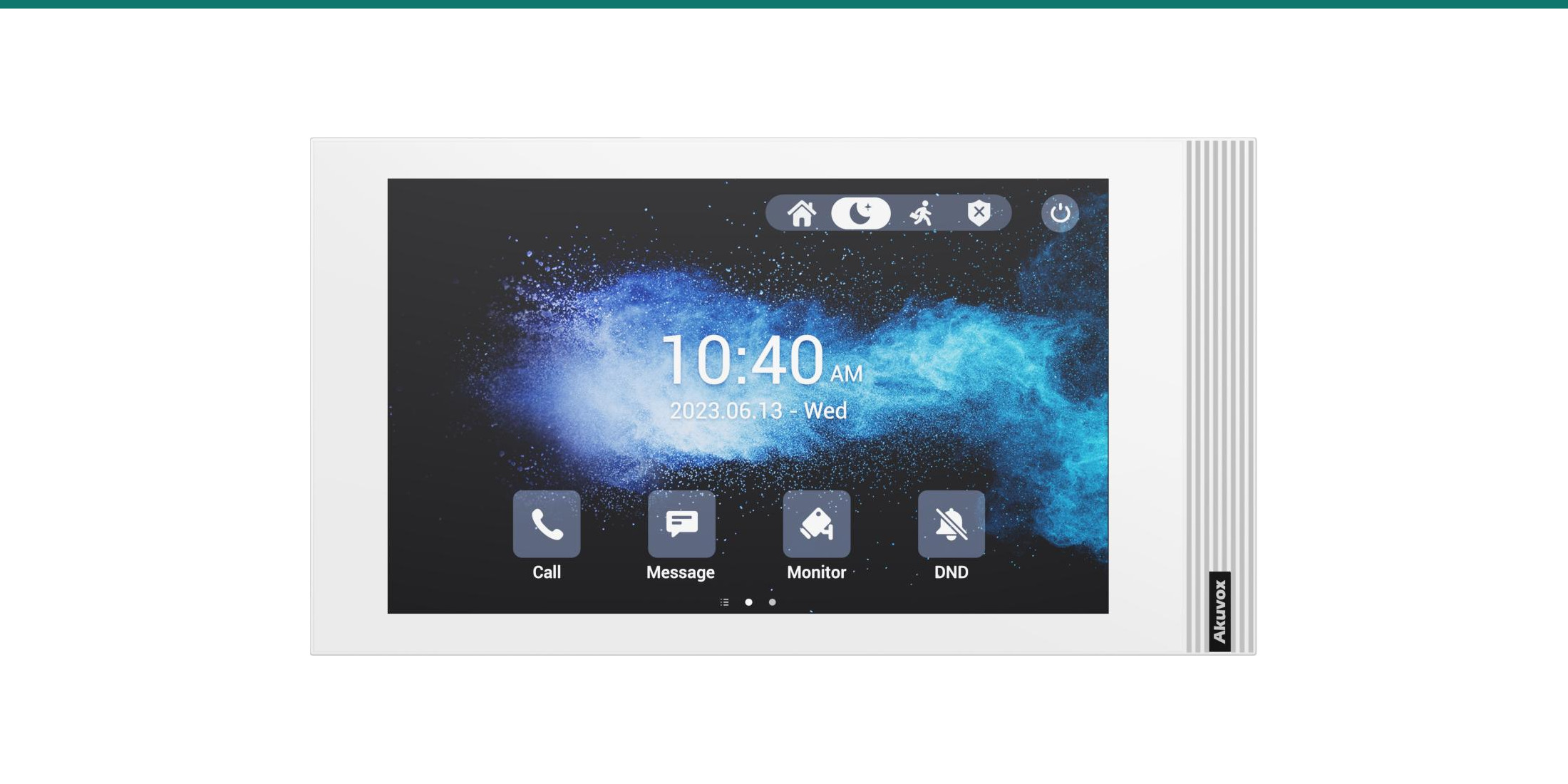

Akuvox S562 white 7-inch Linux SIP indoor monitor — editorial hero

Akuvox · S562 Linux · White

7″ SIP indoor monitor.
Linux, PoE, white — without Wi-Fi clutter.

The Akuvox AK-S562-WHITE puts a bright 7″ capacitive IPS panel on the wall for door video, two-way talk and simple SIP integration. Power it over 802.3af PoE or 12 VDC, mount it on a US/EU wall box or desk stand, and keep cabling honest — this white Linux SKU is the wired S562, not the Wi-Fi S562W.

ADD-ON INDOOR STATION — PAIR WITH A SIP DOOR STATION AND PoE (OR 12 V)

The S562 is the indoor answering panel only. It does not open the door by itself without a configured door station / relay path, and it does not include Wi-Fi. Most homes and apartments run it with an Akuvox villa or modular door phone on the same SIP network.

In the box

Akuvox S562 indoor monitor (white)
On-wall mounting bracket
Quick-start documentation

What you also need (sold separately)

SIP door station (e.g. Akuvox E12 / R20 series)
802.3af PoE switch/injector or 12 VDC PSU
Cat 5e / Cat 6 to the mount point
Optional desk stand AK-S562DESK

Unsure what’s compatible? See Pair it with below or contact us before ordering.

Clear door video without a thick panel.

At 21.7 mm deep with a slim white bezel and linear speaker grille, the S562 sits flush in hallways and kitchen returns where a bulky Android tablet would dominate the wall.

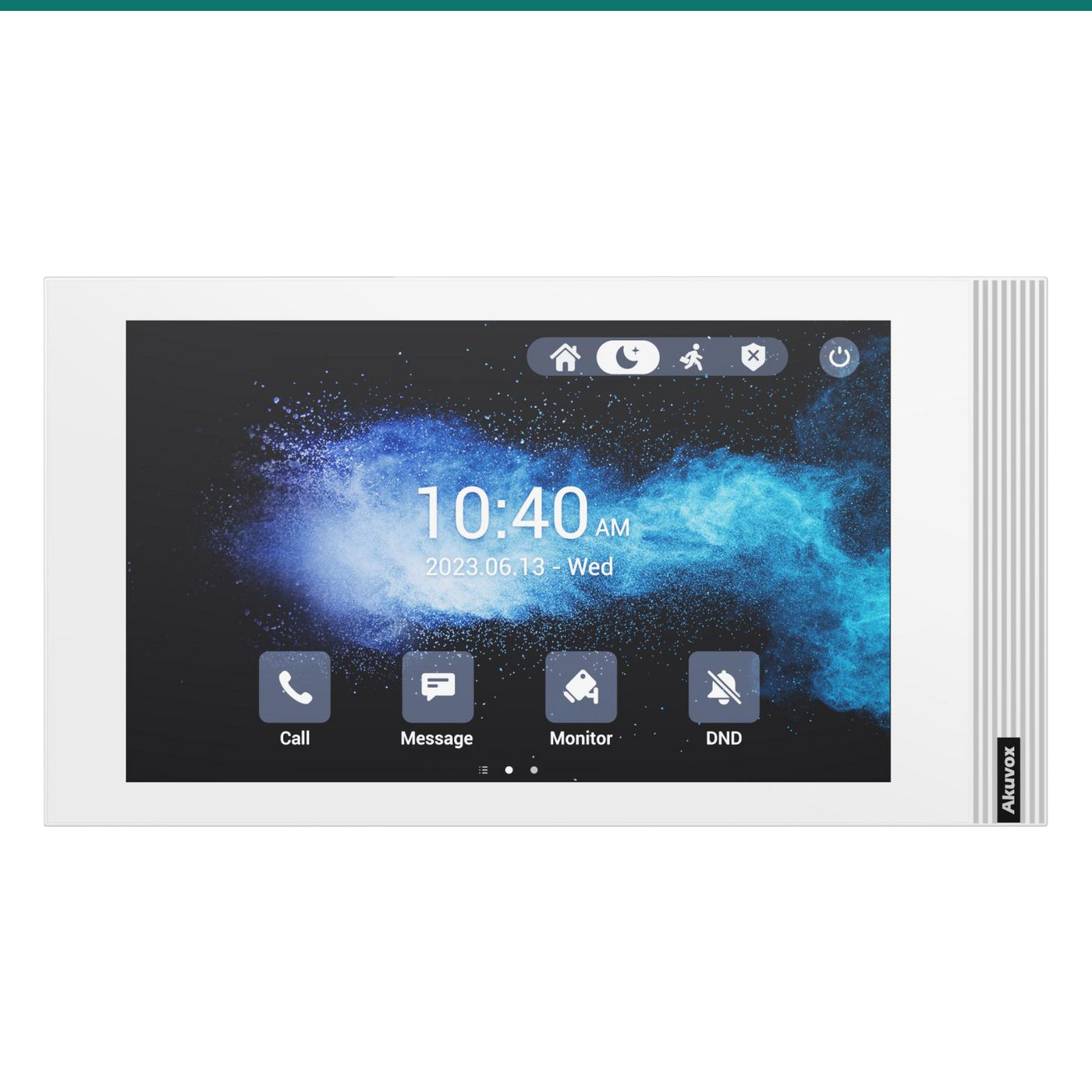

Akuvox S562 white front view — 7-inch capacitive IPS touchscreen

DISPLAY · 01

7″ IPS touch at 1024×600.

Projected capacitive glass over a 7-inch IPS panel (1024×600, 800:1 contrast, 300 nits) keeps visitor video readable in typical indoor light, with an energy-saving mode for overnight installs.

Wide 85° viewing angles help when the panel sits slightly off-axis in a corridor or entry niche.

COMMUNICATION · 02

SIP two-way talk, H.264 video.

Built on SIP v1/v2 with H.264 video and G.711 / G.729 / G.722 audio, the S562 answers door phones and other SIP endpoints on the LAN or a SIP-capable PBX — including echo cancellation and AGC for clearer hallway conversations.

Dual 10/100 RJ45 ports simplify daisy-chain or switch uplinks in apartment risers.

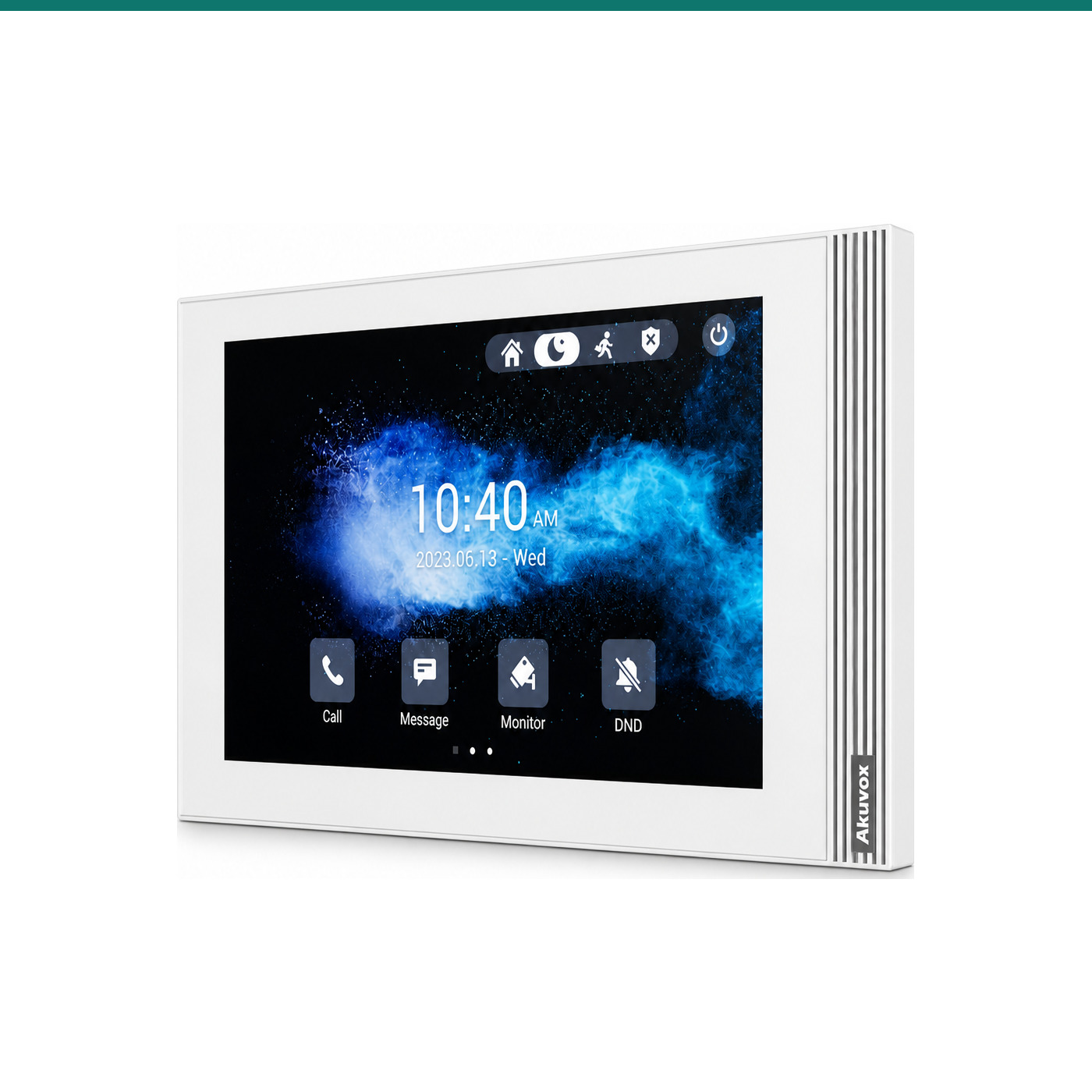

Akuvox S562 white three-quarter view — slim body and speaker grille

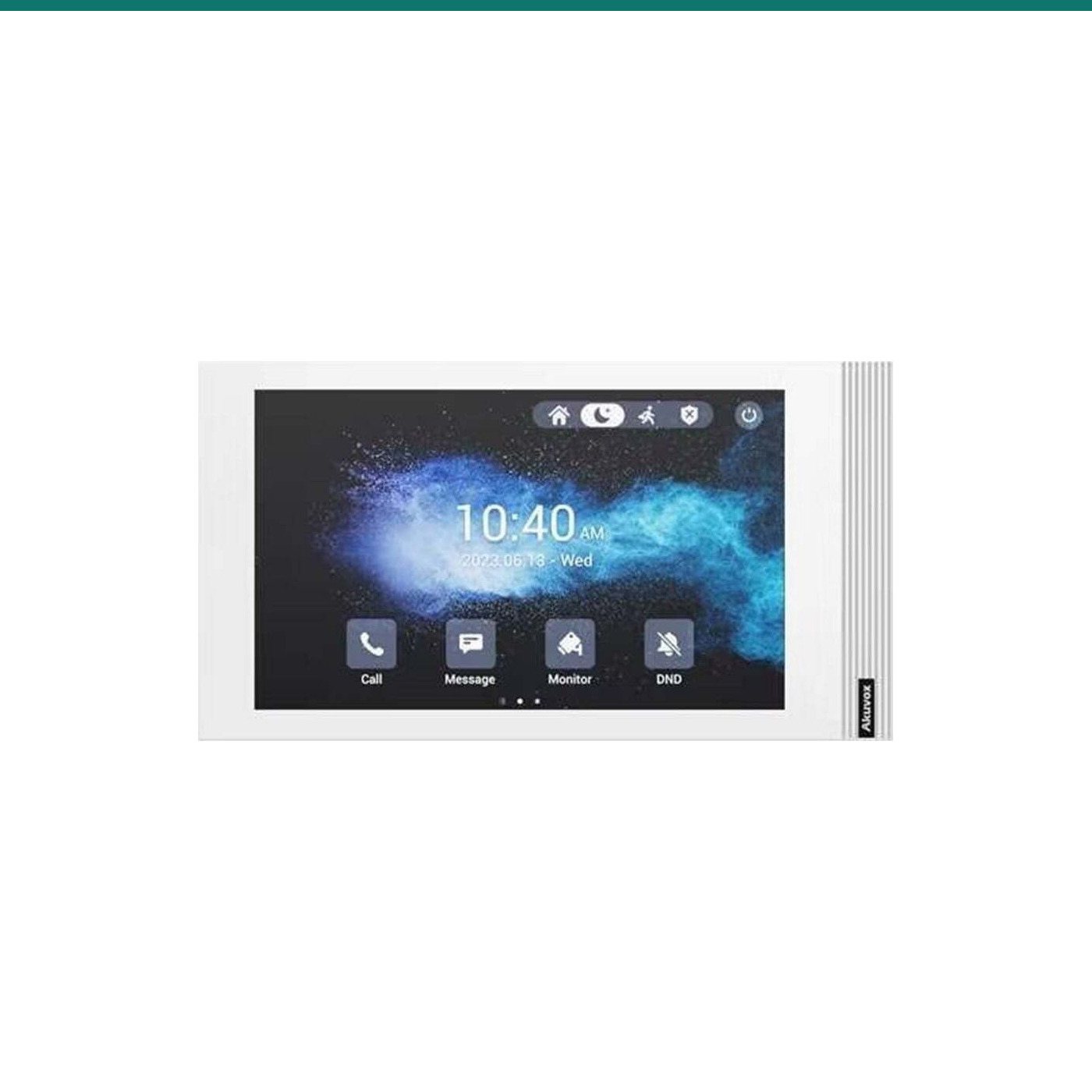

Akuvox S562 white indoor monitor — PoE and I/O ready SIP station

I/O & POWER · 03

Eight alarms, relay, RS485, PoE.

8 alarm inputs, one relay output, a doorbell input and RS485 give installers room for sensors, bells and ancillary control without a separate indoor I/O hub for every flat.

Power from 802.3af PoE or 12 VDC (≤9 W full load). Web management, auto-provisioning and configuration backup keep multi-unit rollouts maintainable.

How it works

From cable to first door call.

Mount & power

Fix the wall bracket (or desk stand), land Cat 5e/6, and feed 802.3af PoE or 12 VDC.

Join the SIP network

Set IP / DHCP, register to your SIP server or Akuvox door phone, and confirm audio/video codecs.

Map I/O

Wire alarm inputs, doorbell and relay as required; use RS485 where the project needs it.

Live & monitor

Answer door calls, unlock via the linked relay path, and optionally view compatible CCTV streams.

At a glance

Key specs — AK-S562-WHITE

Model: S562 (white Linux) — AK-S562-WHITE
Display: 7″ IPS LCD, projected capacitive touch
Resolution: 1024 × 600
Contrast / luminance: 800:1 · 300 nits
OS: Linux
Audio / video: SIP v1/v2; H.264; G.711 / G.729 / G.722
Ethernet: 2× RJ45 10/100 Mbps adaptive
Power: IEEE 802.3af PoE or 12 VDC (standby ≤5 W, full load ≤9 W)
I/O: 8 alarm inputs, 1 relay out, 1 doorbell in, 1× RS485
Mounting: Wall-mounted & desktop; US / EU wall-box compatible
Dimensions: 216.4 × 118.8 × 21.7 mm
Operating temperature: −10 °C to +45 °C
Humidity: 10–90%
Wi-Fi: Not on this SKU — see S562W / S562W-2 for Wi-Fi models
Warranty: Australian warranty via Infront Technologies

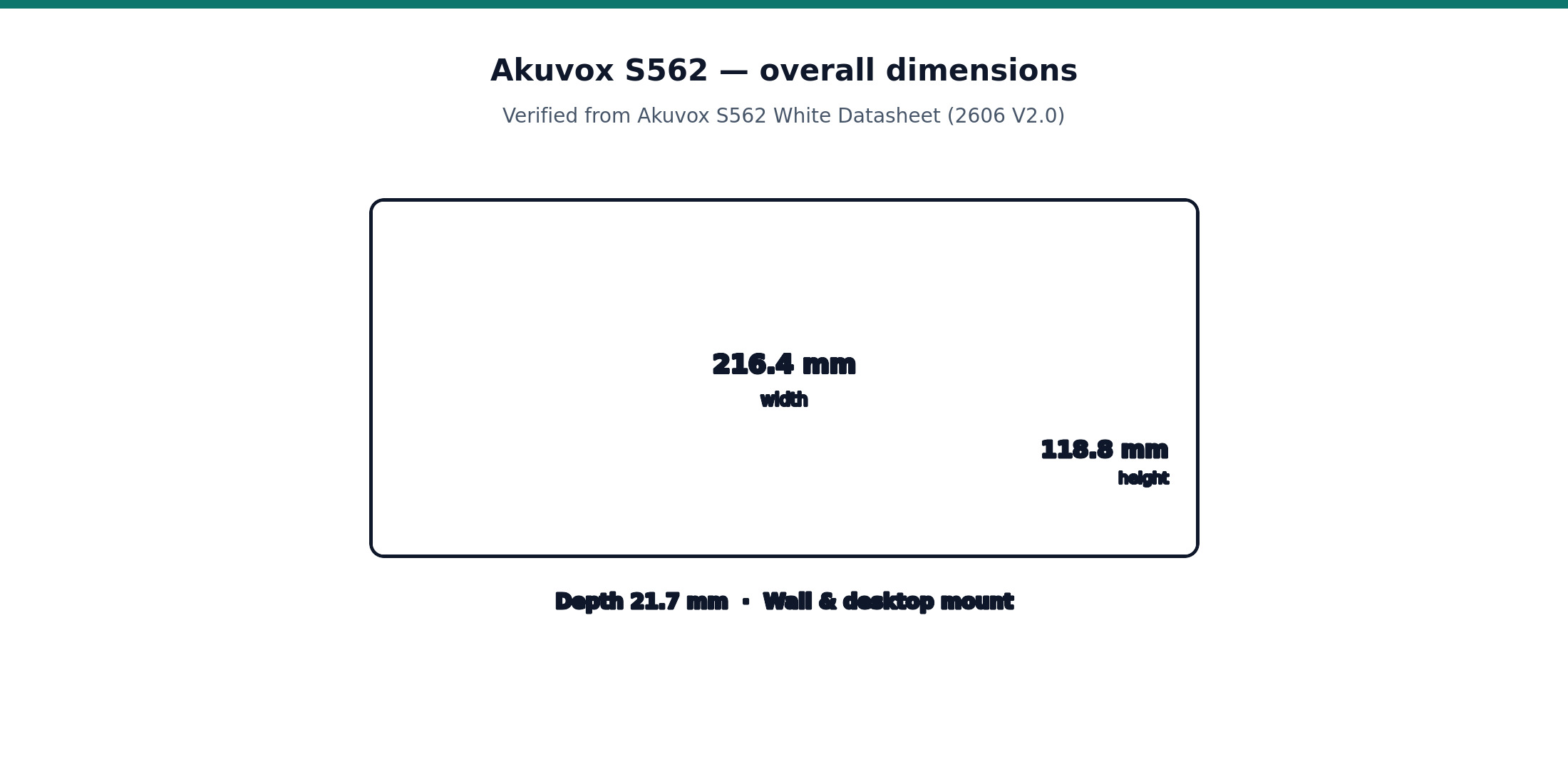

Akuvox S562 overall dimensions 216.4 × 118.8 × 21.7 mm — Overall dimensions from the Akuvox S562 White datasheet. Product shot may differ from the actual product.

Pair it with

Typical building blocks

Door

Akuvox E12 / R20 door station

SIP video door phone for the entry — the indoor S562 answers and can release the linked lock path.

Power

802.3af PoE switch

One cable for power and data; keep budget for a proper af port rather than a passive injector guess.

Desk

AK-S562DESK stand

Optional desktop cradle when wall boxing is awkward — sold separately.

Wi-Fi path

S562W white family

Need wireless on the indoor panel? Step up to the S562W / S562W-2 white SKUs instead of this wired unit.

Answers

Common questions

Does this white S562 include Wi-Fi?

No. AK-S562-WHITE is the wired Linux S562. Wi-Fi (including Wi-Fi 6 on newer boards) is on the S562W / S562W-2 family — order those SKUs if you need wireless on the indoor panel.

How do I power it?

Use IEEE 802.3af PoE on either RJ45 port, or a local 12 VDC supply if PoE is not available. Datasheet standby is ≤5 W and full load ≤9 W on both PoE and 12 V.

What do I need for a working door video call?

This is an indoor station only. Pair it with a SIP-capable Akuvox door station (for example an E12 or R20 series), a PoE switch or 12 V PSU, and Cat 5e/Cat 6 to the mount point.

Can it show CCTV cameras?

Yes — the S562 can stream live views from door-phone cameras and compatible third-party cameras over the network (H.264), so residents can check entries without leaving the indoor panel.

Wall box or surface mount?

Supports US and European electrical wall-box mounting as well as surface wall mount. A matching desk stand (AK-S562DESK) is sold separately if you prefer a tabletop install.

White or grey?

This listing is the white housing. A grey Linux S562 is a different SKU (AK-S562-GREY). Product photos on this page show the white unit.

Ready for Australian SIP projects.

Stocked and supported by Infront Technologies — datasheet attached, trade pricing available, and matching Akuvox door stations on the same catalogue.

Installation & safety notice

Low-voltage product (SELV). The AK-S562-WHITE is powered by IEEE 802.3af PoE or a plug-in 12 VDC supply — no mains work is required on the device itself, and there is no 240 V wiring inside the unit. A standard plug-in 12 V adapter in an existing GPO is fine to use as-is.

When a licensed tradesperson is required. Concealed structured data cabling between the indoor station, door station and PoE switch is customer cabling under AS/CA S009 and must be performed by an ACMA-registered cabler. Any electric lock, maglock or dedicated lock PSU is a separate electrical/security install and may require a licensed electrician or security installer.

Specifications in good faith. Firmware features and packing details can change at Akuvox’s discretion — verify the attached datasheet for your hardware revision before ordering. This SKU does not include Wi-Fi.
