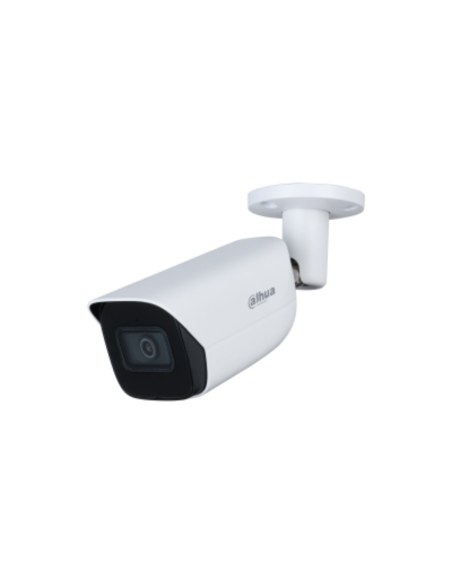

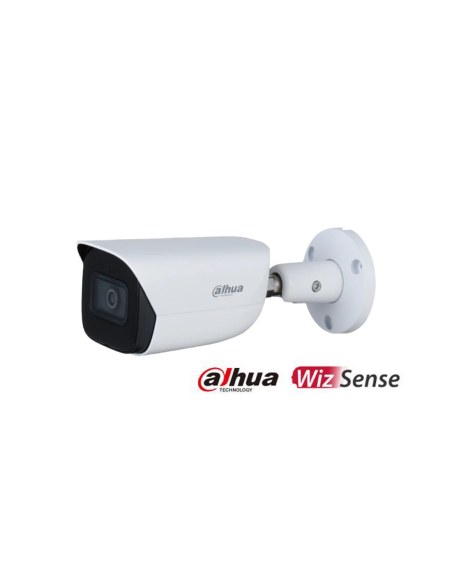

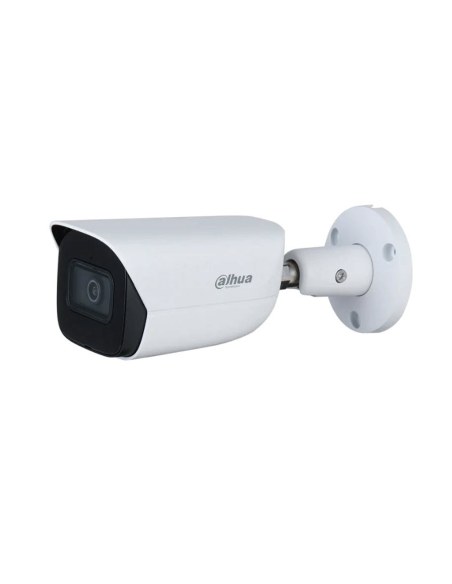

Dahua Security Camera 4MP IR Fixed-focal Bullet WizSense Network Camera
DH-IPC-HFW3466EP-AS-AUS
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chips and deep learning algorithms. It focuses on humans and vehicles with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple, and inclusive products and solutions.
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
Features:
> 4MP 1/3'' CMOS image sensor, excellent low luminance performance, and high-definition images
> Outputs max. 4 MP (2688 x 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 50 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply facilitates installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Functions:
SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targeted, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
AI SSA
Dahua AI Scene Self-adaptation (AI SSA) adopts deep learning algorithms to detect environmental conditions, such as rain, fog, backlight, low light and flicker, to adjust the parameters of the image to suit the conditions, ensuring that clear images are always produced.
Smart H.265+ & Smart H.264+
With an advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes a higher encoding efficiency than H.265 and H.264, provides high-quality video and reduces the cost of storage and transmission.
Perimeter Protection
With a deep learning algorithm, Dahua Perimeter Protection technology can recognize humans and vehicles accurately. In the restricted areas (such as pedestrian areas and vehicle areas), the false alarms of intelligent detection based on the target type (such as tripwire, or intrusion) are largely reduced.
Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to an outdoor environment with unstable voltage.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from comprising the device.
Specifications:
|
Camera
|
|
Image Sensor
|
1/3" CMOS
|
|
Max. Resolution
|
2688 (H) × 1520 (V)
|
|
ROM
|
128 MB
|
|
RAM
|
512 MB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100,000 s
|
|
Min. Illumination
|
0.005 [email protected] (Color, 30 IRE)
0.0005 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)
|
|
S/N Ratio
|
>56 dB
|
|
Illumination Distance
|
50 m (164.04 ft)
|
|
Illuminator On/Off Control
|
Auto/Manual
|
|
Illuminator Number
|
1 (IR LED)
|
|
Pan/Tilt/Rotation Range
|
Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°
|
|
Lens
|
|
Lens Type
|
Fixed-focal
|
|
Lens Mount
|
M12
|
|
Focal Length
|
2.8 mm; 3.6 mm; 6 mm
|
|
Max. Aperture
|
F1.4
|
|
Field of View
|
2.8 mm: Horizontal:107°; vertical: 56°; diagonal: 127°
3.6 mm: Horizontal:88°; vertical: 44°; diagonal: 105°
6 mm: Horizontal:54°; vertical: 29°; diagonal: 63°
|
|
Iris Control
|
Fixed
|
|
Close Focus Distance
|
2.8 mm: 0.7 m
3.6 mm: 1.3 m
6 mm: 2.6 m
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8 mm
|
63.6 m
|
25.4 m
|
12.7 m
|
6.4 m
|
|
3.6 mm
|
85.4 m
|
34.2 m
|
17.1 m
|
8.5 m
|
|
6 mm
|
124 m
|
49.6m
|
24.8 m
|
12.4 m
|
|
Intelligence
|
|
IVS (Perimeter Protection)
|
Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
|
|
AI SSA
|
Yes
|
|
Quick Pick
|
With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
|
|
Smart Search
|
Work together with Smart NVR to perform refined intelligent search, event extraction and merging to event videos
|
|
Video
|
|
Video Compression
|
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
|
|
Smart Codec
|
Smart H.265+
Smart H.264+
|
|
AI Coding
|
AI H.265
AI H.264
|
|
Video Frame Rate
|
Main stream: 2688 × 1520 @ (1–25/30) fps
Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Substream 2: 1920 × 1080 @ (1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
|
|
Stream Capability
|
3 streams
|
|
Resolution
|
4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
|
|
Day/Night
|
Auto (ICR)/Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
120 dB
|
|
Scene Self-adaptation (SSA)
|
Yes
|
|
White Balance
|
Auto; natural; street lamp; outdoor; manual; regional custom
|
|
Gain Control
|
Auto
|
|
Noise Reduction
|
3D NR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Region of Interest (RoI)
|
Yes (4 areas)
|
|
Defog
|
Yes
|
|
AFSA
|
Yes
|
|
Image Rotation
|
0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
4 areas
|
|
Audio
|
|
Built-in MIC
|
Yes
|
|
Audio Compression
|
G.711a; G.711Mu; PCM; G.726; G.723
|
|
Alarm
|
|
Alarm Event
|
- AS:
No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception
-S:
No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception
|
|
Network
|
|
Network Port
|
RJ-45 (10/100 Base-T)
|
|
SDK and API
|
Yes
|
|
Network Protocol
|
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
|
|
Cyber Security
|
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
|
|
Interoperability
|
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
|
|
User/Host
|
20 (Total bandwidth: 64 M)
|
|
Storage
|
FTP; SFTP; Micro SD card (support max. 256 G); NAS
|
|
Browser
|
IE: IE11
Chrome
Firefox
|
|
Management Software
|
Smart PSS; DSS; DMSS
|
|
Mobile Client
|
IOS; Android
|
|
Certification
|
|
Certifications
|
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC:47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
|
|
Port
|
|
Audio Input
|
1 channel (RCA port) (Only - AS supports)
|
|
Audio Output
|
1 channel (RCA port) (Only - AS supports)
|
|
Alarm Input
|
1 channel in 5 mA 3–5 VDC (Only - AS supports)
|
|
Alarm Output
|
1 channel out 300 mA 12 VDC (Only - AS supports)
|
|
Power
|
|
Power Supply
|
12 VDC/PoE (802.3af)
|
|
Power Consumption
|
Basic: 3.8 W (12 VDC); 4.6 W (PoE)
Max. (WDR + IR intensity + Intelligence): 5.9 W (12 VDC); 7.2 W (PoE)
|
|
Environment
|
|
Operating Temperature
|
–40 °C to +60 °C (–40 °F to 140 °F) /Less than 95%RH
|
|
Storage Temperature
|
–40 °C to +60 °C (–40 °F to 140 °F)
|
|
Protection
|
IP67
|
|
Structure
|
|
Casing
|
Metal
|
|
Product Dimensions
|
192.7 mm × 70.5 mm × 66.4 mm
(7.59" × 2.77" × 2.61") (L × W × H)
|
|
Net Weight
|
590 g (1.30 lb)
|
|
Gross Weight
|
780 g (1.72 lb)
|
