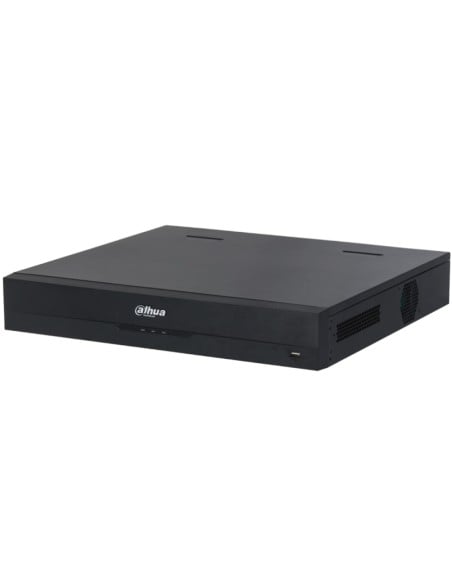

Dahua 8 Channel 16MP WizSense AI NVR with H.265 Lite technology, designed for advanced surveillance without an HDD

Dahua 8 Channel NVR, model DHI-NVR4108HS-8P-AI, showcasing sleek design and compatibility with advanced surveillance systems

1 / 2

Dahua 8-Channel WizSense AI NVR with 8 PoE Ports, 16MP, H.265 – DHI-NVR4108HS-8P-AI/ANZ

Name: Dahua 8-Channel WizSense AI NVR with 8 PoE Ports, 16MP, H.265 – DHI-NVR4108HS-8P-AI/ANZ
Brand: Dahua Australia
SKU: DHI-NVR4108HS-8P-AI/ANZ
Price: 265 AUD
Availability: InStock

SKU DHI-NVR4108HS-8P-AI/ANZ In Stock - Ready to Ship

$265.00 inc GST

Dahua DHI-NVR4108HS-8P-AI/ANZ 8-channel WizSense network video recorder with 8 built-in PoE ports. Records cameras up to 16MP, outputs 4K on HDMI and takes one drive. No HDD, or 2–14TB fitted.

✓8 PoE ports, 78 W total
✓Records cameras up to 16MP, 4K HDMI
✓1 SATA bay, drive optional
✓Face recognition and SMD Plus on the NVR
✓Gigabit network port
✓Dahua DMSS app for iOS and Android

Dahua DHI-NVR4108HS-8P-AI/ANZ 8-channel WizSense PoE network video recorder

Dahua · WizSense · 8 channels · 8 PoE

Eight cameras, one cable each.
In the same compact case.

This is the Dahua DHI-NVR4108HS-8P-AI/ANZ. An 8-channel WizSense recorder with eight PoE ports in the same 260 mm case as the 4-channel model. It records cameras up to 16MP, takes up to 256 Mbps of incoming video, shows 4K on HDMI and holds one hard drive.

In one sentence: the DHI-NVR4108HS-8P-AI/ANZ is an 8-channel Dahua WizSense NVR with 8 PoE ports (78 W in total), one SATA bay up to 20TB, 256 Mbps incoming bandwidth, a Gigabit network port and 4K HDMI output.

Order it without a drive, or with a 2, 4, 6, 8, 10, 12 or 14TB drive fitted.

The DHI-NVR4108HS-8P-AI/ANZ comes without cameras or a screen, and without a hard drive unless you choose one above. Add the cameras and a monitor; the recorder powers the cameras itself through its eight PoE ports.

In the box

DHI-NVR4108HS-8P-AI/ANZ recorder
53 V DC power adapter
Quick start guide

You also need

A hard drive, if you did not choose one fitted
Up to 8 IP cameras
Cat6 cable to each camera
A monitor or TV with HDMI or VGA
Your router, for the phone app

Eight PoE ports in a 260 mm case.

At 260 × 233 × 48 mm and 0.92 kg it fits where a home router would. Each PoE port supplies up to 25.5 W, with 78 W shared across all eight, and the network port is Gigabit.

Front panel

A plain front with status lights.

HDD, network and power lights and a USB 2.0 port for a mouse or quick backups are on the front. Everything else connects at the back.

Rear panel

Eight PoE ports along the back.

At the back: eight PoE ports, the Gigabit network port, VGA, HDMI, RCA audio in and out, a second USB 2.0 port, the 53 V DC input and an earth terminal.

Dahua DHI-NVR4108HS-8P-AI/ANZ dimension drawing

Size

260 × 232.7 × 47.6 mm.

It weighs 0.92 kg without a drive, and the recorder itself draws under 10 W before the drive and cameras.

How it goes in

From the box to recording.

Fit the hard drive

If you did not order one fitted: with the power off, open the lid and fit a SATA surveillance drive, then format it from the startup wizard.

Plug in the cameras

Run Cat6 from each camera to a PoE port on the back. The port powers the camera, so no power pack is needed at the camera end.

Connect screen and network

HDMI or VGA to the monitor, the network port to your router, then plug in the power adapter and follow the startup wizard.

Add it to the app

Turn on P2P in the network menu and scan the QR code with Dahua’s DMSS app for live view, playback and alerts on your phone.

At a glance

DHI-NVR4108HS-8P-AI/ANZ

Show specs

Channels

8 IP cameras, up to 16MP each

PoE

8 ports (10/100, 802.3af/at), 25.5 W max per port, 78 W total

Compression

Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

Bandwidth

256 Mbps incoming, recording and outgoing (180 Mbps with AI on)

Decoding

2 × 16MP, 4 × 8MP, 6 × 5MP or 8 × 4MP @30 fps (AI off)

Outputs

HDMI up to 3840 × 2160, VGA up to 1920 × 1080; same or different pictures

AI by recorder

Face detection and recognition (1 ch), perimeter protection (2 ch), SMD Plus (4 ch)

AI by camera

Face recognition, perimeter protection, SMD, ANPR, people counting, heat map

Face database

10 databases, 20,000 face images

Storage

1 SATA, up to 20TB

Network

1 × RJ45 Gigabit

USB

2 × USB 2.0 (1 front, 1 rear)

Audio

1 in, 1 out (RCA)

Power

53 V DC 1.812 A; under 10 W without HDD

Size and weight

260 × 232.7 × 47.6 mm, 0.92 kg

Operating

−10 °C to +55 °C, 10–93% RH

Pair it with

What goes with it

Storage

Seagate SkyHawk drive

Surveillance-rated 2, 4 or 6TB drives built for 24/7 recording. For eight cameras, 4TB or more keeps a useful history.

Cameras

Dahua WizSense cameras

Dahua WizSense turrets and bullets add Quick Pick searches and camera-side people and vehicle detection to this recorder.

Cabling

Cat6 cable

Solid-copper Cat6 for PoE runs of up to 100 m from each port to each camera.

Security

Datatek 24SECCAB cabinet

Locks the recorder and a monitor up to 24″ in a steel wall cabinet, so an intruder can’t walk off with the footage.

Where it is used

Where an 8-channel recorder fits

Larger homes

Every entry, the driveway, yard and garage on one system.

Shops and cafés

Registers, doors, kitchen and back lane.

Offices

Reception, corridors and the car park.

Rural properties

House, sheds and gates, with PoE switches for the long runs.

Dahua WizSense compact PoE recorders side by side

	NVR4104HS-P-AI/ANZ	NVR4108HS-8P-AI/ANZ	NVR4208-8P-AI/ANZ
Camera channels	4	8	8
PoE ports (total budget)	4 (45 W)	8 (78 W)	8 (130 W)
Max camera resolution	16MP	16MP	16MP
Incoming bandwidth	80 Mbps	256 Mbps (180 Mbps with AI on)	256 Mbps (180 Mbps with AI on)
Hard drive bays	1, up to 20TB	1, up to 20TB	2 (20TB listed by Dahua)
Network port	10/100	Gigabit	Gigabit
Channels played back at once	4	8	8
Alarm in / out	—	—	4 / 2
Power	53 V DC adapter	53 V DC adapter	100–240 V AC, built in
Case (W × D × H)	260 × 233 × 48 mm	260 × 233 × 48 mm	375 × 329 × 53 mm

All three record Smart H.265+, H.265 and H.264, show 4K on HDMI plus 1080p on VGA, run face recognition on 1 channel, perimeter protection on 2 channels and SMD Plus on 4 channels themselves, and give up to 25.5 W per PoE port (802.3af/at). — means not fitted. Figures from the Dahua datasheets.

Common questions

How many cameras does the DHI-NVR4108HS-8P-AI/ANZ take?

Eight IP cameras, each on its own PoE port. For sixteen, see the DHI-NVR4216-16P-AI/ANZ.

Can the PoE ports power all eight cameras?

Yes for typical cameras. Each port gives up to 25.5 W and the eight share 78 W. Add up the cameras’ maximum draw before using PTZ or heated cameras.

How is it different from the DHI-NVR4208-8P-AI/ANZ?

Both take eight cameras with 256 Mbps of incoming bandwidth. The NVR4208-8P adds a second drive bay, a bigger 130 W PoE budget, 4 alarm inputs and 2 outputs and a built-in mains power supply, in a wider 375 mm case. This one is smaller and runs from a 53 V adapter.

Is a hard drive included?

Not as standard. The DHI-NVR4108HS-8P-AI/ANZ is sold without a drive, or with a 2, 4, 6, 8, 10, 12 or 14TB surveillance drive fitted — choose the option above. Its single SATA bay takes up to 20TB, depending on room temperature.

Will it work with cameras that are not Dahua?

Yes. It takes ONVIF cameras (Profile S, T and G) as well as Dahua cameras, and Dahua lists several other major brands. The recorder’s own face recognition, perimeter protection and SMD Plus can run on those channels too. Quick Pick and camera-side AI need Dahua WizSense cameras. Send us the camera model and we will check it.

Can I watch the cameras on my phone?

Yes. Turn on P2P in the recorder’s network menu, connect it to your router and scan its QR code with Dahua’s DMSS app on iPhone or Android for live view, playback and alerts. On a PC, the recorder’s web page works in Chrome or Firefox.

What screen can I plug in?

Any monitor or TV with HDMI or VGA. HDMI runs up to 4K (3840 × 2160) and VGA up to 1920 × 1080. The two outputs can show the same picture or different camera layouts.

What is Smart H.265+?

Dahua’s compression. It stores the same picture as plain H.265 in less space, especially when the scene is still, so the drive holds more days of footage. H.265, Smart H.264+, H.264 and MJPEG are supported too.

What does WizSense AI do on this recorder?

It sorts people and vehicles from everything else. SMD Plus filters motion alerts on 4 channels so leaves, rain and light changes do not wake you up. Perimeter protection (tripwire and intrusion, 10 rules per channel) runs on 2 channels, and face recognition on 1 channel, matched against up to 10 face databases holding 20,000 images. With Dahua face-detection cameras, recognition extends to 8 channels.

How far can the cameras be from the recorder?

Up to 100 m of Cat6 per PoE port, which is the Ethernet limit. Beyond that, add a PoE switch or extender part way.

What is the warranty?

Dahua 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.

Supported by Infront Technologies.

Not sure how many channels or how much storage you need? Call 1300 736 970 or email [email protected] with the number of cameras and how many days you want to keep, and we will size the drive.

Installation and safety

Power. Use the 53 V DC adapter supplied with the recorder. Power off before fitting or removing the hard drive.

Placement. Use indoors between −10 °C and +55 °C and 10–93% humidity (non-condensing), with space around the vents. Dahua notes the largest usable drive depends on the room temperature. Keep it somewhere secure so a thief cannot take the footage with it.

Figures. From the Dahua DHI-NVR4108HS-8P-AI/ANZ datasheet. Dahua 3-year manufacturer warranty, handled in Australia through InFront.

Dimensions: 260 × 232.7 × 47.6 mm
Power Supply: 53 V DC, 1.812 A
Audio: 1 in, 1 out (RCA)
Operating Environment: −10 °C to +55 °C, 10–93% RH
Weight: 0.92 kg without HDD
Power Consumption: Under 10 W without HDD
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Video Input: 8 IP channels (Dahua and ONVIF cameras)
Brand: Dahua
USB: 2 × USB 2.0
Incoming Bandwidth: 256 Mbps (180 Mbps with AI on)
Recording Resolution: Up to 16MP
Display Output: HDMI up to 4K, VGA up to 1080p
Network Interface: 1 × RJ45 Gigabit
Smart Search: AI search by person and vehicle; Quick Pick with select Dahua cameras; face search
Warranty: 3 years
Product Type: PoE Network Video Recorder
Model: DHI-NVR4108HS-8P-AI/ANZ
HDD Bays: 1 SATA
PoE Ports: 8 × 10/100, IEEE 802.3af/at
PoE Budget: 25.5 W per port, 78 W total
Max HDD Capacity: 20TB
Hard Drive: Optional 2, 4, 6, 8, 10, 12 or 14TB fitted (standard: no drive)
Playback Decoding: 2 × 16MP, 4 × 8MP, 6 × 5MP or 8 × 4MP @30
