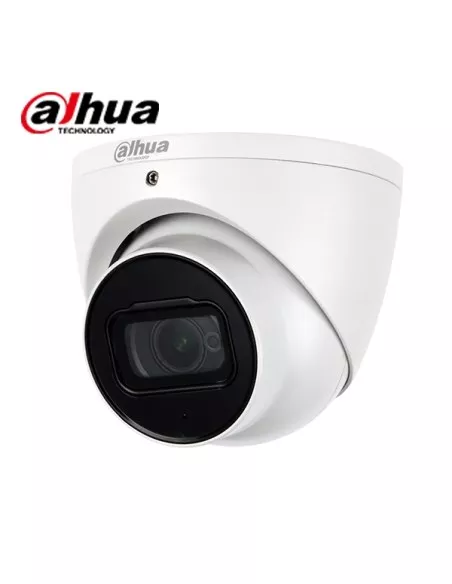

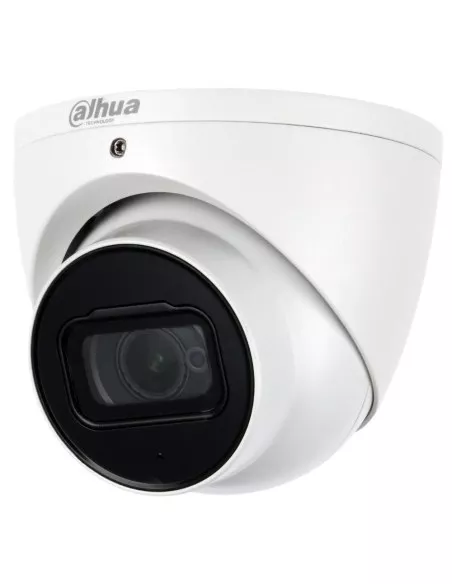

Dahua 4MP Turret Fixed 2.8mm WizSense Starlight SMD 4.0 Dome Camera
DH-IPC-HDW3466EMP-S-AUS
The Dahua DH-IPC-HDW3466EMP-S-AUS Security Camera is a Lite series fixed lens turret with a 30m infrared range and a built-in mic. It supports motion, intrusion and tripwire detection.
Starlight technology generates clear colour images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments. With advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.
Features:
Records up to 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
2.8mm Fixed lens
Outputs 4MP (2560 × 1440)@25/30 fps, Max. supports 4MP (2688 × 1520) @ 20 fps
Supports Starlight technology, generates clear images in near-complete darkness.
Supports PoE "Power-Over-Ethernet" installations.
Built-In Mic
Intelligent Detection: Intrusion, tripwire and motion (Up to 4 areas)
Supports 30m Smart Infrared Range
120 dB Wide Dynamic Range WDR. 3D Digital Noise Reduction 3D DNR.
Day/Night Infrared Cut Removal ICR. Auto White Balance AWB. Automatic Gain Control AGC. Backlight Compensation BLC. Highlight Compensation HLC. Region of Interest ROI.
Supports MicroSD Card Storage up to 256 Gigabytes.
Resilient "Weather-Proof" Ingress Protection Rating (IP67).
Metal Housing
3 Years Back-to-Base Manufacturer Warranty!
Functions:
Smart (H.265+ & H.264+)
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission. Wide dynamic range (WDR) Dahua adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back- light environment, bright region and dark region with strong light source, you can also get clear images.
Starlight
Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee a good image effect.
Intelligent Video Analysis (IVS)
With an advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.
Protection (IP67, wide voltage) IP67:
The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to the outdoor environment with unstable voltage.
Tech Specs:
|
Camera
|
|
Image Sensor
|
1/3” 4Megapixel progressive CMOS
|
|
Max. Resolution
|
2688 (H) × 1520 (V)
|
|
ROM
|
128 MB
|
|
RAM
|
128 MB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100000 s
|
|
Min. Illumination
|
0.008 Lux @ F1.6
|
|
S/N Ratio
|
>56 dB
|
|
Illumination Distance
|
30 m
|
|
Illuminator On/Off Control
|
Auto/Manual
|
|
Illuminator Number
|
2 (IR LED)
|
|
Pan/Tilt/Rotation Range
|
Horizonal: 0°–360°
Vertical: 0°–78°
Rotation: 0°–360°
|
|
Lens
|
|
Lens Type
|
Fixed-focal
|
|
Mount Type
|
M12
|
|
Focal Length
|
2.8 mm
3.6 mm
|
|
Max. Aperture
|
F1.6
F1.6
|
|
Field of View
|
2.8 mm:
Horizonal 102.0° × Vertical 55.0° × Diagonal 121.0°
3.6 mm:
Horizonal 84.0° × Vertical 45.0° × Diagonal 100.0°
|
|
Iris Type
|
Fixed
|
|
Close Focus Distance
|
2.8 mm: 0.9 m
3.6 mm: 1.6 m
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8 mm
|
56 m
|
22.4 m
|
11.2 m
|
5.6 m
|
|
3.6 mm
|
80 m
|
32.0 m
|
16.0 m
|
8.0 m
|
|
Smart event
|
|
IVS
|
Tripwire; intrusion
|
|
Video
|
|
Video Compression
|
H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
|
|
Smart Codec
|
Smart H.265+/ Smart H.264+
|
|
Video Frame Rate
|
Main stream:
2688 × 1520 (1 fps-20 fps)
2560 × 1440 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)
|
|
Stream Capability
|
2 streams
|
|
Resolution
|
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
120 dB
|
|
White Balance
|
Auto/natural/street lamp/outdoor/manual/regional custom
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
3D NR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Region of Interest(RoI)
|
Yes (4 areas)
|
|
Smart Illumination
|
Yes
|
|
Image Rotation
|
0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
4 areas
|
|
Audio
|
|
Built-in MIC
|
Yes
|
|
Audio Compression
|
G.711A; G.711Mu; G.726
|
|
Alarm
|
|
Alarm Event
|
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception
|
|
Network
|
|
Network
|
RJ-45 (10/100 Base-T)
|
|
SDK and API
|
Yes
|
|
Cyber Security
|
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
|
|
Protocol
|
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
|
|
Interoperability
|
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
|
|
User/Host
|
20
|
|
Storage
|
FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
|
|
Browser
|
IE
Chrome
Firefox
|
|
Management Software
|
Smart PSS; DSS; DMSS
|
|
Mobile Phone
|
IOS; Android
|
|
Certification
|
|
Certifications
|
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
|
Power
|
|
Power Supply
|
12V DC/PoE (802.3af)
|
|
Power Consumption
|
< 6.6W
|
|
Environment
|
|
Operating Conditions
|
-40°C to +60°C (-40°F to +140°F)/less than ≤ 95%
|
|
Storage Temperature
|
-40°C to +60°C (-40°F to +140°F)
|
|
Protection
|
IP67
|
|
Structure
|
|
Casing
|
Metal
|
|
Dimensions
|
99.1 mm × Φ121.9 mm (3.9" × Φ4.8")
|
|
Net Weight
|
0.48 kg (1.1 lb)
|
|
Gross Weight
|
0.65 kg (1.4 lb)
|
