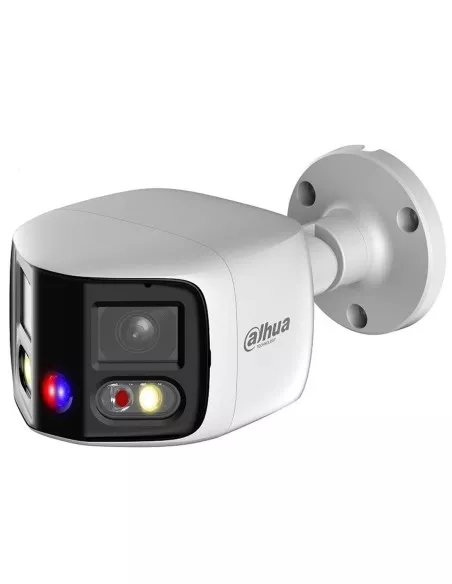

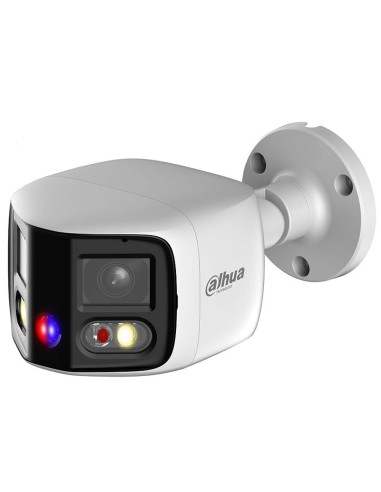

    Dahua DH-IPC-PFW3849S-A180-AS-PV-ANZ white TiOC Duo bullet, angled front view with warm lights and red and blue lights

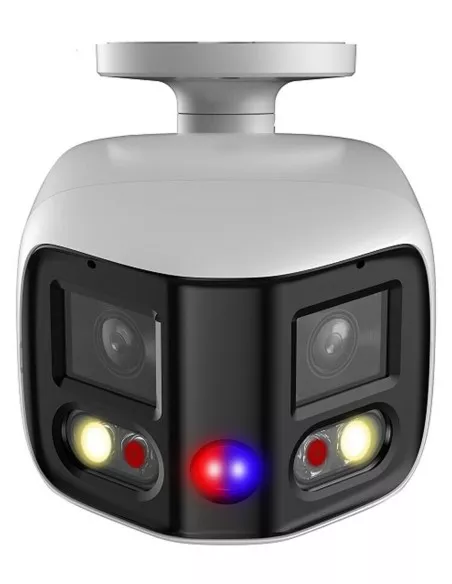

    Dahua DH-IPC-PFW3849S-A180-AS-PV-ANZ white bullet front view, two 2.8 mm lenses side by side
    Dahua DH-IPC-PFW3849S-A180-AS-PV-ANZ white bullet side view showing the wall bracket
    DH-IPC-PFW3849S-A180-AS-PV dimensions drawing, 183.1 by 99.0 by 78.0 mm
    1 / 4

    Dahua 2x4MP TiOC Duo Splicing Fixed-focal Bullet WizSense Network Camera - DH-IPC-PFW3849S-A180-AS-PV-ANZ

    SKU DH-IPC-PFW3849S-A180-AS-PV-ANZ In Stock - Ready to Ship
    $327.50 inc GST

    Dahua DH-IPC-PFW3849S-A180-AS-PV-ANZ: a white TiOC Duo bullet that splices two 4 MP lenses into one 180° image, with warm light, SMD 4.0, two-way audio and red-and-blue deterrence.

    • ✓180° × 86° view, 4096 × 1860 at 20 fps
    • ✓IR to 25 m, warm light to 20 m
    • ✓SMD 4.0, human and vehicle tripwire and intrusion
    • ✓Red and blue lights, siren and two-way talk
    • ✓IP67 metal bullet, PoE 802.3af or 12 VDC
    • ✓microSD up to 512 GB



    Description

    Dahua DH-IPC-PFW3849S-A180-AS-PV-ANZ white TiOC Duo bullet, two lenses with warm lights and red and blue deterrence lights
    Dahua · WizSense 3 · TiOC Duo

    180° from one bullet.
    Two 4 MP lenses, one stitched view.

    The DH-IPC-PFW3849S-A180-AS-PV-ANZ is a white Dahua WizSense 3 TiOC bullet that splices two 2.8 mm lenses into one 180° image of up to 4096 × 1860, with IR and warm light, two-way audio and red-and-blue deterrence lights.

    In one sentence: the DH-IPC-PFW3849S-A180-AS-PV-ANZ is a Dahua WizSense 3 TiOC bullet that splices two 4 MP lenses into one 180° image (4096 × 1860), with 25 m IR, 20 m warm light, SMD 4.0, two-way audio, siren and light deterrence and 802.3af PoE.

    Camera only. Recorder and cabling are separate.

    This listing is one camera. It needs a PoE port for power and somewhere to store the footage.

    In the box
    • DH-IPC-PFW3849S-A180-AS-PV-ANZ bullet camera (white)
    You also need
    • A PoE NVR, or an 802.3af PoE switch (allow 10.3 W per camera)
    • Cat5e or Cat6 cable to the camera
    • A recorder, NAS or microSD card (up to 512 GB) for the footage
    • Optional: Dahua PFA130-E junction box to cover the cable joins

    One camera instead of two.

    Two 1/2.7" sensors behind 2.8 mm F1.4 lenses are spliced into one picture 180° across and 86° high. A driveway, shopfront or yard that would usually need two cameras is covered from one mount, on one cable.

    DH-IPC-PFW3849S-A180-AS-PV-ANZ front view, two 2.8 mm lenses side by side, white housing

    Front

    Two lenses. One 180° image.

    Each 2.8 mm F1.4 lens covers half of the scene, and the camera splices them into one 4096 × 1860 image at up to 20 fps, 180° across and 86° high. DORI distances: detect 50.6 m, observe 20.2 m, recognise 10.1 m, identify 5.1 m.

    DH-IPC-PFW3849S-A180-AS-PV-ANZ close-up of the warm lights, IR LEDs and the red and blue deterrence light

    Lights and deterrence

    IR, warm light and red-and-blue warning lights.

    Two IR LEDs reach 25 m and two warm lights reach 20 m. With Smart Dual Light the IR runs at night, and when a person or vehicle walks in the warm light comes on for a colour recording, then goes off again. The red and blue lights and the built-in speaker (110 dB at 10 cm) warn intruders off.

    DH-IPC-PFW3849S-A180-AS-PV-ANZ side view of the metal bullet housing

    Housing

    Metal, IP67, −40 °C to 60 °C.

    Metal bullet, 183.1 × 99.0 × 78.0 mm and 695 g. Pan 0–360°, tilt 0–77° and rotate 0–360° to set the view level. Wide-voltage 12 VDC input (±30%) or 802.3af PoE.

    How it goes in

    From cable to first alert.

    01

    Run one cable

    Cat5e or Cat6 from the camera to a PoE NVR or an 802.3af switch. Allow up to 10.3 W per camera. 12 VDC also works.

    02

    Fix it in place

    A Ø70.1 mm bracket base with Ø4.5 mm screw holes. Fix it to a wall, or use the PFA130-E junction box or PFA157 pole mount. Tilt and rotate until the 180° view sits level.

    03

    Add it to the recorder

    Set the password in a browser or DMSS, then add it to a Dahua NVR, Smart PSS Lite or DSS. It also supports ONVIF Profile S, G and T.

    04

    Set rules and deterrence

    Draw tripwire or intrusion zones, tick human, vehicle or both, then choose whether the lights or the speaker go off. One-tap disarming turns the alerts off when you are home.

    Pair it with

    What this camera does not include

    Recorder

    A Dahua AI NVR

    Records the camera on one cable each. An AI NVR adds Quick Pick to find people and vehicles in SMD events.

    Power

    An 802.3af PoE switch

    If the recorder has no PoE ports. Allow up to 10.3 W per camera with lights and deterrence running.

    Mounting

    Dahua PFA130-E junction box

    Covers the cable joins behind the bullet. Dahua also lists the PFA157 pole mount.

    Storage

    A microSD card

    Optional, up to 512 GB, for recording in the camera or as a backup when the network drops.

    Where it is used

    Where a 180° bullet fits.

    Driveways and front yards

    Gate, driveway and front door in one view, with warm light for colour at night.

    Shopfronts

    Footpath, doors and windows from one mount, with lights and a siren to warn after hours.

    Warehouses and yards

    Roller doors and loading areas across a 180° arc, with human and vehicle filtering.

    Car parks

    A row of bays from the building wall, with tripwire and intrusion rules on the entry.

    Farm sheds and gates

    Metal IP67 housing rated −40 °C to 60 °C for exposed sheds and gateways.

    Schools and clubs

    Courtyards, car parks and entries where two cameras would leave a gap in the middle.

    PFW3849S bullet or PDW3849 eyeball

    PFW3849S bullet (this camera)PDW3849 eyeball
    HousingMetal bulletMetal eyeball
    Size183.1 × 99.0 × 78.0 mmØ122 × 135.2 mm
    Net weight695 g990 g
    Power draw on PoE3.8 W basic, 10.3 W max4.95 W basic, 10.85 W max
    Dahua junction boxPFA130-EPFA137
    Image and view4096 × 1860, 180° × 86°4096 × 1860, 180° × 86°
    Lights25 m IR, 20 m warm light25 m IR, 20 m warm light

    Figures from Dahua's DH-IPC-PFW3849S-A180-AS-PV and DH-IPC-PDW3849-A180-AS-PV datasheets. Sensors, lenses, lights, AI, audio and deterrence are the same; the housing, size and power draw differ.

    Common questions

    Is the picture really 180 degrees?

    Yes. Two 2.8 mm lenses are spliced inside the camera into one image 180° across and 86° high, so you get one wide view instead of two separate ones.

    What resolution does it record?

    Up to 4096 × 1860 (8 MP) at 20 fps on the main stream. The sub stream is 1200 × 530 and the third stream is 1920 × 860.

    Is a recorder included?

    No. This listing is the camera only. It records to a Dahua NVR, a NAS, an FTP server or a microSD card of up to 512 GB.

    How is it powered?

    By 802.3af PoE, or 12 VDC (±30%) from a supply bought separately. It draws 3.8 W on PoE at basic load and up to 10.3 W with warm light, deterrence and AI running.

    How far does it see at night?

    The IR reaches 25 m and the warm light 20 m. In colour it works down to 0.005 lux at F1.4, and with the illuminators on it records at 0 lux.

    What does the AI detect?

    SMD 4.0 sorts people and vehicles from other movement. Intrusion and tripwire rules classify human and vehicle, and stay and loitering detection are built in.

    What does the active deterrence do?

    When a rule trips, the red and blue lights flash and the speaker plays an alarm sound or voice. Dahua includes several voices and you can import your own.

    Can I talk through the camera?

    Yes. Built-in dual microphones and a speaker support two-way talk. There is also one RCA audio input and one audio output.

    Can it record without an NVR?

    Yes. It records to a microSD card of up to 512 GB, or to a NAS, FTP or SFTP server.

    Will it work with a non-Dahua recorder?

    It supports ONVIF Profile S, G and T, so most ONVIF recorders can record it. Quick Pick needs a Dahua AI NVR, and Dahua lists Smart PSS Lite, DSS and DMSS as its software.

    Can it be mounted outside?

    Yes. It is IP67 with a metal housing and runs from −40 °C to 60 °C at up to 95% humidity.

    What is the difference from the DH-IPC-PDW3849-A180-AS-PV-ANZ?

    Only the housing. The PDW3849 is the eyeball version, Ø122 × 135.2 mm and 990 g, drawing up to 10.85 W on PoE. The image, lenses, lights, AI and audio are the same.

    Supported by InFront Technologies.

    Help choosing the recorder, PoE switch or mount: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

    Installation and safety

    Low-voltage camera. PoE (802.3af, up to 10.3 W) or 12 VDC (up to 9 W). There is no mains connection on the camera. A new power point for a 12 V supply needs a licensed electrician.

    Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

    Audio and sirens. Recording conversations is covered by state and territory surveillance laws. Check them, and use signage, before you switch the microphones on. Point the siren and lights so they do not disturb neighbours.

    What it does not do. No optical zoom, no Wi-Fi, and the network port is 10/100 Mbps. It is not a recorder on its own beyond the microSD slot.

    Figures. From Dahua's DH-IPC-PFW3849S-A180-AS-PV datasheet.

    Net Weight
    695 g (1.53 lb)
    Power Supply
    12 VDC (±30%); PoE (802.3af)
    Alarm Output
    1 channel out: wet contact, 300 mA 12 VDC
    Operating temperature
    −40 °C to +60 °C (−40 °F to +140 °F)
    Power Consumption
    Basic: 3.4 W (12 VDC); 3.8 W (PoE); Max: 9 W (12 VDC); 10.3 W (PoE)
    Video Compression
    H.265; H.264; H.264H; H.264B; MJPEG
    Network Protocol
    IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
    Resolution
    8M (4096 × 1860); 6M (3632 × 1632); 4M (3040 × 1368); 1200 × 530; 1920 × 860; 960 × 432; D1 (704 × 576/704 × 480)
    Audio Input
    1 channel (RCA port)
    Audio Output
    1 channel (RCA port)
    Certifications
    CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
    Storage
    FTP; SFTP; Micro SD card (support max. 512 GB); NAS
    Interoperability
    ONVIF (Profile S/Profile G/Profile T); CGI
    Image Sensor
    Dual 1/2.7" CMOS
    Alarm Input
    1 channel in: wet contact, 5 mA 3–5 VDC
    Video Frame Rate
    Main stream: 4096 × 1860@(1–20 fps); Sub stream: 1200 × 530@(1–20 fps); Third stream: 1920 × 860@(1–20 fps)
    Network Port
    RJ-45 (10/100 Base-T)
    Max. Resolution
    4096 (H) × 1860 (V)
    Field of View
    Horizontal: 180°; Vertical: 86°
    Min. Illumination
    0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on)
    Built-in Mic
    Yes, built-in dual Mic
    Security
    Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
    Operating Humidity
    ≤95%
    Storage Temperature
    −40 °C to +60 °C (−40 °F to +140 °F)
    Day/Night
    Auto(ICR)/Color/B/W
    Gain Control
    Auto
    Lens Type
    Fixed-focal
    Noise Reduction
    3D NR
    Bit Rate Control
    CBR/VBR
    S/N Ratio
    >56 dB
    DORI Distance
    Detect: 50.6 m (166.01 ft); Observe: 20.2 m (66.27 ft); Recognize: 10.1 m (33.14 ft); Identify: 5.1 m (16.73 ft)
    Product Dimensions
    183.1 mm × 99.0 mm × 78.0 mm (7.20" × 3.90" × 3.07") (L × W × H)
    WDR
    120 dB
    Focal Length
    2.8 mm
    Iris Control
    Fixed
    Close Focus Distance
    0.8 m (2.62 ft)
    Lens Mount
    M12
    Illuminator On/Off Control
    Auto; Manual
    Video Bit Rate
    H.264: 6 kbps–16384 kbps; H.265: 6 kbps–16384 kbps
    Built-in Speaker
    Yes, built-in speaker; Max power consumption: 2 W; max sound level at 10 cm: 110 dB
    ROM
    128 MB
    Scanning System
    Progressive
    Illumination Distance
    Up to 25 m (82.02 ft) (IR LED); Up to 20 m (65.62 ft) (Warm light)
    Illuminator Number
    2 (IR LED); 2 (Warm light)
    IVS (Perimeter Protection)
    Intrusion, tripwire, stay detection, loitering detection
    Quick Pick
    With AI NVR, quickly pick up the human/vehicle targets from SMD events
    Smart Search
    Work with Smart NVR to perform intelligent search, event extraction and merging
    AI Coding
    AI H.265; AI H.264
    BLC
    Yes
    HLC
    Yes
    Alarm Event
    No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; stay detection; loitering detection; scene changing; audio detection
    User/Host
    20 (Total bandwidth: 64 M)
    Browser
    IE: IE 8 and later; Chrome; Firefox
    Management Software
    Smart PSS Lite; DSS; DMSS
    Mobile Client
    iOS; Android
    Gross Weight
    870 g (1.92 lb)
    SMD
    SMD 4.0
    Angle Adjustment
    Pan: 0°–360°; Tilt: 0°–77°; Rotation: 0°–360°
    EPTZ
    Enlarge and track the targets of intelligent alarms
