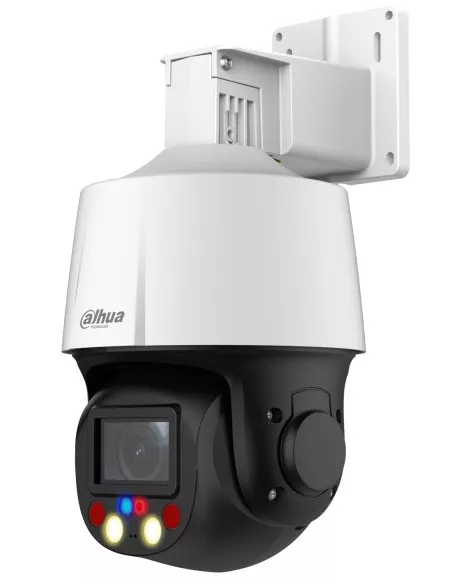

    Dahua 4MP 5x Zoom IR PTZ TIOC IP Network Camera - DH-SD3E405DB-GNY-A-PV1

    SKU DH-SD3E405DB-GNY-A-PV1 In Stock - Ready to Ship
    $342.50 inc GST

    Dahua DH-SD3E405DB-GNY-A-PV1: a compact 4MP WizSense PTZ camera with a 5× zoom, IR and warm light, red and blue warning lights, a siren and two-way talk.

    • ✓4MP 2560 × 1440, 2.7–13.5 mm 5× optical zoom
    • ✓Pan 355°, tilt −15° to 90°, 300 presets, auto tracking
    • ✓IR up to 50 m, warm light up to 30 m, Smart Dual Light
    • ✓Red and blue lights, siren, built-in mic and speaker
    • ✓SMD 3.0 and perimeter protection for humans and vehicles
    • ✓IP66, PoE+ (802.3at) or 12 V DC, up to 15 W



    Description

    Dahua DH-SD3E405DB-GNY-A-PV1 4MP 5x PTZ camera on its wall bracket, white housing and black camera head
    Dahua · WizSense · TiOC PTZ

    Pan, tilt, zoom and talk back.
    4MP, 5× zoom, red and blue lights.

    The DH-SD3E405DB-GNY-A-PV1 is a compact Dahua PTZ camera that turns 355° and tilts −15° to 90°. A 2.7–13.5 mm 5× zoom, IR and warm light, a siren and red and blue lights, and a built-in mic and speaker.

    In one sentence: the DH-SD3E405DB-GNY-A-PV1 is a Dahua 4MP WizSense PTZ camera with a 5× optical zoom, 50 m IR and 30 m warm light, red and blue warning lights, two-way talk, auto tracking, IP66 and PoE+ power.

    Camera only. It needs a PoE+ port, not plain PoE.

    Dahua specifies PoE+ (802.3at) or 12 V DC 2 A, with up to 15 W at full load. A recorder and cable are separate. Wall and ceiling mounting need nothing extra; a pole needs a junction box and pole bracket.

    In the box
    • DH-SD3E405DB-GNY-A-PV1 PTZ camera with its wall bracket
    You also need
    • A PoE+ (802.3at) NVR port or switch, or a 12 V DC 2 A supply
    • Cat5e or Cat6 cable to the camera
    • A recorder, NAS or microSD card (up to 512 GB) for the footage

    One camera that follows the action.

    A fixed camera sees one view. This one turns to a preset, follows a person or vehicle with Auto Tracking Lite, and zooms 5× for a face or a number plate. When someone crosses a line it flashes red and blue, sounds a siren, and lets you speak to them from the DMSS app.

    DH-SD3E405DB-GNY-A-PV1 camera head, 5x zoom lens with IR, warm light and red and blue warning lights below

    Lens and lights

    5× zoom, IR and warm light.

    2.7–13.5 mm, F1.6–F3.0, from 94.9° across down to 30.1°. Two IR lights reach 50 m and two warm lights 30 m. Smart Dual Light runs on IR and switches to warm light for full-colour video when a person or vehicle appears.

    DH-SD3E405DB-GNY-A-PV1 camera head from the side, red and blue warning lights and warm lights

    Active deterrence

    Red and blue lights and a siren.

    The small red and blue lights flash for 5 to 30 seconds. Choose from 11 built-in sounds or load up to 10 of your own, played 1 to 10 times. The built-in mic and speaker give two-way talk through the app.

    DH-SD3E405DB-GNY-A-PV1 wall bracket with screw holes, fitted to the top of the PTZ housing

    Mounting

    Wall bracket on the camera.

    Dahua lists wall and ceiling mounting with no extra accessory. For a pole, add the PFA121 junction box and PFA152-E pole bracket. Rated IP66 with 6000 V TVS surge protection, −30 °C to 60 °C.

    How it goes in

    From cable to first patrol.

    01

    Run one cable

    Cat5e or Cat6 to a PoE+ (802.3at) port on the NVR or a switch. Allow 15 W. A 12 V DC 2 A supply also works.

    02

    Fix the bracket

    Screw the wall bracket to a solid wall or ceiling, or fit the PFA121 junction box and PFA152-E bracket on a pole.

    03

    Initialise and add it

    Set the admin password in a browser or Dahua's ConfigTool, then add it to the Dahua NVR, DMSS app or DSS Pro.

    04

    Set presets and rules

    Save presets and a tour, draw tripwire or intrusion zones for humans and vehicles, and link the lights, siren and tracking.

    Pair it with

    What this camera does not include

    Recorder

    A Dahua WizSense NVR

    Records the camera and its AI events, and powers it from a PoE+ port on one cable.

    Power

    A PoE+ switch or 12 V 2 A supply

    Allow up to 15 W. Dahua lists a 12 V DC 2 A adapter as the optional supply.

    Pole mounting

    PFA121 box and PFA152-E bracket

    Dahua's listed pair for mounting this PTZ on a vertical pole.

    Storage

    A microSD card

    Optional, up to 512 GB, for recording in the camera or as a backup when the network drops.

    Where it is used

    Where a compact TiOC PTZ fits.

    Homes and acreage

    One camera that pans across the driveway, yard and gate, and talks to visitors.

    Shops and car yards

    Patrol the lot after hours and flash red and blue at anyone who crosses the line.

    Warehouses and yards

    Follow a vehicle from the gate to the dock with auto tracking.

    Farms and sheds

    Sweep a shed and machinery yard, with IR to 50 m at night.

    Construction sites

    Watch the compound and warn people off with the siren and lights.

    Strata and car parks

    Cover entries and car parks from one corner instead of several fixed cameras.

    DH-SD3E405DB-GNY-A-PV1 or the 2MP DH-SD3E205DB-GNY-A-PV1

    DH-SD3E405DB-GNY-A-PV1 (this camera)DH-SD3E205DB-GNY-A-PV1
    Resolution4 MP, 2560 × 14402 MP, 1920 × 1080
    Colour low light0.005 lux at F1.60.05 lux at F1.6
    Field of view (H)94.9°–30.1°99.6°–31.5°
    DORI identify27 m18.6 m
    DORI detect270 m186.2 m
    Zoom, IR, warm light5×, 50 m, 30 m5×, 50 m, 30 m
    Deterrence and two-way talkYesYes

    Both from Dahua's datasheets of 4 November 2025. The 4MP model sees more detail at the same distance and gives colour in a tenth of the light.

    Common questions

    Is a recorder included?

    No. This listing is the camera only. It records to a Dahua NVR, a NAS or a microSD card of up to 512 GB.

    Will a normal PoE port power it?

    Dahua specifies PoE+ (802.3at). It draws 4.5 W basic and up to 15 W with the lights, motors, speaker and heater running, which is more than plain 802.3af can be relied on for.

    Can it run from 12 V instead?

    Yes. Dahua rates it 12 V DC, 2 A ±10%, and lists a 12 V 2 A adapter as the optional supply.

    How far does it see at night?

    IR reaches up to 50 m and the warm light up to 30 m. With Smart Dual Light it stays on IR and switches to warm light for colour when a person or vehicle appears.

    Does it follow people automatically?

    Yes. Auto Tracking Lite and auto patrol turn the camera to follow a target that triggers a perimeter rule, then it returns to its presets.

    Can I talk through it?

    Yes. It has a built-in microphone and speaker for two-way talk from the DMSS app. There is also one audio line in and one line out, which take the place of the built-in mic and speaker when used.

    What warning lights and sounds does it have?

    Red and blue lights flash for 5 to 30 seconds. It has 11 built-in sounds and takes up to 10 custom ones, played 1 to 10 times.

    How do I mount it on a pole?

    Dahua lists the PFA121 junction box with the PFA152-E pole bracket. Wall and ceiling mounting need no extra accessory.

    Will it work with a non-Dahua recorder?

    It supports ONVIF Profile S, G and T, so most ONVIF recorders can record it. PTZ control and the AI events work best on a Dahua WizSense NVR.

    Can it go outside?

    Yes. It is rated IP66 with 6000 V TVS surge protection, and runs from −30 °C to +60 °C at up to 95% humidity.

    How many presets does it hold?

    300 presets and 8 tours of up to 32 presets each. It remembers its position after a power cut and can return to a preset or tour when idle.

    Who can install the cable?

    Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Plugging a patch lead into an existing outlet does not.

    Supported by InFront Technologies.

    Help choosing the recorder, PoE+ switch or pole mount: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

    Installation and safety

    Low-voltage camera. PoE+ (802.3at) or 12 V DC 2 A, up to 15 W. There is no mains connection on the camera. A new power point for a 12 V supply needs a licensed electrician.

    Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

    Audio. Recording conversations is covered by state and territory surveillance laws. Check them, and use signage, before you switch the microphone on.

    Lights and siren. Point the red and blue lights and siren at your own property, and set schedules so they do not disturb neighbours.

    What it does not do. No Wi-Fi and no cellular. Pan stops at 355°, not continuous 360°.

    Figures. From Dahua's DH-SD3E405DB-GNY-A-PV1 and DH-SD3E205DB-GNY-A-PV1 datasheets, 4 November 2025 (Rev 002).

    Net Weight
    1.5 kg (3.31 lb)
    Power Supply
    12 VDC, 2 A 10%, PoE+ (802.3at)
    Operating temperature
    30 C to +60 C (22 F to +140 F)
    Power Consumption
    Basic: 4.5 W, Max: 15 W (illuminator + PTZ + speaker + heating glass)
    Video Compression
    H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+
    Network Protocol
    FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP
    Resolution
    4M (2560 1440); 3M (2304 1296); 1080p (1920 1080); 1.3M (1280 960); 720p(1280 720); D1 (704 576); VGA (640 480); CIF (352 288)
    Audio Input
    1 channel (LINE IN, bare wire, built-in mic; mutually exclusive)
    Audio Output
    1 channel (LINE OUT, bare wire; built-in speaker; mutually exclusive)
    Motion Detection
    Yes
    Certifications
    CE: EN55032/EN55024/EN50130-4, FCC: Part15 subpartB, ANSI C63.4-2014
    Storage
    FTP/SFTP; Micro SD card (512 GB); NAS
    Interoperability
    CGI; SDK; ONVIF (Profile S & G & T); P2P
    Image Sensor
    1/2.8 CMOS
    Video Frame Rate
    Main stream: 4M/3M/1080p/1.3M/720p @(125/30 fps), Sub stream 1: D1/CIF/VGA @(125/30 fps), Sub stream 2: 720p @(125/30 fps)
    Network Port
    Max. Resolution
    2560 (H) 1440 (V)
    Field of View
    H: 94.930.1; V: 5117.1; D: 112.334.6
    Min. Illumination
    Color: 0.005 [email protected], B/W: 0.0005 [email protected], 0 lux (IR light on)
    Protection
    IP66, TVS 6000 V lightning/surge/voltage transient protection
    Operating Humidity
    Day/Night
    Auto (ICR)/Color/B/W
    Gain Control
    Auto; manual
    Noise Reduction
    2D NR; 3D NR
    White Balance
    Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
    Pan/Tilt Range
    Pan: 0 to 355, Tilt: 15 to +90
    Bit Rate Control
    S/N Ratio
    55 dB
    Streaming Method
    Unicast/Multicast
    DORI Distance
    Detect: 270 m (885.83 ft), Observe: 106.6 m (349.74 ft), Recognize: 54 m (177.17 ft), Identify: 27 m (88.58 ft)
    Face Detection
    Supports face detection, snapshot, face enhancement; Face cutout options: face, one-inch photo; Real-time capturing or quality-first capturing
    Digital Zoom
    16
    Product Dimensions
    142.6 mm 140 mm 236.1 mm (5.61 5.51 9.29)
    WDR
    Focal Length
    2.7 mm13.5 mm
    Iris Control
    Active Deterrence
    Light Warning: Red/Blue light (5 s30 s, frequency high/medium/low), Sound Warning: 11 preset alarm sounds + up to 10 custom sounds, repeated 110 times
    Close Focus Distance
    1.5 m (4.92 ft)
    Illuminator On/Off Control
    Zoom Prio; Manual; Auto; Off
    Video Bit Rate
    H.264: 96 kbps14848 kbps, H.265: 38 kbps8960 kbps
    Audio Compression
    G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM
    Alarm Linkage
    Capture; recording; send email; preset; alarm digital input; audio; warning light
    ROM
    RAM
    512 MB
    Scanning System
    Electronic Shutter Speed
    1/1 s1/30,000 s
    Illumination Distance
    50 m (164.04 ft) (IR), 30 m (98.43 ft) (Warm light)
    Illuminator Number
    2 (IR), 2 (Warm light), 1 (Red light), 1 (Blue light)
    Max. Aperture
    F1.6F3.0
    IVS (Perimeter Protection)
    Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking
    BLC
    HLC
    Region of Interest (RoI)
    Yes
    Defog
    Electronic
    Image Rotation
    180
    Alarm Event
    Motion/tampering detection; audio detection; network disconnection; IP conflict; memory card state detection; memory space detection
    User/Host
    Browser
    IE 9 and later, Chrome 41 and later, Firefox 50 and later, Safari 10 and later
    Management Software
    Mobile Client
    Gross Weight
    2.1 kg (4.63 lb)
    Pixel
    4 MP
    Optical Zoom
    5
    Focus Control
    Auto; semi-auto; manual
    Manual Control Speed
    Pan: 0.1/s36/s, Tilt: 0.1/s25.8/s
    Preset Speed
    Pan: 35.7/s; Tilt: 27.1/s
    Preset
    300
    Power-off Memory
    Yes
    Idle Motion
    Preset
    Auto Tracking Lite
    Yes
    SMD
    Yes
    Streaming Capability
    3 streams
    Image Stabilization
    Electronic (EIS)
    Alarm I/O
    1/1
    Audio I/O
    1/1
    Note
    The precision of PTZ presets may vary across series. For high-precision scenes, consult your local sales rep for proper model selection.
    Camera
    Image Sensor1/2.8" CMOS
    Pixel4 MP
    Max. Resolution2560 (H) × 1440 (V)
    ROM128 MB
    RAM512 MB
    Electronic Shutter Speed1/1 s–1/30,000 s
    Scanning SystemProgressive
    Min. IlluminationColor: 0.005 [email protected]
    B/W: 0.0005 [email protected]
    0 lux (IR light on)
    Illumination Distance50 m (164.04 ft) (IR)
    30 m (98.43 ft) (Warm light)
    Illuminator On/Off ControlZoom Prio; Manual; Auto; Off
    Illuminator Number2 (IR), 2 (Warm light), 1 (Red light), 1 (Blue light)
    Lens
    Focal Length2.7 mm–13.5 mm
    Max. ApertureF1.6–F3.0
    Field of ViewH: 94.9°–30.1°; V: 51°–17.1°; D: 112.3°–34.6°
    Optical Zoom5×
    Focus ControlAuto; semi-auto; manual
    Close Focus Distance1.5 m (4.92 ft)
    Iris ControlFixed
    DORI DistanceDetect: 270 m (885.83 ft)
    Observe: 106.6 m (349.74 ft)
    Recognize: 54 m (177.17 ft)
    Identify: 27 m (88.58 ft)

    DORI (Detect, Observe, Recognize, Identify) is defined by EN-62676-4 for evaluating how well a viewer can distinguish persons/objects. These distances do not account for intelligent functions; see manuals/design tools for that.
    PTZ
    Pan/Tilt RangePan: 0° to 355°, Tilt: –15° to +90°
    Manual Control SpeedPan: 0.1°/s–36°/s, Tilt: 0.1°/s–25.8°/s
    Preset SpeedPan: 35.7°/s; Tilt: 27.1°/s
    Preset300
    Power-off MemoryYes
    Idle MotionPreset
    Intelligence
    IVS (Perimeter Protection)Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object;
    fast moving; parking detection; people gathering;
    vehicle/human alarm classification; linkage tracking
    Face DetectionSupports face detection, snapshot, face enhancement;
    Face cutout options: face, one-inch photo;
    Real-time capturing or quality-first capturing
    Auto Tracking LiteYes
    SMDYes
    Active DeterrenceLight Warning: Red/Blue light (5 s–30 s, frequency high/medium/low)
    Sound Warning: 11 preset alarm sounds + up to 10 custom sounds, repeated 1–10 times
    Video
    Video CompressionH.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+
    Streaming Capability3 streams
    Resolution4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080);
    1.3M (1280 × 960); 720p(1280 × 720); D1 (704 × 576);
    VGA (640 × 480); CIF (352 × 288)
    Video Frame RateMain stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
    Sub stream 1: D1/CIF/VGA @(1–25/30 fps)
    Sub stream 2: 720p @(1–25/30 fps)
    Bit Rate ControlCBR/VBR
    Video Bit RateH.264: 96 kbps–14848 kbps
    H.265: 38 kbps–8960 kbps
    Day/NightAuto (ICR)/Color/B/W
    BLCYes
    WDR120 dB
    HLCYes
    White BalanceAuto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
    Gain ControlAuto; manual
    Noise Reduction2D NR; 3D NR
    Motion DetectionYes
    Region of Interest (RoI)Yes
    Image StabilizationElectronic (EIS)
    DefogElectronic
    Digital Zoom16×
    Image Rotation180°
    S/N Ratio≥55 dB
    Audio
    Audio CompressionG.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM
    Network
    Network PortRJ-45 (10/100 Base-T)
    Network ProtocolFTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS;
    UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP
    InteroperabilityCGI; SDK; ONVIF (Profile S & G & T); P2P
    Streaming MethodUnicast/Multicast
    User/Host20 (total bandwidth: 64 M)
    StorageFTP/SFTP; Micro SD card (512 GB); NAS
    BrowserIE 9 and later
    Chrome 41 and later
    Firefox 50 and later
    Safari 10 and later
    Management SoftwareDMSS; DSS Pro
    Mobile ClientiOS; Android
    Certification
    CertificationsCE: EN55032/EN55024/EN50130-4
    FCC: Part15 subpartB, ANSI C63.4-2014
    Port
    Audio Input1 channel (LINE IN, bare wire, built-in mic; mutually exclusive)
    Audio Output1 channel (LINE OUT, bare wire; built-in speaker; mutually exclusive)
    Alarm LinkageCapture; recording; send email; preset; alarm digital input; audio; warning light
    Alarm EventMotion/tampering detection; audio detection; network disconnection; IP conflict;
    memory card state detection; memory space detection
    Alarm I/O1/1
    Audio I/O1/1
    Power
    Power Supply12 VDC, 2 A ±10%, PoE+ (802.3at)
    Power ConsumptionBasic: 4.5 W
    Max: 15 W (illuminator + PTZ + speaker + heating glass)
    Environment
    Operating Temperature–30 °C to +60 °C (–22 °F to +140 °F)
    Operating Humidity≤95%
    ProtectionIP66, TVS 6000 V lightning/surge/voltage transient protection
    Structure
    Product Dimensions142.6 mm × 140 mm × 236.1 mm (5.61" × 5.51" × 9.29")
    Net Weight1.5 kg (3.31 lb)
    Gross Weight2.1 kg (4.63 lb)
    NoteThe precision of PTZ presets may vary across series. For high-precision scenes, consult your local sales rep for proper model selection.

    Video

    Click on a thumbnail to load the video

    •  video
    •  video
    INFRONTTECH Promotional BannerINFRONTTECH Promotional BannerINFRONTTECH Promotional Banner

    Need help choosing?

    Tell us about your property and we'll recommend the right cameras and recorder.

    07 5609 4910

    Sydney 02 8814 6008
    [email protected]

    Mon–Fri, 9am–5pm AEST

    Saved to your wishlistFind it any time in your account.View list
