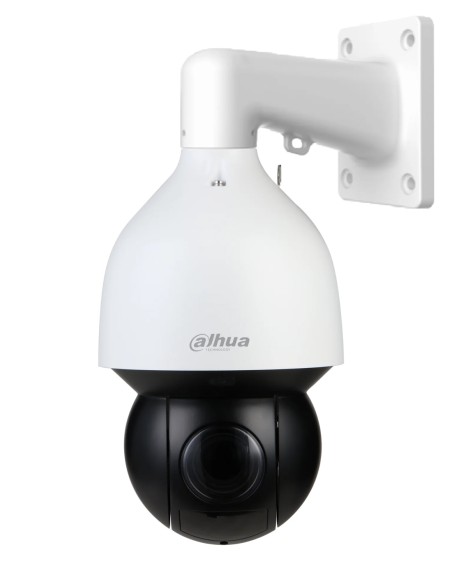

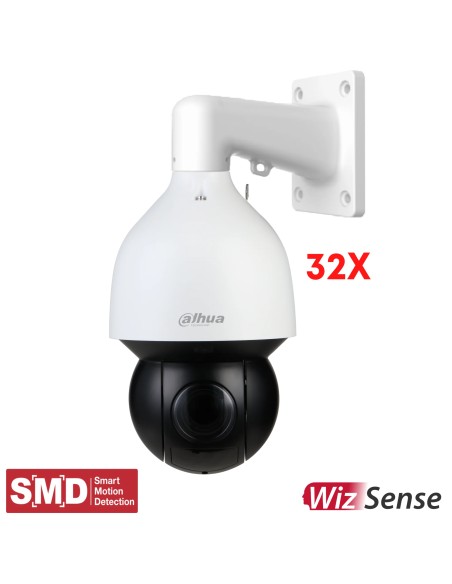

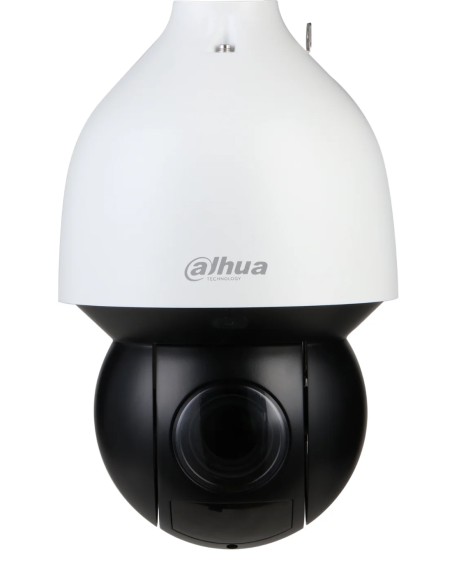

Dahua DH-SD5A432GB-HNR: a 4MP Starlight WizSense PTZ camera with 32x optical zoom, IR to 150 m and Auto Tracking 3.0, in an IP67, IK10 housing.
- ✓4MP 1/2.8" STARVIS sensor, 25/30 fps
- ✓32x optical zoom, 4.8–154 mm
- ✓IR up to 150 m, colour to 0.005 lux
- ✓Auto Tracking 3.0, SMD 4.0, perimeter protection
- ✓PoE+ or 24 V DC adapter (included)
- ✓IP67, IK10, wall bracket included
Description

32x zoom, 150 m of infrared.
4MP Starlight PTZ with auto tracking.
This is the DH-SD5A432GB-HNR: an outdoor pan-tilt-zoom camera with a 4.8–154 mm lens, IR to 150 m and WizSense AI that follows people and vehicles across a big site.
In one sentence: the DH-SD5A432GB-HNR is a Dahua WizSense 4MP outdoor PTZ camera with a 1/2.8" STARVIS sensor, 32x optical zoom, IR up to 150 m, Auto Tracking 3.0, SMD 4.0, PoE+ and an IP67, IK10 housing.
Camera, wall bracket and power adapter. Recorder and cabling are separate.
Dahua includes the PFB305W wall mount bracket and a 24 V DC 2.5 A power adapter. Pole, corner and ceiling mounting need the matching Dahua adaptor, sold separately.
- DH-SD5A432GB-HNR PTZ camera
- PFB305W wall mount bracket
- 24 V DC 2.5 A power adapter
- Cat5e or Cat6 cable to the camera
- An 802.3at (PoE+) switch or NVR port, or a power point for the included adapter
- A Dahua AI NVR or other ONVIF recorder, or a microSD card up to 512 GB
- PFA150 for a pole or PFA151 for a corner, if the site needs one
One camera for the whole yard.
At full wide angle the lens covers 55.8° across. Zoom in 32 times and Dahua's DORI figures put identification at 212 m. Four IR lights reach 150 m in the dark, and Starlight keeps colour down to 0.005 lux. When a tripwire or intrusion rule fires, Auto Tracking 3.0 pans, tilts and zooms to keep the target in frame.

Mounting
Wall bracket in the box.
The PFB305W wall bracket is included. Add the PFA150 for a pole, the PFA151 for a corner, or the PFA111 adaptor with a PFB300C or PFB301C bracket for a ceiling. The camera is 332 mm tall, Ø 190 mm and 4.7 kg.

Lens
4.8–154 mm, 32x optical.
F1.6 to F4.0 with auto, semi-auto or manual focus. View across runs from 55.8° wide to 2.4° at full zoom. 16x digital zoom on top, electronic image stabilisation and electronic defog for windy or misty sites.
How it goes in
From bracket to tracking.
01
Fix the bracket
Mount the included PFB305W on a solid wall, or add a pole or corner adaptor. Allow for 4.7 kg plus the bracket.
02
Run the cable
Cat5e or Cat6 to an 802.3at (PoE+) port, or use the included 24 V DC adapter. Up to 22 W with IR, PTZ, heater and fan running.
03
Add it to the recorder
Set the password in a browser or SmartPSS, then add it to a Dahua NVR, DSS or the DMSS app. ONVIF Profile S, G and T recorders also work.
04
Set presets and rules
Save up to 300 presets, draw tripwire or intrusion rules, and turn on auto tracking so the camera follows the target.
At a glance
DH-SD5A432GB-HNR
Show specs
Image sensor
1/2.8" 4MP STARVIS CMOS
Resolution
2560 × 1440 at up to 25/30 fps
Lens
4.8–154 mm, F1.6–F4.0, 32x optical, 16x digital
Field of view
H 55.8°–2.4°; V 31.9°–1.3°
DORI
Detect 2,124 m; observe 839 m; recognise 425 m; identify 212 m
Low light
Colour 0.005 lux, B/W 0.0005 lux at F1.6; 0 lux with IR
IR
Up to 150 m, 4 IR lights, Smart IR
WDR
120 dB, plus BLC, 2D and 3D noise reduction
Pan and tilt
Pan 360° endless; tilt −15° to +90°, auto flip 180°
PTZ speed
Manual pan to 300°/s, tilt to 200°/s; presets pan 400°/s, tilt 300°/s
PTZ functions
300 presets, 8 tours of 32 presets, 5 patterns, 5 scans, power-off memory
AI
Auto Tracking 3.0, SMD 4.0, perimeter protection (tripwire, intrusion, fence climbing, loitering and more), face detection, people counting, auto patrol
Compression
Smart H.265+, H.265, Smart H.264+, H.264, MJPEG on sub stream 1; 3 streams
Audio and alarm
1 audio in, 1 audio out, two-way audio; 2 alarm in, 1 alarm out
Storage
microSD up to 512 GB, FTP, NAS
Network
RJ-45 10/100; ONVIF Profile S, G, T; up to 20 users
Power
24 V DC 2.5 A or PoE+ (802.3at); 13 W basic, 22 W max
Protection
IP67, IK10, TVS 6000 V lightning protection
Operating range
−40 °C to +70 °C, humidity 95% or less
Size and weight
332 mm × Ø 190 mm, 4.7 kg
Software
SmartPSS, DSS, DMSS, Easy4ip, IVSS

331.9 mm tall, Ø 190.4 mm. Units mm (inch). From Dahua's drawing for this model.
Pair it with
What this camera does not include
Recorder
A Dahua AI NVR
Records the camera and makes Quick Pick search of human and vehicle targets available. Any ONVIF Profile S, G or T recorder can also record it.
Power
A PoE+ port
An 802.3at switch or NVR port powers it on one cable. Otherwise use the 24 V DC adapter in the box.
Mounting
Pole, corner or ceiling parts
PFA150 pole mount or PFA151 corner mount with the included wall bracket. PFA111 adaptor with PFB300C or PFB301C for a ceiling.
Storage
A microSD card
Optional, up to 512 GB, for recording in the camera or as a backup when the network drops.
Where it is used
Where a 32x PTZ earns its place.
Car parks
One pole-mounted camera can cover the whole lot and zoom in on a vehicle.
Farms and rural blocks
Sheds, gates and paddocks, with IR to 150 m when there is no lighting.
Warehouses and yards
Follow people and vehicles across loading docks and storage yards.
Building sites
Watch plant and materials across a large, changing site.
Schools and campuses
Ovals, car parks and walkways from one high position.
Marinas and waterfronts
IP67 and −40 °C to +70 °C for exposed outdoor spots.
DH-SD5A432GB-HNR or DH-SDT4E425-4F-GB-A-PV1
| DH-SD5A432GB-HNR (this camera) | DH-SDT4E425-4F-GB-A-PV1 | |
|---|---|---|
| Cameras | One 4MP PTZ | 4MP PTZ plus a fixed 4MP overview camera |
| Optical zoom | 32x, 4.8–154 mm | 25x, 5–125 mm |
| Identify (DORI) | 212 m | 250 m |
| Night lighting | IR up to 150 m | PTZ: IR 100 m, white light 50 m; overview: IR 30 m, white light 30 m |
| Active deterrence | No | Red-blue warning light and sound alarms |
| Protection | IP67, IK10 | IP66 |
| Power | 24 V DC 2.5 A (adapter included) or PoE+, 22 W max | 12 V DC 3 A or PoE+, 25 W max |
Each column comes from Dahua's own datasheet for that model. Dahua has no sibling model on the DH-SD5A432GB-HNR datasheet.
Common questions
How far does the IR reach?
Up to 150 m. The camera has four IR lights with zoom-priority, manual and Smart IR control, and records at 0 lux with IR on.
How much does it zoom?
32x optical, from 4.8 mm to 154 mm, plus 16x digital zoom. The view across goes from 55.8° wide to 2.4° at full zoom.
How far away can it identify a person?
Dahua's DORI figures are 212 m to identify, 425 m to recognise, 839 m to observe and 2,124 m to detect. Dahua notes these are not the distances for the AI functions.
Does it track people automatically?
Yes. Auto Tracking 3.0 pans, tilts and zooms to follow a target. It can start manually or when a rule such as tripwire or intrusion is triggered.
Is a power supply included?
Yes. Dahua includes a 24 V DC 2.5 A adapter. The camera also runs from an 802.3at (PoE+) port, drawing up to 22 W.
Is a bracket included?
Yes, the PFB305W wall mount bracket. Pole, corner and ceiling mounting need extra Dahua adaptors such as the PFA150, PFA151 or PFA111.
Can it record without an NVR?
Yes. It records to a microSD card of up to 512 GB, to FTP or to a NAS. Most sites still use an NVR for longer storage.
Does it have audio?
It has one audio input and one audio output for two-way audio with an external microphone and speaker. The datasheet does not list a built-in microphone.
Can it be mounted outside?
Yes. It is rated IP67 and IK10, with 6000 V lightning protection, and runs from −40 °C to +70 °C.
What AI does it run?
SMD 4.0, perimeter protection (tripwire, intrusion, fence climbing, loitering, abandoned and missing objects, fast moving, parking, people gathering), face detection and people counting.
Will it work with a non-Dahua recorder?
It supports ONVIF Profile S, G and T, so most ONVIF recorders can record it. PTZ control and AI events depend on the recorder.
Who can install the cable?
Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point for the adapter needs a licensed electrician.
Supported by InFront Technologies.
Help choosing the bracket, recorder or PoE switch: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.
Installation and safety
Low-voltage camera. PoE+ (802.3at) or the included 24 V DC adapter, up to 22 W. There is no mains wiring in the camera. A new power point needs a licensed electrician.
Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.
Working at height. At 4.7 kg plus the bracket, it needs a solid fixing and safe access equipment.
Privacy. A 32x zoom sees a long way. Use privacy masking (up to 24 areas, 8 in one view) to keep neighbouring windows and yards out of the picture.
What it does not do. No built-in microphone or speaker listed, no white light or siren, and no Wi-Fi.
Figures. From Dahua's DH-SD5A432GB-HNR datasheet (January 2025).
