Hikvision 4MP ColorVu AcuSense Pan-Tilt Camera, 30m White Light, Two-Way Audio - DS-2DE3A400BW-DE-T5
Hikvision DS-2DE3A400BW-DE(T5): a 4 MP ColorVu mini pan-tilt dome with a 30 m white light, AcuSense human and vehicle alarms and built-in two-way audio.
- ✓4 MP, 4 mm F1.0 lens, colour at night
- ✓Pan 350°, tilt 0° to 90°, 300 presets
- ✓White light up to 30 m, audible warning
- ✓Built-in microphone and speaker
- ✓AcuSense human and vehicle alarms, face capture
- ✓IP66, PoE+ or 12 VDC, microSD up to 512 GB
Description

Full colour, all night.
Pan, tilt, talk and deter.
The DS-2DE3A400BW-DE(T5) is a 3-inch 4 MP pan and tilt dome with an F1.0 ColorVu lens, a 30 m white light, AcuSense human and vehicle alarms, and a built-in microphone and speaker.
In one sentence: the DS-2DE3A400BW-DE(T5) is a Hikvision 4 MP ColorVu mini pan-tilt dome with a 4 mm F1.0 lens, 350° pan, 300 presets, 30 m white light, AcuSense alarms, two-way audio, IP66 and PoE+ power.
One camera. Recorder, cable and storage are separate.
This listing is one pan-tilt camera. It needs an 802.3at (PoE+) port or a 12 VDC supply, and somewhere to keep the footage. The lens is a fixed 4 mm: it pans and tilts, and zooms digitally only.
- DS-2DE3A400BW-DE(T5) pan-tilt dome camera
- A PoE+ (802.3at) NVR or switch port, or a 12 VDC supply
- Cat5e or Cat6 cable to the camera
- An NVR, NAS or microSD card (up to 512 GB) for recording
One camera that turns to look.
Pan 350° and tilt 0° to 90°, with up to 300 presets and patrol scans, so one camera can watch a driveway, a gate and a side path in turn. At night the 30 m white light keeps the picture in colour, and AcuSense only raises the alarm for people and vehicles.

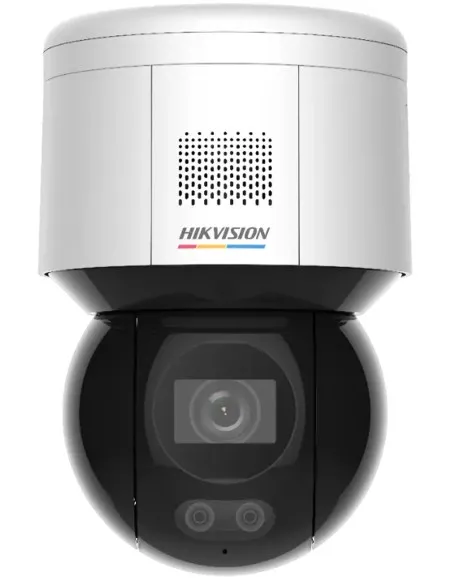

Front
Speaker above, lens and lights below.
The grille on the housing is the built-in speaker for the audible warning and talk-back. The ball holds the 4 mm F1.0 lens and the white supplement lights, and it turns as one unit when you pan or tilt.

ColorVu lens
F1.0 on a 1/1.8" sensor.
A large sensor and a very wide aperture keep colour down to 0.0005 lux. The 4 mm lens covers 88.7° across, and DORI puts detection at 77 m and identification at 7.7 m.
How it goes in
From cable to first preset.
01
Run one cable
Cat5e or Cat6 to a PoE+ (802.3at) port on an NVR or switch. The camera draws up to 14 W. A 12 VDC supply also works.
02
Mount the arm
The wall arm is part of the housing. Fix the base plate to a wall or eave and hang the camera with the ball facing the area you want to cover.
03
Activate and add it
Set the admin password in a browser or iVMS-4200, then add the camera to your NVR, Hik-Connect or HikCentral.
04
Set presets and rules
Save presets for each view, build a patrol, then draw line crossing or intrusion zones and tick human, vehicle or both.
At a glance
DS-2DE3A400BW-DE(T5)
Show specs
Resolution
4 MP, 2560 × 1440 at up to 30 fps
Lens
Fixed 4 mm, F1.0; 16× digital zoom (no optical zoom)
Field of view
88.7° horizontal, 46.5° vertical, 105° diagonal
Image sensor
1/1.8" progressive scan CMOS
Low light
Colour 0.0005 lux at F1.0 (AGC on); 0 lux with white light
Supplement light
White light up to 30 m
Pan and tilt
Pan 350°, tilt 0° to 90°; up to 60°/s pan, 50°/s tilt
Presets
300 presets, patrol scan, park action, 3D positioning, power-off memory
DORI
Detect 77 m, observe 30.5 m, recognise 15.4 m, identify 7.7 m
WDR
120 dB, plus BLC, HLC, 3D DNR and digital defog
Compression
H.265+, H.265, H.264+, H.264; sub and third streams also MJPEG
Audio
Built-in microphone and speaker; audio in and out; noise filtering
AcuSense
Human and vehicle filtering on line crossing, intrusion, region entrance and exit
Face capture
Up to 5 faces at once, best shot selected
Alarm linkage
Audible warning and flashing white light; 1 alarm input, 1 output
Interfaces
1 × RJ45 10/100 Mbps, RS-485, 12 VDC output (under 60 mA)
Storage
microSD up to 512 GB; NAS (NFS, SMB/CIFS)
Power
PoE+ (802.3at) or 12 VDC; max 14 W including 4 W for the white light
Protection
IP66; 6000 V lightning, surge and voltage transient protection
Size and weight
179.3 × 120 × 182 mm, about 1.125 kg
Operating range
−30 °C to 65 °C, humidity 90% or less
Software
iVMS-4200, Hik-Connect, HikCentral; ONVIF Profile S, G, T
Warranty
3 years in Australia

179.3 × 120 × 182 mm, ball Ø 107 mm. Units mm (inch).
Pair it with
What this camera does not include
Recorder
A PoE+ NVR
Powers and records the camera on one cable. A Hikvision AcuSense NVR can search by the human and vehicle tags.
Power
An 802.3at PoE+ port
Allow 14 W. A standard 802.3af port is not listed as a power option for this camera.
Cabling
Cat5e or Cat6 cable
One run per camera, up to the usual 100 m Ethernet limit.
Storage
A microSD card
Optional, up to 512 GB, for recording in the camera itself.
Where it is used
Where a colour pan-tilt camera fits.
Homes
Driveway, front gate and yard from one corner, in colour at night, with a voice warning.
Shops and car parks
Pan between the entry, the counter and the car park with presets.
Farms and sheds
Swing between the shed door, the yard and the gate on a patrol.
Building sites
Light up and warn off anyone inside the fence after hours.
Schools and clubs
Watch play areas and entries with one camera instead of three.
Warehouses
Roller doors and loading bays with human and vehicle alarms.
DS-2DE3A400BW-DE(T5) or DS-2DE3A404IWG-E/W
| DS-2DE3A400BW-DE(T5) (this camera) | DS-2DE3A404IWG-E/W | |
|---|---|---|
| Night picture | Colour, white light up to 30 m | Black and white, IR up to 50 m |
| Lens | Fixed 4 mm, F1.0 | 2.8 to 12 mm, 4× optical zoom, F1.5 |
| Sensor | 1/1.8" CMOS | 1/2.8" CMOS |
| Connection | Wired Ethernet | Wired Ethernet or 2.4 GHz Wi-Fi |
| Pan and tilt | 350° pan, 0° to 90° tilt, 300 presets | 350° pan, 0° to 90° tilt, 300 presets |
| Housing | 179.3 × 120 × 182 mm, IP66 | 179.3 × 120.5 × 182 mm, IP66 |
Each column comes from that model's own Hikvision datasheet. Choose this one for colour at night; choose the 4× zoom model for longer reach or Wi-Fi.
Common questions
Does this camera zoom?
Only digitally. The lens is a fixed 4 mm F1.0, with 16× digital zoom. It pans and tilts to change the view, but there is no optical zoom.
Is the night picture in colour?
Yes. ColorVu imaging keeps colour down to 0.0005 lux at F1.0, and the white supplement light reaches up to 30 m when it is fully dark.
How far can it pan and tilt?
Pan is 350° and tilt is 0° to 90°. Pan speed runs up to 60°/s and tilt up to 50°/s, with 300 presets and patrol scans.
Does it have two-way audio?
Yes. It has a built-in microphone and a built-in speaker, plus a line in and line out for an external microphone or speaker.
What power does it need?
PoE+ (IEEE 802.3at) or 12 VDC. It draws up to 14 W, including up to 4 W for the white light.
Is a recorder included?
No. This listing is the camera only. It records to an NVR, a NAS, or a microSD card of up to 512 GB.
What does AcuSense do on this camera?
It sorts people and vehicles from other movement, so line crossing, intrusion and region alarms trigger only on the target types you choose.
Can it scare intruders off?
Yes. An alarm can trigger the audible warning through the speaker and flash the white light, as well as recording and notifying you.
Can I mount it outside?
Yes. It is rated IP66, has 6000 V lightning and surge protection, and runs from −30 °C to 65 °C.
Will it work with a non-Hikvision NVR?
It supports ONVIF Profile S, G and T, so most ONVIF recorders can record it. Pan-tilt control and smart alarms work best on a Hikvision NVR.
Does it capture faces?
Yes. It detects up to 5 faces at once and keeps the best shot of each face in motion.
Who can install the cable?
Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.
Supported by InFront Technologies.
Help choosing the recorder, PoE switch or the right pan-tilt camera for your site: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.
Installation and safety
Low-voltage camera. PoE+ (802.3at) or 12 VDC, up to 14 W. There is no mains connection on the camera. A new power point for a 12 V supply needs a licensed electrician.
Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.
Audio and privacy. Recording conversations is covered by state and territory surveillance laws. Check them, and use signage, before you switch the microphone on.
What it does not do. No optical zoom, no Wi-Fi, and no infrared: night images use the white light.
Figures. From Hikvision's DS-2DE3A400BW-DE(T5) datasheet, September 2026.
- Dimensions
- 179.3 × 120 × 182 mm
- Type
- Hikvision CCTV IP Camera
- Operating temperature
- -30 °C to 65 °C
- Power
- PoE+ (802.3at) or 12 VDC, max 14 W
- Video Compression
- H.265+ / H.265 / H.264+ / H.264 / MJPEG
- Form Factor
- Mini PT dome (pan and tilt)
- Brand
- Hikvision
- IP Rating
- IP66
- Image Sensor
- 1/1.8" Progressive Scan CMOS
- Pan / Tilt Range
- Pan 350°, tilt 0° to 90°
- Lens Type
- Fixed 4 mm, 16× digital zoom
- Presets
- 300
- Min Illumination
- Colour 0.0005 lux @ F1.0 (AGC on); 0 lux with white light
- WDR
- 120 dB
- Connectivity
- Ethernet IP Cabling Cat5e/Cat6
- Smart Home Compatibility
- Works with NVR or Stand Alone
- Surveillance Technology
- IP/Network
- Smart Home Protocol
- Not applicable (wired IP camera)
- Supplement light
- White light up to 30 m
- Alarm I/O
- 1 input / 1 output
- Warranty
- 3 Years Australian Warranty
- Deterrence
- Audible warning + flashing white light
- Max Resolution
- 2560 × 1440 (4 MP)
- Megapixels
- 4 MP
- Onboard Storage
- microSD up to 512 GB
- Target Classification
- Human and Vehicle
- Lens Aperture
- F1.0
- Two-Way Audio
- Yes, built-in microphone and speaker
- Weight (Camera)
- Approx. 1.125 kg
- Model
- DS-2DE3A400BW-DE(T5)
- Technology
- AcuSense + ColorVu
