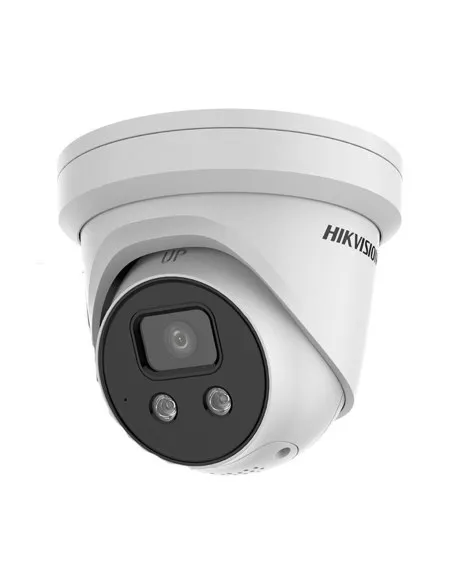

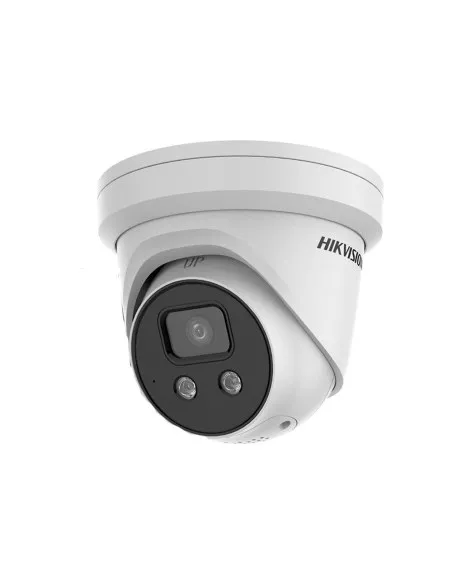

Hikvision 6MP 2.8MM Acusense Audio IP Dome Camera - DS-2CD2366G2-IU

Hikvision 6MP 2.8MM Acusense Audio IP Dome Camera

DS-2CD2366G2-IU

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.

Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR) and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. With a 2.8mm lens, this camera provides a horizontal field of view of between 19 – 97 degrees (depending on your lens choice). Rigorously tested, Hikvision’s generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

Specifications:

Camera

• Image Sensor1/2.4″ Progressive Scan CMOS
• Max. Resolution3200 × 1800
• Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
• 2.8 mm, horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6°

Video

• Max. Resolution - 3072 × 2048
• Main Stream - 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub Stream - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream - 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
• Video Compression - Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
• Video Bit Rate - 32 Kbps to 16 Mbps
• H.264 Type - Main Profile/High Profile
• H.265 Type - Main Profile
• H.264+ - Main stream supports
• H.265+ - Main stream supports
• Scalable Video Coding (SVC) - H.264 and H.265 encoding
• Region Of Interest (ROI) - Support 1 fixed region for the main stream and sub-stream separately

Network

• Simultaneous Live View - Up to 6 channels
• API - ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• Protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/Host - Up to 32 users,3 levels: Administrator, Operator and User
• Security - Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Network Storage - Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS, SMB/CIFS), ANR
• Clienti - VMS-4200, Hik-Connect, Hik-Central
• Web Browser - Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+


• Day/Night Switch - Day/Night/Auto/Schedule
• Target Cropping - Yes
• DNR - 3D DNR
• Image Enhancement - BLC/3D DNR/HLC
• Image Settings - Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

• Video Output - No
• On-Board Storage - Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware Reset - Reset via reset button on camera body, web browser and client software
• Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
• Interface Style - Pigtail style interface

Event

• Basic Event - Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event - Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection

General

• Linkage Method - Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
• Web Client Language - 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function - One-key reset, anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening, password protection, watermark, IP address filter
• Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply - 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection, PoE (802.3af, class 3)
• Power Consumption And Current - 12 VDC, 0.5 A, max: 6 W PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.2 A, max: 7.5 W

Camera Dimension

• Camera: Φ 138.3 × 125 mm (5.4″ × 4.9″)
• With package: 170 × 170 × 150 mm (6.7 × 6.7\" × 5.9\")"

Camera Weight

• Camera: 730 g (1.6 lb.)
• With package: 1050 g (2.3 lb.)

Approval

• EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
• Safety - UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
• Environment 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
• Protection - Ingress protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) IP67
