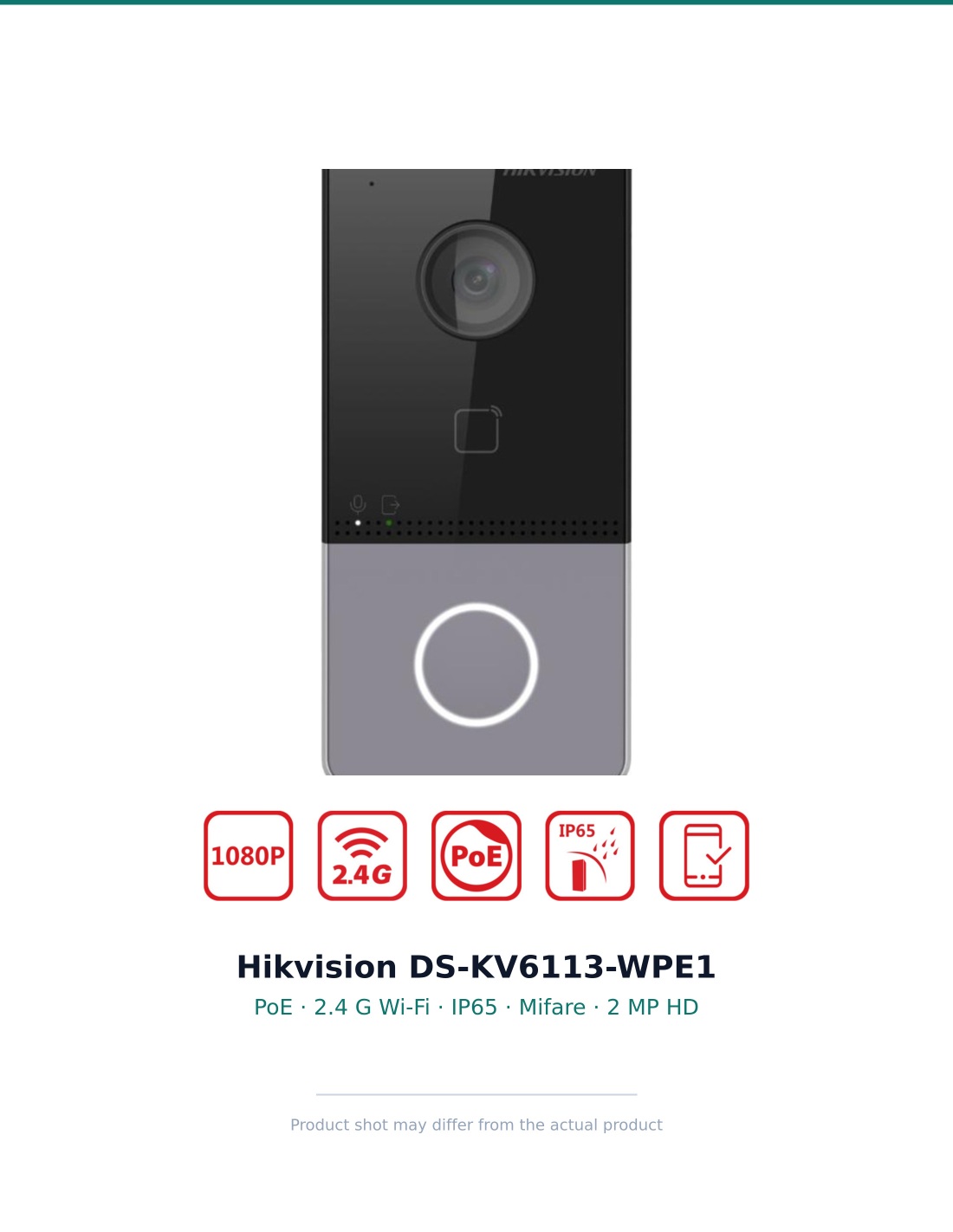

Hikvision DS-KV6113-WPE1 — front view, 2 MP HD camera and integrated Mifare reader

Hikvision DS-KV6113-WPE1 2 MP IP/PoE/Wi-Fi villa door station (Mifare) — product card

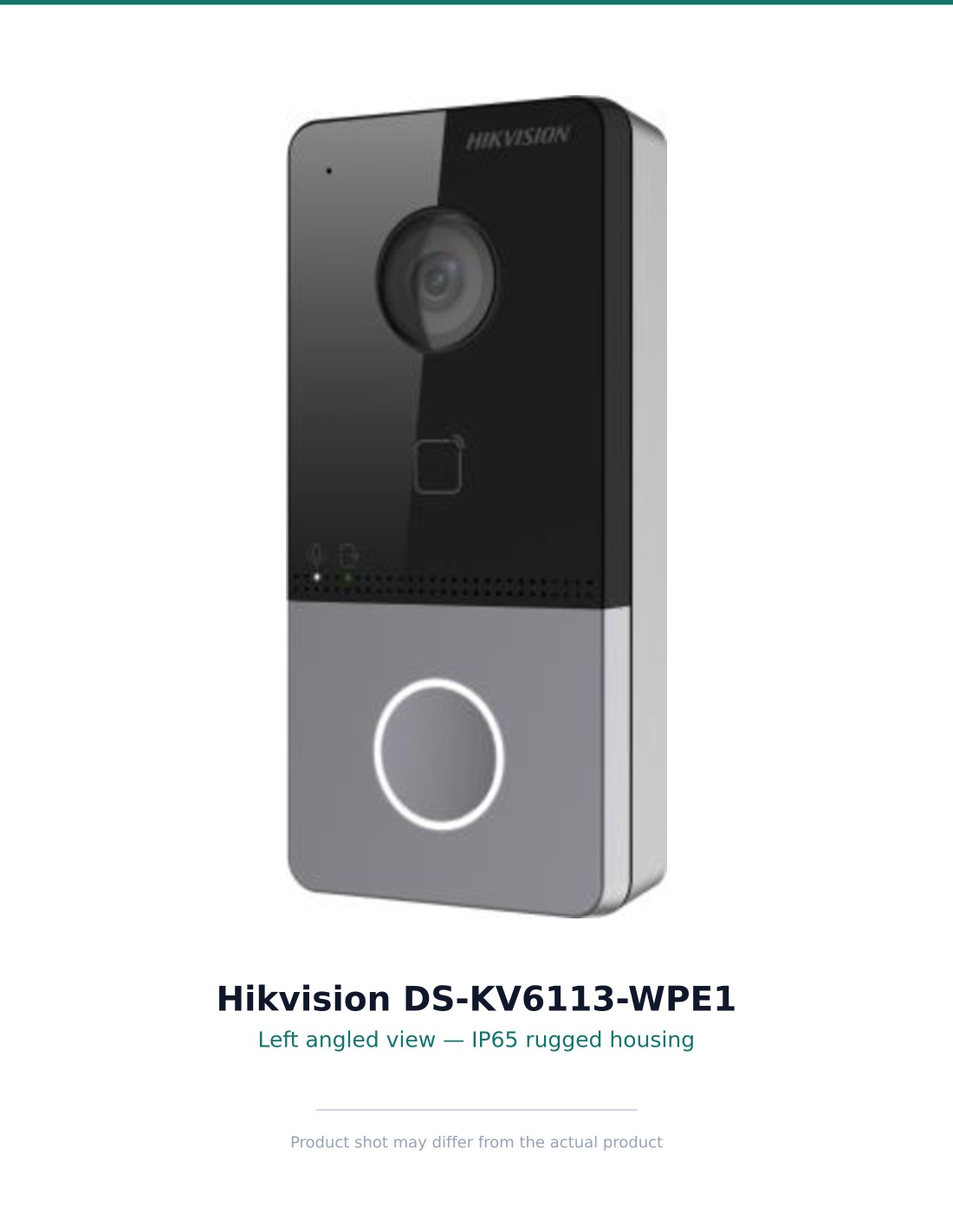

DS-KV6113-WPE1 — left isometric view showing slim IP65 outdoor housing

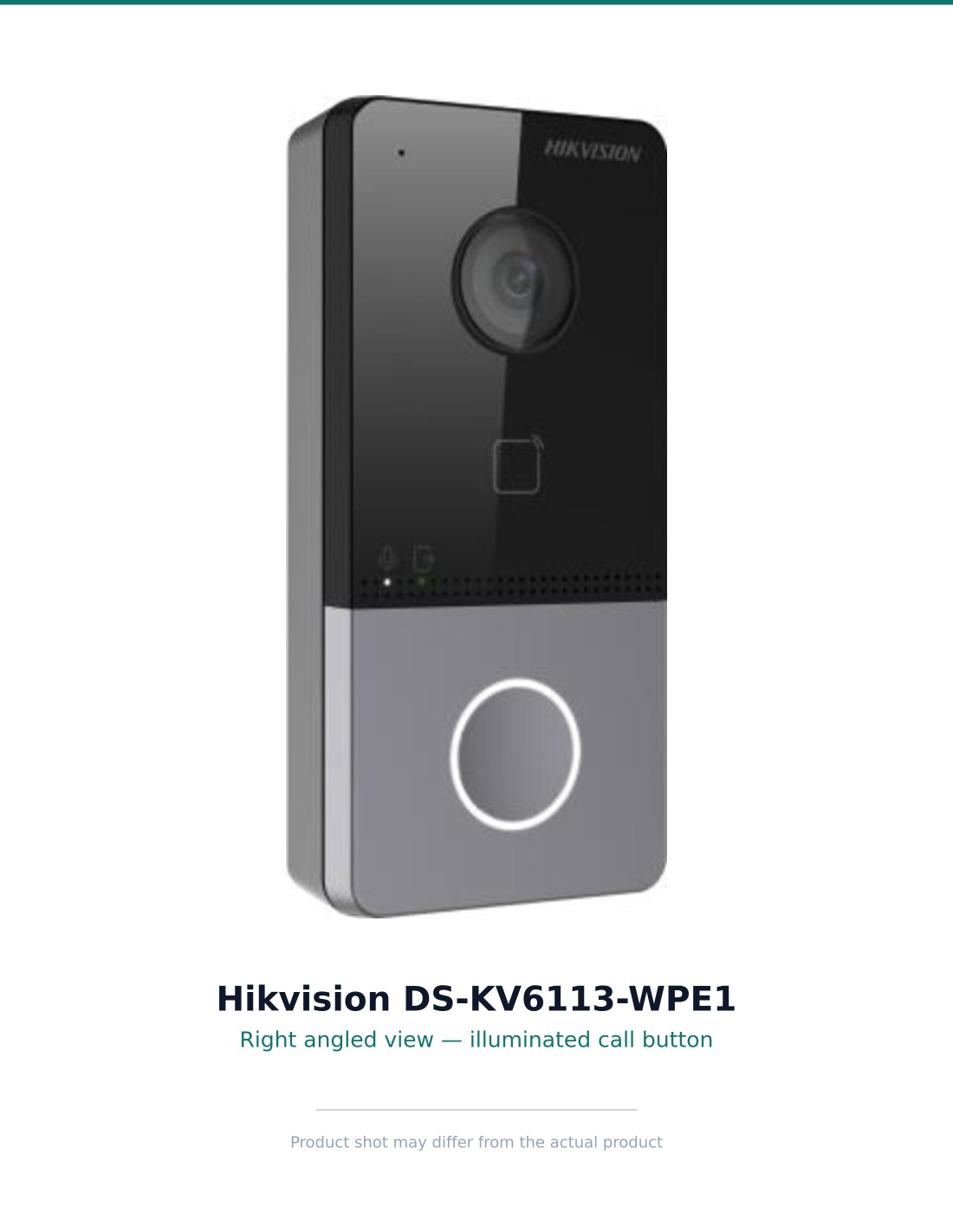

DS-KV6113-WPE1 — right isometric view, illuminated single call button

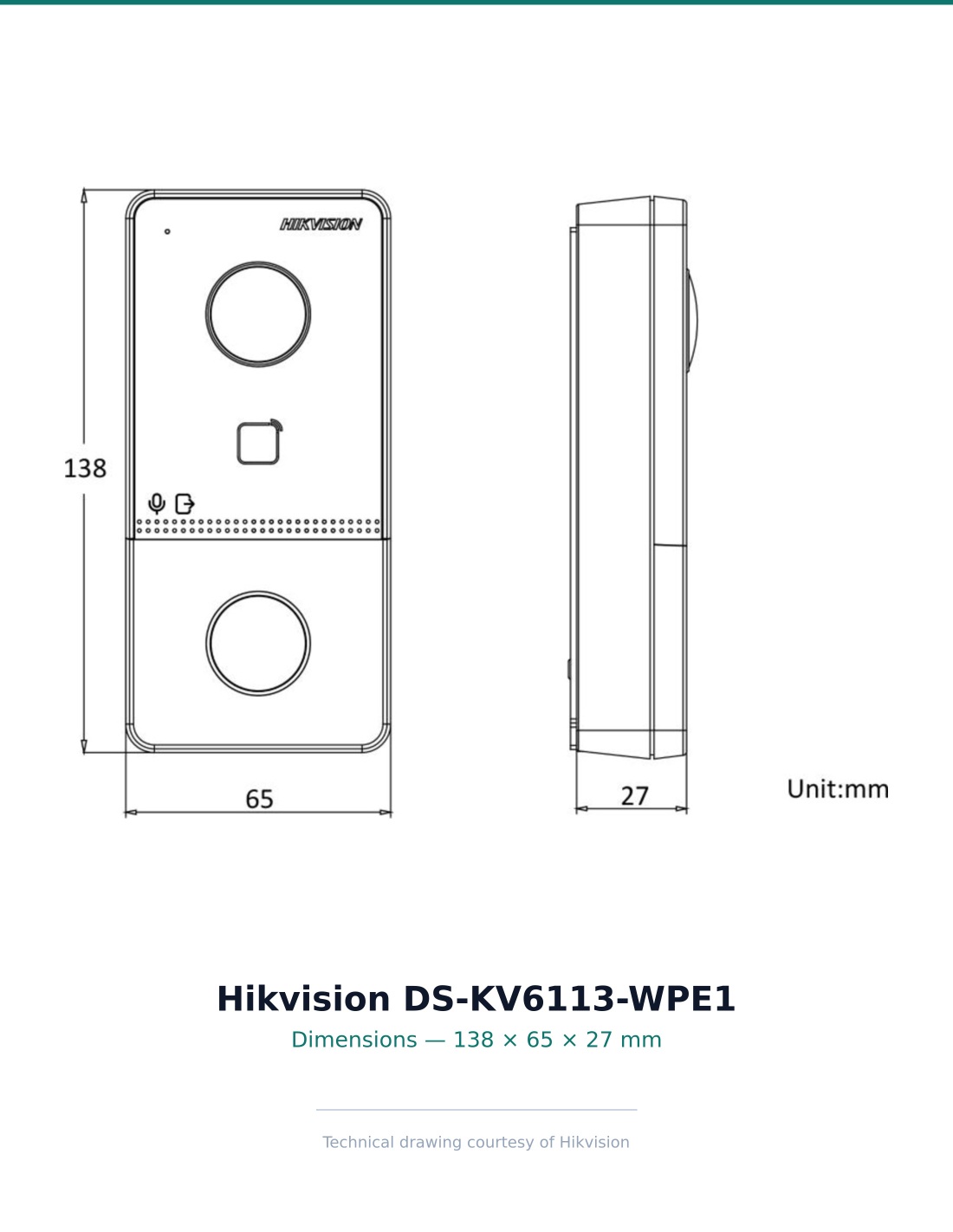

DS-KV6113-WPE1 — technical dimensions drawing (front / side, mm)

Hikvision DS-KV6113-WPE1 2 MP IP/PoE Video Intercom Villa Door Station (Wi-Fi + Mifare)

Name: Hikvision DS-KV6113-WPE1 2 MP IP/PoE Video Intercom Villa Door Station (Wi-Fi + Mifare)
Brand: HIKVision Australia
SKU: DS-KV6113-WPE1
Price: 187 AUD
Availability: InStock

Reference: DS-KV6113-WPE1

In Stock - Ready to Ship

$ 187.00

inc-GST

See every caller. Open the door. From anywhere.

A Hikvision 2 MP IP villa door station — Wi-Fi & PoE, built-in Mifare keyless entry, IP65-rated for Australian weather.

2 MP HD camera with 131° wide-angle view
Built-in Mifare card reader — keyless entry
One-cable PoE or 2.4 GHz Wi-Fi install
IP65 weatherproof — −40 to +55 °C

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

Visitor pressing the call button on a Hikvision DS-KV6113-WPE1 villa door station at a modern Australian front door

Hikvision Villa Door Station

Your front door,
seen clearly.

The DS-KV6113-WPE1 is Hikvision’s 2 MP IP villa door station — a single-button call panel with HD camera, Mifare keyless entry and IP65-rated outdoor housing. Cabled or wireless. PoE or 12 V DC. Built for Australian weather.

Product shot may differ from the actual product.

Heads up — door station only

This is the outside call panel. To actually answer the door you’ll need a compatible Hikvision indoor station (or the Hik-Connect app) plus a PoE switch and a run of Cat6.

The DS-KV6113-WPE1 is the villa door station you mount at your gate or front door. It makes the call — but something inside has to receive it. Pair it with a Hikvision indoor station for a proper in-home video phone, or just the Hik-Connect app for a phone-only setup.

In the box

DS-KV6113-WPE1 villa door station
Surface-mount fixings & weather seal
Screw terminal connectors (power, network, lock)
Quick-start guide

You’ll also need

A Hikvision indoor station or the Hik-Connect app
A PoE switch, or a 12 V DC power supply
Cat5e or Cat6 network cabling to the door
Optional: DS-KABV6113-A flush/wall bracket, electric strike + 12 V relay PSU

Not sure what you need? See the pairings list below, or get in touch before ordering — we’ll put the right parts together for your site.

A doorbell that finally earns the name.

The DS-KV6113-WPE1 replaces the tinny plastic chime of the last decade with full-HD video, crystal-clear two-way audio, and Mifare-card keyless entry — in one slim IP65 outdoor panel that survives Australian summers and storms.

Plays cleanly with the rest of the Hikvision IP video-intercom family, backed by local distribution and technical support from Infront Technology.

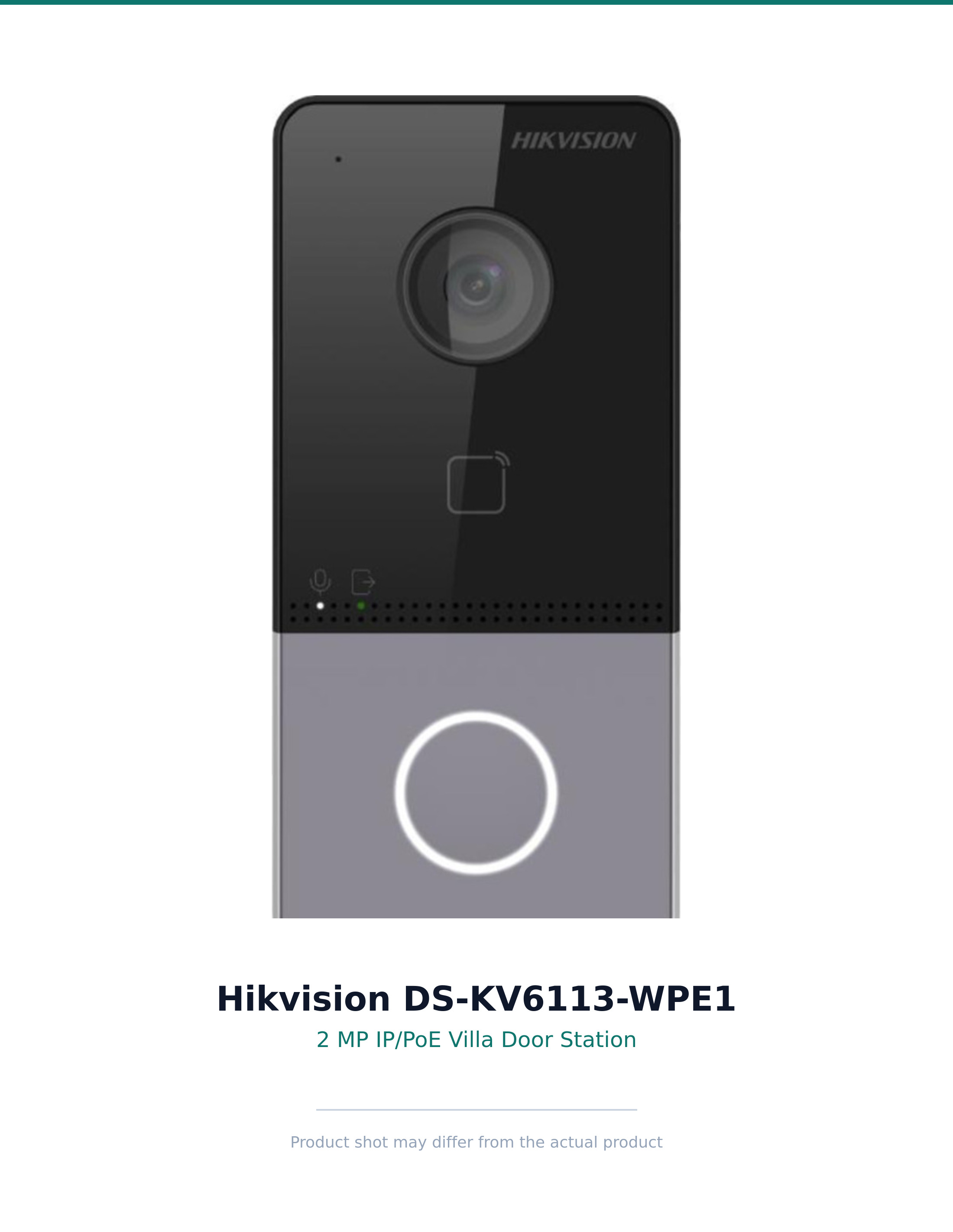

Hikvision DS-KV6113-WPE1 front view showing 2 MP HD camera, IR supplement, single-button call design and integrated Mifare reader

Clarity · 01

See every caller in 2 MP HD.

A wide 131° lens and 1920 × 1080p main stream means the door station frames the full doorway — no more guessing whether there are one or two people at your gate.

Two-way audio with noise suppression and echo cancellation lets you speak naturally, and IR supplementary lighting keeps faces recognisable long after the porch light goes out.

Anywhere · 02

Mobile answering, no subscription.

Hikvision’s free Hik-Connect app (iOS & Android) mirrors the door call to your phone — live view, two-way talk, remote unlock, all from the couch, the office or interstate.

Use it alongside a Hikvision indoor station for a full in-home experience, or stand-alone for a phone-only setup. No monthly fees, no cloud lock-in.

Hik-Connect mobile app paired with the Hikvision DS-KV6113-WPE1 villa door station showing live view, remote unlock and push notifications

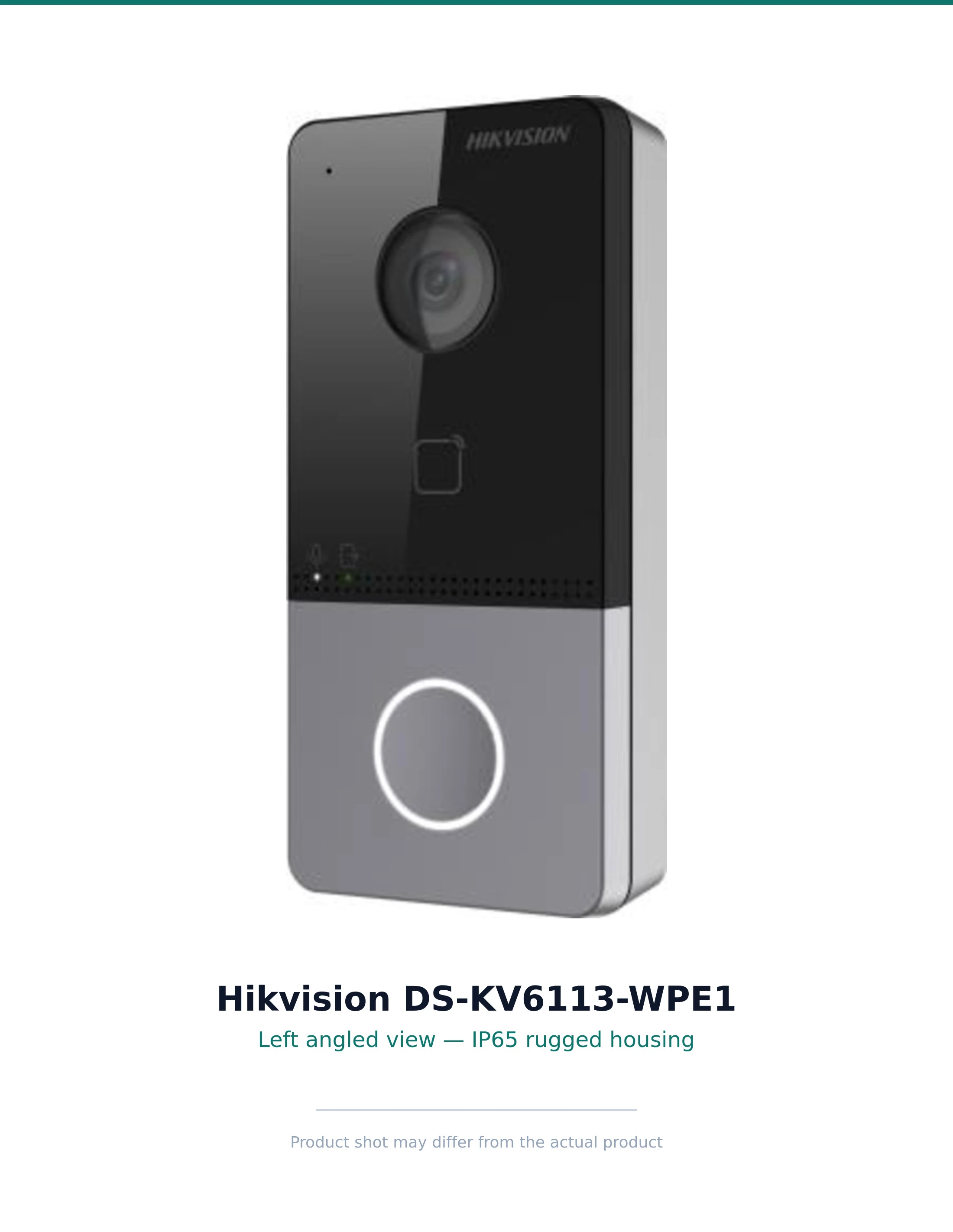

Hikvision DS-KV6113-WPE1 left isometric view showing slim 27 mm IP65-rated outdoor housing

Resilient · 03

Built for the Australian front door.

IP65-rated outdoor housing takes direct rain, pool-deck spray and coastal humidity in stride. The rated operating range is −40 °C to +55 °C — anywhere in Australia, from the Snowy to the Pilbara.

A slim 138 × 65 × 27 mm body and a single-hole surface-mount install means it sits flush on a front-door jamb, a brick pier, or an alcove — without the bulk of an old-school intercom plate. Optional DS-KABV6113-A bracket for flush/wall retrofits.

Install & Go

Four steps. No fuss.

Mount & seal

Surface-mount the door station at the front door or gate with the supplied weather-seal gasket; run a single Cat6 back to the house.

Power up

Plug into a PoE switch for one-cable power and network — or feed it 12 V DC from a plug-pack in an existing GPO.

Pair & configure

Pair with a Hikvision indoor station on the LAN, or scan the QR code into Hik-Connect for phone-only answering.

Enrol Mifare cards

Add up to 10,000 Mifare cards via the web console or indoor station for keyless daily entry — no keys, no PINs.

At a glance

The technical essentials.

Camera: 2 MP · 1920 × 1080p main · 131° FOV
Low light: IR supplement · noise suppression
Power: PoE (IEEE 802.3af) or 12 V DC
Network: 10/100 Mbps Ethernet · 2.4 GHz Wi-Fi
Protocols: TCP/IP, SIP, RTSP
Keyless entry: Built-in Mifare · 10,000 cards
Lock control: 1 relay · 30 V DC, 2 A
Weatherproofing: IP65 · −40 to +55 °C
Dimensions: 138 × 65 × 27 mm · surface mount
Warranty: Full Australian manufacturer warranty

Pairings

Build a complete Hikvision IP intercom.

The DS-KV6113-WPE1 works with the full Hikvision IP video-intercom family of indoor stations, plus any standards-compliant PoE switch and most 12 V strike or mag-lock hardware via its onboard lock relay.

Indoor station · 7″ Gen 2

DS-KH6350-WTE1W

The default partner — 7″ HD touchscreen, Wi-Fi and PoE, Hik-Connect mobile answering, and two lock-relay outputs.

Indoor station · 10″ flagship

DS-KH9510-WTE1

A 10.1″ premium indoor station for larger homes and small apartment blocks — higher-resolution display and richer UI.

Indoor station · value

DS-KH6320-WTE1 series

Entry-level 7″ indoor monitor for single-household setups — keeps the price down without losing the core experience.

Mount · flush / wall

DS-KABV6113-A

Optional flush/wall bracket for neater masonry and brick-pier installs. Hides the conduit entry and finishes the face flush with the jamb.

Network power

802.3af PoE switch

Any standards-compliant PoE switch or injector powers the door station and the indoor panel on a single Cat6 run each.

Access hardware

12 V strike / mag-lock + PSU

The onboard 30 V DC / 2 A lock relay drives most 12 V electric strikes or mag-locks when paired with a dedicated lock PSU sized for the inrush current.

FAQ

Good questions, answered.

Do I need an indoor station as well?

Not strictly — the DS-KV6113-WPE1 can call straight to the Hik-Connect app for phone-only answering. For an in-home panel experience, pair it with a Hikvision indoor station like the DS-KH6350-WTE1W.

Is Wi-Fi a reliable way to run the door station?

For retrofits where pulling a Cat6 is impractical, 2.4 GHz Wi-Fi is a legitimate option. For new builds, PoE over Cat6 is the preferred install — one cable does power and data, with rock-steady latency. Wireless range depends on site conditions; coverage cannot be guaranteed.

Can it drive an electric strike or magnetic lock?

Yes. The onboard 30 V DC / 2 A lock relay switches most 12 V strikes and mag-locks via a dedicated lock PSU sized for the load. Some installers prefer wiring the relay at the indoor station for better fail-safe behaviour — your choice.

How many Mifare cards can I enrol?

Up to 10,000 — plenty for multi-family homes, duplex villas and small apartment blocks. Cards are managed via the device web console or the paired Hikvision indoor station.

Will it survive our summers?

Yes. The housing is IP65-rated (full dust protection, low-pressure water jets) and the rated operating range is −40 to +55 °C. A deep porch or eave is still recommended to avoid baking in the direct summer sun — good practice for any outdoor electronics.

Can I integrate it with a Hikvision NVR?

Yes. The door station publishes a standard RTSP H.264 stream, so Hikvision NVRs (and any third-party VMS that speaks RTSP) can record its camera alongside your regular CCTV. Every ring becomes a searchable event.

Is this genuine Hikvision with Australian warranty?

Absolutely. We only stock 100% genuine Hikvision, supplied through authorised Australian distribution and shipped nationwide by Infront Technology. Full Australian manufacturer warranty applies, and local technical support is a call away.

Can I install it myself?

The door station itself is low-voltage — PoE or 12 V DC — and a confident DIYer can usually surface-mount it. Concealed Cat-6 cabling in the wall cavity is customer cabling under AS/CA S009 and should be run by an ACMA-registered cabler. Any 240 V work (new GPO, dedicated lock PSU, gate-motor mains) must be performed by a licensed electrician.

Upgrade your entryway.

Genuine Hikvision, shipped Australia-wide by Infront Technology. Local support from a team that designs, installs and maintains professional IP intercom and CCTV systems every day.

Installation & safety notice

Low-voltage product (SELV). The DS-KV6113-WPE1 is powered by PoE (IEEE 802.3af) or a 12 V DC adapter — there is no 240 V wiring inside the door station and no mains work is required on the unit itself. Surface-mounting is a screwdriver-and-bracket job; a confident DIYer can install the door station and a compatible Hikvision indoor station without calling a trade.

When a licensed tradesperson is required. Concealed Cat-6 cabling between the door station, PoE switch and indoor station is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Any 240 V work — new GPO, dedicated lock PSU, gate-motor mains feed — is the licensed electrician’s or security installer’s job. A standard plug-in 12 V DC adapter into an existing GPO is fine to use as-is.

Specifications supplied in good faith. Specs, images, firmware features and bundled accessories may change without notice; verify current specifications and compatibility against the latest Hikvision datasheet before ordering. Product appearance and packaging may differ from marketing imagery. Some features require an active Hik-Connect account; terms and availability are set by Hikvision. Wireless range depends on site conditions; coverage cannot be guaranteed.

By placing an order you confirm the product is fit for your intended use and that any concealed cabling or third-party integration (electric strikes, mag-locks, gate controllers, mains GPO work) will be performed by an appropriately licensed tradesperson. Infront Technology does not accept liability for unlicensed installation, incorrect site preparation or misuse outside the manufacturer’s specifications. Genuine Hikvision product; full Australian manufacturer warranty applies.

Type: IP Video Intercom Door Station (Villa)
Series: Pro Series (DS-KV6113 / Gen 2)
Colour: Black / Silver
Casing: Plastic + aluminium-alloy finish, rugged outdoor shell
Camera (Door Station): 2 MP HD, 1/2.9" CMOS
Resolution (Door Station): Main: 1920 × 1080p · Sub: 704 × 576
Horizontal FOV: 131°
Vertical FOV: 78°
WDR: True WDR (up to 120 dB)
IR Distance: IR supplement, up to 3 m
Video Compression: H.264 (C-rev also H.265 / MJPEG)
Audio Input (Door Station): Built-in omnidirectional microphone
Audio Output (Door Station): Built-in loudspeaker
Audio Compression: G.711U (C-rev: G.711U/A, Opus, AAC-LD, AAC-LC, G.726, G.722.1)
Audio Communication: Two-way (full duplex), noise suppression + echo cancellation
Ethernet: 1 × RJ45 10/100 Mbps self-adaptive
PoE: IEEE 802.3af (Standard PoE)
WiFi: 2.4 GHz only (WPE1 variants)
Wi-Fi Standards: IEEE 802.11 b/g/n
Network Protocol: TCP/IP, RTSP (C-rev also IPv6, ONVIF)
App Connection: Hik-Connect (free P2P)
Card Reader: Mifare 13.56 MHz, built-in
Card Capacity: 10,000 cards
User Capacity: 2,000 users
Alarm Input: 1
Alarm Output: 0
Tamper Detection: Yes (1 × tamper switch)
Exit button: 1
Lock Output: 1 (NO/COM/NC relay, 12 VDC)
Call Buttons: 1 (single button)
Power Supply (Door Station): Standard PoE (IEEE 802.3af) or 12 VDC / 1 A
Power Consumption (Door Station): ≤ 10 W
Dimensions (Door Station): 138 × 65 × 27 mm (5.4" × 2.6" × 1.1")
Weight: 265 g
Installation (Door Station): Surface wall-mount (flush-mount accessory DS-KAB6113-S optional)
IP Rating: IP65
Working Temperature (Door Station): -40 °C to +55 °C
Working Humidity (Door Station): 10% to 95% (non-condensing)
Operation System (Door Station): Embedded Linux
RAM: 256 MB
ROM: 32 MB
Language selection: Multi-lingual (20+ languages)
Warranty: 2 Years (Manufacturer)
Max. Indoor Monitors: 16
Max. Additional Door Stations: 17
