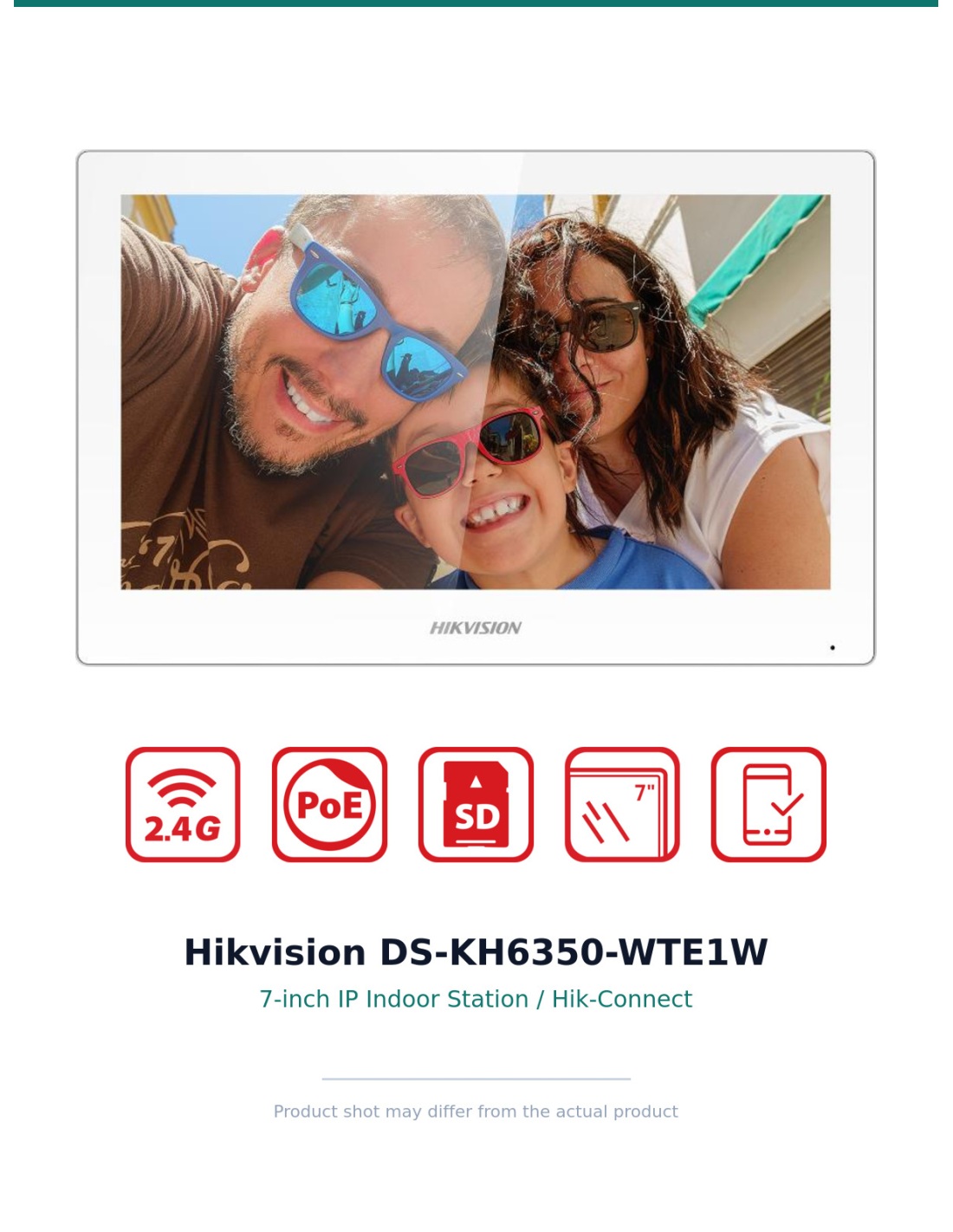

The DS-KH6350-WTE1W is Hikvision’s 7" Gen 2 IP video intercom indoor station — a bright HD touchscreen, full two-way audio, and remote door unlock from your phone via the free Hik-Connect app.

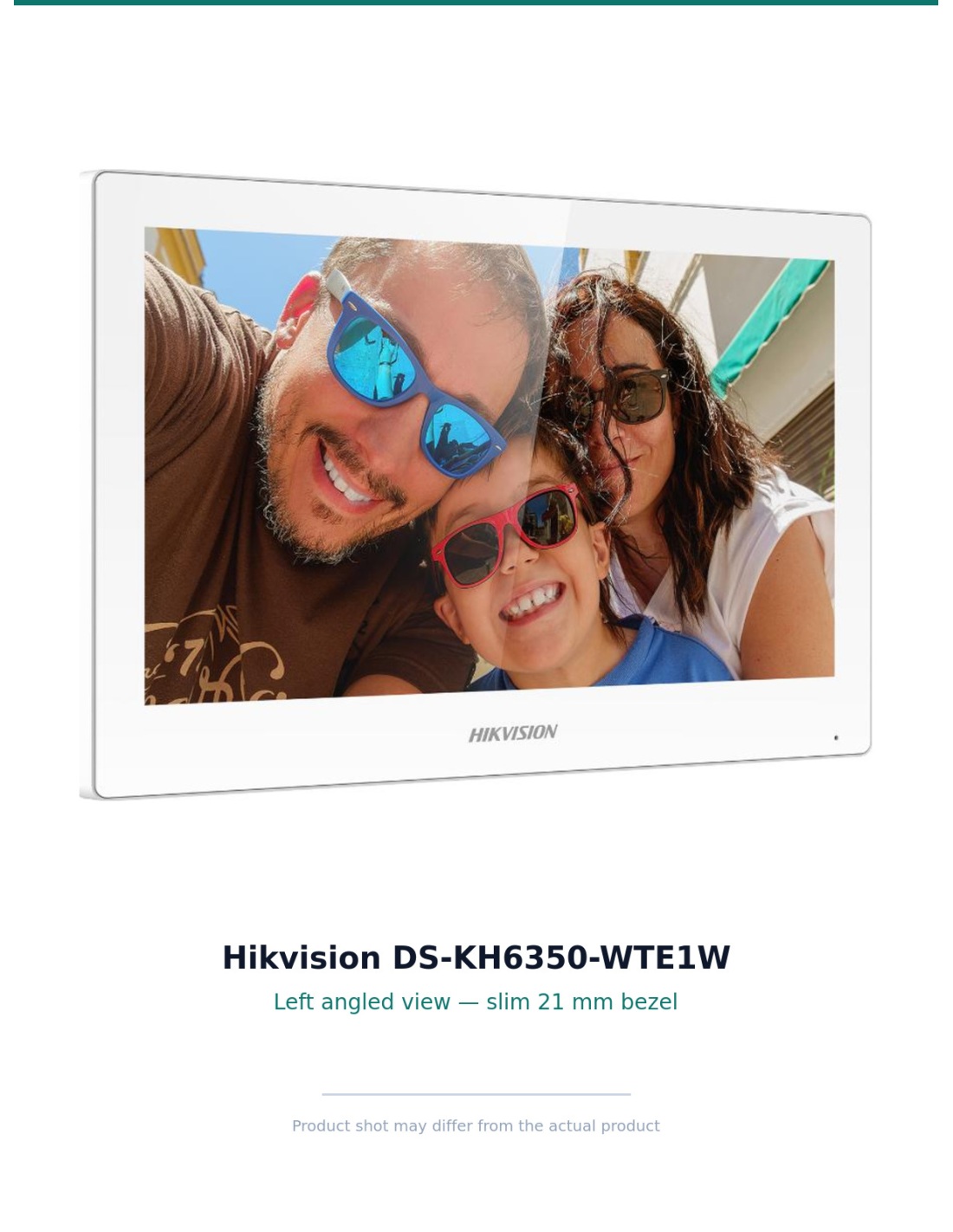

Product shot may differ from the actual product.
Heads up — indoor station only
This is the inside panel. To answer the door you’ll also need a door station, a PoE switch and a run of Cat6.
The DS-KH6350-WTE1W is the 7" touchscreen you mount on the wall inside — it’s the brains of the system. The doorbell button itself is the door station, and it’s sold separately. Plenty of options are listed further down.
In the box
DS-KH6350-WTE1W indoor station
Wall-mount bracket & fixings
2-pin power terminal block
Quick-start guide (multilingual)
You’ll also need
A Hikvision IP door station (e.g. DS-KV6113-WPE1, DS-KD8003)
A PoE switch, or a 12 V DC power supply
Cat5e or Cat6 network cabling between the two
Optional: electric strike or mag-lock + relay for remote unlock
Not sure what you need? See the hardware list below, or get in touch before ordering — we’ll put the right parts together for your site.
Your front door, reimagined.
The DS-KH6350-WTE1W brings the clarity of IP video, the convenience of a smartphone and the polish of a touchscreen into one slim wall panel — beautiful in the hallway, smart in the background.
Part of Hikvision’s complete IP video-intercom and CCTV ecosystem, backed by Australian distribution and local support from Infront Technology.
Clarity · 01
See every visitor in crystal-clear HD.

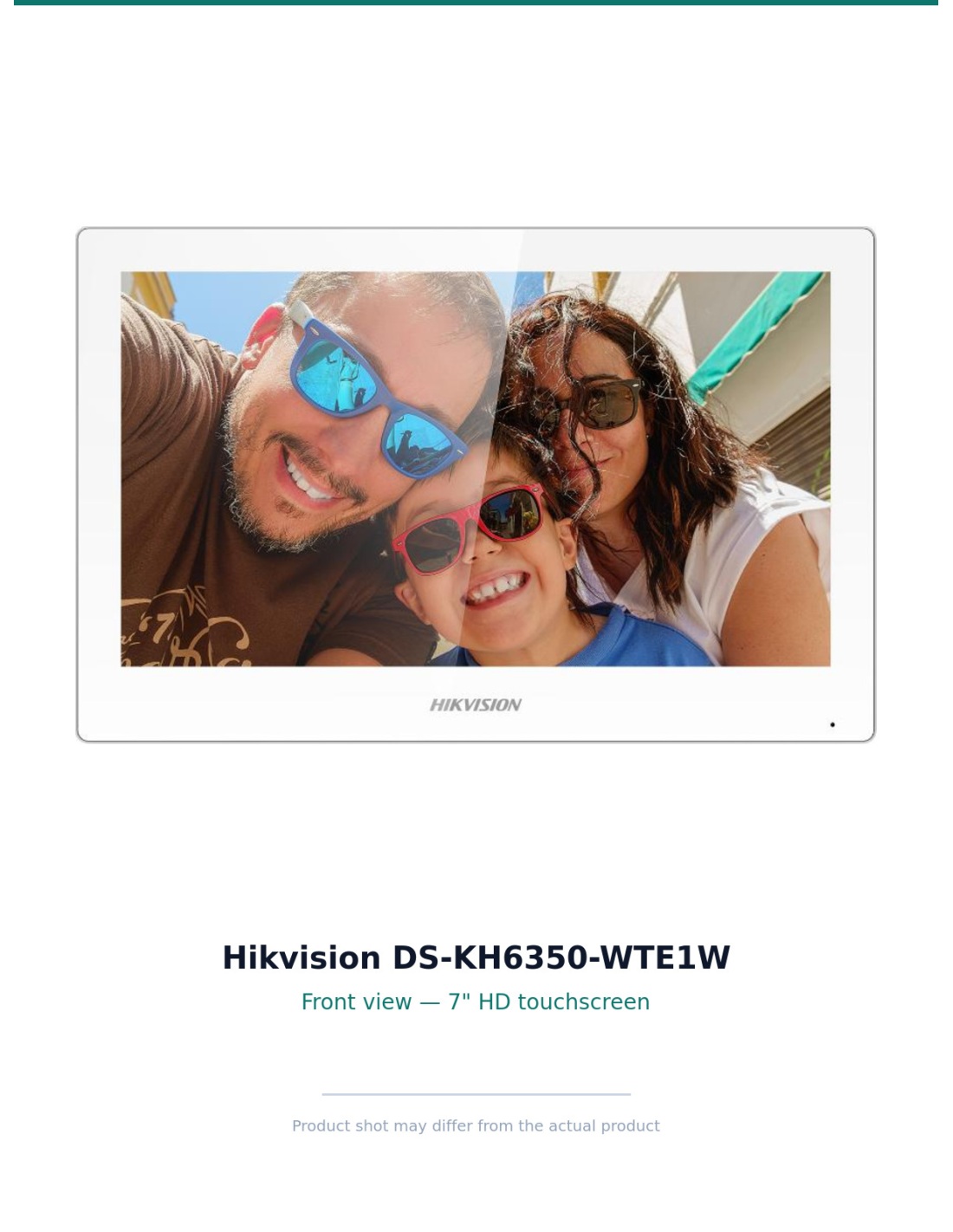

The bright 7" 1024 × 600 capacitive touchscreen pairs with Hikvision’s full-HD IP door stations to deliver a sharp, lag-free video call the moment someone presses the button.
Two-way audio with onboard noise suppression and echo cancellation means guests sound like they’re standing in the room — not buzzing through a tinny doorbell.
Anywhere · 02
Answer the door from the couch, the office, or overseas.
Hikvision’s free Hik-Connect app (iOS & Android) mirrors the doorbell straight to your phone — see who’s there whether you’re upstairs, in a meeting, or on holiday.
Push notifications, live view, two-way talk and remote unlock. No subscription, no monthly fees, no cloud lock-in.
Scale · 03
Built to grow with your home.
Pair up to 17 door stations and 16 indoor extensions on a single Cat6 network — ready for multi-storey homes, granny flats, studios and small apartment blocks.

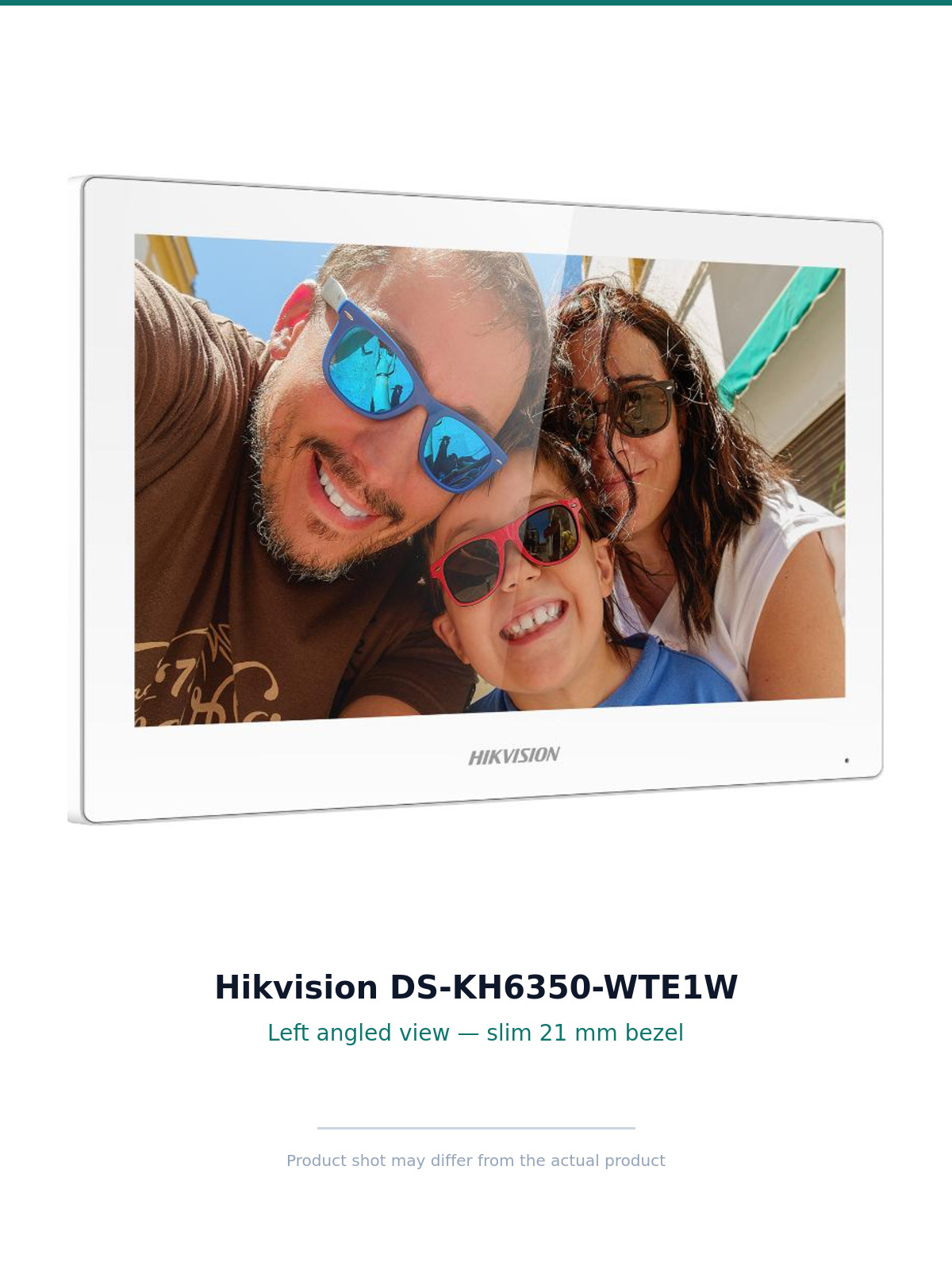

A slim 21 mm body and a single-cable PoE install means it sits flush in a designer hallway, a renovation retrofit, or a corridor wall-plate alike.
Install & Go
Four steps. No fuss.
01
Mount & power
Screw the supplied bracket to the wall; feed a single Cat6 with PoE, or use a 12 V DC adapter.
02
Join the network
Plug into a switch, or step through the on-screen wizard to join 2.4 GHz Wi-Fi. No PC needed.
03
Pair the door station
The monitor auto-discovers compatible Hikvision door stations on the LAN. One tap to pair.
04
Mirror to your phone
Scan the QR code with the Hik-Connect app to see the doorbell anywhere in the world.
At a glance
The technical essentials.
Display7" HD 1024 × 600 TFT capacitive
PowerPoE (IEEE 802.3af) or 12 V DC
Network10/100 Mbps Ethernet · 2.4 GHz Wi-Fi
ProtocolsTCP/IP, SIP, RTSP
AudioTwo-way talk · echo cancellation
StoragemicroSD up to 128 GB (sold separately)
Scale17 door stations · 16 indoor extensions
Lock relays2 × onboard (30 V DC / 0.3 A)
Dimensions215 × 136 × 21 mm · wall-mount
WarrantyFull Australian manufacturer warranty
Pairings
Build a complete Hikvision IP intercom.
The DS-KH6350-WTE1W works with the full Hikvision IP video-intercom family, plus any compatible Hikvision IP camera for public-area live view.
Modular apartment
DS-KD8003-IME1 · DS-KD8103-E6
The go-to 2 MP IP door station for apartments, small offices and modern homes — wide-angle camera, capacitive keypad, IP65 rated.
Villa · single entry
DS-KV6113-WPE1(C)
Compact one-button villa door station with 2 MP camera, Wi-Fi and PoE. Front doors, side gates, small retrofits.
Multi-unit villa
DS-KV8113-WME1(B) · DS-KV8413
Multi-button villa series for dual occupancy or duplex entries — ideal for granny flats, dual-key apartments and shared driveways.
Face recognition flagship
DS-KD9633-WBE6
10.1" flagship door station with built-in face recognition and card reader. Pairs seamlessly with the DS-KH6350-WTE1W.
High-resolution camera
DS-KV6124-WBE1
4 MP PoE IP door station with 150° wide-angle lens, Wi-Fi and dual lock outputs. Razor-sharp day and night imaging.
Network & power
802.3af PoE switch · 12 V DC PSU
Any standards-compliant PoE switch or injector, or a 1 A / 12 V DC adapter. One cable up the wall — sorted.
FAQ
Good questions, answered.
Does this include a door station?
No — this listing is for the indoor station only. Pair it with a Hikvision IP door station (e.g. DS-KV6113-WPE1 or DS-KD8003) and a PoE switch to form a complete system.
Which Hikvision door stations are compatible?
The full Hikvision IP range, including the DS-KD8003-IME1(B), DS-KD8103-E6, DS-KV6113-WPE1(C), DS-KV6124-WBE1, DS-KV8113-WME1 / DS-KV8413 series and the DS-KD9633-WBE6 face-recognition flagship. Any compatible Hikvision IP camera can also be viewed live from the monitor.
How many door stations and monitors can one system run?
Each DS-KH6350-WTE1W can link up to 17 door stations and 16 indoor extensions. Plenty for multi-storey homes, duplex villas, small apartment blocks and boutique offices — with ring-all or zoned call groups.
Can I record video or take snapshots?
Yes. Insert a microSD card up to 128 GB to store captured snapshots and alarm records. For continuous recording, most installers pair the system with a Hikvision NVR so every ring is archived.
Does it work with electric strikes or magnetic locks?
Yes. The indoor station has two onboard lock relay outputs (30 V DC / 0.3 A) to drive a relay board for electric strikes, mag-locks or gate motors. Most Hikvision door stations also carry their own onboard lock relay if you’d prefer the switching at the door.
Is Hik-Connect really free?
Yes. Hik-Connect (iOS & Android) is free from Hikvision — no subscription, no monthly fees. A Hik-Connect account is required for remote access; terms are set by Hikvision.
Is this genuine Hikvision with Australian warranty?
Absolutely. We only stock 100% genuine Hikvision, supplied through authorised Australian distribution and shipped nationwide by Infront Technology. Full Australian manufacturer warranty applies and local technical support is just a call away.
Can I install it myself, or do I need an electrician?
The unit itself is low-voltage: plug-in 12 V DC or PoE — a confident DIYer with data-cabling experience can usually install a single indoor + door station. Concealed Cat-6 cabling is customer cabling under AS/CA S009 and should be run by an ACMA-registered cabler; any 240 V gate controller, dedicated lock PSU or mag-lock circuit must be installed by a licensed electrician or Hikvision-trained security integrator.
Upgrade your entryway.
Genuine Hikvision, shipped Australia-wide by Infront Technology. Local support from a team that designs, installs and maintains professional IP intercom and CCTV systems every day.
Installation & safety notice
Low-voltage product (SELV). The DS-KH6350-WTE1W is powered by PoE (IEEE 802.3af) or a 12 V DC plug-in adapter — there is no 240 V wiring inside the unit and no mains work is required on the device itself. Mounting is a screwdriver-and-bracket job.
When a licensed tradesperson is required. Concealed Cat-6 cabling between the door station, PoE switch and indoor station is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Adding a new GPO, installing a dedicated lock PSU, or integrating a 240 V gate controller / mag-lock / electric strike circuit is the licensed electrician’s or security installer’s job. A standard plug-in 12 V DC adapter in an existing GPO is fine to use as-is.
Specifications supplied in good faith. Specs, images, firmware features and bundled accessories may change without notice; verify current specifications and compatibility against the latest Hikvision datasheet before ordering. Product appearance and packaging may differ from marketing imagery. Some features require an active Hik-Connect account; terms and availability are set by Hikvision.
By placing an order you confirm the product is fit for your intended use and that any concealed cabling or third-party integration (electric strikes, mag-locks, gate controllers, mains GPO work) will be performed by an appropriately licensed tradesperson. Infront Technology does not accept liability for unlicensed installation, incorrect site preparation or misuse outside the manufacturer’s specifications. Genuine Hikvision product; full Australian manufacturer warranty applies.
