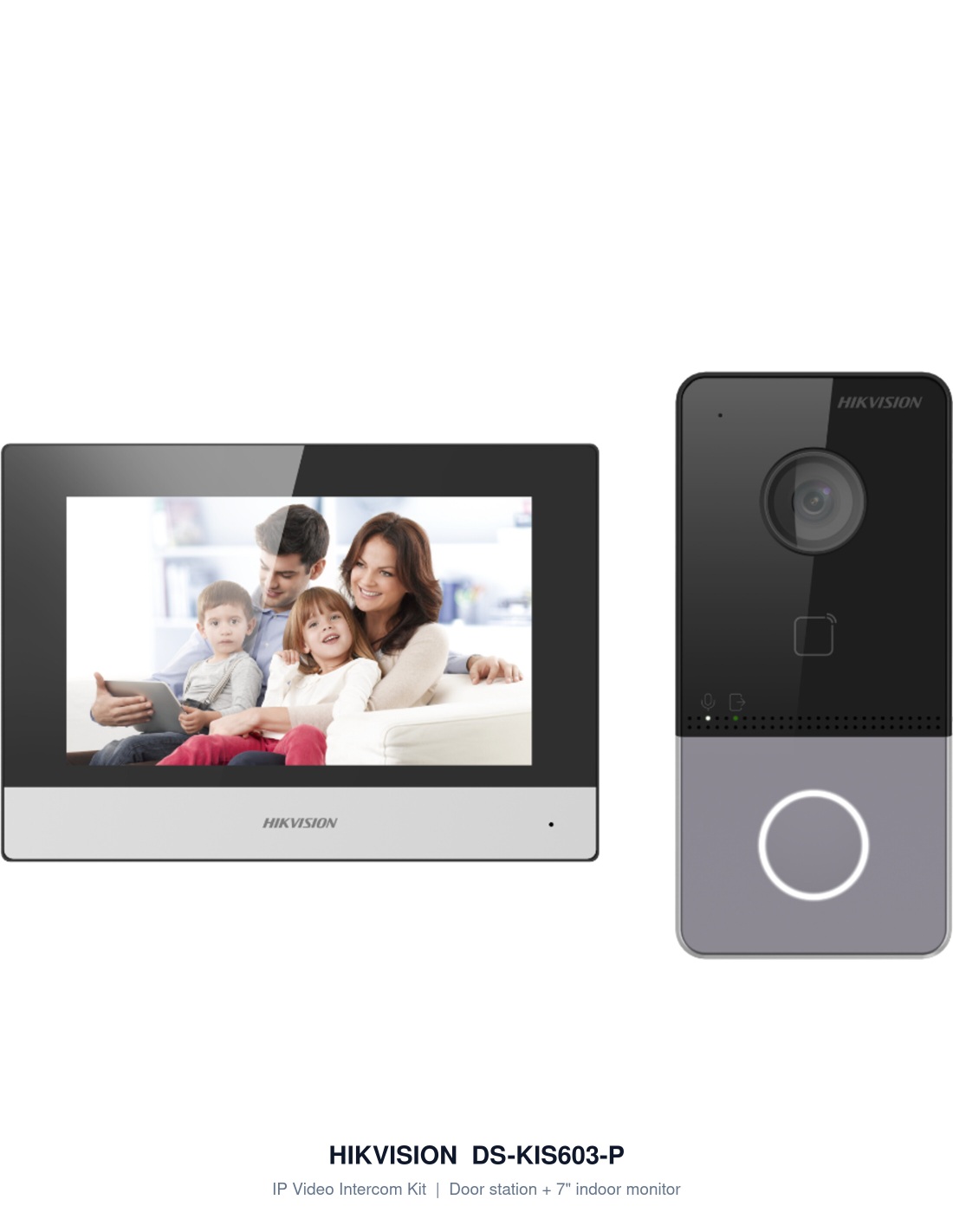

Hikvision DS-KIS603-P IP video intercom kit — DS-KV6113-WPE1 villa door station paired with DS-KH6320-WTE1 7-inch indoor monitor

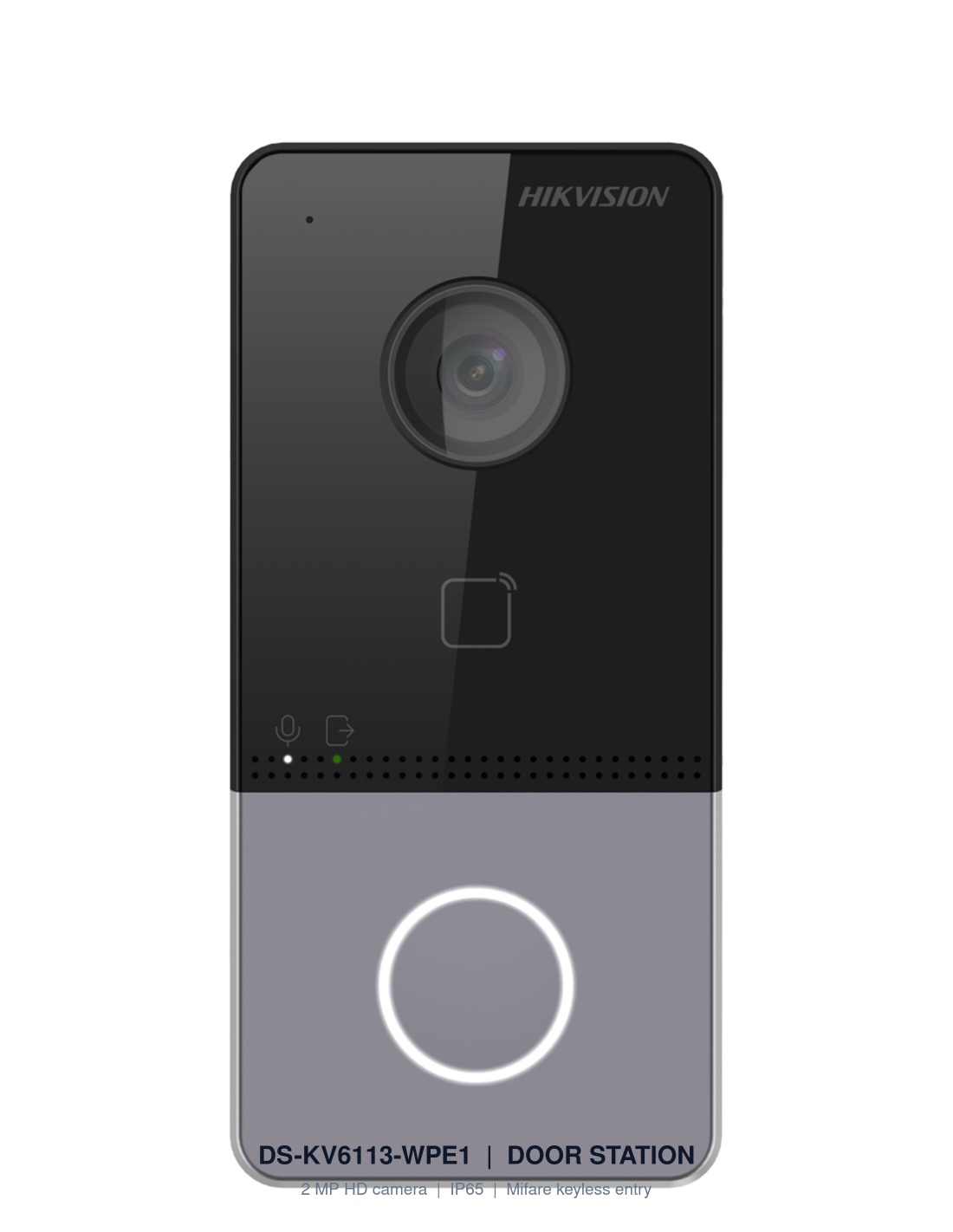

DS-KV6113-WPE1 2 MP IP PoE villa door station — front view, 131° wide-angle camera, Mifare keyless entry, IP65 outdoor housing

DS-KIS603-P retail packaging — complete Hikvision two-wire IP video intercom kit shipped Australia-wide by Infront Technology

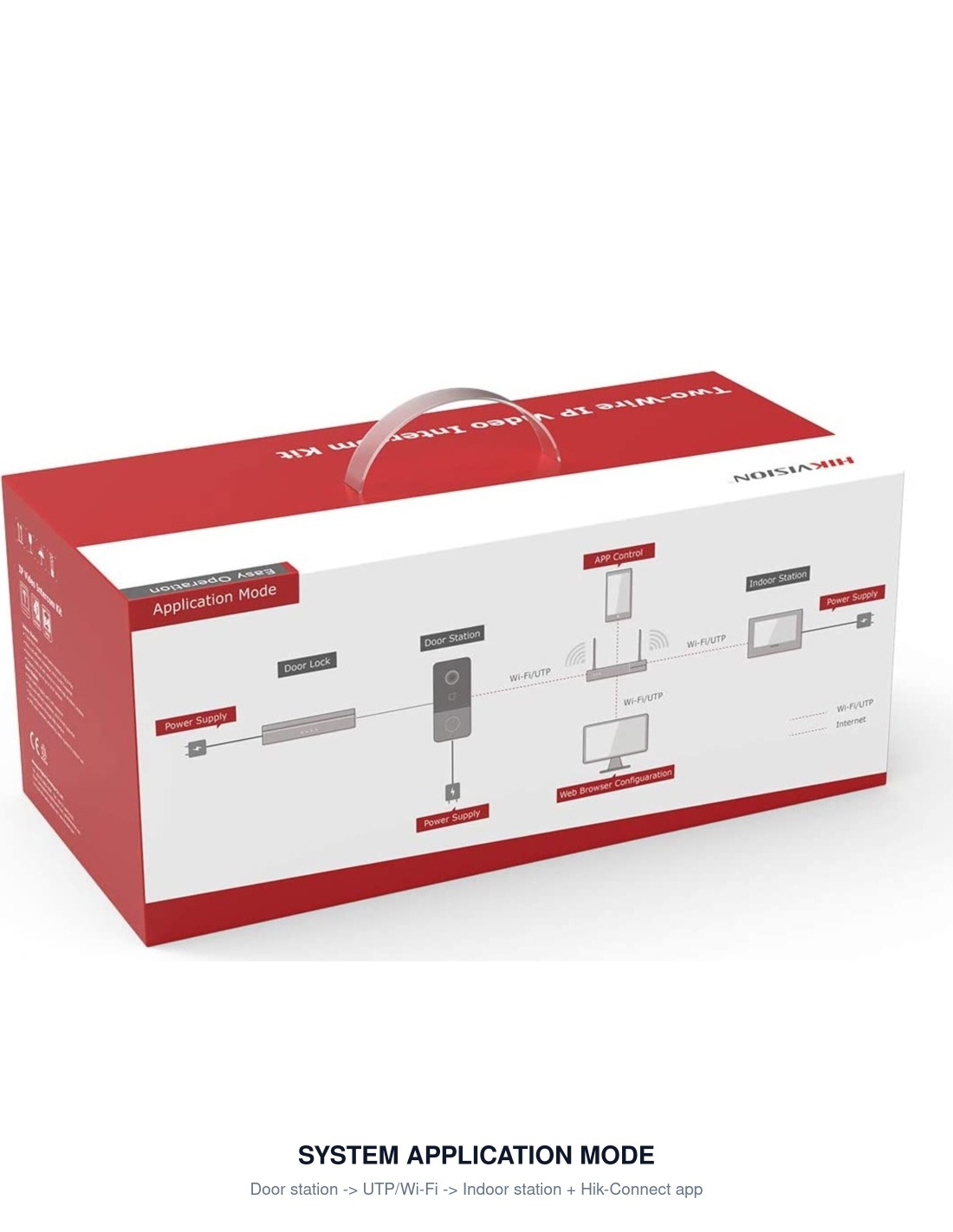

DS-KIS603-P system application diagram — door station to UTP/Wi-Fi network to indoor station, plus Hik-Connect mobile app

Hik-Connect mobile app paired with Hikvision DS-KIS603-P — live view, two-way talk and remote door unlock from anywhere

Hikvision DS-KIS603-P IP Video Intercom Kit — 7" Touchscreen Indoor Monitor + 2 MP Villa Door Station (Wi-Fi + PoE, Hik-Connect)

Name: Hikvision DS-KIS603-P IP Video Intercom Kit — 7" Touchscreen Indoor Monitor + 2 MP Villa Door Station (Wi-Fi + PoE, Hik-Connect)
Brand: HIKVision Australia
SKU: DS-KIS603-P
Price: 326.21 AUD
Availability: InStock

Reference: DS-KIS603-P

In Stock - Ready to Ship

$ 326.21

inc-GST

See the caller. Open the door. From the couch.

The complete Hikvision DS-KIS603-P IP intercom kit — 2 MP villa door station + 7″ touchscreen indoor monitor + Hik-Connect mobile app, all in one box.

7″ touchscreen indoor monitor — DS-KH6320-WTE1
2 MP outdoor door station — DS-KV6113-WPE1 (IP65)
Hik-Connect mobile answering — no subscription
Wi-Fi or PoE install — 2 PSUs, 5 Mifare fobs + admin card included

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

Visitor at the front door of a modern Australian home equipped with a Hikvision DS-KV6113-WPE1 villa door station

Hikvision IP Video Intercom Kit

Everything you need for a
smart front door.

The DS-KIS603-P is Hikvision’s complete IP video intercom starter kit — a 2 MP villa door station, a 7″ touchscreen indoor monitor, two power supplies, five Mifare fobs and an administrator card. In the box. Ready to install.

Product shots may differ slightly from the actual product.

Complete kit — everything in the box

Unlike most intercoms, you’re not shopping add-ons. This is a full system — outdoor door station, indoor touchscreen, both power supplies, keyless fobs, mount seal and cards — boxed and ready.

In the box

DS-KV6113-WPE1 villa door station × 1
DS-KH6320-WTE1 7″ indoor monitor × 1
DS-KABV6113-RS rainshield / mount × 1
Power supplies (door + indoor) × 2
Mifare key fob × 5 + administrator card × 1
Screw terminals, weather seal, quick-start guide

You supply

Cat5e or Cat6 cabling to the door
2.4 GHz Wi-Fi — or a PoE switch for a cabled install (optional, see pairings)
A Hik-Connect account (free) for mobile answering
Optional: electric strike / mag-lock + lock PSU for keyless door release

Not sure you’ve got the right site setup? Give our team a call on 1300 736 970 before ordering — we’ll walk you through it.

A proper video intercom. Without the proper price tag.

The DS-KIS603-P pairs Hikvision’s proven 2 MP outdoor door station with a 7″ capacitive touchscreen indoor monitor — one of the few genuinely plug-and-play IP intercom kits that also runs over Wi-Fi, so retrofits don’t need chased walls or new conduits.

Shipped Australia-wide by Infront Technologies with local technical support, genuine Hikvision firmware and full Australian manufacturer warranty.

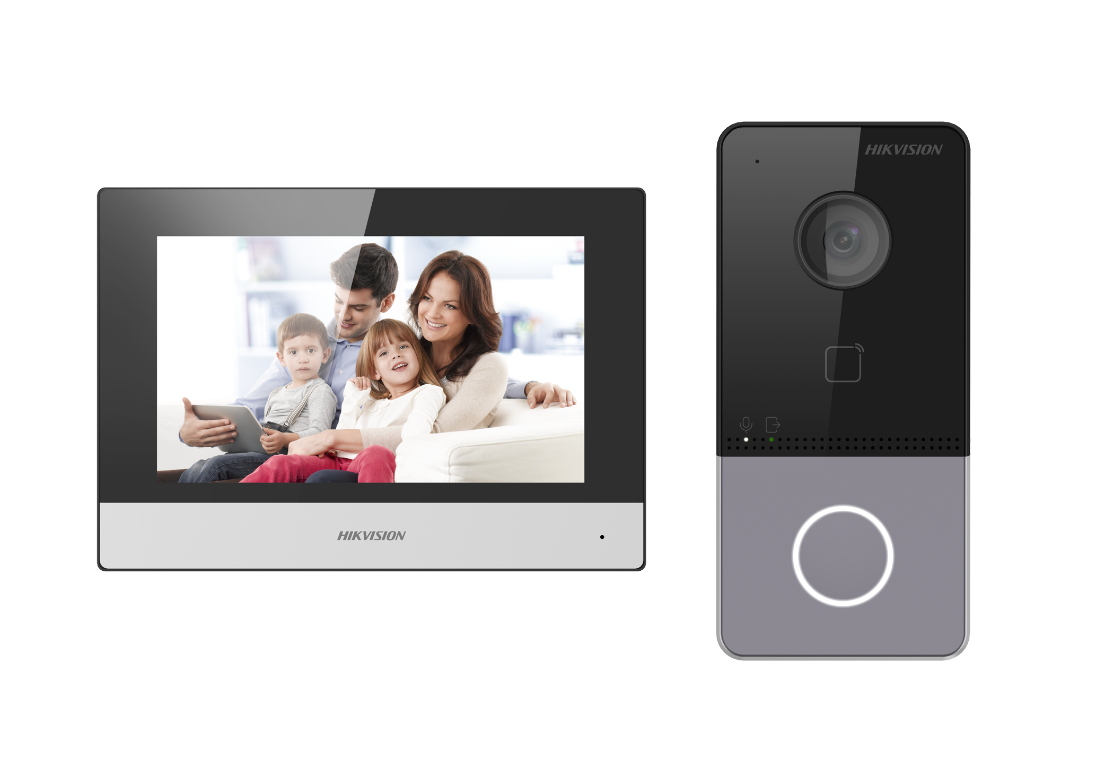

Hikvision DS-KIS603-P IP intercom kit — DS-KV6113-WPE1 villa door station paired with DS-KH6320-WTE1 7-inch indoor monitor on white background

Complete · 01

Two matched units. One box. Done.

The kit ships with the DS-KV6113-WPE1 villa door station and the DS-KH6320-WTE1 7″ indoor monitor — factory-paired, same Hikvision IP intercom family, no compatibility guesswork.

Two power supplies, a rainshield, the mounting template and five Mifare fobs with an administrator card are all in the box. No “you’ll also need to buy…” surprises six weeks after install.

Clarity · 02

See every caller. Day or night.

A 131° wide-angle lens and 2 MP (1920 × 1080) main stream mean the door station frames the full doorway — parents, kids, delivery drivers, the whole footpath — in crisp HD.

Infrared supplement lighting keeps faces recognisable long after sunset. Two-way audio runs through echo cancellation and noise suppression so your voice carries naturally, not tinny through a plastic speaker.

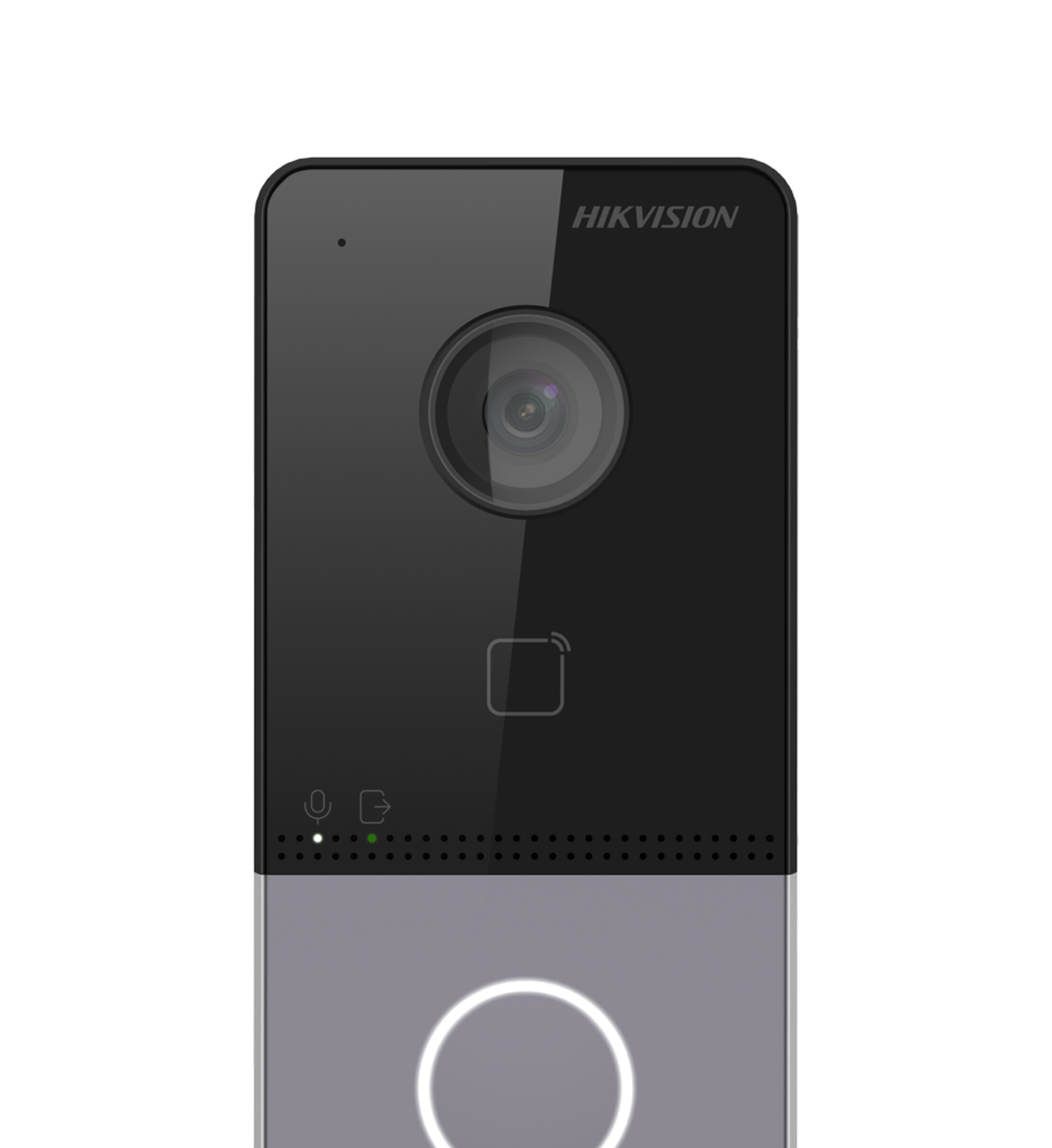

Hikvision DS-KV6113-WPE1 villa door station — front view showing 2 MP HD camera, IR supplement, single call button and integrated Mifare reader

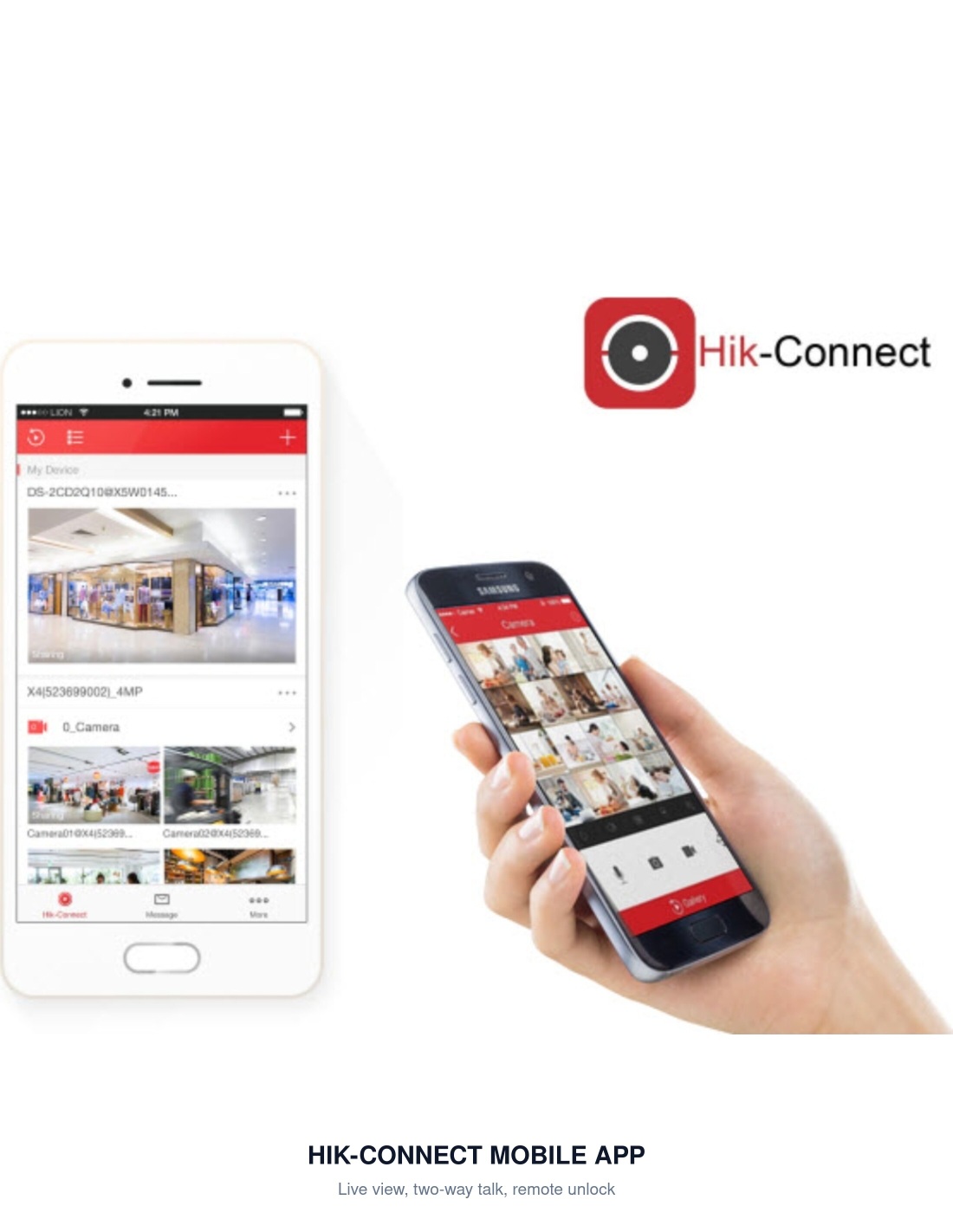

Hik-Connect mobile app paired with Hikvision DS-KIS603-P — live view, two-way talk and remote unlock from a smartphone

Anywhere · 03

Answer the door from the couch, the office, anywhere.

Hikvision’s free Hik-Connect app (iOS + Android) mirrors the door call to your phone — live view, two-way talk, remote unlock, push notifications.

No subscription. No cloud lock-in. Pair it alongside the 7″ indoor monitor for the full at-home experience, or run the app stand-alone when you’re travelling.

Resilient · 04

Built for real-world Australian installs.

The outdoor door station is IP65-rated with a rated operating range of −40 °C to +55 °C. It takes direct rain, coastal humidity and western-sun summers in stride.

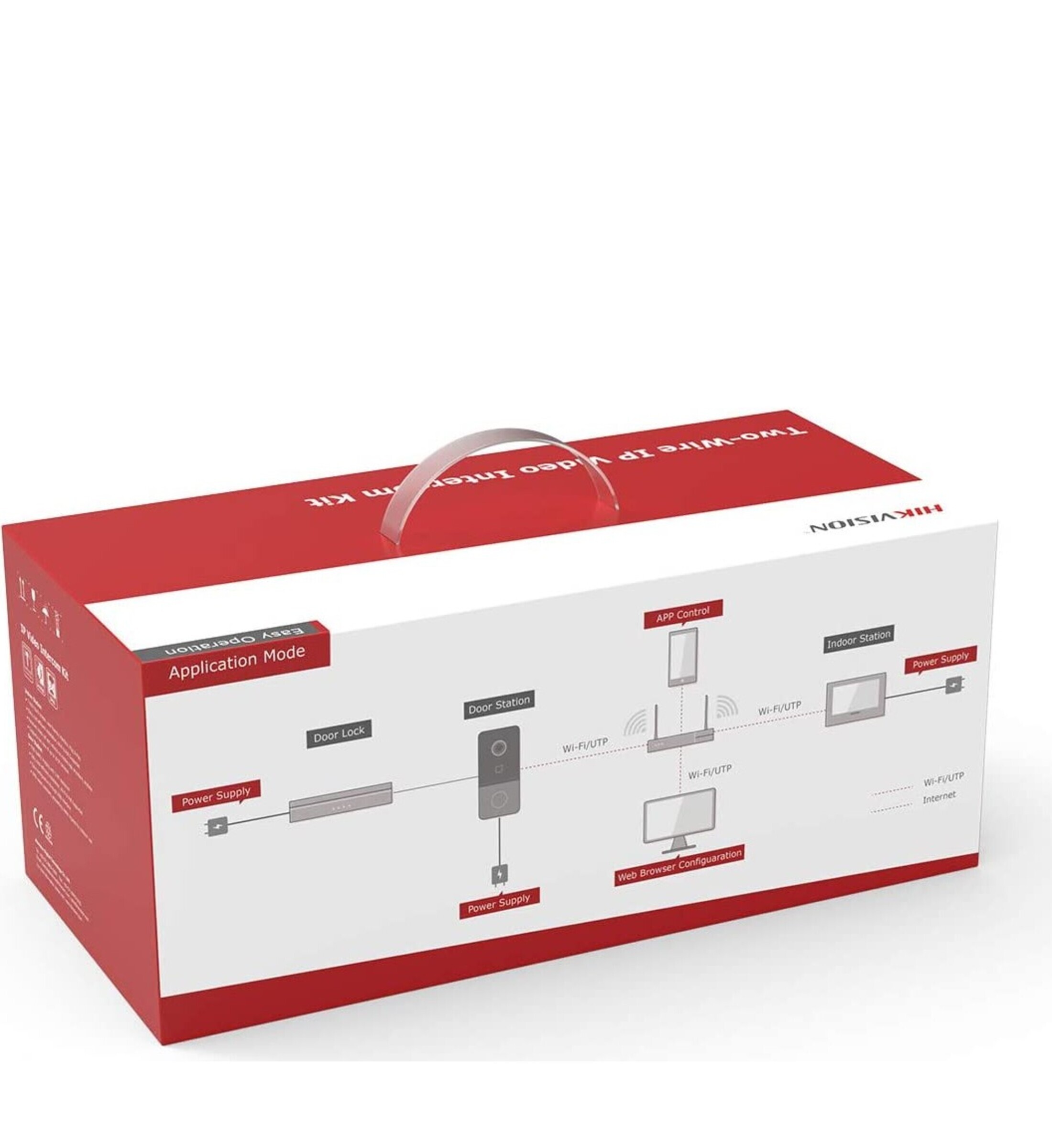

The included application diagram walks you through the topology: door station → Cat5e/Cat6 or 2.4 GHz Wi-Fi → 7″ indoor station → Hik-Connect on the phone. Configuration happens through the web console or the indoor monitor — no paid PC software needed for a single-door home install.

Hikvision DS-KIS603-P application diagram — door station links to 7-inch indoor monitor, Hik-Connect app, web browser and electric door lock over Wi-Fi or UTP

Install & Go

Four steps. A quiet afternoon.

Mount the door station

Surface-mount the door station at the front door or gate with the included weather seal and rainshield. Run Cat5e/Cat6 back to the house — or plan the Wi-Fi link.

Wall-mount the monitor

Hang the 7″ indoor monitor at head height in a convenient spot — entry hall, kitchen, main bedroom. Plug the included 12 V DC PSU into a nearby GPO.

Pair the units

Join both devices to the same Wi-Fi (or LAN) and pair through the on-screen wizard. The door-call test is a tap away.

Enrol Mifare cards

Add the supplied fobs (and any extras) via the indoor monitor’s admin menu. Scan Hik-Connect’s QR code to mirror the door to your phone. Done.

At a glance

The technical essentials.

Door station camera: 2 MP · 1920 × 1080 · 131° FOV
Low light: IR supplement · noise suppression
Indoor display: 7″ capacitive touchscreen · 1024 × 600
Power: PoE (IEEE 802.3af) or 12 V DC (2 PSUs included)
Network: 10/100 Mbps Ethernet · 2.4 GHz Wi-Fi (indoor)
Mobile app: Hik-Connect (iOS + Android) · no subscription
Keyless entry: Built-in Mifare reader · 5 fobs + admin card included
Lock control: 1× lock relay output (door station)
Weatherproofing: IP65 door station · −40 to +55 °C
Door station dimensions: 138 × 65 × 27 mm · surface mount
Indoor station dimensions: 162 × 137 × 20 mm · wall mount
Warranty: Full Australian manufacturer warranty

Pairings

Expand, upgrade, integrate.

The DS-KIS603-P is complete out of the box, but it scales cleanly with the rest of the Hikvision IP intercom family when you need a second monitor, a larger display, extra cards, or a PoE-cabled install.

Second indoor station (matching 7″)

DS-KH6320-WTE1

The same 7″ black monitor shipped in this kit — add a second one for a multi-room answer setup.

Upgrade indoor station · 7″ white

DS-KH6350-WTE1W

A lighter, white Gen-2 indoor station with higher-contrast UI — drop-in replacement for the supplied black unit if that suits your walls better.

Upgrade indoor station · 10″ flagship

DS-KH8520-WTE1

Step up to a 10″ panel for larger homes or small apartment blocks — higher-resolution display, richer UI, same IP intercom ecosystem.

Extra Mifare cards

HIK-IC-S50

Genuine Hikvision 13.56 MHz contactless smart cards — stock up when five included fobs aren’t enough for your household.

Cabled install · PoE switch

802.3af PoE switch

For a rock-steady cabled deployment, drop an 802.3af PoE switch between the door station and the indoor unit — one Cat6 does power + data.

Keyless door release

12 V strike / mag-lock + PSU

The door station’s onboard lock relay drives a standard 12 V electric strike or mag-lock via a dedicated lock PSU sized for inrush.

FAQ

Good questions, answered.

Is this really a complete kit?

Yes. Door station, 7″ indoor monitor, rainshield, two PSUs, five Mifare fobs and an administrator card are all in the box. You’ll just need Cat5e/Cat6 (or Wi-Fi), and optional hardware for keyless door release.

Do I need a PoE switch?

No — the kit includes two 12 V PSUs, so it runs perfectly without PoE. A PoE switch is optional for customers who prefer a single Cat6 cable per device and centralised power. We recommend an 802.3af-compliant switch.

Can I answer the door from my phone?

Absolutely. Register the units with the free Hik-Connect app (iOS or Android) and the door call mirrors to your phone — live view, two-way talk, remote unlock, push notifications. No monthly fee.

Will Wi-Fi be reliable enough?

For retrofits where chasing a Cat6 is impractical, 2.4 GHz Wi-Fi is a legitimate option on the indoor station. For new builds, a cabled PoE or UTP link is still the gold standard — lower latency, no channel congestion. Wireless range depends on site conditions; coverage cannot be guaranteed.

Can it drive an electric strike or mag-lock?

Yes. The door station has an onboard lock-relay output that drives most 12 V electric strikes or mag-locks via a dedicated lock PSU sized for the inrush current. Indoor station also provides lock relay outputs for backup release.

Can I add a second indoor monitor later?

Yes — the system is expandable. Add another DS-KH6320-WTE1 (matching 7″ black) or upgrade to the 10″ DS-KH8520-WTE1 for larger homes and small apartment blocks. See the Pairings section above for common upgrades.

Will it survive our summers?

Yes. The outdoor door station is IP65-rated (full dust protection, low-pressure water jets) with a rated operating range of −40 to +55 °C. A deep porch or eave is still recommended to avoid baking in direct summer sun — good practice for any outdoor electronics.

Is this genuine Hikvision with Australian warranty?

Absolutely. We only stock 100% genuine Hikvision, supplied through authorised Australian distribution, shipped nationwide by Infront Technologies. Full Australian manufacturer warranty applies, and local technical support is a call away.

Can I install it myself?

The kit itself is low-voltage — PoE or 12 V DC — and a confident DIYer can usually surface-mount both units. Concealed Cat-6 cabling in the wall cavity is customer cabling under AS/CA S009 and should be run by an ACMA-registered cabler. Any 240 V work (new GPO, dedicated lock PSU, gate-motor mains) must be performed by a licensed electrician.

A smarter front door, in one box.

Genuine Hikvision, shipped Australia-wide by Infront Technologies. Local support from a team that designs, installs and maintains professional IP intercom systems every day.

Installation & safety notice

Low-voltage product (SELV). The DS-KIS603-P kit is powered by the two included 12 V DC adapters — or optional PoE (IEEE 802.3af). There is no 240 V wiring inside the door station or indoor monitor, and no mains work is required on the units themselves. Surface- and wall-mounting is a screwdriver-and-bracket job; a confident DIYer can install the kit without calling a trade.

When a licensed tradesperson is required. Concealed Cat-6 cabling between the door station, the indoor station and any optional PoE switch is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Any 240 V work — new GPO, dedicated lock PSU, gate-motor mains feed — is the licensed electrician’s or security installer’s job. Standard plug-in 12 V DC adapters into existing GPOs are fine to use as-is.

Specifications supplied in good faith. Specs, images, firmware features and bundled accessories may change without notice; verify current specifications and compatibility against the latest Hikvision datasheet before ordering. Product appearance and packaging may differ from marketing imagery. Some features require an active Hik-Connect account; terms and availability are set by Hikvision. Wireless range depends on site conditions; coverage cannot be guaranteed.

By placing an order you confirm the product is fit for your intended use and that any concealed cabling or third-party integration (electric strikes, mag-locks, gate controllers, mains GPO work) will be performed by an appropriately licensed tradesperson. Infront Technologies does not accept liability for unlicensed installation, incorrect site preparation or misuse outside the manufacturer’s specifications. Genuine Hikvision product; full Australian manufacturer warranty applies.

Door Station Field of View: 131° horizontal (wide-angle)
Indoor Station Dimensions: 162 × 137 × 20 mm
Door Station Dimensions: 138 × 65 × 27 mm
Weatherproofing: IP65 (door station)
Lock Relay: 1× lock relay output (door station)
Keyless Entry: Mifare card reader (built into door station)
Mobile App: Hik-Connect (iOS + Android, free, no subscription)
Wireless: Wi-Fi 802.11 b/g/n (2.4 GHz)
Indoor Monitor Display: 7-inch colour TFT (1024 × 600) capacitive touchscreen
Power Supply: PoE (IEEE 802.3af) or 12 V DC
Operating temperature: -40 °C to +55 °C (door station)
Installation: Surface mount (door station) / Wall mount (indoor station)
Door Station Camera: 2 MP (1920 × 1080)
Brand: Hikvision
Network: 10/100 Mbps Ethernet
Warranty: Full Australian manufacturer warranty
Product Type: IP Video Intercom Kit
