Adapter for Ceiling & Wall Mount Brackets - VSBKTA106

Name: Adapter for Ceiling & Wall Mount Brackets - VSBKTA106
Brand: VIP Vision
SKU: VSBKTA106
Price: 20.6 AUD
Availability: InStock

SKU VSBKTA106 In Stock - Ready to Ship

$20.60 inc GST

VIP Vision VSBKTA106: a powder coated aluminium adapter, rated for 1 kg, that joins VIP Vision turrets to the VSBKTB305W wall mount or VSBKTB220C ceiling mount.

✓Ø134.1 × 83.5 mm, 1 kg load rating
✓For the VSBKTB305W and VSBKTB220C
✓Listed for VSIPP-4/6/8DIRG-I3 turrets
✓Lip gives some rain shielding
✓Powder coated aluminium, white
✓−40 °C to 60 °C

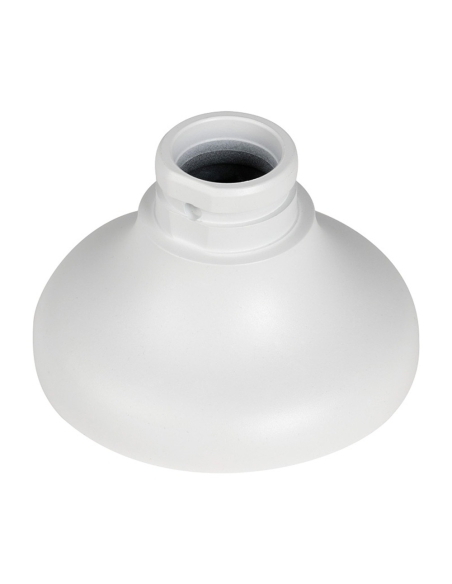

VIP Vision VSBKTA106 white aluminium bell-shaped camera adapter with a round neck

VIP Vision · Camera mounting · Adapter

Turret to arm, with a rain lip.
For the VSBKTB305W and VSBKTB220C.

The VIP Vision VSBKTA106 is a powder coated aluminium adapter. The camera fixes inside its bell, and the neck fits the VSBKTB305W wall mount or the VSBKTB220C ceiling mount.

In one sentence: the VIP Vision VSBKTA106 is a Ø134.1 × 83.5 mm powder coated aluminium adapter, rated for 1 kg, that joins VIP Vision turrets to the VSBKTB305W wall mount or the VSBKTB220C ceiling mount.

Adapter only. The mount and camera are separate.

This listing is the VSBKTA106 adapter. VIP Vision's 2025 guide lists it between its fixed turrets and the VSBKTB305W wall mount. Check your camera in the list below before you order.

In the box

VSBKTA106 adapter

You also need

A VSBKTB305W wall mount or VSBKTB220C ceiling mount
A compatible VIP Vision camera (see the list below)
Screws to fix the camera inside the adapter (ask us which)

The bell that hangs a turret from an arm.

A turret is made to sit flat on a ceiling or a junction box. The VSBKTA106 gives it a flat base to fix to, then carries it below the end of a wall arm or pendant. VIP Vision notes the bell's lip gives the camera some rain shielding.

Close-up of the VSBKTA106 neck with its locking screw hole

The neck

The neck locks into the mount.

The 46.8 mm neck fits into the end of the VSBKTB305W arm or the VSBKTB220C pendant, where the mount's screws lock it. The camera cable runs up through the centre. Close-up from VIP Vision's product photo.

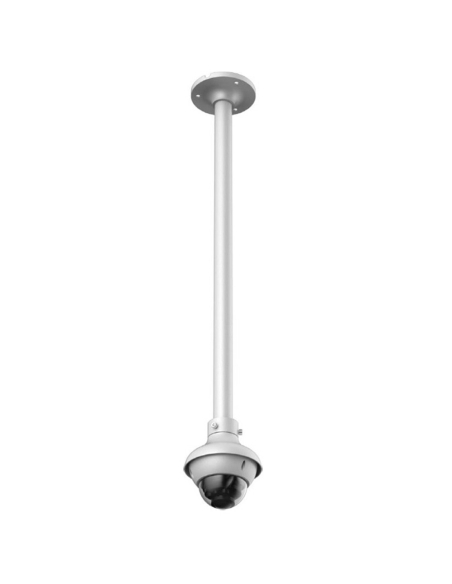

VIP Vision drawing of a dome camera hanging from a long pendant ceiling mount through the VSBKTA106

On a pendant

Hung below a ceiling mount.

VIP Vision's drawing shows the adapter and camera on the end of a long pendant ceiling mount. Drawing from VIP Vision's brochure.

How it goes in

Mount, adapter, camera.

Check the camera

Find your camera in the list below. The camera must weigh no more than the adapter's 1 kg rating.

Fix the mount

Fit the VSBKTB305W to the wall, or the VSBKTB220C to the ceiling, with the camera cable fed through it.

Fit the adapter

Push the adapter's neck into the end of the mount and tighten the mount's locking screws.

Fit the camera

Feed the cable through the adapter, connect it, then fix the camera inside the bell and aim it.

At a glance

VSBKTA106

Show specs

Type

Adapter for ceiling and wall mount brackets

Material

Powder coated aluminium

Size

Ø134.1 × 83.5 mm

Neck

Ø46.8 mm (drawing)

Camera hole circles

Ø69.0 (6 × M4), Ø84.0 (3 × M4), Ø98.2 (3 × M4) and Ø110 mm (drawing)

Load rating

1 kg

Weight

1.0 kg (VIP Vision table)

Pipe thread

N/A

Weather rating

Not stated (sheet: N/A); the lip gives some rain shielding

Operating range

−40 °C to 60 °C, humidity 90% or less

Goes onto

VSBKTB305W wall mount or VSBKTB220C ceiling mount

Colour

White

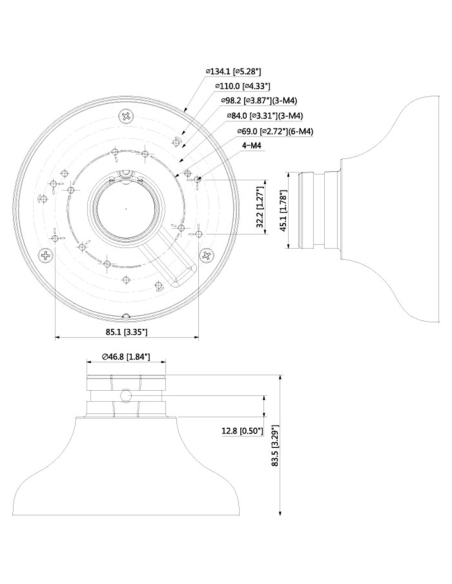

VIP Vision VSBKTA106 dimension drawing: Ø134.1 mm, 83.5 mm high, Ø46.8 mm neck, M4 hole circles

VIP Vision dimension drawing, measurements in mm.

Works with

Which cameras use the VSBKTA106

The first row is from VIP Vision's Accessory Compatibility Guide (2025 version); the rest are earlier models from the 2023 version. Check your model with us first.

Show all listed cameras

VSIPL-6DIRG-I, VSIPP-4DIRG-I3, VSIPP-6DIRG-I3, VSIPP-6DIRG-I3-B, VSIPP-8DIRG-I3, VSIPP-8DIRG-I3-B, VSIPP-5DIRG-I2-P turrets (2025)

VSBKTB305W wall mount, then the wall, a VSBKTA151 corner mount or a VSBKTA150 pole mount

VSIPP-4DIRG-I2, VSIPP-6DIRG-I2, VSIPP-8DIRG-I2 turrets (2023)

VSBKTB305W wall mount or VSBKTB220C ceiling mount

VSIPP-4DIRMG, VSIPP-4DIRG-I, VSIPP-4DIRMG-I, VSIPP-5DIRG-ID, VSIPU-4DIRMG-I turrets (2023)

VSBKTB305W wall mount or VSBKTB220C ceiling mount

VSIPP-4DIRD-I2, VSIPP-6DIRD-I2, VSIPP-8DIRD-I2 vandal domes (2023)

VSBKTB305W wall mount or VSBKTB220C ceiling mount

VSIPP-8DIRD-I, VSIPC-4DIRD2, VSIPC-4DIRD, VSIPC-8DIRD vandal domes (2023)

VSBKTB305W wall mount or VSBKTB220C ceiling mount

VSIPP-4DIRMD-I, VSIPP-8DIRMD-I vandal domes (2023)

VSBKTB305W wall mount or VSBKTB220C ceiling mount

VSIPP-4DIRF-I wedge dome (2023)

VSBKTB305W wall mount or VSBKTB220C ceiling mount

Securview VSCVI-5DIR2.8D, VSCVI-5DIRMD, VSCVI-8DIRMG HD over coax domes and turrets (2023)

VSBKTB305W wall mount or VSBKTB220C ceiling mount

In VIP Vision's 2025 guide the newer motorised turrets, vandal domes and the wedge dome use the VSBKTA109 adapter instead. VIP Vision notes that its range and bracket compatibility may change without notice.

Pair it with

The parts that go with it

Wall mount

VSBKTB305W wall mount

The right angle wall arm VIP Vision lists with this adapter for its fixed turrets.

Ceiling mount

VSBKTB220C ceiling mount

The 760 mm pendant mount VIP Vision names on the VSBKTA106 sheet.

Camera

VSIPP-6DIRG-I3 or VSIPP-8DIRG-I3 turret

VIP Vision turrets listed with the VSBKTA106 in the 2025 guide, also in black (-B).

Corner or pole

VSBKTA151 corner or VSBKTA150 pole mount

Carries the VSBKTB305W on a building corner or a round pole.

Where it is used

Where a turret on an arm fits.

Building perimeters

Turrets held out from the wall on a VSBKTB305W to see along it.

Warehouses

Turrets hung below high ceilings on a pendant mount.

Shop floors

Cameras dropped below bulkheads to see over shelving.

Car parks

Turrets on walls and columns over the bays.

Building corners

On a VSBKTB305W and VSBKTA151 corner mount, covering two sides.

Driveways and gates

A turret on a wall arm, aimed down the drive.

VSBKTA106 or VSBKTA109

	VSBKTA106 (this adapter)	VSBKTA109
Goes onto (2025 guide)	VSBKTB305W wall mount	VSBKTB305W wall mount
Turrets (2025 guide)	VSIPL-6DIRG-I, VSIPP-4/6/8DIRG-I3 (and -B), VSIPP-5DIRG-I2-P	VSIPP-4/6/8DIRMG-I3, VSIPP-6/8DG-ID4, VSIPP-8DD-ID3, VSIPU-4DIRG-IM
Domes (2025 guide)	None listed	VSIPP-4/6/8DIRD-I3, VSIPP-4/6/8DIRMD-I3, VSIPP-4DIRF-I2
Size	Ø134.1 × 83.5 mm	Not on a VIP Vision sheet we hold

From VIP Vision's VSBKTA106 sheet and VIP Vision's 2025 Accessory Compatibility Guide. Ask us for the VSBKTA109's dimensions.

Common questions

What does the VSBKTA106 do?

It joins a VIP Vision turret or dome to a wall arm or pendant mount. The camera fixes inside the bell and the neck locks into the mount.

Which mounts does it fit?

VIP Vision names the VSBKTB305W wall mount and the VSBKTB220C ceiling mount.

Which cameras is it listed for?

VIP Vision's 2025 guide lists the VSIPL-6DIRG-I, VSIPP-4DIRG-I3, VSIPP-6DIRG-I3, VSIPP-8DIRG-I3 (and black -B versions) and VSIPP-5DIRG-I2-P turrets. The 2023 guide adds earlier turrets and domes, shown in the list above.

Does it suit the newer motorised turrets and domes?

VIP Vision's 2025 guide lists the VSBKTA109 for its motorised turrets, deterrence turrets, vandal domes and wedge dome, not the VSBKTA106. Check your model in the list above or ask us.

How much weight will it carry?

1 kg, according to VIP Vision.

How big is it?

Ø134.1 × 83.5 mm, with a 46.8 mm neck, according to VIP Vision.

How much does it weigh?

VIP Vision's table gives 1.0 kg.

What is it made of?

Powder coated aluminium, in white.

Is it weatherproof?

VIP Vision lists the weather resistance as N/A, so no IP rating is stated. It notes the bell's lip gives some rain shielding. The operating range is −40 °C to 60 °C.

Is a mount or camera included?

No. This listing is the VSBKTA106 adapter only. The mount and camera are sold separately.

Can I put it on a corner or pole?

Yes, through the VSBKTB305W. VIP Vision's 2025 guide shows the VSBKTA106 and VSBKTB305W going onto a VSBKTA151 corner mount or VSBKTA150 pole mount.

Who can install the cable?

Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Supported by InFront Technologies.

Not sure whether your camera takes the VSBKTA106 or the VSBKTA109? Call 1300 736 970 or email [email protected] with the camera model. The VIP Vision sheet is on the Attachments tab.

Installation and safety

Mechanical part only. The VSBKTA106 joins a camera to its mount. It carries no power or data.

Load. Rated for 1 kg. Check the camera's weight before you fit it.

Working at height. Wall arms and pendants are usually fitted from a ladder or platform. Use the right equipment and fix the mount to solid structure.

Cabling. Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

What it does not do. It is not a mount on its own and has no stated IP rating. It does not house a cable joint.

Figures. From VIP Vision's VSBKTA106 sheet and drawing, and VIP Vision's Accessory Compatibility Guides (2023 and 2025 versions).
