Industrial PoE+ 30W Gigabit Injector DIN mount 12-48V
IF-GBPOEINJ-30W
In Stock - Ready to Ship
$ 142.50
inc-GST
- Hardened Industrial PoE+ 30W Injector DIN Mounted
- Supports 12–48V DC input for flexible industrial use
- Delivers PoE+ (802.3af/at) output up to 30W per port
- Features 2x RJ45 ports: 1x Data In, 1x PoE Out
- Supports 10/100/1000Base-T Ethernet speeds
- LED indicators show power and PoE status
- Rugged aluminum housing; compact 95x70x30 mm size
- Operates in extreme temps: -40°C to 80°C
- Mountable via DIN rail, standalone or wall for easy installation
- Built-in surge & ESD protection (RJ45: 1KV, Power: 500V)
- Certified (FCC, EN55022), with 200,000+ hr MTBF
- 4 Year Replacement Warranty

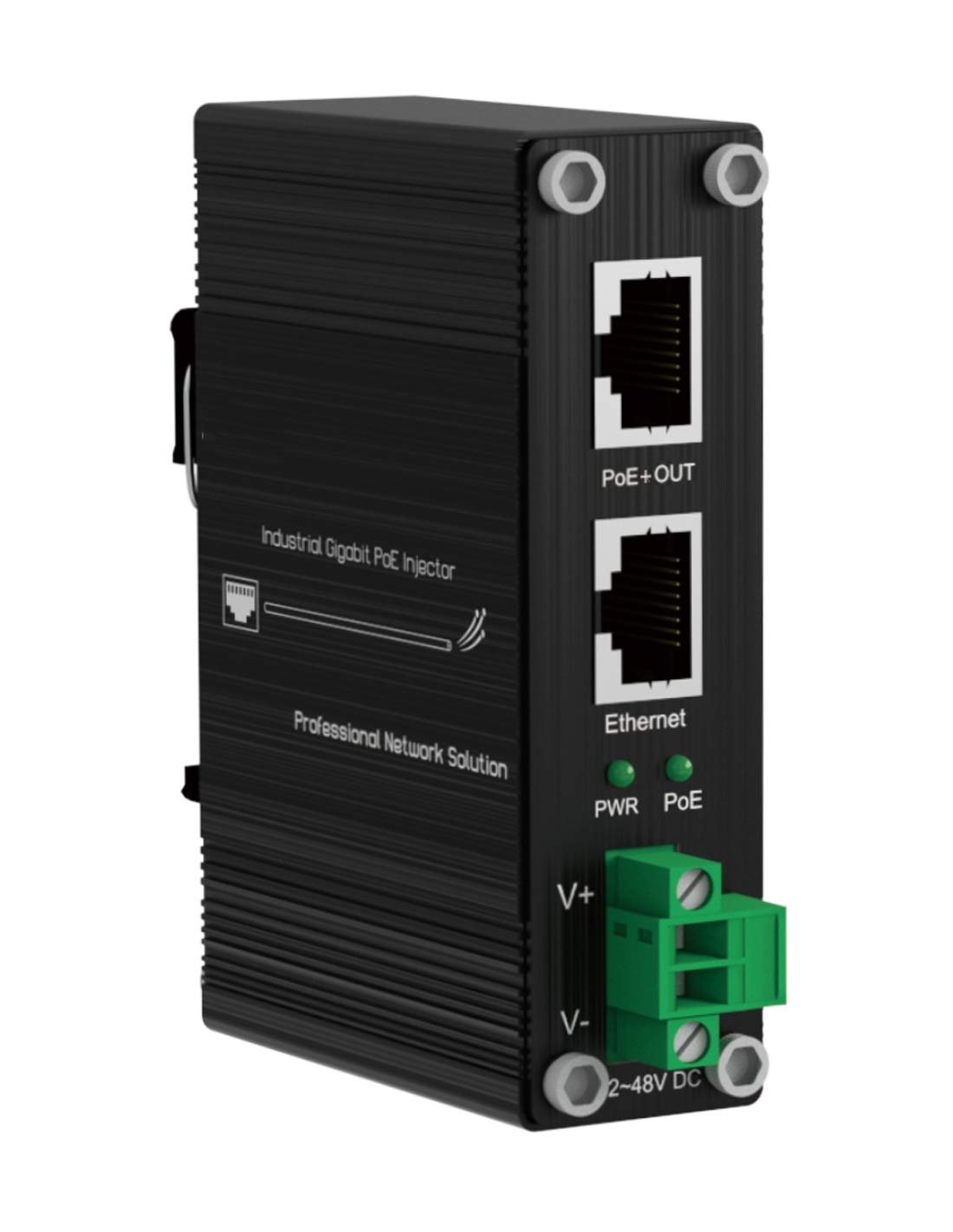

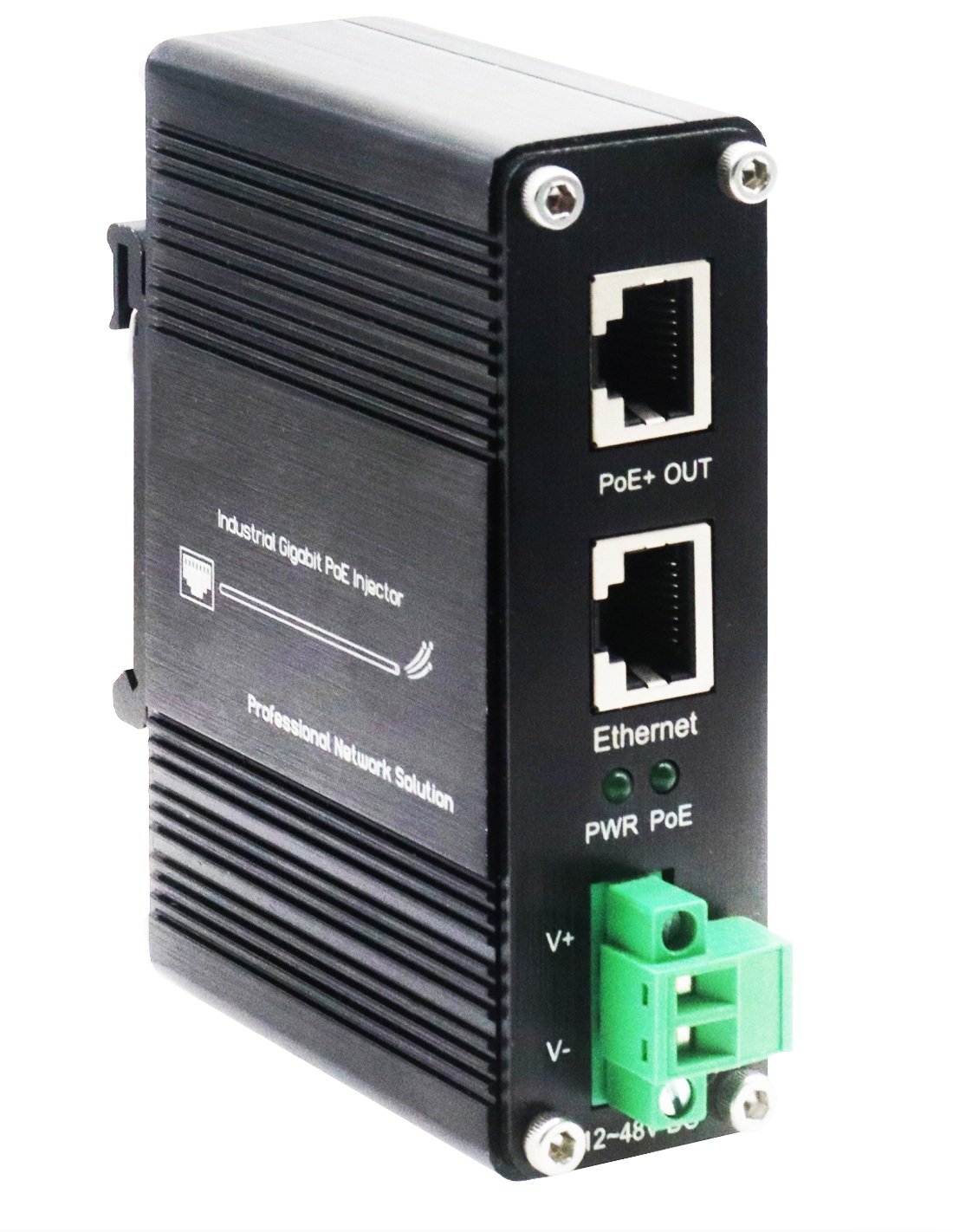

Industrial Gigabit PoE+ Injector
Model: IF-GBPOEINJ-30W


.jpg)
.jpg)

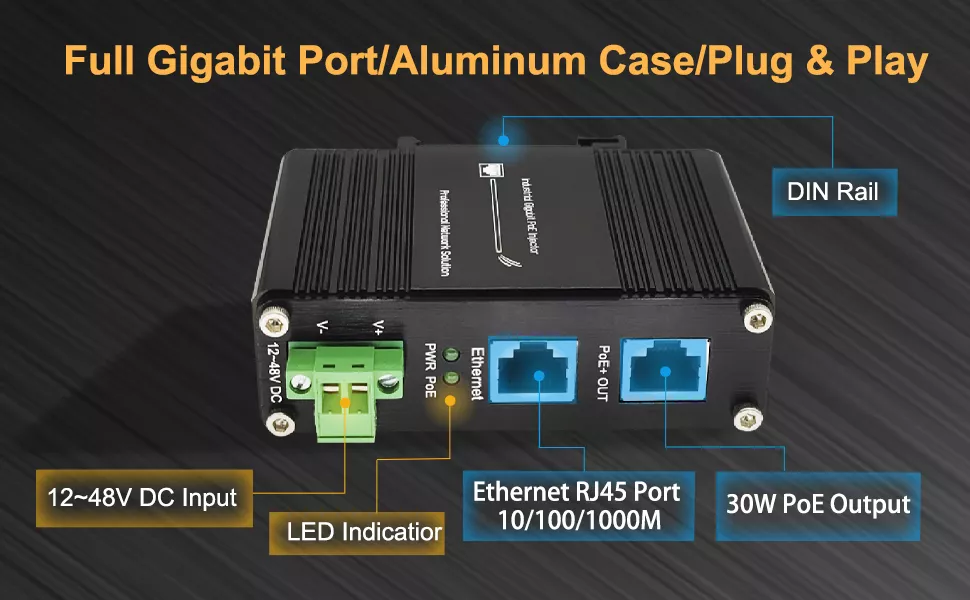

Key Features
- 12~48V DC Power Input: Flexible wide-voltage input range for industrial applications.

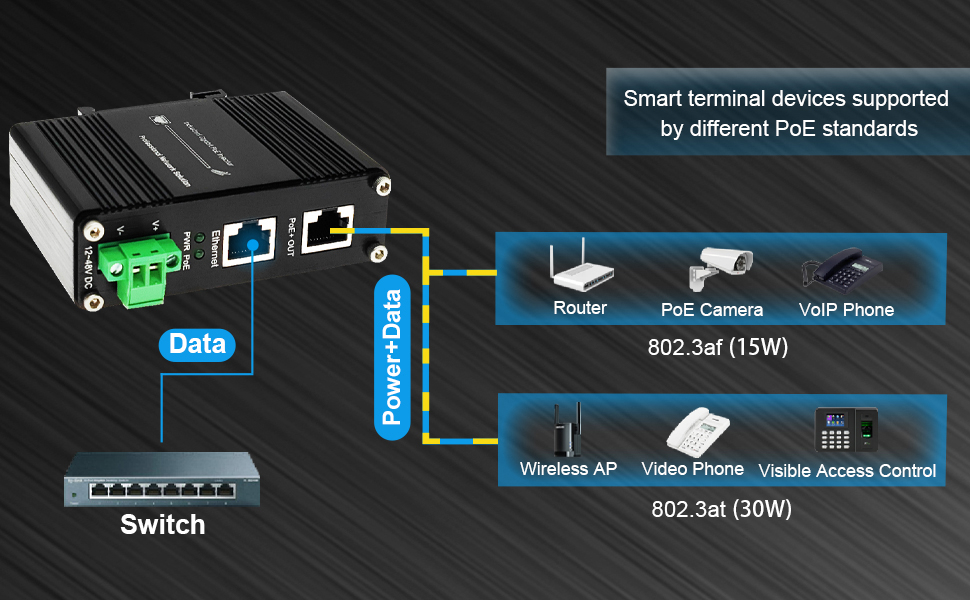

- PoE+ Output: IEEE 802.3af/at compliant, supports up to 30W per port.
- RJ45 Ethernet Ports: 1x Data In, 1x Data + Power Out, 10/100/1000Base-T support.
- LED Indicators: Diagnostics for power and PoE status.
- Rugged Design: Aluminum case, compact size (95 x 70 x 30 mm).
- Wide Temperature Range: Operates from -40°C to 80°C.

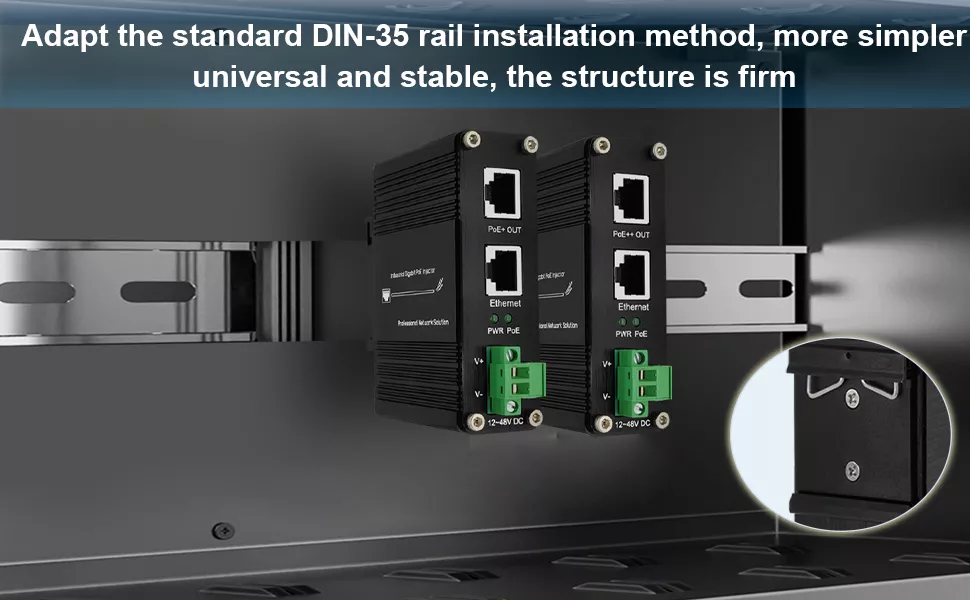

- DIN-Rail & Wall Mount: Includes both mounting options.
- MTBF: Over 200,000 hours for high reliability.
- Surge Protection: RJ45: 1KV, Power: 500V, ESD: 4KV/8KV.
Technical Specifications
- Ethernet Standards: IEEE802.3af/at, 10/100/1000Base-T
- Processing Type: Forward, Full/Half Duplex
- Cabling: Cat5 or better, up to 100m
- Connectors: 2x RJ45 (Data In & PoE Out)
- Power Consumption: Max 36W
- Power Pin Assignment: 4/5 (+), 7/8 (-) - Alternative B Mode
- Certifications: FCC Part 15 Class A, EN55022:2006+A1:2007
- Weight: 0.25kg
- Dimensions: 95 x 70 x 30 mm
What’s in the Box
- 1x Industrial Gigabit PoE+ Injector (IF-GBPOEINJ-30W)
- 1x DIN-Rail Mount Bracket (pre-installed)
- 1x Wall Mount Bracket
- *Power Supply Sold Separately
Why Buy From InFront Technologies?
- ✔ 100% Genuine Australian Stock
- ✔ Fast & Secure Shipping
- ✔ Expert Customer Support
Key Features
- 12–48 V DC Power Input: Flexible wide-voltage range for industrial use
- PoE+ Output: IEEE 802.3af/at compliant, up to 30 W per port
- RJ45 Ethernet Ports: 1× Data In, 1× Data + Power Out, 10/100/1000 Base-T
- LED Indicators: Power & PoE status diagnostics
- Rugged Design: Aluminum case, compact (95 × 70 × 30 mm)
- Wide Temperature Range: –40 °C to 80 °C operation
- Mounting Options: DIN-Rail & wall bracket included
- High Reliability: MTBF > 200 000 hours
- Surge Protection: RJ45 1 kV, Power 500 V, ESD 4 kV/8 kV
Category | Specification |
---|---|
Ethernet Standards | IEEE 802.3af/at, 10/100/1000 Base-T |
Processing Type | Forwarding, Full/Half Duplex |
Cabling | Cat5 or better, up to 100 m |
Connectors | 2× RJ45 (Data In & PoE Out) |
Power Consumption | Max 36 W |
Power Pin Assignment | 4/5 (+), 7/8 (–) – Alternative B Mode |
Certifications | FCC Part 15 Class A, EN55022:2006+A1:2007 |
Weight | 0.25 kg |
Dimensions | 95 × 70 × 30 mm |
What’s in the Box
- Industrial Gigabit PoE+ Injector (LNK-INJ301-30)
- DIN-Rail Mount Bracket (pre-installed)
- Wall Mount Bracket
- *Power Supply Sold Separately
