VIP Vision 8-port Unmanaged Fast Extended PoE Ethernet Switch - VSPOE-SW8E

VIP Vision 8-port Unmanaged Fast Extended PoE Ethernet Switch - VSPOE-SW8E

Name: VIP Vision 8-port Unmanaged Fast Extended PoE Ethernet Switch - VSPOE-SW8E
Brand: VIP Vision
SKU: VSPOE-SW8E
Price: 266.9 AUD
Availability: InStock

Reference VSPOE-SW8E

In Stock - Ready to Ship

$ 266.90

inc-GST

8 x PoE+ device ports with 100Mbps per port (ePoE capable)
1 x Hi-PoE device port with 100Mbps per port (ePoE capable)
1 x 1000Mbps Gigabit RJ45 & SFP fibre uplink ports
Total PoE power load up to 120W
Extend up to 300m@100Mbps and 800m@10Mbps
Unmanaged switch for plug and play applications
DIN rail mountable for neat rackmount installations
Professional appearance full metal enclosure

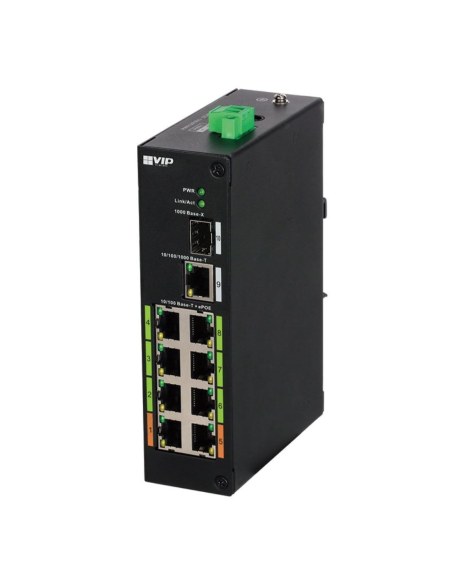

VIP Vision 8-port Unmanaged Fast Extended PoE Ethernet Switch

VSPOE-SW8E

The VSPOE-SW8E achieves incredible network & power transmission distances over regular Ethernet cable. Extend CCTV installations up to 800m when paired with compatible extended PoE (ePoE) IP surveillance cameras. The VSPOE-SW8E also features Hi-PoE device support, multiple uplink port types and option for DIN rail mounting.

Product Features:

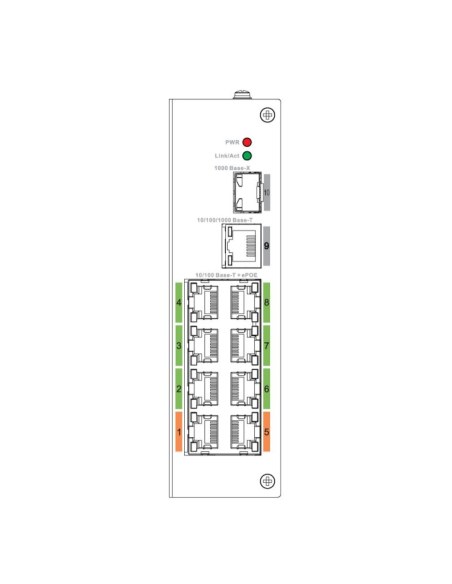

• 8 x PoE+ device ports with 100Mbps per port (ePoE capable)

• 1 x Hi-PoE device port with 100Mbps per port (ePoE capable)

• 1 x 1000Mbps Gigabit RJ45 & SFP fibre uplink ports

• Total PoE power load up to 120W

• Extend up to 300m@100Mbps and 800m@10Mbps

• Unmanaged switch for plug and play applications

• DIN rail mountable for neat rackmount installations

• Professional appearance full metal enclosure

* Refer to datasheet for ePoE transmission performance tables

Dimensions: 150 x 100 x 42mm
Operating Environment: -30°C~65°C / RH10%~90%
Weight: 0.59kg
Ports: 8 ports
PoE: Yes
Mounting Options: DIN rail
DHCP: N/A
PoE Protocol: PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE
Device Ports: 8 x 10/100 Base-T (PoE power supply ports)
Exchange Mode: Store & forward
Extend Mode: N/A
Flow Control: Enabled

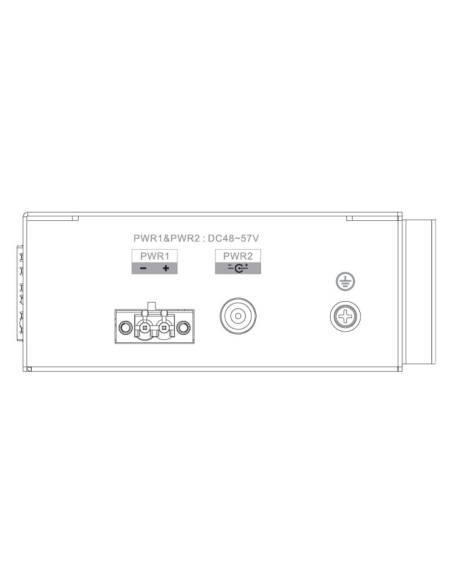

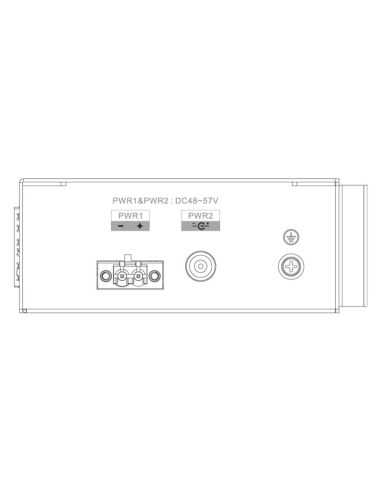

Input Power: 48 ~ 57VDC
Lightning Protection: Common Mode: 4KV / Differential Mode: 2KV
LLDP: N/A
MAC Address Capacity: 8K
Network Management: N/A
Network Time Protocol: N/A
Packet Forwarding Rate: 4.17Mpps
PoE Management: N/A
Port Aggregation: N/A
Port Mirroring: N/A
Quality of Service: N/A
Security Features: N/A
Spanning Tree Protocol: N/A
Speed: Fast 10/100
Switch Management: Unmanaged
Switch Power Load: Ports 1, 5: ≤60W / Port 2, 3, 4, 6, 7, 8: ≤30W (Total: ≤120W)
Switching Capacity: 8.8Gbps
System Maintenance: N/A
Uplink Ports: 1 x 1000 Base-X / 1 x 10/100/1000 Base-T
Virtual LAN: N/A

Product Datasheet

VSPOE-SWE Series Product Datasheet (PDF)

Download (804.5KB)

VIP Vision is backed by over 2,000 professionals in research and development at the forefront of advanced surveillance and IP intercom technologies. Their constant pursuit of innovation delivers cutting edge products with high quality, performance and reliability.

With 4 to 128 channel systems, VIP Vision offers professional video surveillance solutions for small projects through to large commercial, public sector and government level applications.

Stream beyond Ultra HD with 12 megapixel recording using the latest range of VIP Vision IP surveillance cameras. Adaptable to any task, the range offers a wide selection of professional bullet and dome cameras, as well as application specific models such as PTZ, fisheye and pinhole cameras.

VIP Vision IP systems are accompanied by an extensive range of accessories including, video wall controllers, brackets & adapters, central management software and PoE accessories to help you deliver the most professional and reliable install possible.

Rest assured knowing you have usable video evidence when it matters most with VIP Vision IP surveillance.
