• -20%
Mercusys 5-Port Gigabit Desktop Switch with MS105GP
Mercusys 5-Port Gigabit Desktop Switch with MS105GP
Mercusys 5-Port Gigabit Desktop Switch with MS105GP

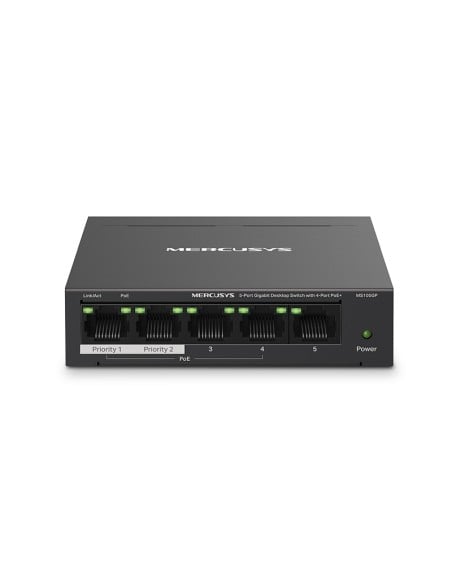

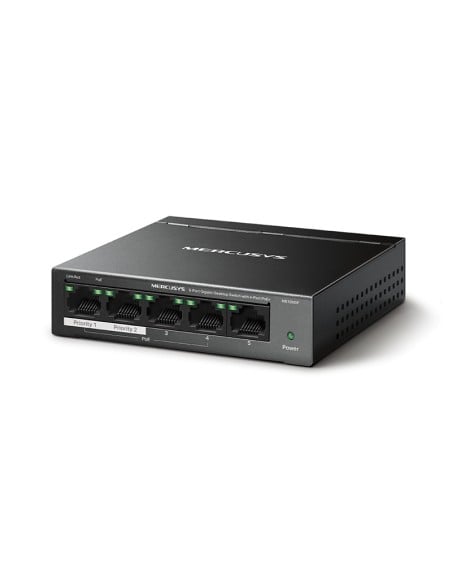

Mercusys 5-Port Gigabit Desktop Switch with 4-Port PoE+ - MS105GP

MS105GP
In Stock - Ready to Ship
$ 38.80 $ 48.50 -20%
inc-GST
Time left
  • 5× 10/100/1000 Mbps RJ45 ports
  • With four PoE+ ports, transfers data and power on one single cable
  • Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports
  • Increases PoE transmission distance to 250 m by Extend Mode*
  • One click to divide traffic for specific ports for stability and security
  • Works with IEEE 802.3af/at compliant PDs
  • Allows for efficient heat dissipation and long network life
  • Simple to use and saves time and effort
  • 5 Years Limited Manufacturer Warranty



Mercusys MS108GP | 8-Port Gigabit Desktop PoE Switch • 7 × PoE+ • 65 W Budget

Mercusys MS108GP gigabit PoE switch

Key Features

  • 8 × 10/100/1000 Mb/s RJ-45 ports – 7 PoE+ (PSE) + 1 uplink
  • 65 W Total PoE Budget – up to 30 W per PoE port (IEEE 802.3af/at)
  • Extend Mode – 250 m PoE run for remote IP cameras*
  • Isolation Mode – one-touch VLAN for secure, jitter-free NVR traffic
  • PoE Auto-Recovery – watchdog automatically reboots frozen PDs
  • Fan-less Metal Chassis – silent operation & superior heat dissipation
  • 100 % Plug-and-Play – no software or configuration required

PoE two cables in one

PoE benefits graphic

Power over Ethernet — Two Cables in One

PoE illustration

  • No Fuss • Deploy IP cameras & APs without electricians.
  • Cost-Efficient • Save on extra power points & adapters.
  • Flexible Placement • Mount devices exactly where coverage is best.
  • Smart Power • Protects equipment from overload & surges.

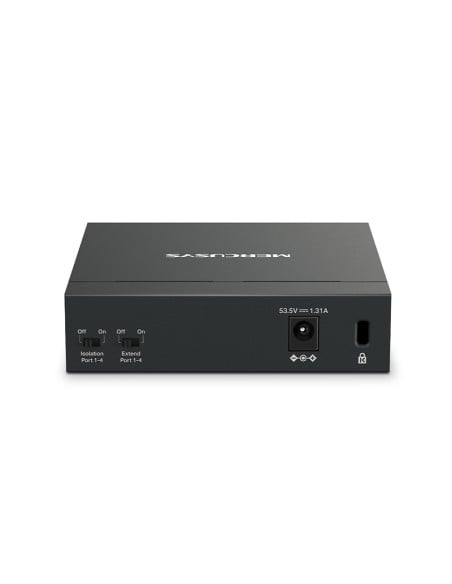

side angle rear panel
underside box contents

extend & isolation modes

Real-World Applications

  • Seven-camera VIGI/Tapo bundles for cafés, retail stores and workshops
  • Small office VoIP phone clusters with a high-speed uplink to the router
  • Ceiling Wi-Fi 6 AP roll-outs in classrooms & hospitality guest areas
  • Remote gate intercoms and PTZ cameras using 250 m extend mode*
  • Edge IoT: RFID readers, sensors, smart-lighting controllers
Specification Details
Ports 8 × RJ-45 Gigabit Ethernet (7 × PoE+, 1 × uplink)
PoE Budget 65 W total / 30 W max per port
Extend Mode 250 m @ 10 Mb/s for PoE ports*
Switching Capacity 16 Gb/s
Housing / Cooling Metal, fan-less passive cooling
Operating Temp 0 °–40 °C  |  10 %–90 % RH
Storage Temp -40 °–70 °C  |  5 %–95 % RH

Package Contents

  • MS108GP 8-Port Gigabit Desktop PoE+ Switch
  • 12 V Power Adapter
  • Quick Installation Guide

* PoE budget & extend-mode distance are based on laboratory testing. Actual results vary with cable quality, ambient temperature and total PD load.
