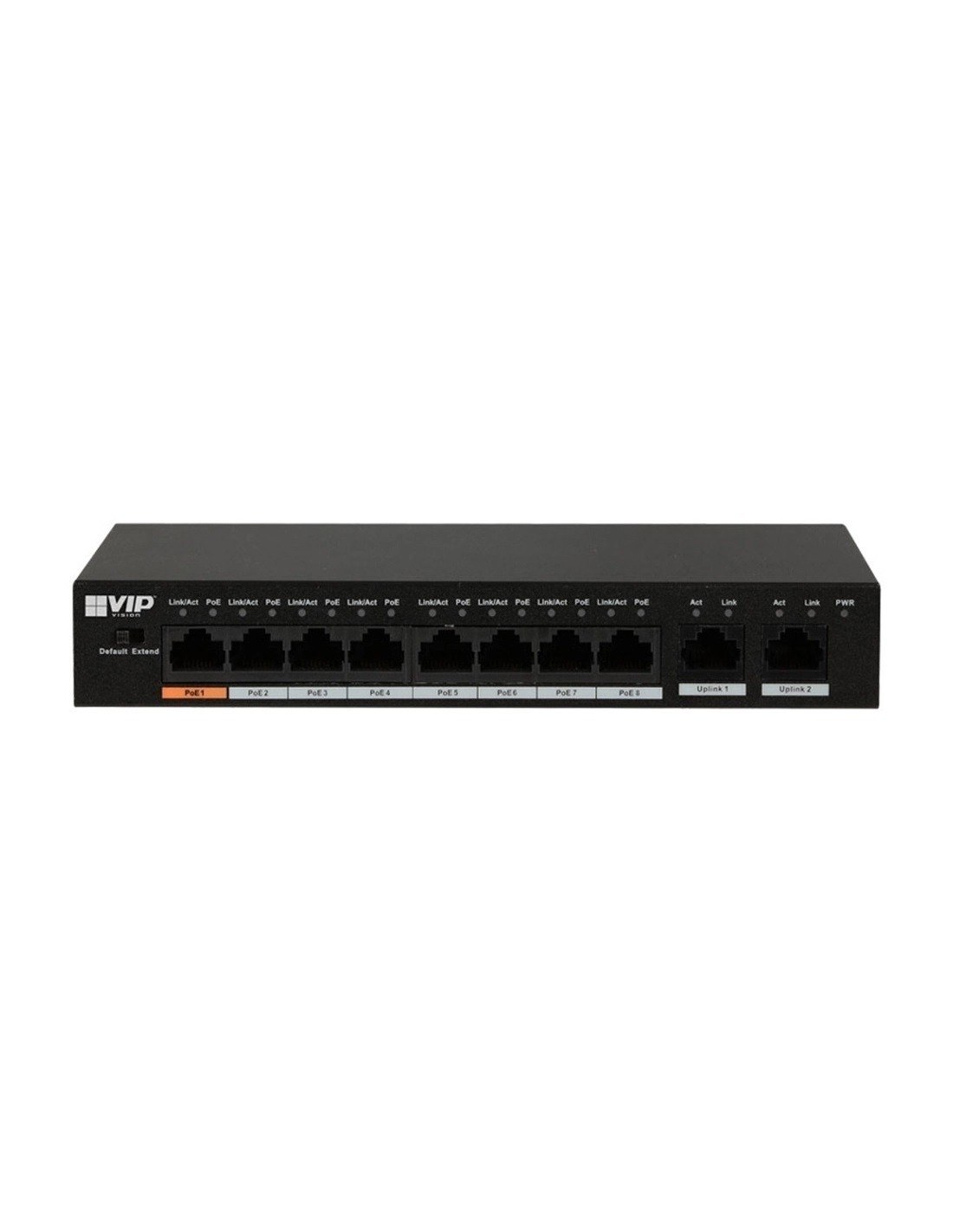

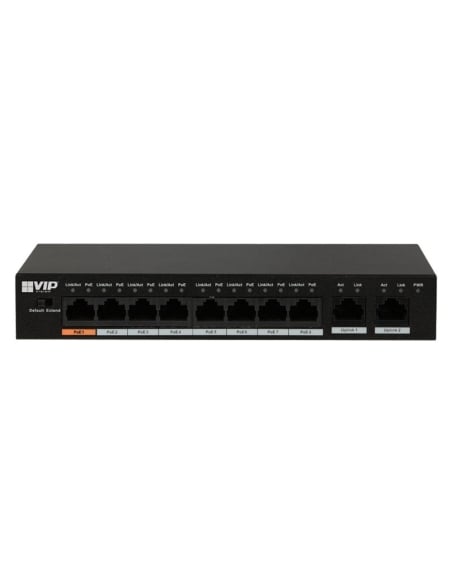

VIP Vision VSPOE-SWA8G 8-port Unmanaged Hi-PoE Network Switch
- Layer 2 commercial PoE switch
- Features 1 'Orange' Hi-PoE port
- Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
- MAC auto learning & aging with 2K MAC address capacity
- Supports MDI/MDIX self-adaptation
- Support PoE, PoE+ and Hi-PoE
- 250m PoE transmission range
- Metal Casing
VIP Vision 8-port Unmanaged Hi-PoE Network Switch
VSPOE-SWA8G
4 Years Warranty!
The VSPOE-SWA8G is an 8-port Ethernet switch. It features 8 10/100Mbps PoE ports & 2 10/100/1000Mbps uplink ports, with 250m PoE transmission. This commercial POE switch provides high-speed data forwarding and is widely used in networking and wireless systems, surveillance, IP telephony and more.
Product Features:
• Layer 2 commercial PoE switch
• Features 1 'Orange' Hi-PoE port
• Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
• MAC auto learning & aging with 2K MAC address capacity
• Supports MDI/MDIX self-adaptation
• Support PoE, PoE+ and Hi-PoE
• 250m PoE transmission range
• Metal Casing
- Dimensions
- 190 x 100 x 42mm
- Operating Environment
- -10° ~ 55°C / RH90% (max)
- Weight
- 0.49kg
- Ports
- 8 ports
- PoE
- Yes
- Mounting Options
- Desktop
- DHCP
- N/A
- PoE Protocol
- PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE
- Device Ports
- 8 x 10/100 Base-T (PoE power supply ports)
- Exchange Mode
- Store & forward
- Extend Mode
- Up to 250m range at 10Mbps (all ports via device switch)
- Flow Control
- N/A
- Input Power
- 48 ~ 57VDC
- Lightning Protection
- Common Mode 2kV / Differential Mode 0.5kV
- LLDP
- N/A
- MAC Address Capacity
- 2K
- Network Management
- N/A
- Network Time Protocol
- N/A
- Packet Forwarding Rate
- 4.17Mbps
- PoE Management
- N/A
- Port Aggregation
- N/A
- Port Mirroring
- N/A
- Quality of Service
- N/A
- Security Features
- N/A
- Spanning Tree Protocol
- N/A
- Speed
- Fast 10/100
- Switch Management
- Unmanaged
- Switch Power Load
- Port 1: ≤60W / Port 2-8: ≤30W / Total: ≤96W
- Switching Capacity
- 5.6Gbps
- System Maintenance
- N/A
- Uplink Ports
- 2 x 10/100/1000 Base-T
- Virtual LAN
- N/A
