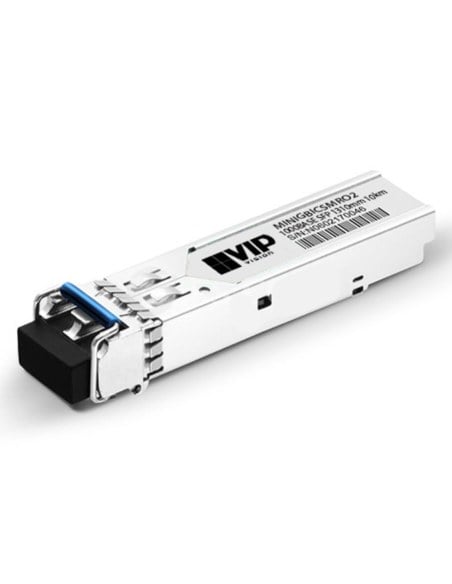

VIP Vision Mini GBIC / SFP Single-mode Fibre Adapter (SMF) - SFPSM1
- Mini GBIC / SFP optical fibre adapter
- Transfer data over optical fibre at up to 1.25Gbps
- SFP (Small Form-factor Pluggable)
- Compatible with SMF (single mode fibre)
- 1310nm VCSEL laser transmitter
- Hot-pluggable, allowing for installation and removal while the system is running
- Built-in digital diagnostic functions, including optical power monitoring
- Installed in the 1000 Base-X (Combo port) SFP ports of VIP Vision PoE switches.
VIP Vision Mini GBIC / SFP Single-mode Fibre Adapter (SMF)
SFPSM1
The SFPSM1 is a compact, hot-pluggable SFP module for linking high-speed optical fibre infrastructure to a network. Easily configure and upgrade networks for high-speed networking over optical fibre, with a bit rate of up to 1.25Gbps.
Product Features:
• Mini GBIC / SFP optical fibre adapter
• Transfer data over optical fibre at up to 1.25Gbps
• SFP (Small Form-factor Pluggable)
• Compatible with SMF (single-mode fibre)
• 1310nm VCSEL laser transmitter
• Hot-pluggable, allowing for installation and removal while the system is running
• Built-in digital diagnostic functions, including optical power monitoring
Installed in the 1000 Base-X (Combo port) SFP ports of VIP Vision PoE switches.
- Cable Type
- Single-mode Fibre
- Power Supply
- 3.3VDC / 300mA
- Operating Environment
- -40 to 85°C / RH95% (max)
- Interface
- LC duplex
- DOM Support
- Yes
- Form Type
- SFP (Small Form-factor Pluggable)
- Max Bit Rate
- 1.25Gb/s
- Max Cable Distance
- 10km
- Protocols
- SFF-8472 MSA Compliant, IEEE 802.3ah-2004, ANSI Fibre Channel
- Receiver Sensitivity
- < -21dBm
- TX Power
- -9.5 ~ -3dBm
- Wavelength
- 1310nm
