• New
360° Ceiling Mount Mast, Rotating Pole for LCDBKT-WCM
360° Ceiling Mount Mast, Rotating Pole for LCDBKT-WCM

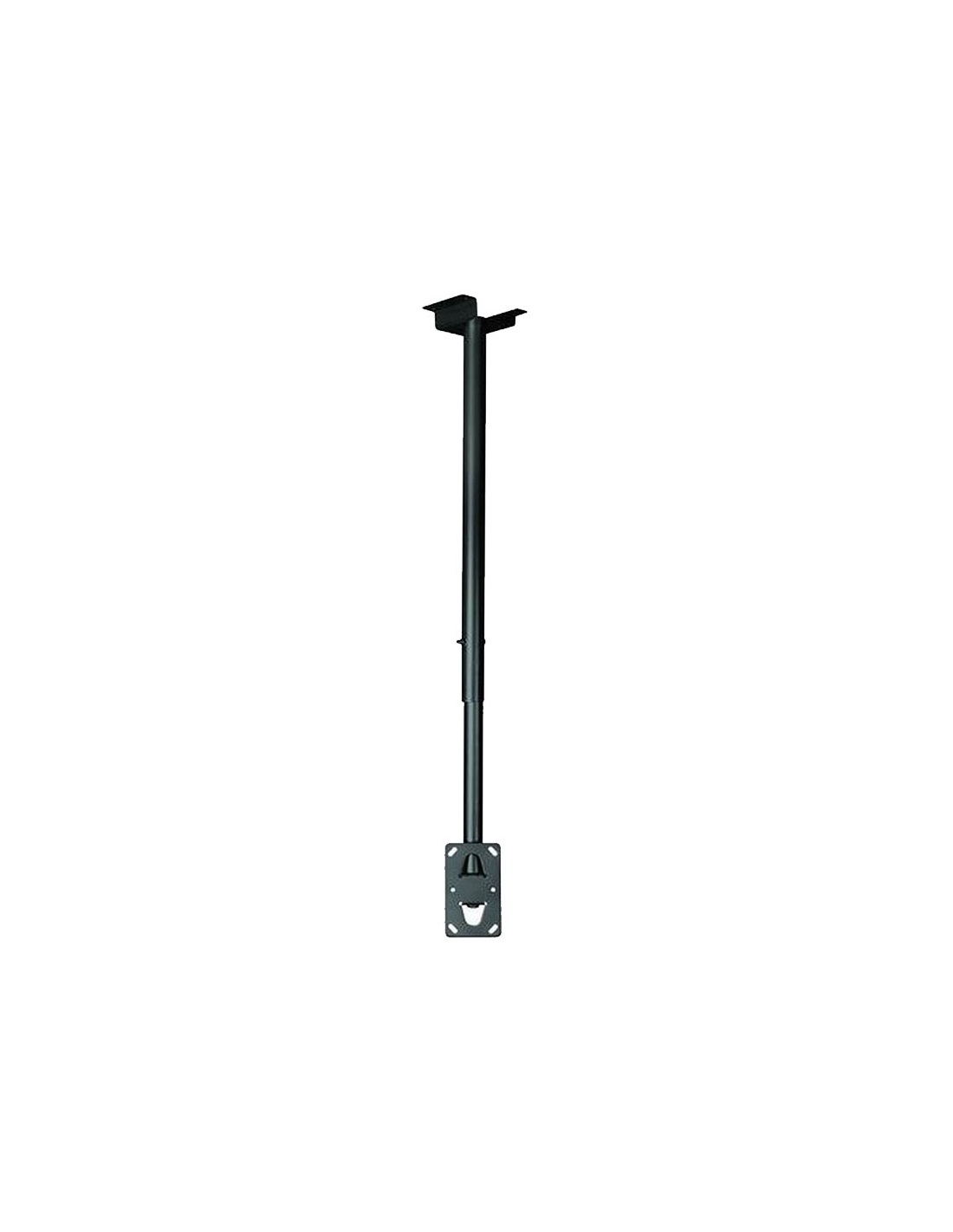

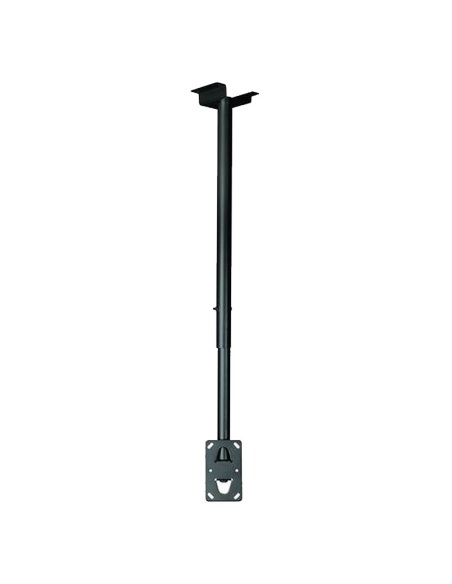

360° Ceiling Mount Mast, Rotating Pole for Displays & Cameras – LCDBKT-WCM

LCDBKT-WCM
In Stock - Ready to Ship
$ 95.00
inc-GST


• Up to maximum 150 x 90 VESA support
• Up to 75kg load capacity

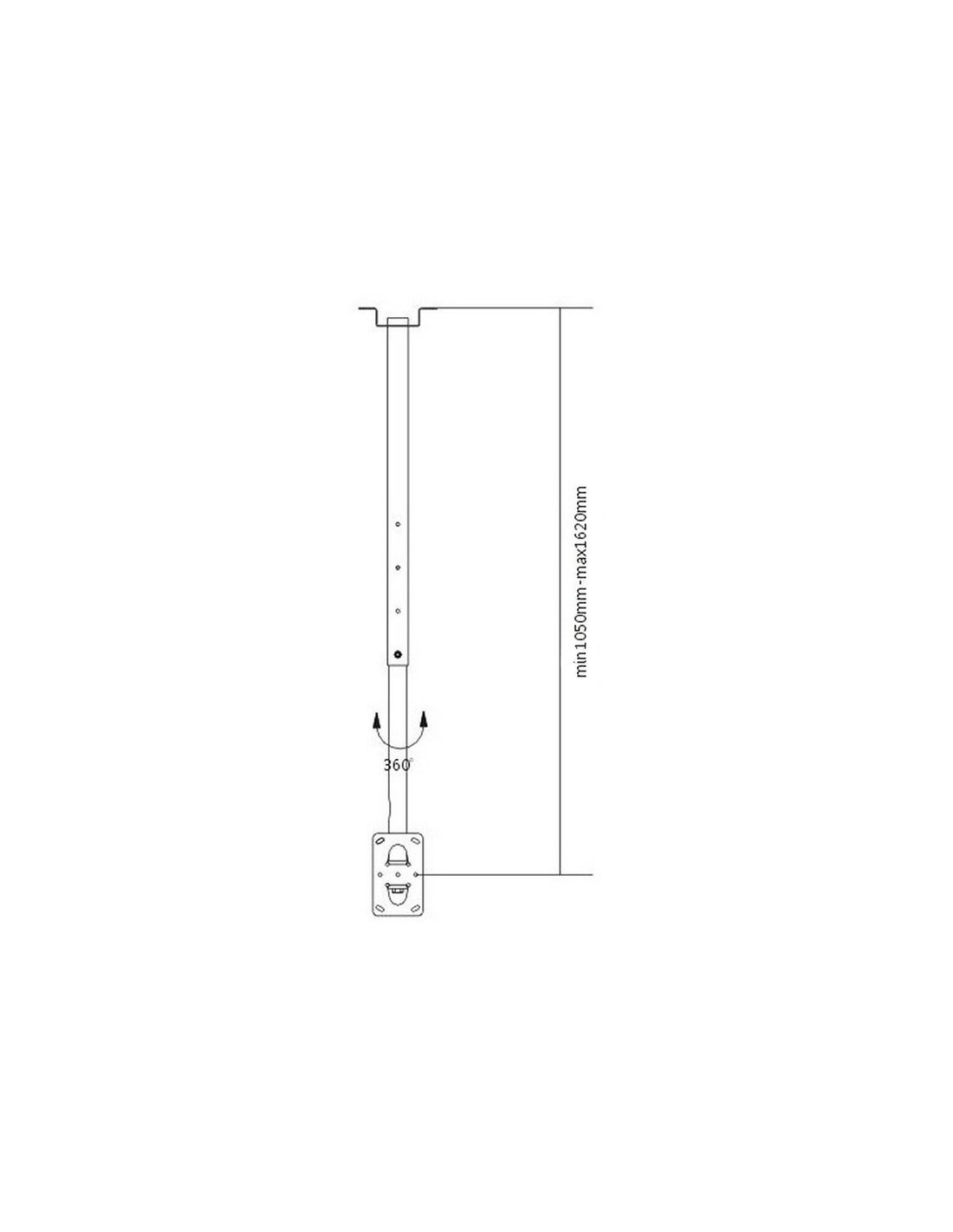

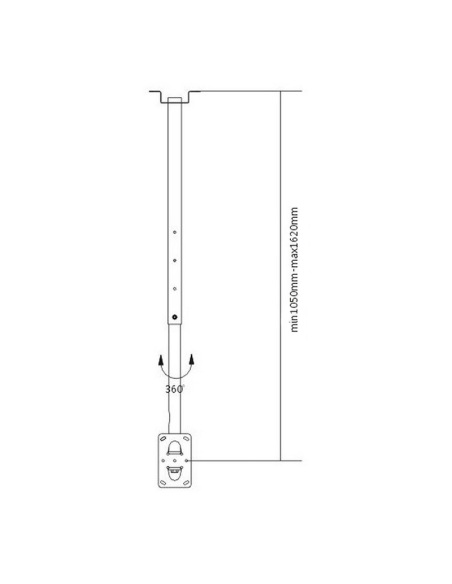

• 360° rotation with drop of adjustable 1050-1620mm
• Satin black finish aluminium

Compatible with LCDBKT-W70T vertical LCD wall mount bracket.

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep



LCDBKT‑WCM | 360° Rotating Ceiling‑Mount Mast — Monitor Brackets

Heavy‑duty ceiling mast with 360° rotation, integrated cable management and compatibility with Flashview LCD/VESA bracket heads.

The LCDBKT‑WCM is a professional ceiling‑mount mast that lets you suspend displays from the ceiling and rotate them 360° for the perfect viewing angle. It features an internal cable run for power and signal, a sturdy ceiling plate, and a universal head interface designed to pair with Flashview LCD/VESA bracket heads for a clean, adaptable installation.

Key Features & Benefits

  • 360° rotation — Quickly align the display for audiences or operators.
  • Ceiling plate + mast — Rigid steel assembly for secure overhead installs.
  • Integrated cable management — Route power/HDMI neatly through the pole.
  • Bracket‑head compatible — Works with Flashview LCD/VESA heads (sold separately) to suit various screen sizes and VESA patterns.
  • Clean aesthetic — Satin black finish suits corporate, retail and control‑room spaces.

Ideal Deployments

  • Security control rooms and front‑of‑house monitoring points
  • Retail, reception and wayfinding digital signage
  • Open‑plan offices and meeting spaces needing overhead displays

Technical Details — At a Glance

  • Model: LCDBKT‑WCM • Type: Rotating ceiling‑mount mast
  • Rotation: 360° continuous • Cable management: Internal routing
  • Structure: Steel ceiling plate + tubular mast • Finish: Satin black
  • Head interface: Compatible with Flashview LCD/VESA bracket heads
  • Included: Ceiling mount hardware set; mast; head adapter kit
  • Warranty: 1 Year

Design & Quote: Tell us your screen model, VESA pattern and ceiling type/height. We’ll bundle the correct head, fixings and cabling around LCDBKT‑WCM.

Dimensions
1620mm (H)
Weight
-
Material
SSPC Steel
Load Capacity
75kg
Screen Size
N/A
Distance from Mounting Surface
1050-1620mm
Swivel Angle
N/A
Tilt Angle
N/A
VESA Mount
150 x 90
Desk Thickness
N/A
Installation Type
Ceiling Mount
Max. Extension
N/A
Max. Height
N/A
Max. Monitors
1
Rotation
360°
USB Ports
N/A
